Mercusys MA30E AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter
Mercusys
Mercusys MA30E AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter
The Mercusys MA30E AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter adds dual-band wireless and Bluetooth 5.0 to a desktop PC. It suits users upgrading aging systems or adding connectivity where none exists, delivering speeds up to 1167 Mbps across 5 GHz and 2.4 GHz bands.
Why this product
Dual-band speeds up to 1167 Mbps
867 Mbps on 5 GHz for gaming and streaming, 300 Mbps on 2.4 GHz for everyday browsing.
Bluetooth 5.0 built in
Connects wireless headphones, mice, and controllers directly to your PC without a separate adapter.
WPA3 security
Latest Wi-Fi encryption standard protects against brute-force attacks and session hijacking.
MU-MIMO and OFDMA
Lets multiple devices communicate with your router at once instead of taking turns, reducing lag.
Two fixed high-gain antennas
Wider coverage and stronger signal reach than single-antenna adapters.
- Wi-Fi Standard802.11ac dual band
- Max Speed1167 Mbps (867 + 300 Mbps)
- Bluetooth5.0
- InterfacePCIe
- Antennas2× fixed high-gain omnidirectional
- SecurityWPA3-SAE
- SKUMER-1333
- EAN6957939001896
- PCIe slot required. Fits standard-height PCIe x1 or wider slots.
- Windows 10 and 11 (64-bit) only. No macOS or Linux drivers.
- Bluetooth requires a USB 2.0 header on the motherboard for the included Bluetooth cable.
- Fixed antennas mean it cannot use a low-profile mounting bracket; ensure your case accommodates the antenna size.
Best for
- Desktop gamers upgrading from onboard Wi-Fi or adding connectivity
- Users who need both Wi-Fi and Bluetooth on systems without either
- Homes with 5 GHz band access seeking faster streaming and downloads
- Those prioritising security with WPA3-capable routers
Trade-offs
- Laptops or small-form-factor systems that cannot accommodate fixed external antennas
- Users needing low-profile brackets; the fixed antenna design prevents low-profile mounting
- macOS or Linux systems; drivers are Windows-only
- Motherboards without a USB 2.0 header if Bluetooth functionality is required
Please note: MA30E is not compatible with the low-profile bracket because of the fixed antennas.
Working on both 5 GHz and 2.4 GHz bands, the 802.11ac dual band WiFi PCIe adapter (MA30E) reaches speeds up to 1167 Mbps. MA30E providing Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz (300 Mbps) band for surfing, emailing, and social media, or switch to 5 GHz (867 Mbps) band for gaming, streaming, and large file downloads.

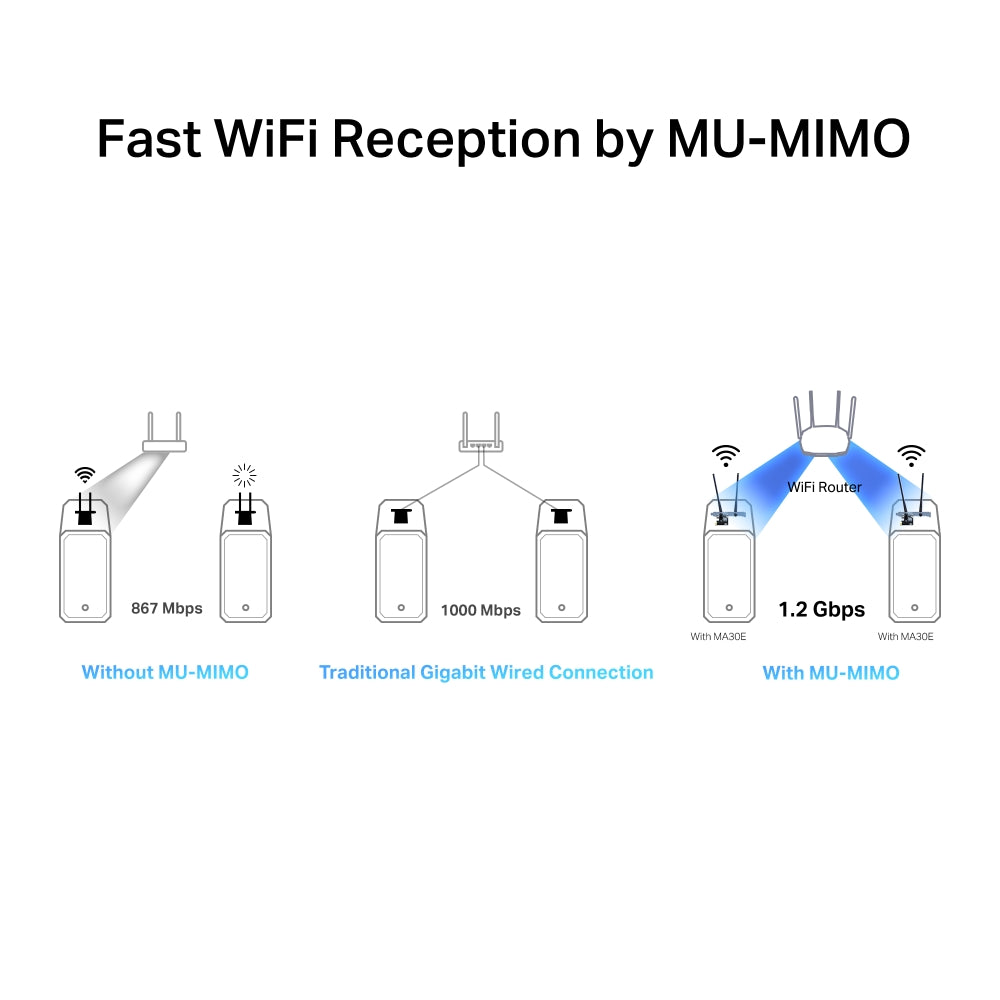

By combining OFDMA and MU-MIMO, MA30E brings your PC's WiFi reception to the next level. This ensures the efficiency of your PC's WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.

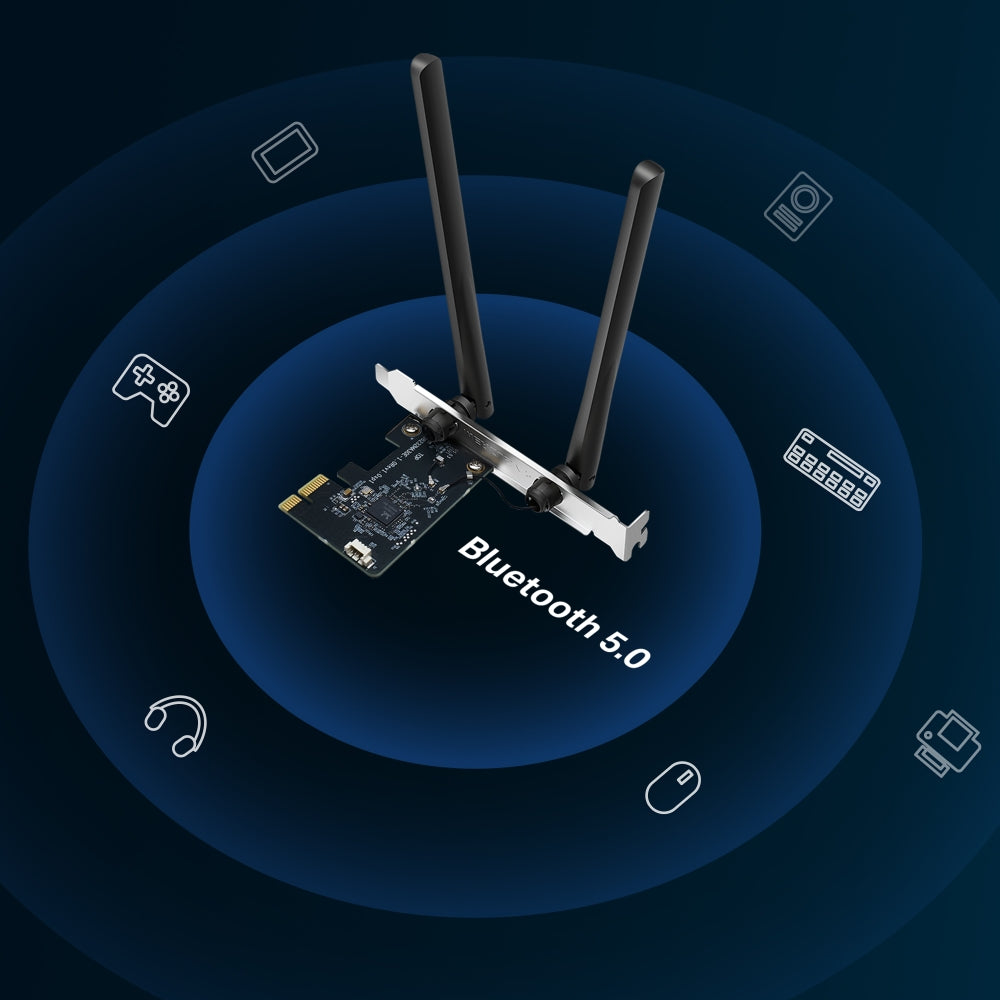

MA30E makes your PC Bluetooth-capable with Bluetooth 5.0 which achieves more stable connection, farther range and faster transmission speeds than Bluetooth 4.2. Just connect your Bluetooth devices to your computer and enjoy with ease. Enable full Bluetooth functionality by connecting the included Bluetooth Header Cable to your motherboard's USB 2.0 header.
Two strong signal-booster high-gain antennas significantly increase the range of the currently available Wi-Fi, providing a quick, seamless online experience from a greater distance.
The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.
- Delivers robust protection even when you are using a weak password
- Prevents data from being snooped even if a cracker compromises a session's secret keys
- Creates an active defense against security threats and intruders
MA30E fully supports for the latest Windows 11. Just simply equip your PC with strong wireless by MA30E.
General
| Brand | Mercusys |
|---|---|
| Model | MA30E |
| Wireless Standards | IEEE 802.11 a/n/ac (5 GHz), IEEE 802.11 b/g/n (2.4 GHz) |
Performance
| 5 GHz Speed | 867 Mbps |
|---|---|
| 2.4 GHz Speed | 300 Mbps |
| Bluetooth Version | 5.0 |
| Security | WPA-PSK, WPA2-PSK, WPA3-SAE |
Physical
| Interface | PCIe |
|---|---|
| Antennas | 2× fixed high-performance omnidirectional |
| Dimensions | 226.3 × 120.8 × 21.5 mm |
System Requirements
| Operating System | Windows 10, 11 (64-bit) |
|---|---|
| Included Accessories | Bluetooth Header Cable, Quick Installation Guide, Resource CD |
