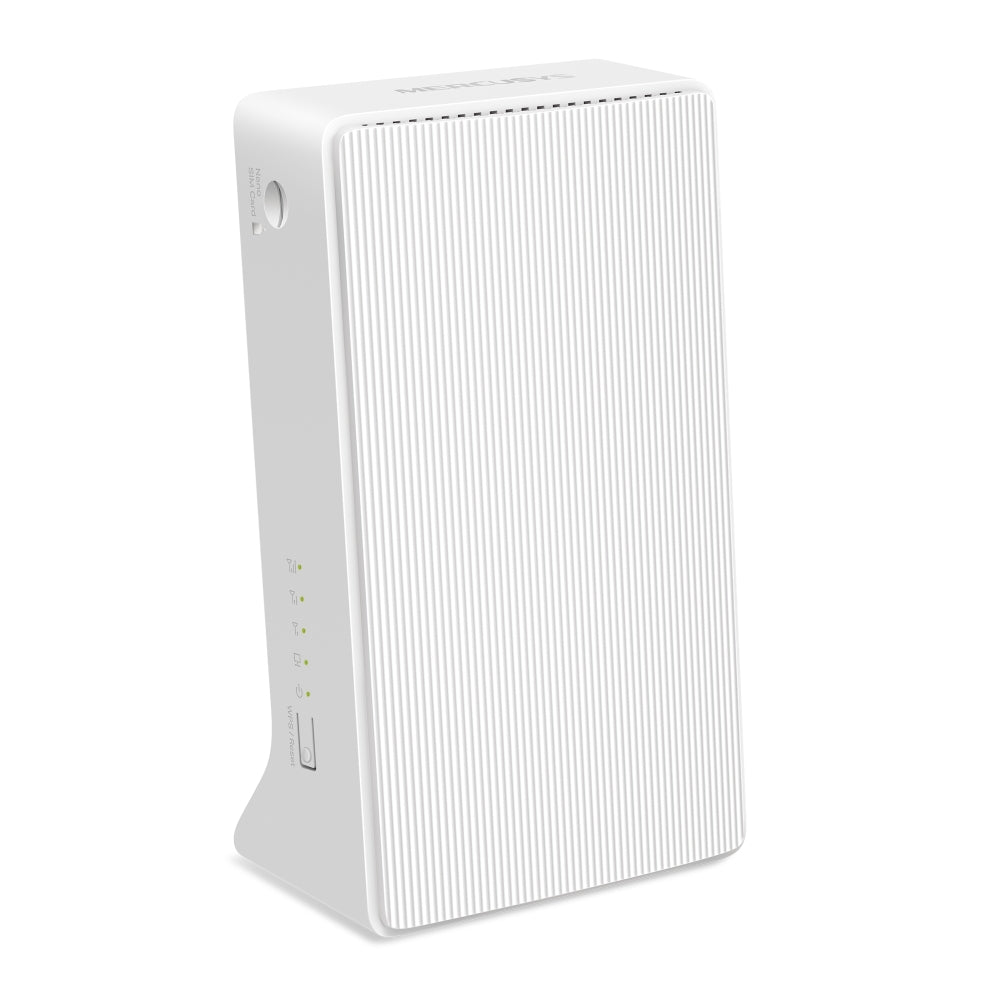

Mercusys MB230-4G 4G+ Cat6 AC1200 Dual Band Gigabit Router
Mercusys
Mercusys MB230-4G 4G+ Cat6 AC1200 Dual Band Gigabit Router
The Mercusys MB230-4G is a dual-band Wi-Fi router with integrated 4G+ Cat6 connectivity, designed for users in areas with unreliable or unavailable fixed broadband. It combines LTE data up to 300 Mbps download with Wi-Fi coverage for multiple devices, and can also function as a conventional wired router when a fixed connection is available.
Why this product

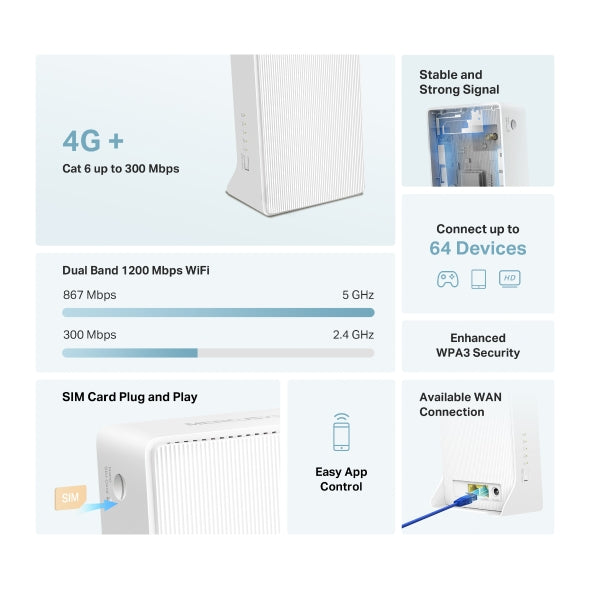

4G+ Cat6 with Carrier Aggregation
Achieves LTE download speeds up to 300 Mbps and upload up to 50 Mbps. Supports FDD-LTE and TDD-LTE bands, making it compatible with most global service providers.
Dual-band Wi-Fi AC1200
5 GHz band delivers 867 Mbps, 2.4 GHz delivers 300 Mbps. Internal high-gain antennas extend range and improve signal strength.
Connect 64 devices at once
Supports simultaneous connections across all bands for tablets, laptops, phones and other Wi-Fi devices.
Flexible wired connectivity
Gigabit LAN/WAN port allows it to work as a conventional router with cable, fiber or DSL modems. Second Gigabit LAN port for wired device access.
Data control and app management
Toggle 4G network access on or off to prevent unexpected charges. Set data caps and manage settings via the MERCUSYS app for Android and iOS.
- 4G LTE CategoryCat6 (4G+) with Carrier Aggregation
- 4G Download / UploadUp to 300 Mbps download / 50 Mbps upload
- Wi-Fi RatingAC1200
- Wi-Fi Speeds5 GHz: 867 Mbps, 2.4 GHz: 300 Mbps
- Simultaneous ConnectionsUp to 64 devices

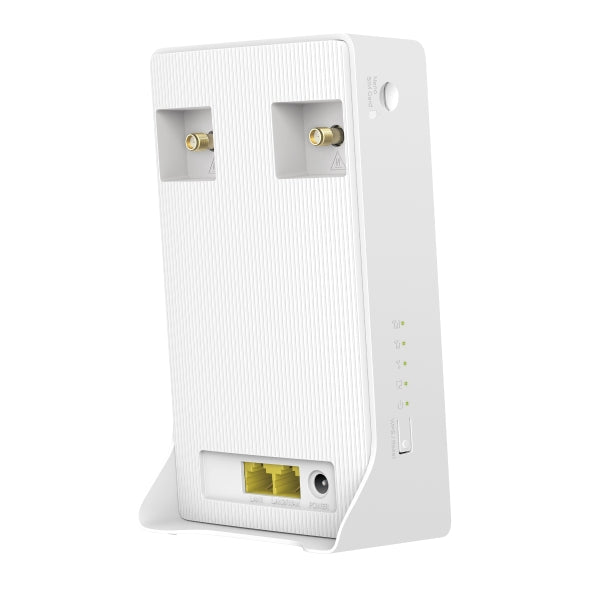

- Ports1 × Gigabit LAN/WAN, 1 × Gigabit LAN, 1 × Nano SIM Slot
- SKUMER-1214
- EAN6957939001834
- Works with nano SIM cards from most global 4G LTE service providers supporting FDD-LTE or TDD-LTE.
- Functions as a conventional wired router when connected to cable, fiber or DSL modems via the Gigabit LAN/WAN port.
- Compatible with Wi-Fi devices supporting 802.11ac, 802.11a, 802.11b, 802.11g or 802.11n standards.
- Requires a nano SIM card with active 4G LTE plan for mobile data; Wi-Fi functions alone do not provide internet without a fixed wired connection or active SIM.
Best for
- Remote workers and home offices in areas without fixed broadband access
- Users needing flexible connectivity with the option to fall back to wired internet when available
- Households or small offices sharing multiple devices over Wi-Fi and mobile data
- Frequent travelers or temporary deployments requiring self-contained mobile connectivity
Trade-offs
- Heavy bandwidth users. 4G LTE speeds of 300 Mbps download are shared across all connected devices and subject to provider network conditions; they do not match fiber or modern cable broadband sustained throughput.
- Users requiring unlimited high-speed data. The router supports data caps and roaming controls, indicating reliance on metered mobile plans; it is not designed as a replacement for flat-rate fixed broadband.
- Fixed-location deployments where wired broadband is available. If a fixed connection is in reach, a conventional router or modem-router combo will offer better value and performance.

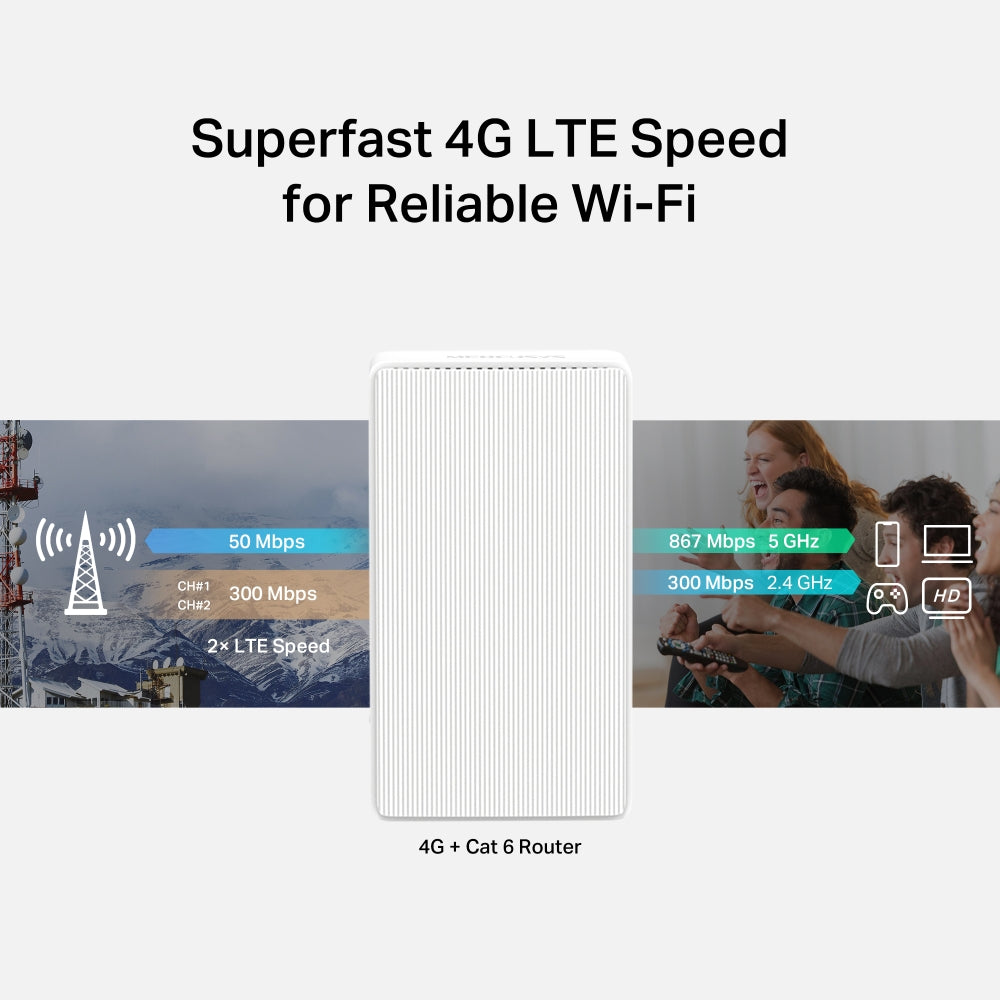

MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.

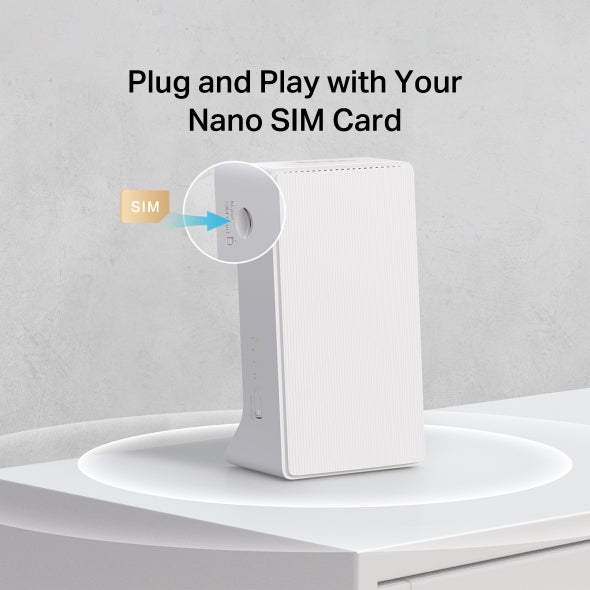

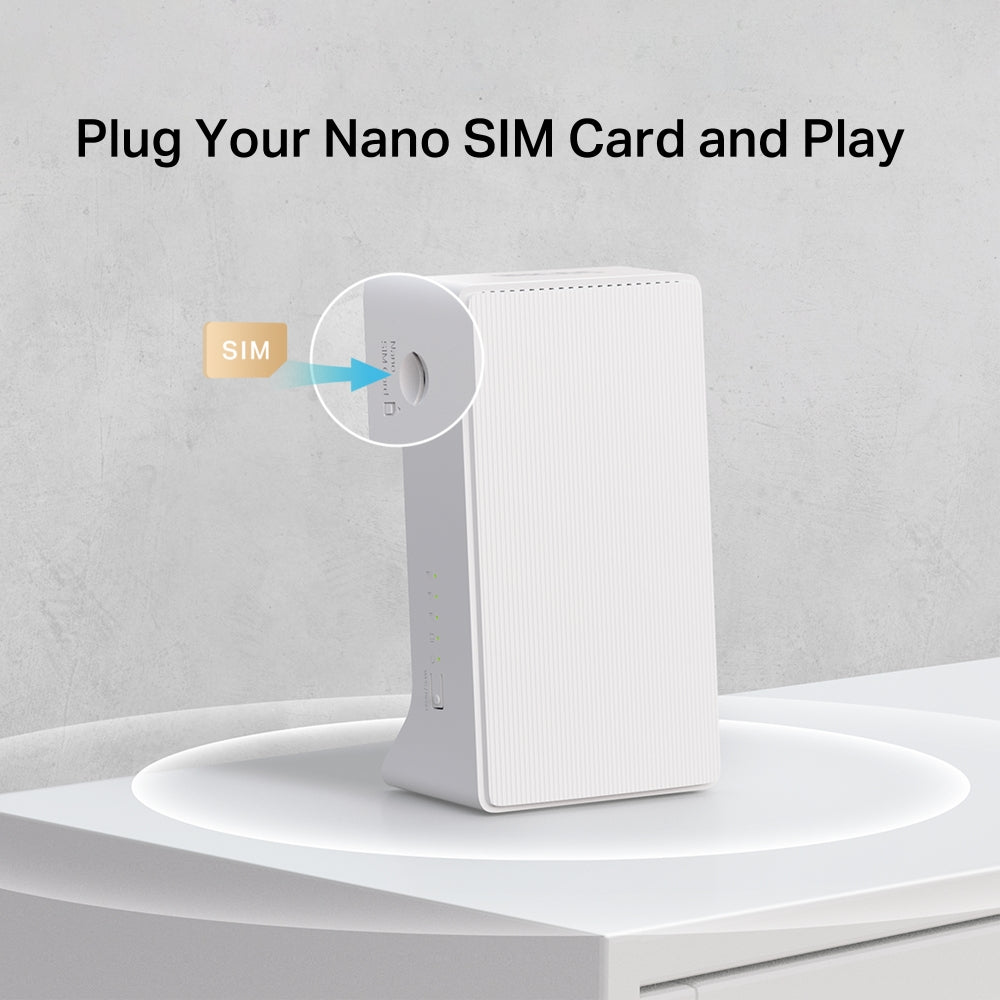

Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

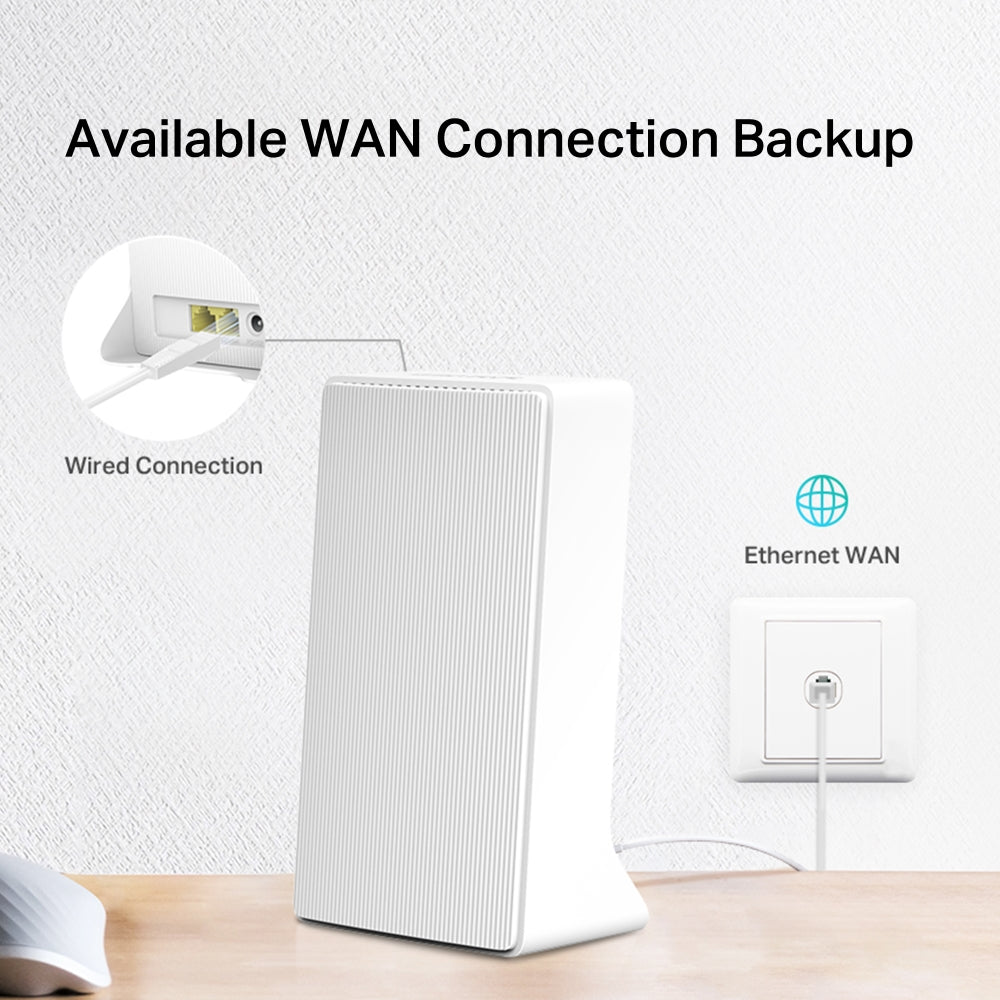

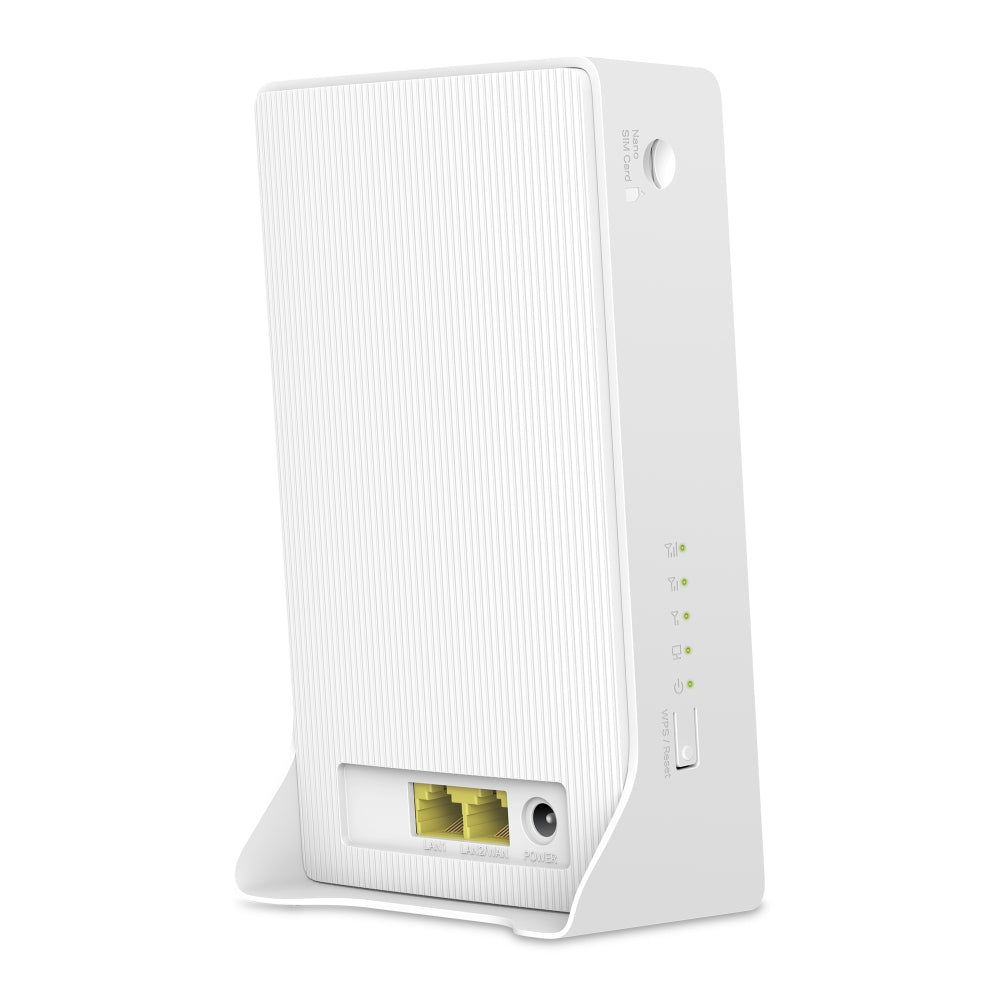

With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
Turn on or off your 4G network access by yourself to avoid unknowingly consumption. If your 4G nano SIM card supports roaming, you can easily turn it on or off to access. Set the maximum amount of flow used to avoid overspending.
Networking
| Brand | Mercusys |
|---|---|
| Standards | IEEE 802.11ac/a/b/g/n |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Security | WPA-PSK / WPA2-PSK / WPA3-SAE |
| LTE Bands (EU) | FDD-LTE: B1/B3/B5/B7/B8/B20/B28; TDD-LTE: B38/B40 |
| UMTS/HSPA+ Bands (EU) | B1/B5/B8 |
Performance
| Wi-Fi Speeds | 5 GHz: 867 Mbps, 2.4 GHz: 300 Mbps |
|---|---|
| 4G Download / Upload | Up to 300 Mbps download / 50 Mbps upload |
| Antennas | Internal high gain antennas |
Ports & power
| Interface(s) | 1 × Gigabit LAN/WAN Port, 1 × Gigabit LAN Port, 1 × Nano SIM Card Slot |
|---|---|
| Power Supply | Power Adapter |
Physical
| Dimensions | 95 × 61.05 × 165.97 mm |
|---|---|
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Operating Humidity | 10%~90% Non-Condensing |
