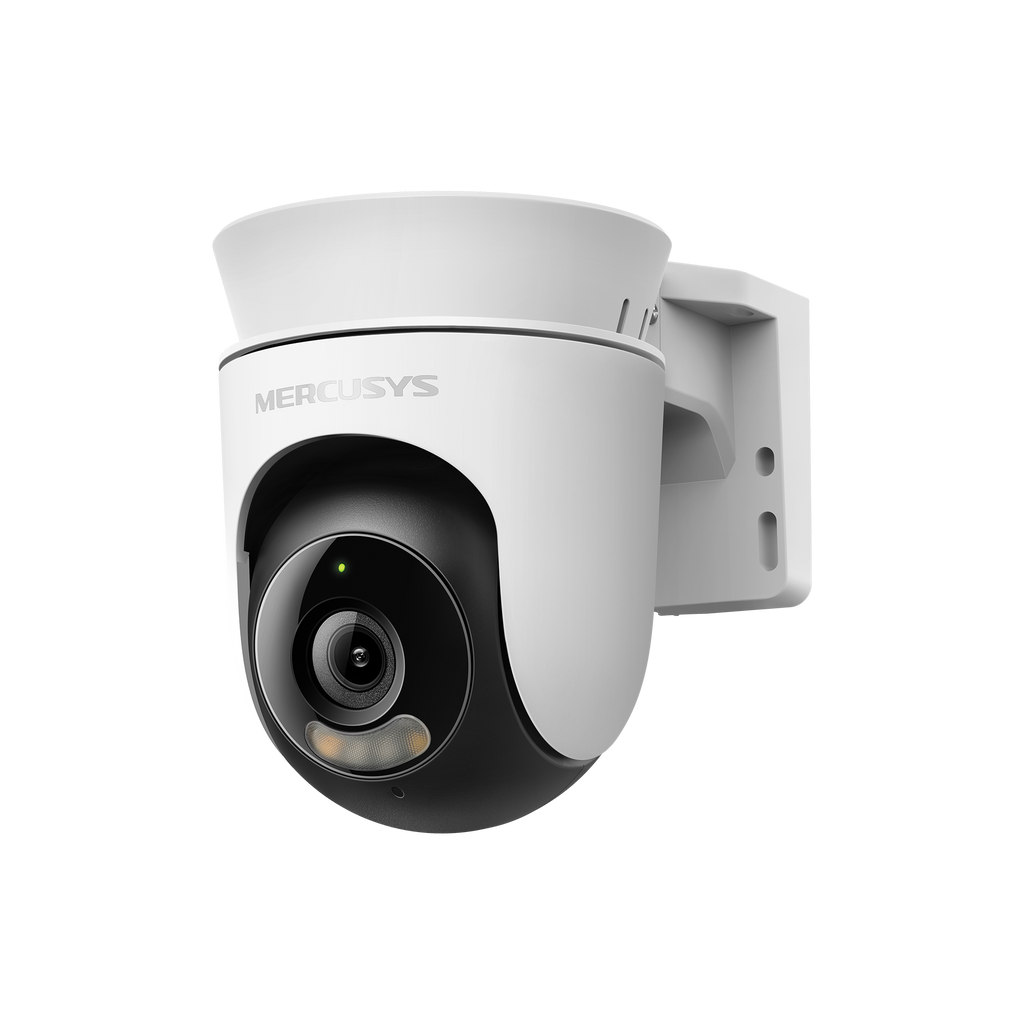

Mercusys MC510 Outdoor Pan/Tilt 2K QHD Security WiFi Camera
Mercusys
Mercusys MC510 Outdoor Pan/Tilt 2K QHD Security WiFi Camera
The Mercusys MC510 Outdoor Pan/Tilt 2K QHD Security WiFi Camera is an outdoor surveillance device for homeowners and small businesses who need wide-angle motion tracking and clear night vision without professional installation. It covers every corner of your outdoor space with automatic pan-and-tilt movement and delivers sharp 2K video even in darkness.
Why this product
2K QHD with 360° pan coverage
Delivers 2304 × 1296 resolution with 340° horizontal and 90° tilt range for complete outdoor visibility.
Smart motion and person detection
Automatically tracks movement and people, ignoring distractions like wind or shadows to reduce false alerts.
Full-color night vision
Captures clear, detailed video in low light and darkness using 850 nm IR LED and color night vision technology, with range up to 98 ft.
Two-way audio with siren
Built-in microphone and speaker let you hear and speak from your phone; 88 dB siren deters intruders when motion is detected.
IP65 weatherproof rating
Stands up to rain, dust, and snow for year-round outdoor use with flexible mounting options.
- Resolution2304 × 1296 px (2K QHD)
- Pan & Tilt340° pan, 90° tilt with full 360° coverage
- Night VisionColor night vision with 850 nm IR LED, 98 ft range
- StorageMicroSD up to 512 GB or cloud subscription
- ConnectivityWi-Fi only (no Ethernet)
- WeatherproofIP65 rated
- SKUMER-1073
- EAN6957939004613
- Works with Alexa and Google Assistant supported displays for voice control and viewing.
- Connects via Wi-Fi only — no Ethernet port available.
- Supports wall-mount, pole-mount, and ceiling installation.
- Records to microSD cards up to 512 GB (card sold separately) or MERCUSYS Camera Care cloud service.
Best for
- Homeowners monitoring a single outdoor area with motion tracking needs
- Users who want local storage without ongoing cloud subscription costs
- Installations requiring flexible mounting and full outdoor coverage
- Properties in wet, dusty, or snowy climates needing robust weatherproofing
Trade-offs
- No hardwired power option: Requires AC mains connection only; no PoE or battery mode.
- WiFi-dependent: Cannot be used in locations without stable wireless connection.
- Limited frame rate: Default 15 fps may miss fast-moving detail; adjustable only to 30 fps maximum.
- Cloud storage requires subscription: Free trial ends; ongoing video archiving needs MERCUSYS Camera Care paid plan.
See faces, vehicles, and movement in stunning 2K QHD clarity. Perfect for capturing complex outdoor details.
One camera is all you need to keep an eye on your entire outdoor space. It auto-tracks motion and follows preset patrol routes to cover every corner.
See clearly after dark with full-color night vision. Even in low-light or near-total darkness, the camera captures clear details and provides round-the-clock protection you can count on.
The built-in microphone and speaker let you hear and speak from your phone — whether you're greeting a guest, talking to a delivery driver, or calming your pet.
MC510 uses smart motion and person detection to ignore distractions like falling leaves or shifting light. When a real threat is detected, it triggers a flashing light and loud siren to alert and deter intruders.

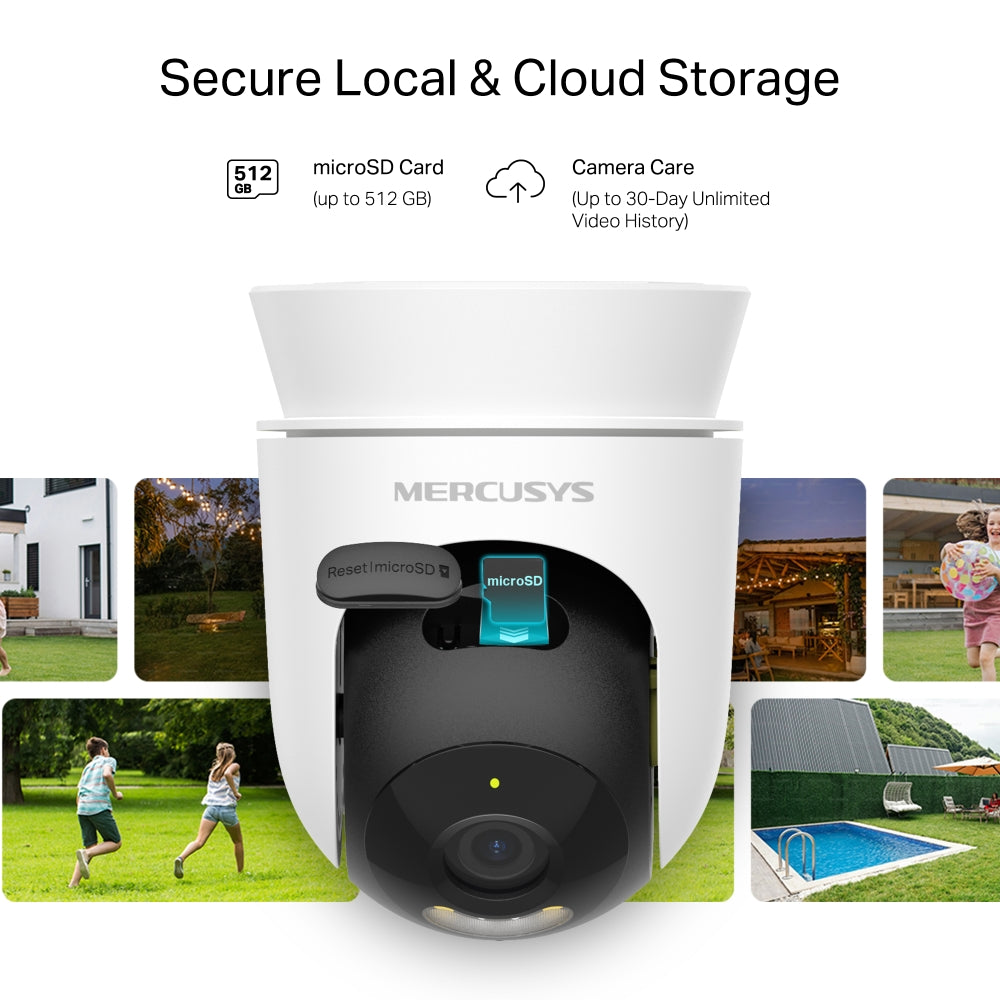

Save all your important moments to a microSD card (up to 512 GB) or subscribe to MERCUSYS Camera Care for cloud service after a free trial.†‡

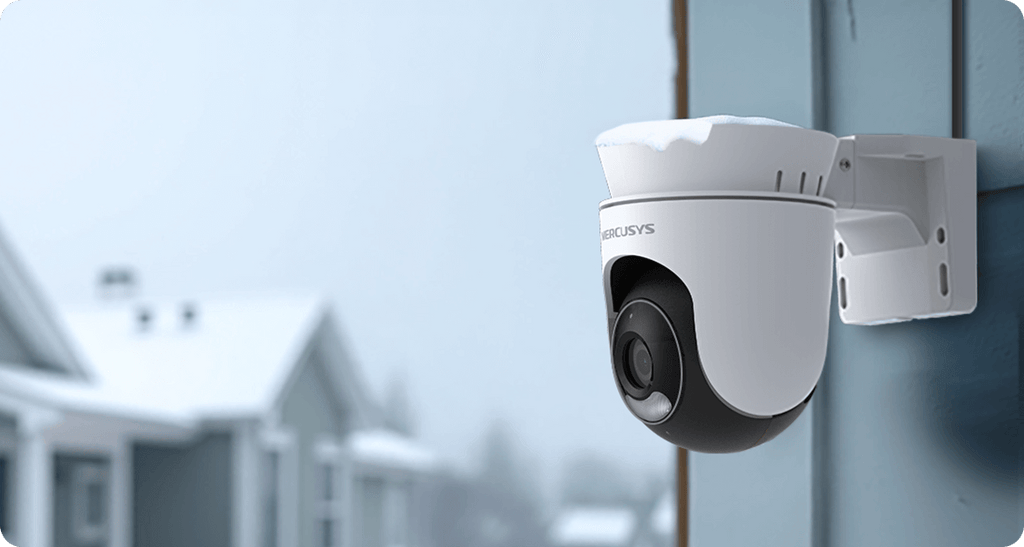

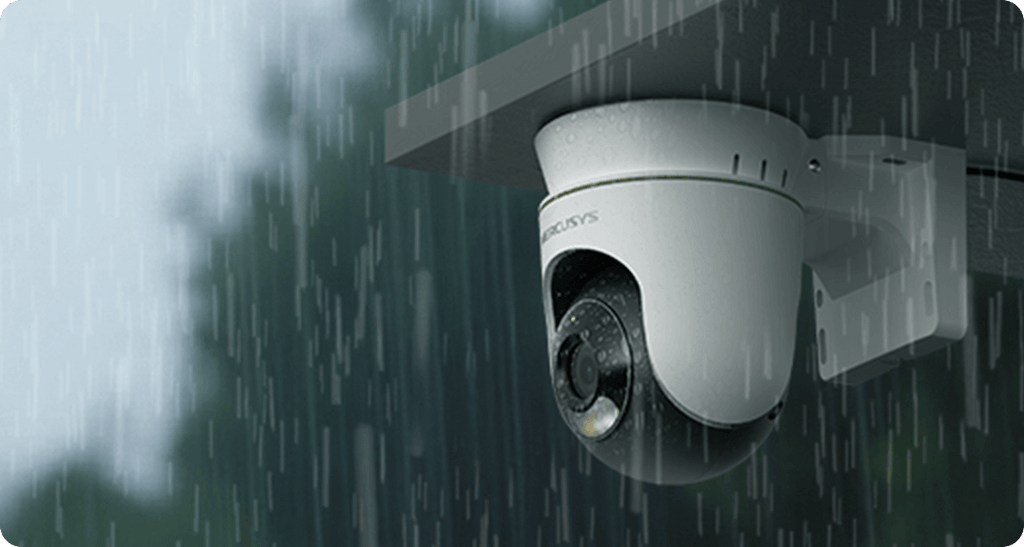

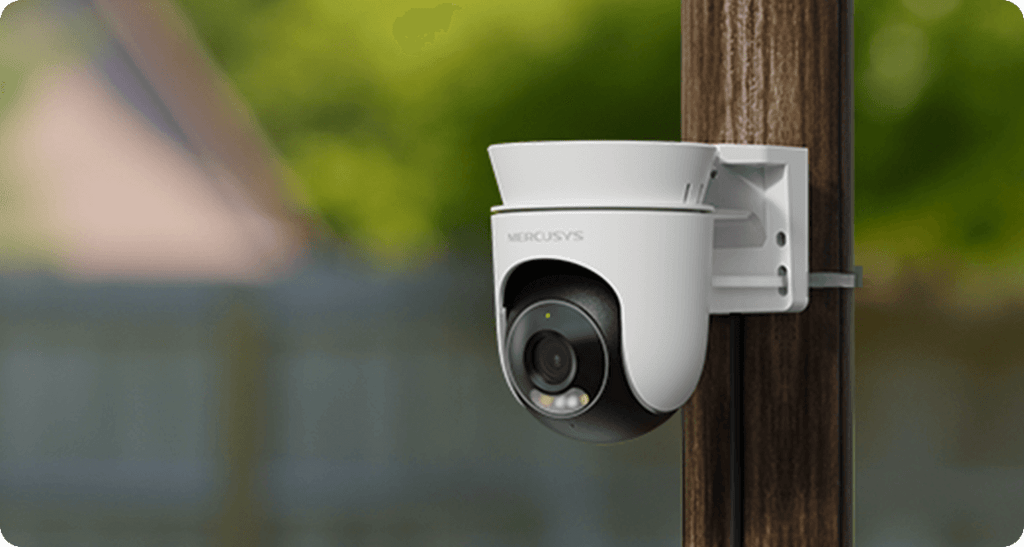

With IP65 weatherproof protection, the camera stands strong against rain, dust, and snow. Perfect for outdoor use from sunny days to stormy nights. Supports wall-mount, pole-mount, and ceiling installation, so you can set it up wherever fits your needs.
†microSD card sold separately.
‡Subscribe for cloud storage at https://www.mercusys.com/cameracare/
§MC510 does not have an Ethernet port and can only be connected via Wi-Fi.
△Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
General
| Brand | Mercusys |
|---|
Networking
| Standard | Wi-Fi (802.11 implied) |
|---|---|
| Smart Home Compatibility | Alexa and Google Assistant supported displays |
Performance
| Image Sensor | 1/3'' Progressive Scan CMOS |
|---|---|
| Maximum Resolution | 2304 × 1296 px |
| Frame Rate | 15/20/25/30 fps (15 fps default) |
| Field of View | 87° diagonal, 74° horizontal, 40° vertical |
| Lens Focal Length | 4 mm |
| Aperture | F2.0 |
| Pan Mechanical Range | 340° (360° pan coverage) |
| Tilt Mechanical Range | 90° (130° tilt coverage) |
| Digital Zoom | 10.8x |
| Night Vision | 850 nm IR LED, 98 ft/29.9 m, Color Night Vision |
| Video Compression | H.264 |
| Image Enhancement | 3DNR, WDR |
Ports & Power
| Power Input | 100-240VAC, 50/60Hz |
|---|---|
| Power Output | 9.0V/0.85A (DC) |
| Storage Interface | MicroSD Card Slot (up to 512 GB) |
| Buttons | 1x RESET Button |
| Audio | Built-in microphone and speaker, two-way audio with noise cancellation |
| Siren Volume | 88 dB (at 10 cm) |
Physical
| Dimensions | 141.5 × 93 × 122 mm (5.57 × 3.66 × 4.80 in) |
|---|---|
| Weather Resistance | IP65 |
| Mounting | Wall-mount, pole-mount, ceiling installation |
| Software Security | 128-bit AES encryption, SSL/TLS, WPA/WPA2-PSK |
