Mercusys ME60X AX1500 Wi-Fi 6 Range Extender - Dual Band
The Mercusys ME60X is a Wi-Fi 6 range extender for homes and offices that need to reach dead zones beyond their router's coverage. It combines dual-band performance with EasyMesh compatibility and works as both an extender and access point, backing up older Wi-Fi standards so it works with any existing router or device.
Why this product
Wi-Fi 6 standard with AX1500 total speed
Delivers 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, improving efficiency and capacity across your network compared to older standards.
Works with any router or device
Backward compatible with 802.11a/b/g/n/ac, so it extends your existing Wi-Fi to older phones, laptops and smart home gadgets without replacement.
EasyMesh for whole-home networks
Set up a single mesh network with one name and password using other EasyMesh-compatible access points from any vendor.
Dual mode: extender or access point
Use it to expand Wi-Fi coverage, or plug in an Ethernet cable to turn it into a wired access point for stable connections on your devices.
One-touch setup with WPS button
Press the WPS button to extend coverage in seconds, or manage the network remotely via the Mercusys app on iOS or Android.
- Wi-Fi StandardWi-Fi 6 (802.11ax)
- Total SpeedAX1500 (1201 Mbps at 5 GHz, 300 Mbps at 2.4 GHz)
- Frequency BandsDual Band (2.4 GHz and 5 GHz)
- Antennas2× external, adjustable
- Ethernet Ports1× Gigabit
- Dimensions84.7 × 39 × 112 mm
- Power Consumption10W
- SKUMER-1362
- EAN6957939001674
- Works with any existing Wi-Fi router running standard firmware and extends to Wi-Fi 6, 802.11ac, 802.11n, 802.11g and 802.11b devices.
- Connects via one Gigabit Ethernet port for wired devices like PCs, IP set-top boxes and game consoles.
- Controlled and configured through the Mercusys app on Android and iOS smartphones.
- Not compatible with routers using modified, open-source or non-standard firmware; check your router's firmware status before purchase.
Best for
- Filling Wi-Fi dead zones in homes and offices without replacing your existing router.
- HD streaming and gaming on dual-band networks where you need both speed and range.
- Homes with older routers or mixed-generation devices that need backward compatibility.
- Building a mesh network with EasyMesh-compatible access points from multiple brands.
- Users who want wired connection options via the Gigabit Ethernet port in access point mode.
Trade-offs
- Venues or deployments needing multiple simultaneous Ethernet connections; this device has only one port.
- Routers running custom, modified or open-source firmware, which are explicitly not supported.
- High-bandwidth or low-latency applications where wired connection performance is limited by the single Gigabit port.
Armed with Wi-Fi 6, ME60X improves virtually every aspect of your network: speed, efficiency, and capacity.

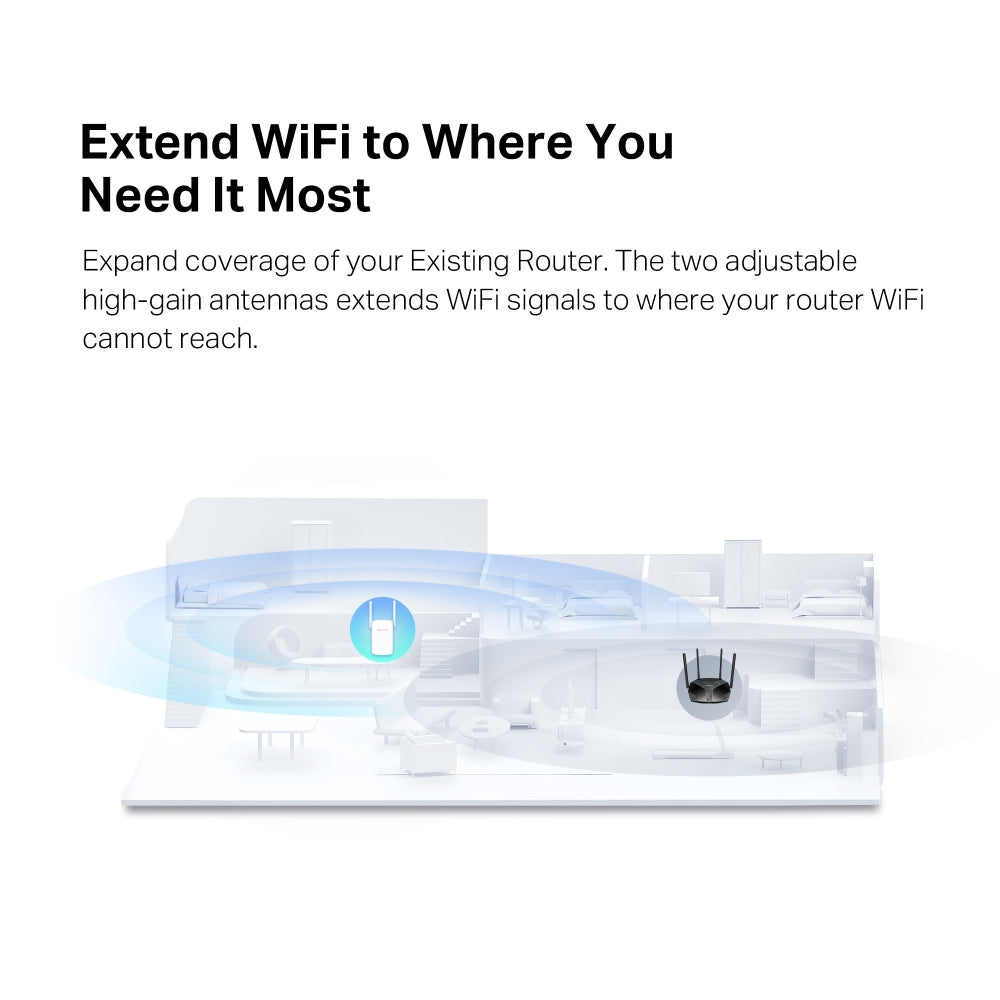

Expand coverage of your Existing Router. The two adjustable high-gain antennas extends WiFi signals to where your router WiFi cannot reach. This AX1500 Range Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.
ME60X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
Use both WiFi bands to enjoy super-fast connections—ideal for HD streaming and gaming.

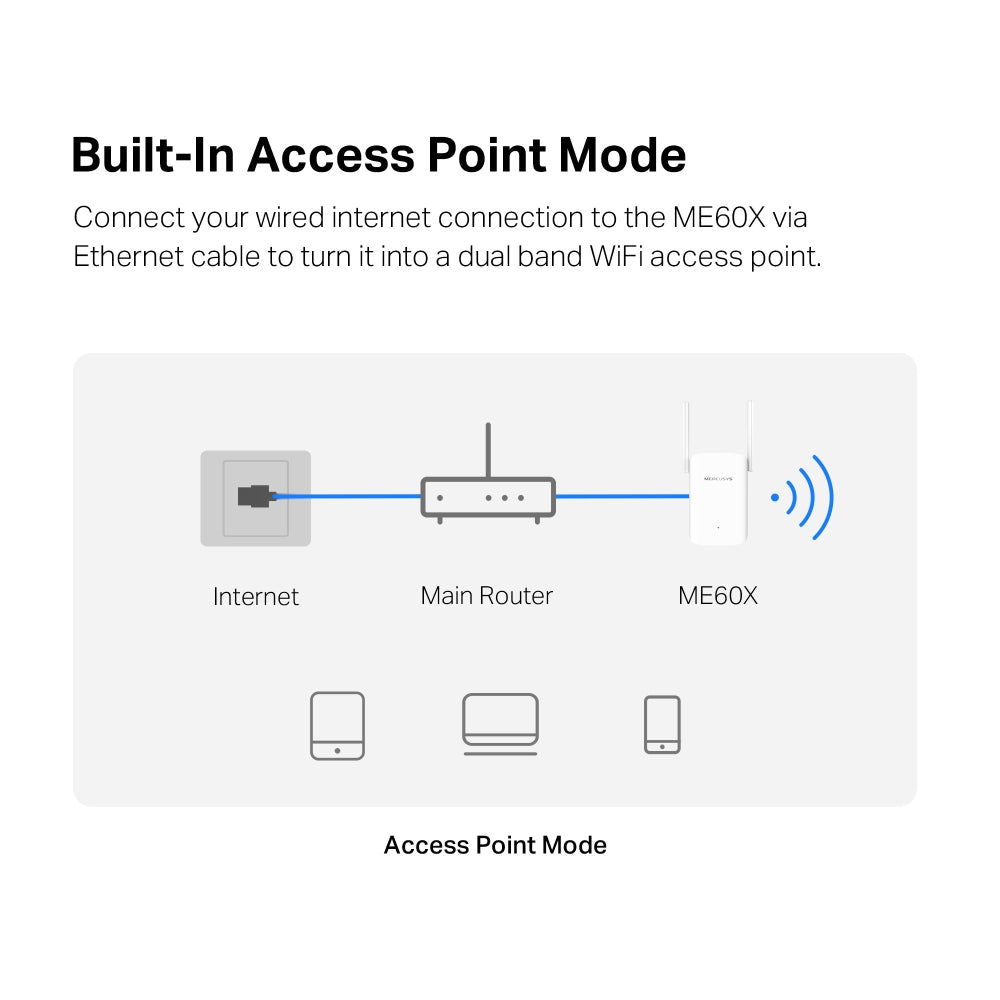

ME60X is more than just a WiFi range extender. Connect your wired internet connection to the ME60X via Ethernet cable to turn it into a dual band WiFi access point.
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other factors.
General
| Brand | Mercusys |
|---|---|
| Model | ME60X |
| Type | Wi-Fi 6 Range Extender / Access Point |
Wireless
| Standards | IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n (2.4 GHz) |
|---|---|
| 5 GHz Speed | 1201 Mbps |
| 2.4 GHz Speed | 300 Mbps |
| Security | WPA, WPA2, WPA3-PSK |
| EasyMesh Support | Yes |
Physical & Connectivity
| Ethernet Ports | 1× Gigabit (RJ45) |
|---|---|
| Antennas | 2× External (adjustable) |
| Width | 84.7 mm |
| Depth | 39 mm |
| Height | 112 mm |
Power & Environment
| Power Consumption | 10W |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Certification | RoHS |
