MSI Cubi NUC 1M i7 150U Barebone Mini PC - No RAM/Storage
The MSI Cubi NUC 1M i7 150U is a barebone mini PC built around an Intel Core 7 processor 150U, designed for users who want to build a compact desktop system with their own choice of memory and storage. It ships without RAM, storage drives, or operating system, giving you full control over the configuration while keeping the total cost lower than a pre-built equivalent.
Why this product
Intel Core 7 150U with 10 cores, 12 threads
Up to 5.4 GHz with Turbo Boost Max Technology 3.0 for multitasking and demanding applications.

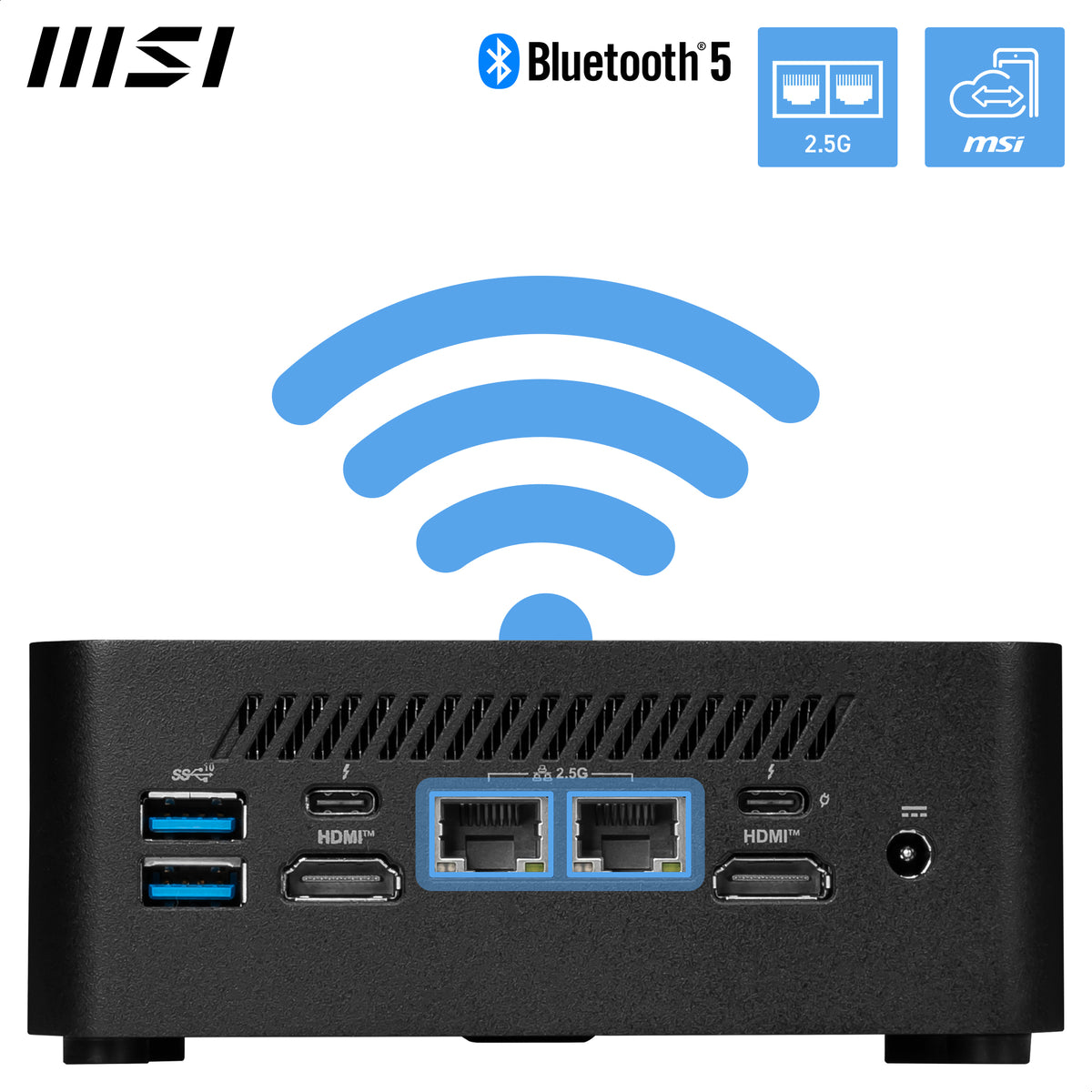

Dual 2.5G ethernet and Wi-Fi 6E AX211
Fast wired network with two LAN ports plus wireless connectivity and Bluetooth 5.3 built in.
Four displays from two Thunderbolt 4 ports
Two HDMI 2.1 outputs plus dual Thunderbolt 4 (one with up to 100 W power delivery) support up to four monitors simultaneously.
Upgrade two SO-DIMMs, two M.2 drives, or a 2.5" SATA bay
Memory slots accept DDR5-5200 up to 64 GB; storage supports PCIe Gen4 across M.2 2280 and 2242 slots plus a 2.5-inch drive bay.
0.826-liter chassis with VESA mounting
Fits behind a monitor or on a wall using the VESA 75×75 or 100×100 mm interface; weighs 0.625 kg.
Power from an MSI-compatible monitor via Thunderbolt
MSI Power Link technology allows the system to draw up to 100 W through one Thunderbolt 4 port, eliminating a separate power cable.
- ProcessorIntel Core 7 Processor 150U
- Cores / Threads10 Cores / 12 Threads
- Max Turbo Frequency5.4 GHz
- Memory (max)64 GB DDR5
- Storage bays2x M.2 NVMe + 1x 2.5" SATA
- NetworkingDual 2.5G LAN, Wi-Fi 6E AX211, Bluetooth 5.3
- Dimensions132.5 x 135.6 x 50.1 mm
- Weight0.625 kg
- SKUMSI-7654
- EAN4711377229128
- Accepts two DDR5-SDRAM SO-DIMM modules at 5200 MHz speed, up to 64 GB total.
- Supports one M.2 2280 NVMe (PCIe Gen4 x4), one M.2 2242 NVMe (PCIe Gen4 x4), and one 2.5-inch SATA HDD or SSD.
- Features Intel Wi-Fi 6E AX211 and Bluetooth 5.3 for wireless networking.
- Includes dTPM 2.0 security module and Realtek ALC256 audio codec.

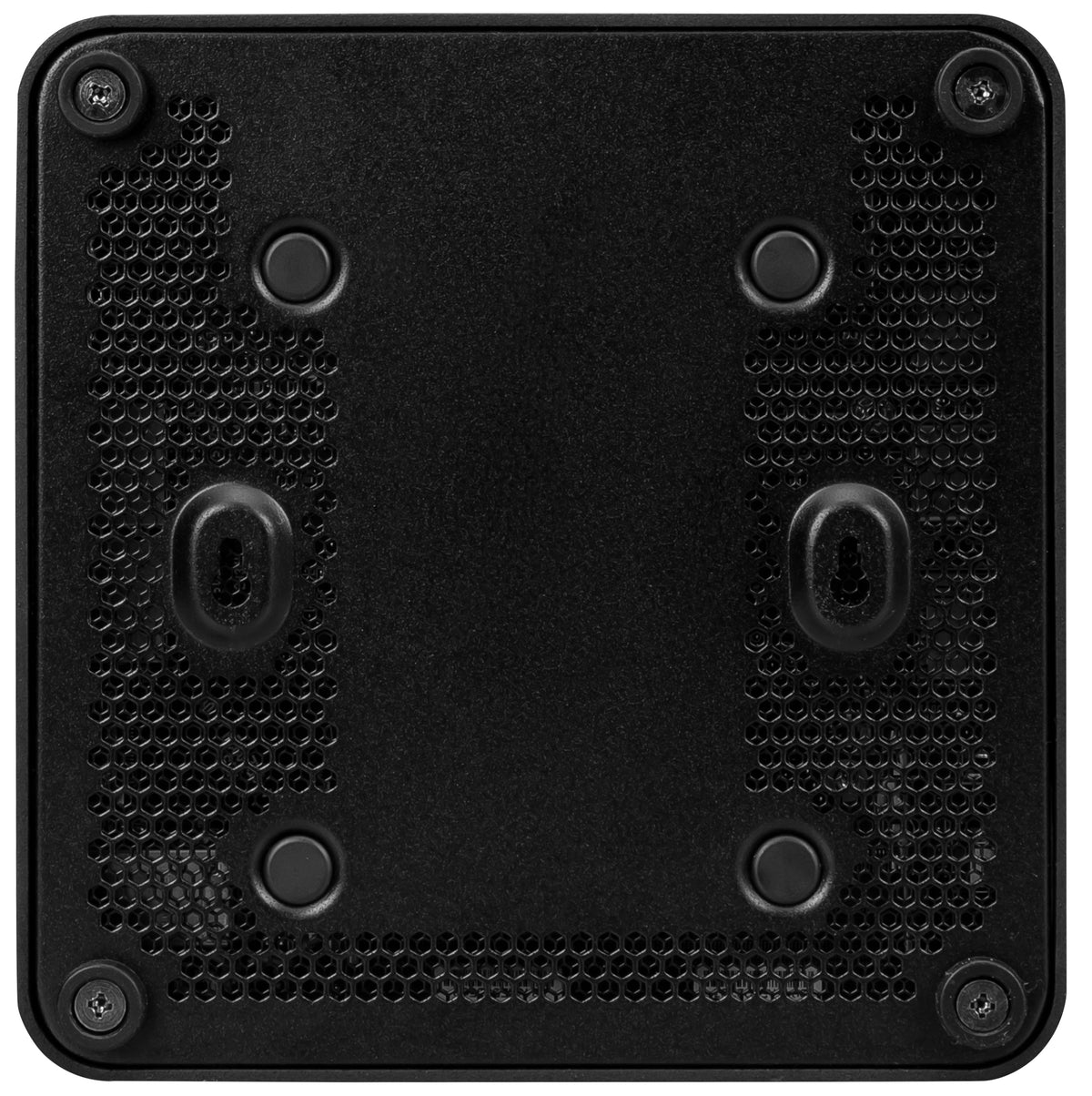

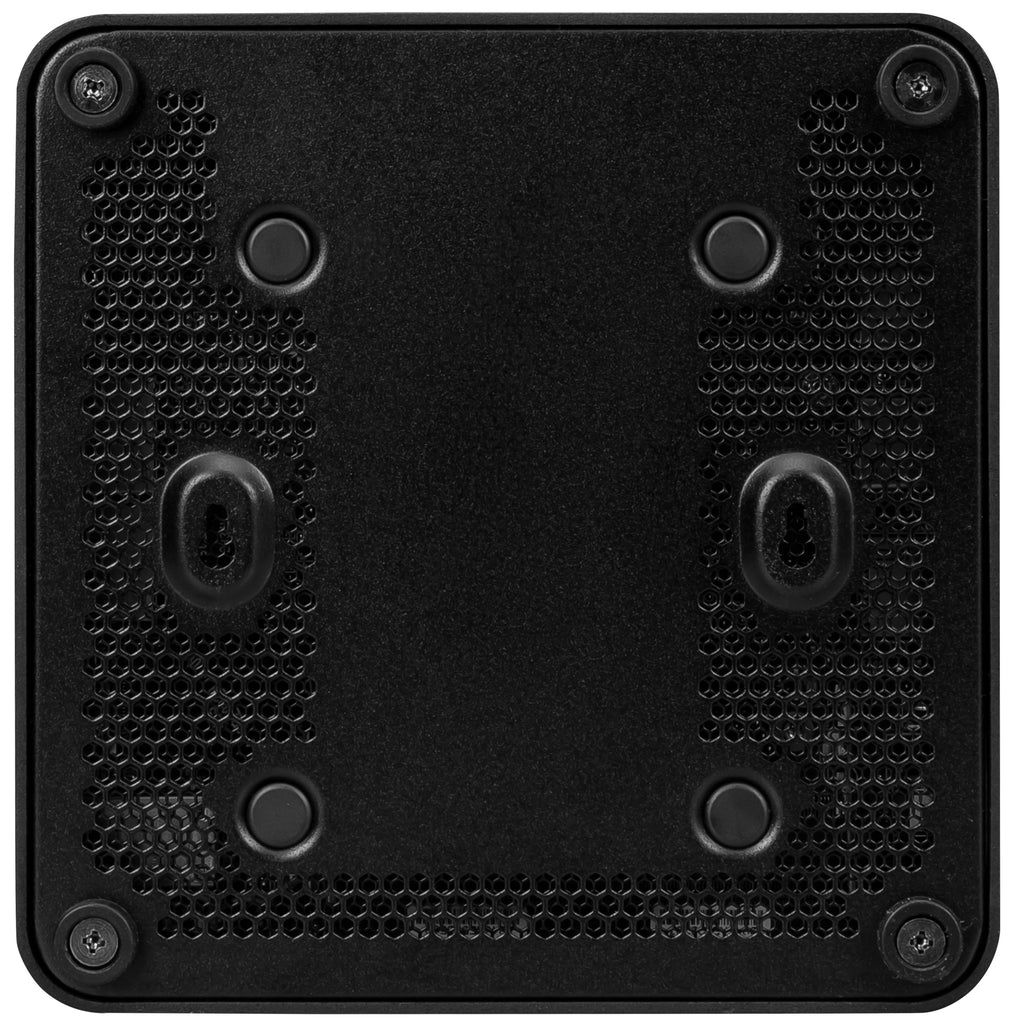

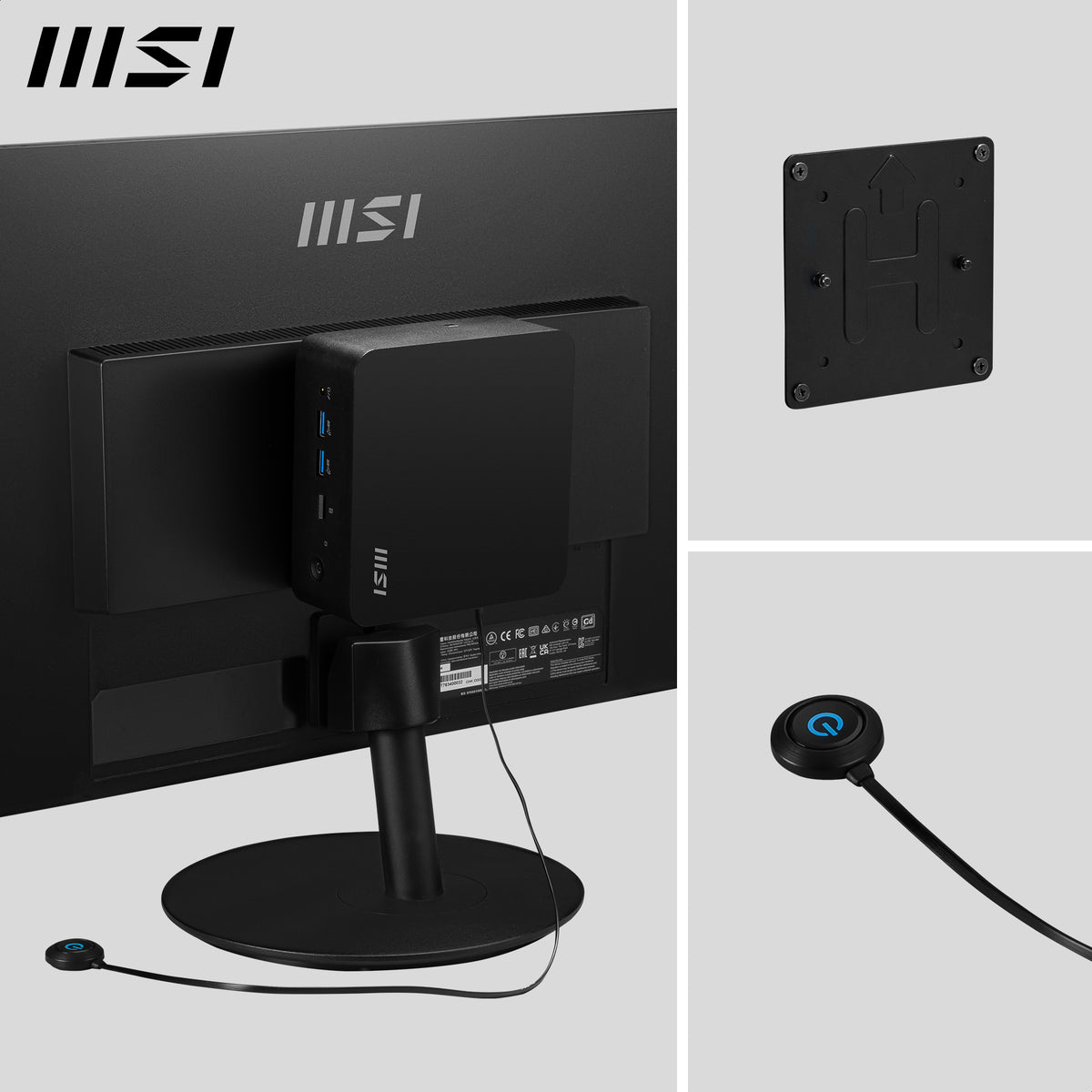

- VESA 75×75 mm or 100×100 mm mounting for desk or wall placement.
- Requires external 120 W AC adapter with 100–240 V input; Thunderbolt 4 power delivery (up to 100 W) available only from the rear port marked for PD-in.
Best for
- System builders who want to choose their own RAM and storage
- Small office or desk environments where space is limited

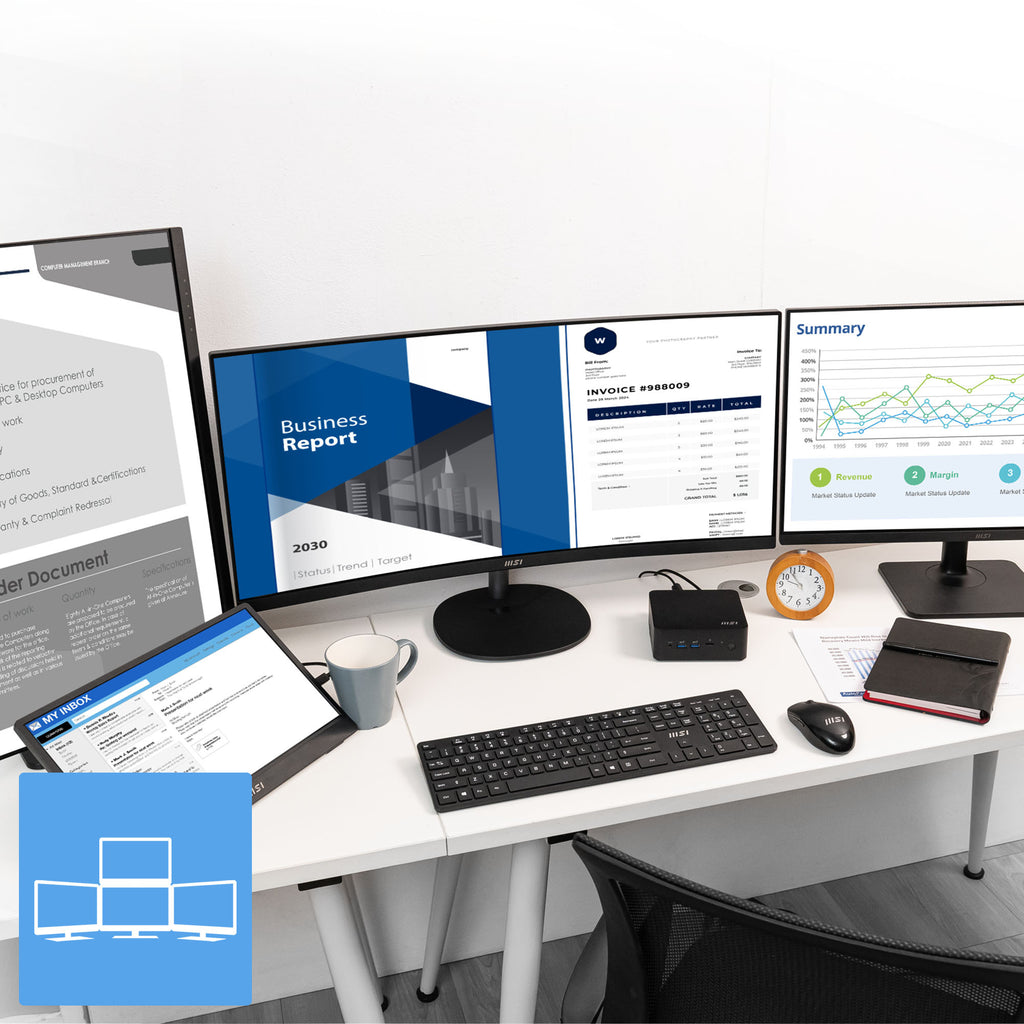

- Users needing quad-monitor support and multiple high-speed ports in a compact form
- Professionals requiring dual 2.5 Gbps ethernet for network-intensive work
Trade-offs
- No operating system included. You must install Windows 11 (or another OS) separately; barebone configuration requires additional software purchase.
- No memory or storage installed. DDR5 RAM and NVMe or SATA drives must be purchased and installed separately before use.
- Limited to integrated Intel graphics. Graphics performance is suitable for everyday tasks and office work, not gaming or 3D rendering.
- 120 W power budget. Cannot support high-power external devices or GPU expansion; designed for efficient, fanless or low-power operation.
The Cubi NUC 1M i7 150U BB configuration is a barebone system equipped with an Intel® Core 7 processor 150U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.
Equipped with up to Intel® Core™ 7 Processor 150U with 10 cores and 12 threads, it provides faster and more reliable performance. It also features 5.40 GHz with Intel Turbo Boost Max Technology 3.0, which allows users to multitask a variety of applications with ease.

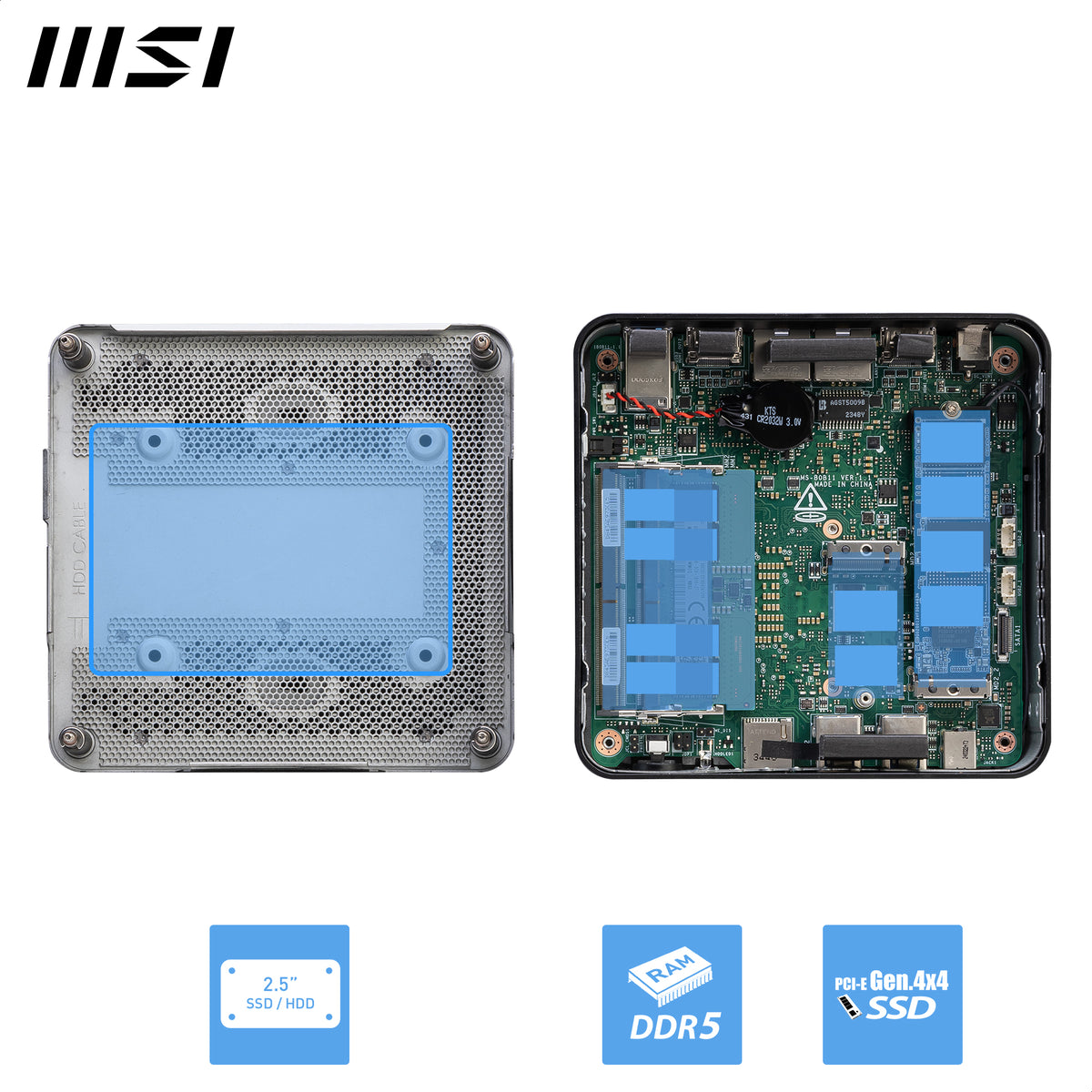

Users can easily upgrade two SO-DIMM, two M.2 SSDs (2280 & 2242), or one 2.5" HDD/SSD by disassembling the cover. This makes Cubi NUC an even more flexible desktop and also reduces the time wasted on upgrading.

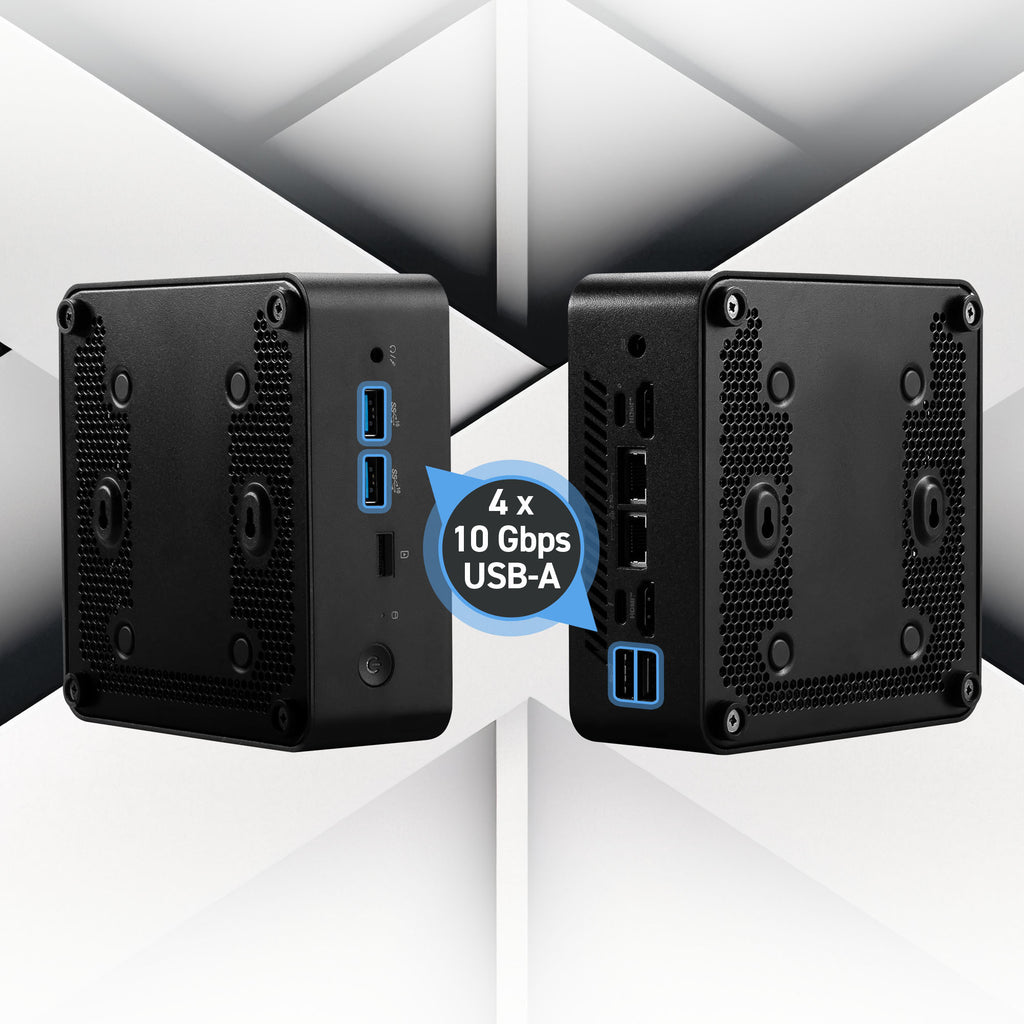

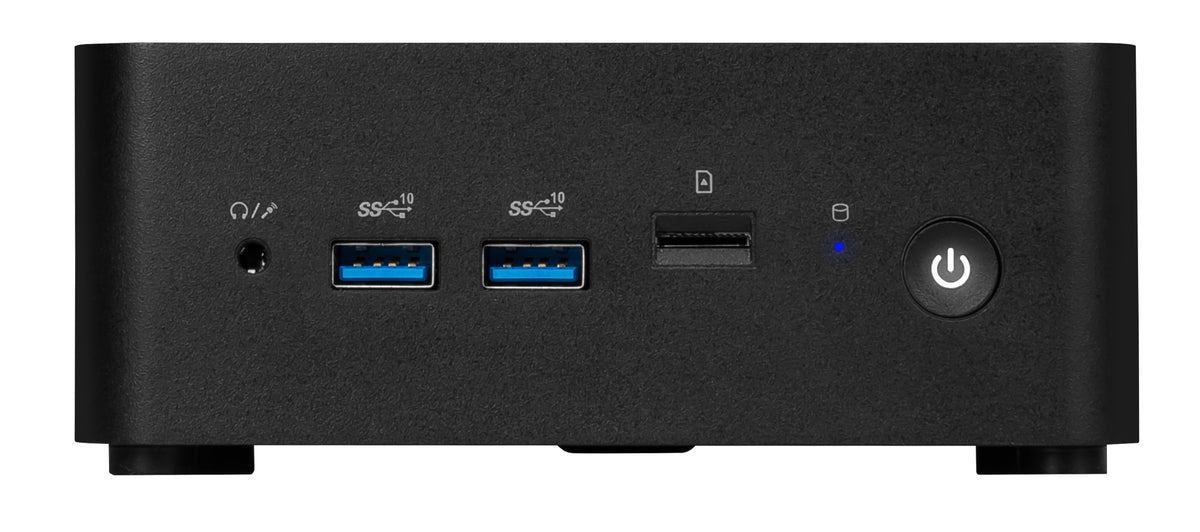

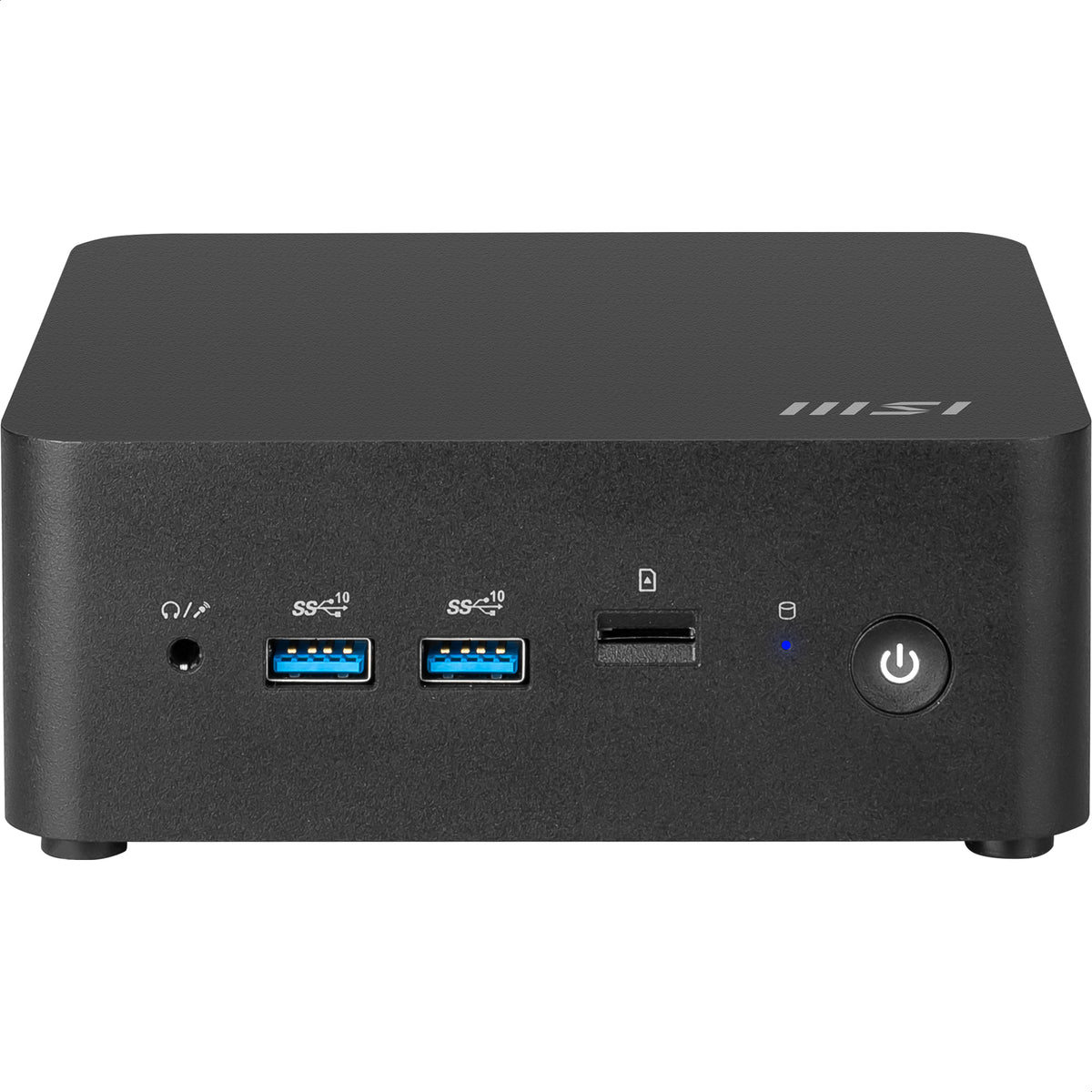

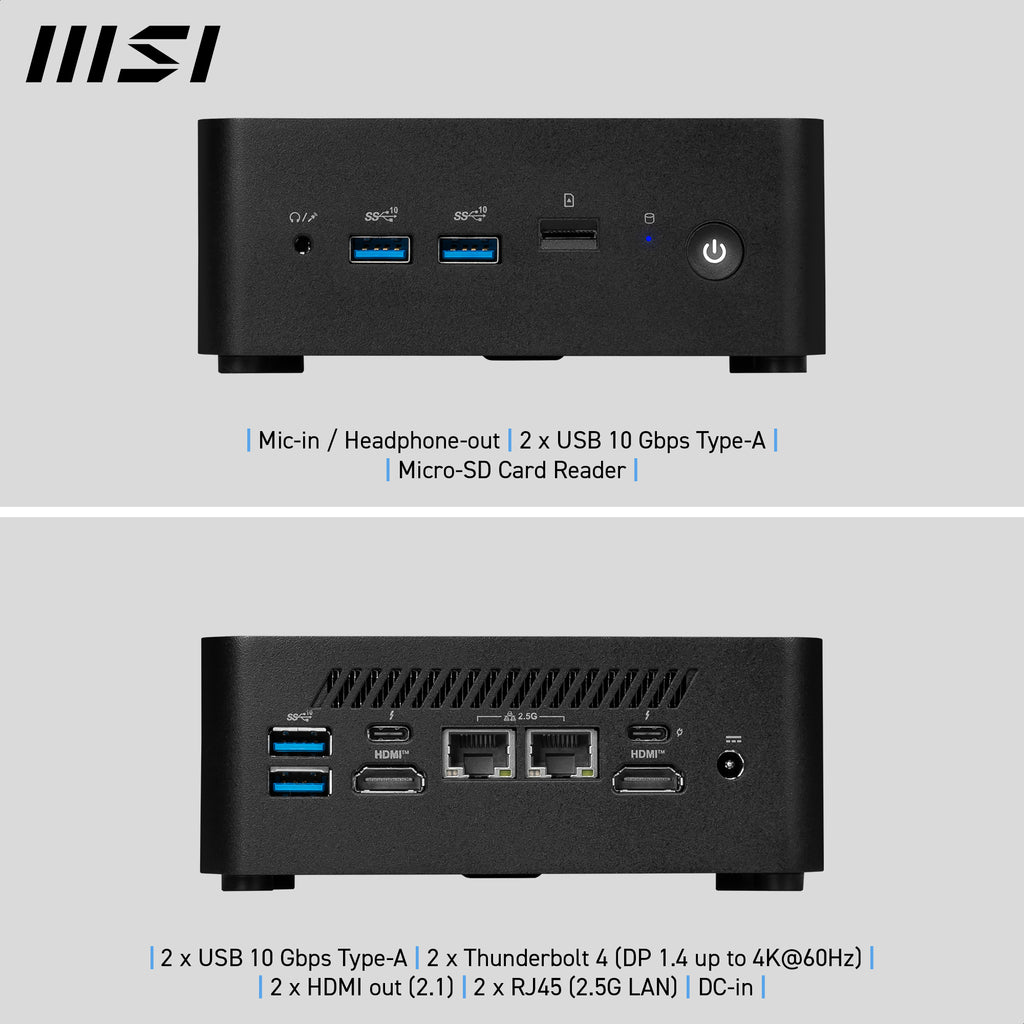

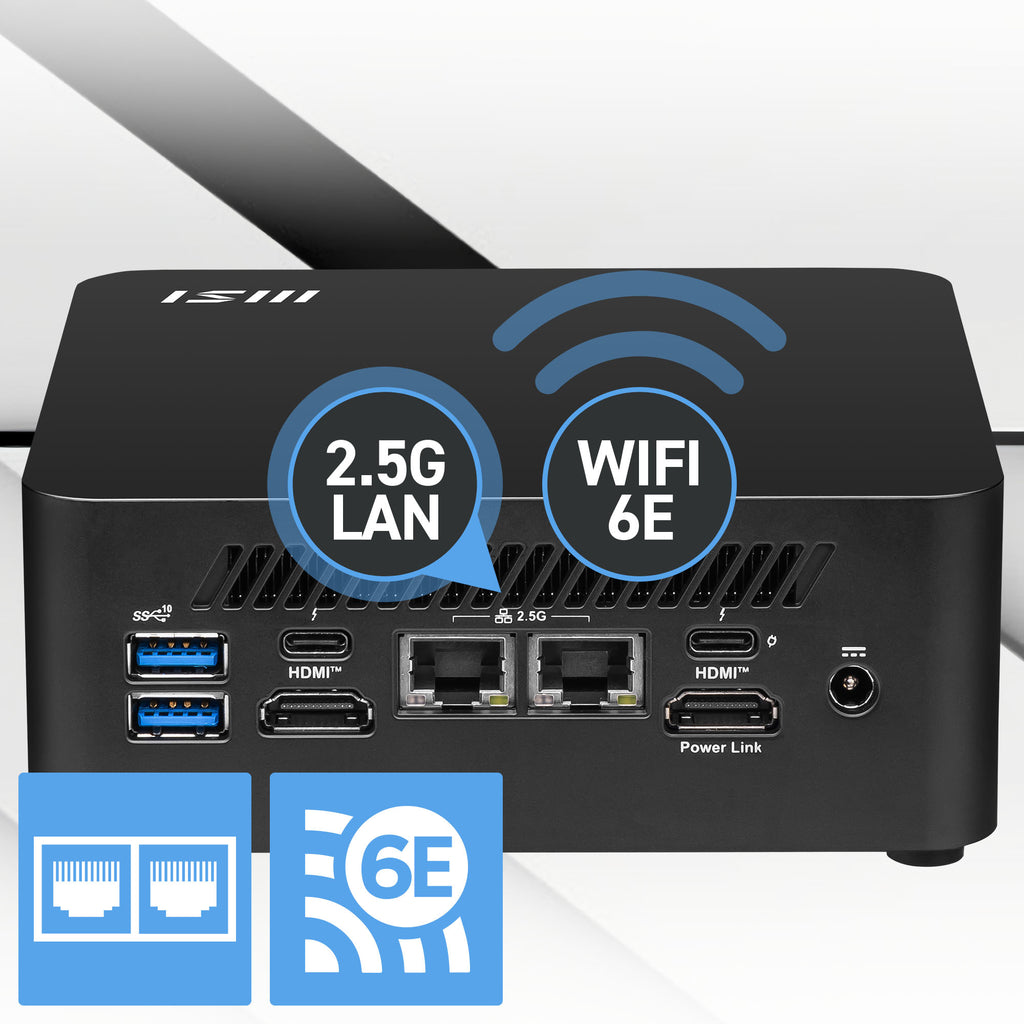

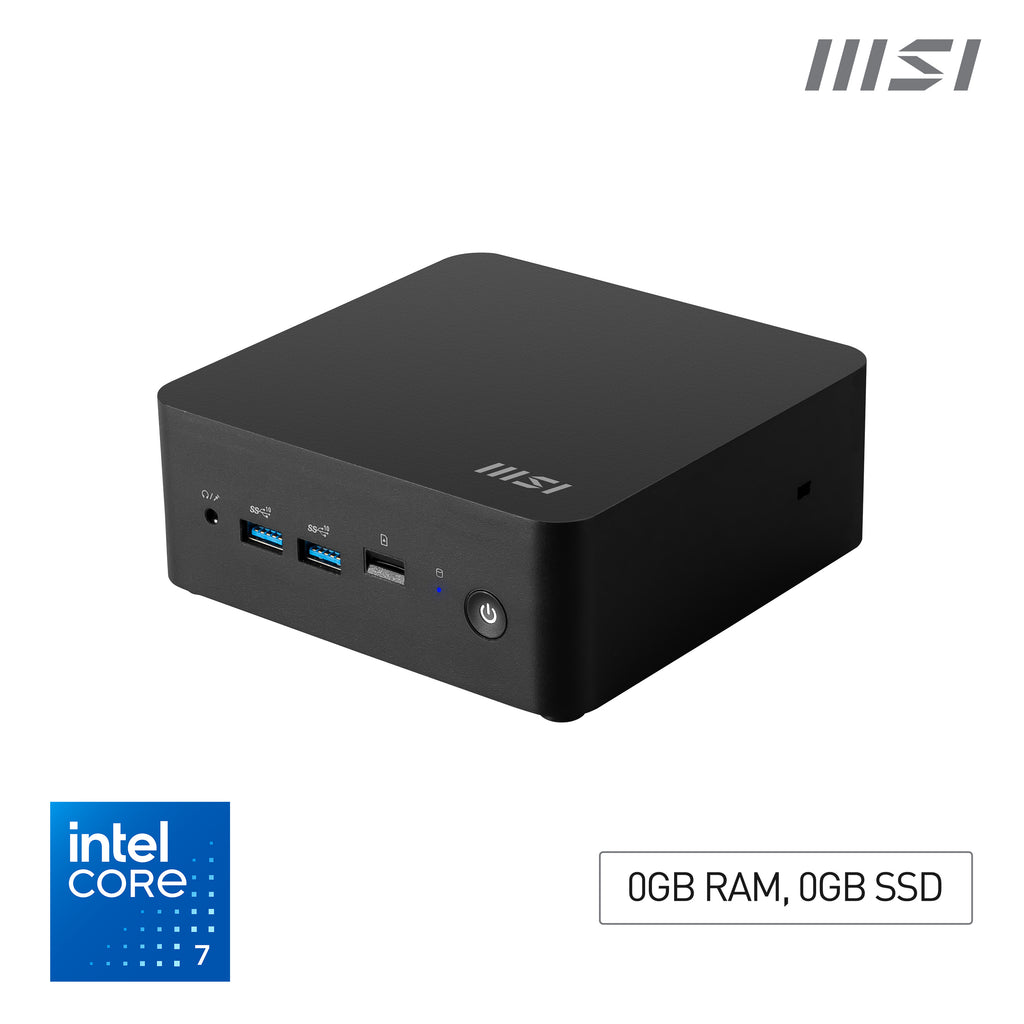

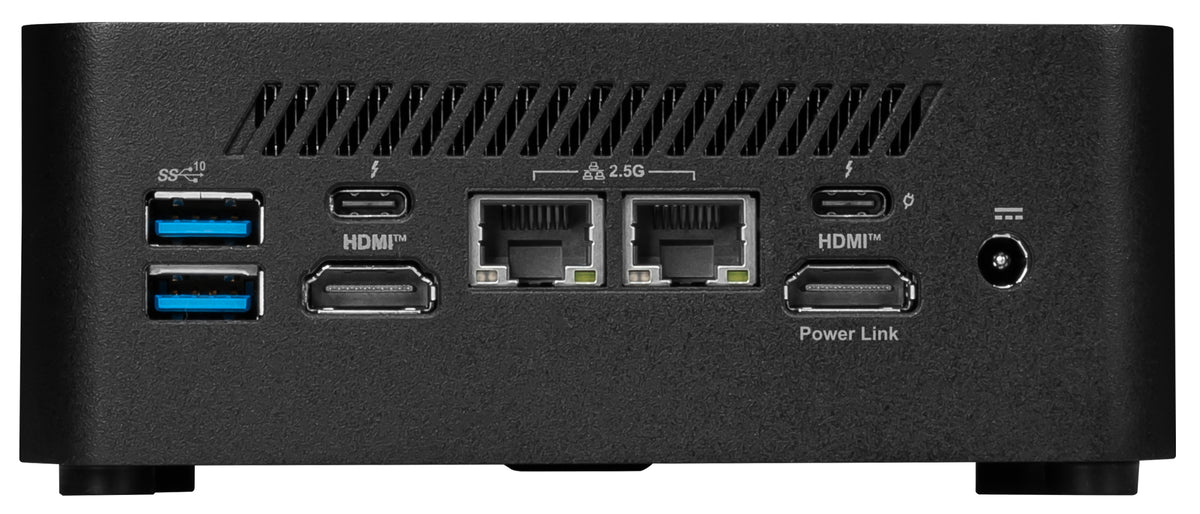

With a various array of I/O ports, it can connect all devices users need at the same time so they can multi-task with those devices to make them work more efficiently. Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2x HDMI 2.1 and 2x USB 10Gbps Type A.

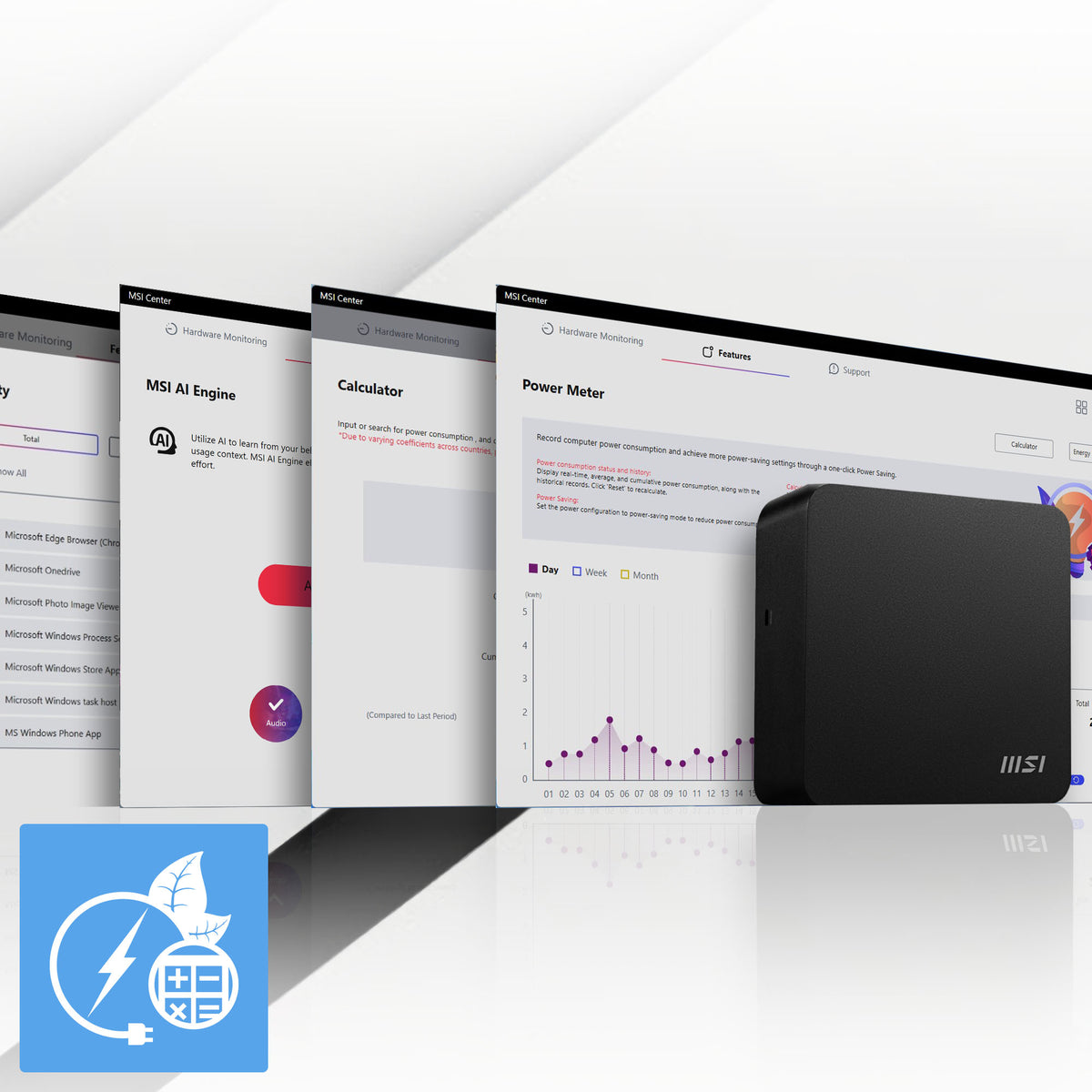

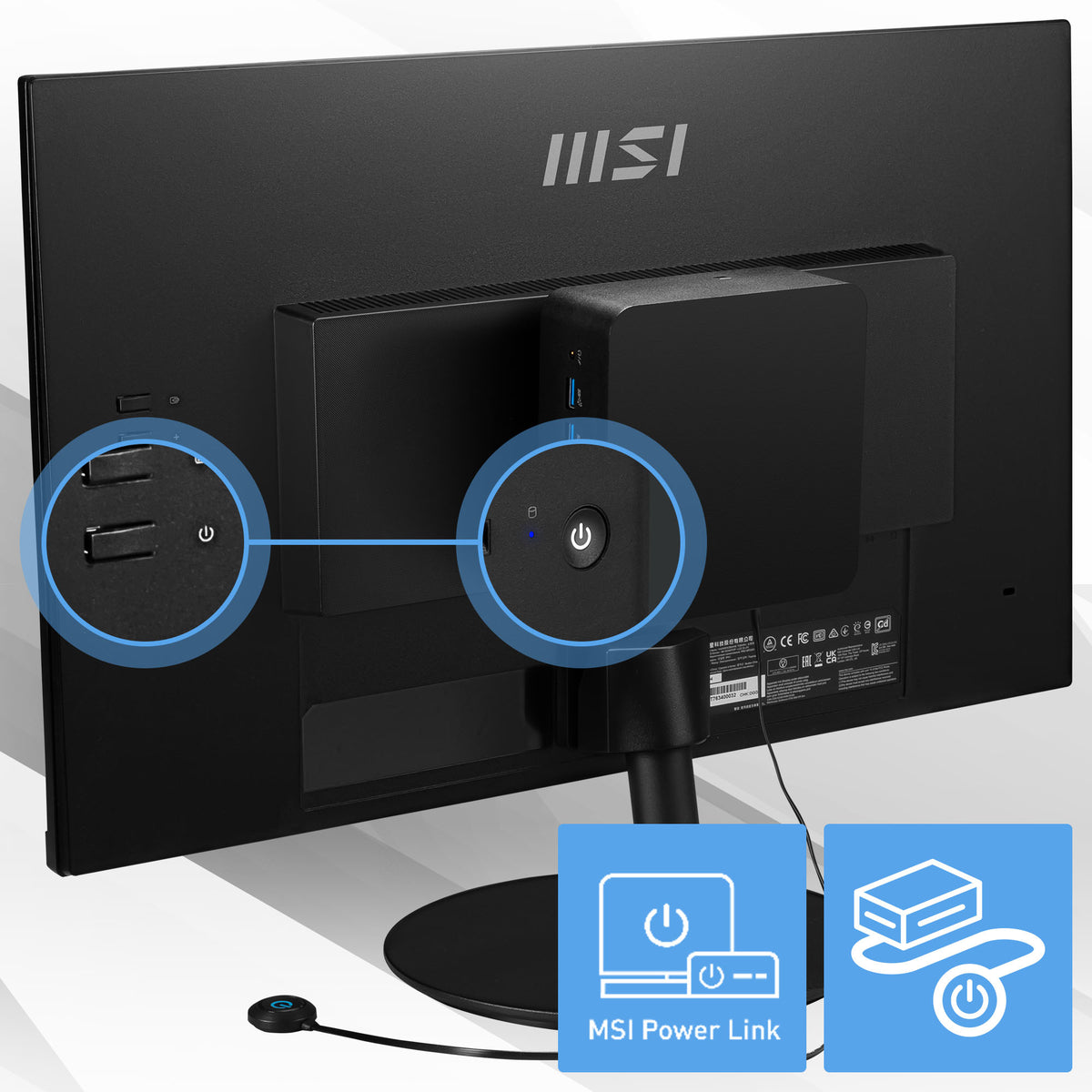

MSI Power Link technology allows Cubi NUC to be powered by an MSI-selected monitor. Power Meter enables one-click power saving, carbon emission calculation, and electricity cost estimation.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Drive
| Brand | MSI |
|---|---|
| Form factor | NUC Barebone Mini PC |
| Memory configuration | 2x SO-DIMM DDR5-SDRAM (no modules installed) |
| Memory speed | 5200 MHz |
| Maximum memory | 64 GB |
| Storage slots | 1x M.2 2280 (PCIe Gen4 x4), 1x M.2 2242 (PCIe Gen4 x4), 1x 2.5" HDD/SSD bay (no drives installed) |
Performance
| Processor | Intel Core 7 Processor 150U |
|---|---|
| Processor cores / threads | 10 Cores / 12 Threads (2 Performance + 8 Efficient) |
| Processor cache | 12 MB |
| Performance-core base / max frequency | 1.8 GHz / 5.4 GHz |
| Efficient-core base / max frequency | 1.2 GHz / 4.0 GHz |
| Graphics | Intel Graphics (on-board) |
Power & environment
| Power supply | External AC adapter, 120 W |
|---|---|
| AC input | 100–240 V, 50/60 Hz |
| Thunderbolt 4 power delivery | Up to 100 W (rear port) |

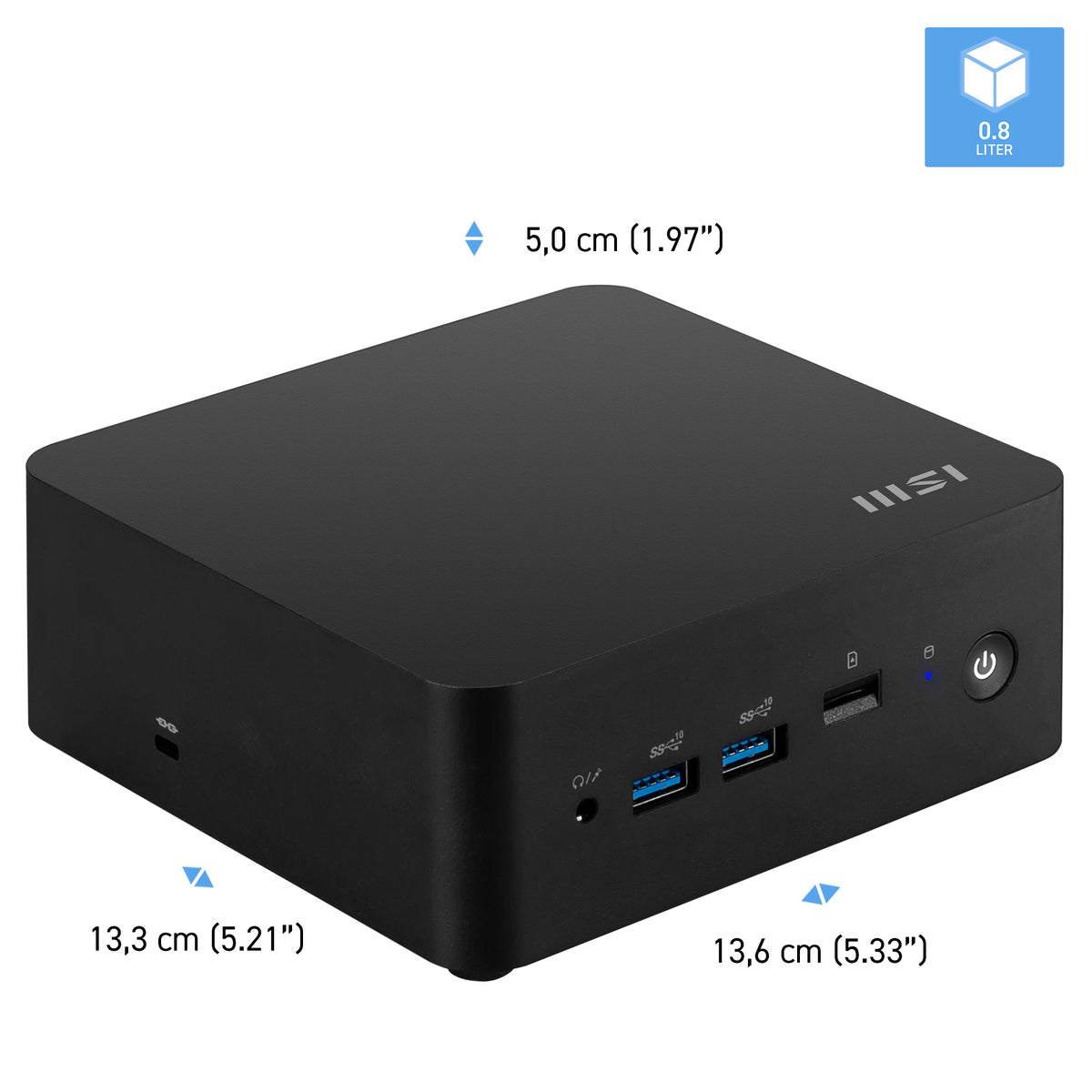

| Dimensions (W x D x H) | 132.5 x 135.6 x 50.1 mm |
| Weight | 0.625 kg |
| Chassis volume | 0.826 liters |
Reliability
| Warranty | 3 Year |
|---|---|
| Security | dTPM 2.0 |
