MSI MPG X870E CARBON WIFI AM5 ATX Gaming Motherboard
MSI
MSI MPG X870E CARBON WIFI AM5 ATX Gaming Motherboard

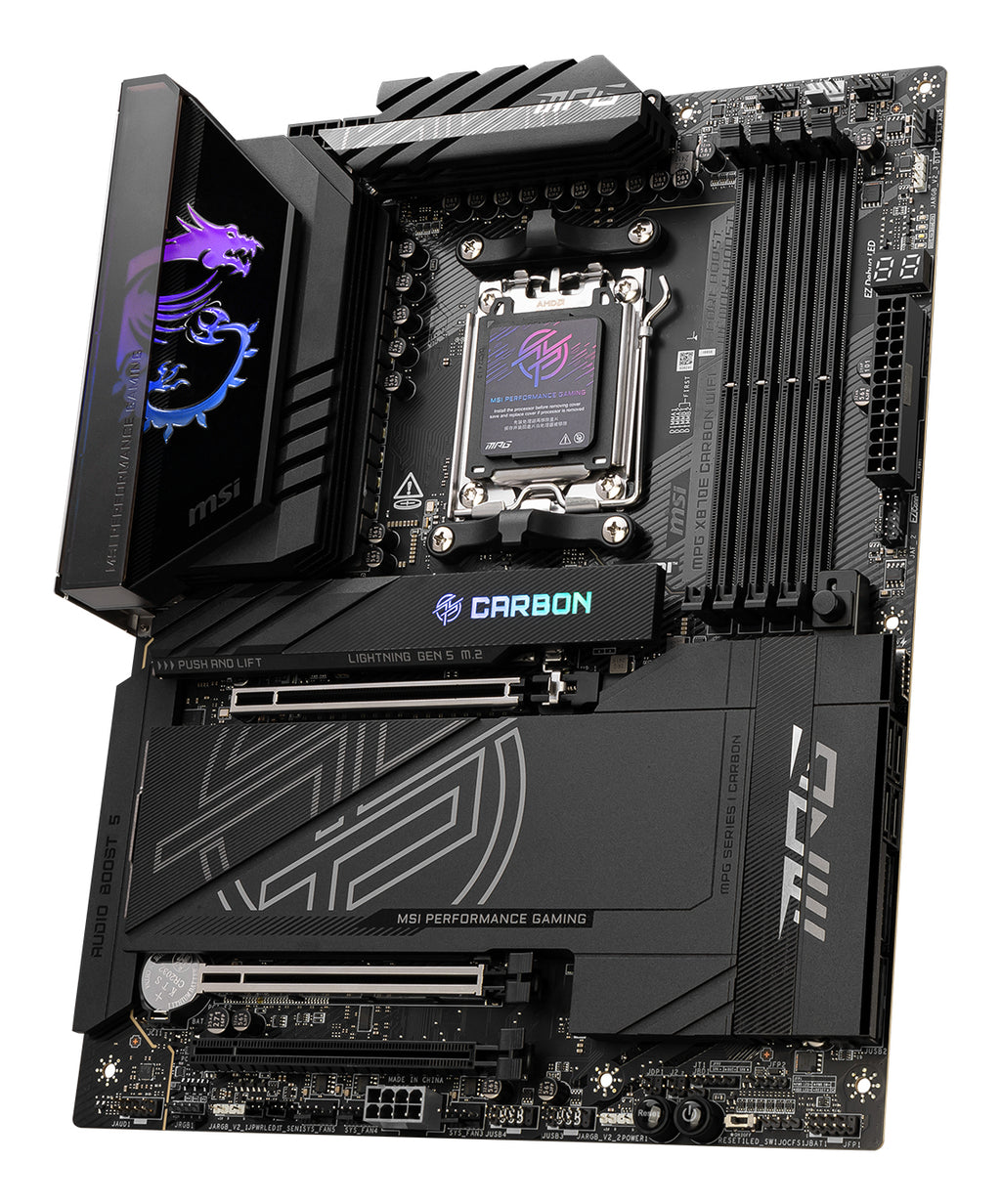

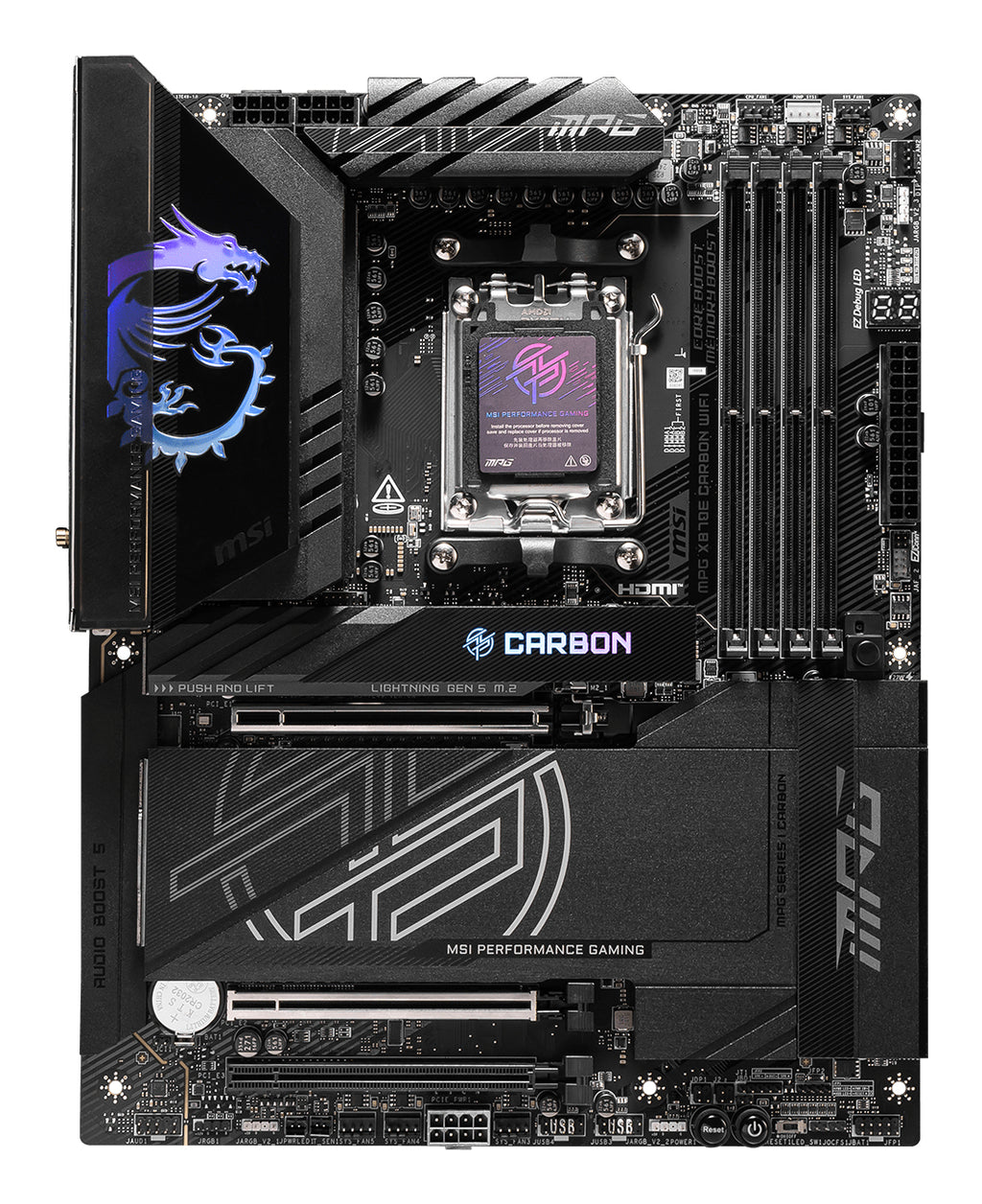

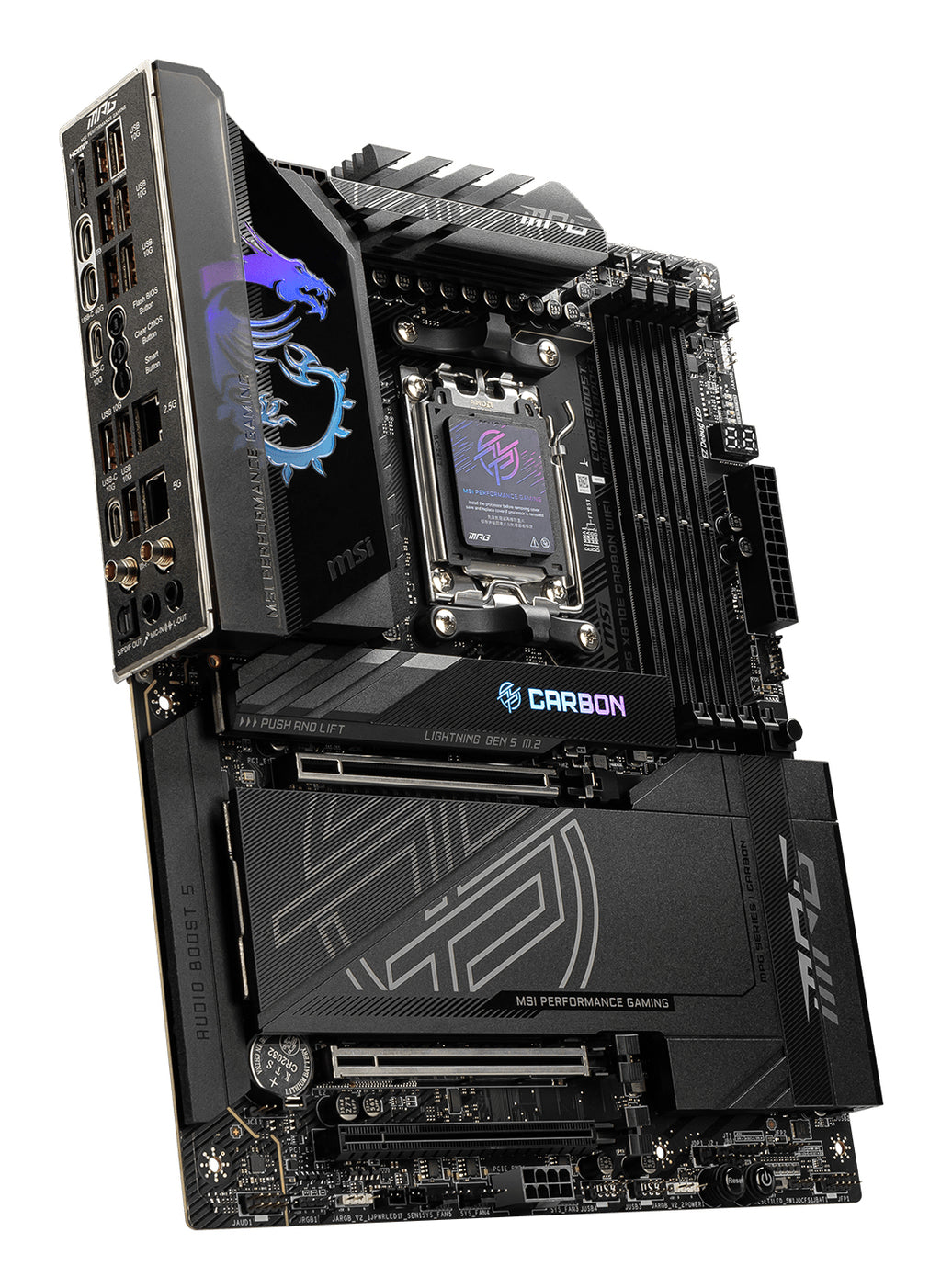

The MSI MPG X870E CARBON WIFI is an AM5 ATX gaming motherboard built for builders who want a high-connectivity platform centred on AMD Ryzen 9000, 8000, and 7000 series processors. It addresses the common bottleneck of I/O and network throughput by combining dual wired LAN controllers, full-speed Wi-Fi 7, USB4 at 40 Gbps, and four M.2 slots — two of which run at PCIe Gen 5 speeds. The carbon black aesthetic with Mystic Light RGB keeps the visual identity consistent with a high-end build.
Why this product
Dual wired LAN for gaming and transfers
A Realtek 5 Gbps controller handles low-latency gaming traffic alongside a Realtek 2.5 Gbps controller, giving builders two separate wired network paths without an add-in card.
Full-speed Wi-Fi 7 and Bluetooth 5.4
The integrated Wi-Fi 7 solution delivers ultra-low latency and high-bandwidth wireless connectivity, complemented by Bluetooth 5.4 for peripherals.
USB4 at 40 Gbps with display output
Two USB4 Type-C ports each support 40 Gbps data transfer and DisplayPort 1.4 with HBR3, allowing a 4K@60Hz display to be driven directly from the rear panel.
18+2+1 phase VRM with dual 8-pin power
The Duet Rail Power System uses 110 A Smart Power Stages and dual CPU power connectors to sustain maximum performance under high-end Ryzen processors.
Four M.2 slots including two PCIe Gen 5
Two Lightning Gen 5 x4 slots run at up to 128 Gbps each, and two Lightning Gen 4 x4 slots run at up to 64 Gbps, supporting fast NVMe storage without sacrificing SATA ports.
Front USB Type-C with 27 W power delivery
The front-panel USB 20 Gbps Type-C header includes 60 W USB Power Delivery, and the front USB Type-C supports 27 W PD for charging devices connected to the chassis.
- SocketAMD AM5
- ChipsetAMD X870E
- Form FactorATX
- Wired LAN5 Gbps + 2.5 Gbps
- WirelessWi-Fi 7, Bluetooth 5.4
- USB42× USB4 40 Gbps Type-C
- M.2 Slots4 (2× Gen5, 2× Gen4)
- Memory Max256 GB DDR5
- SKUMSI-7396
- EAN4711377253536
- Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors via the AM5 socket.
- Supports DDR5 non-ECC unbuffered memory in four DIMM slots, up to 256 GB, with AMD EXPO and CUDIMM (Clock Driver bypass mode only) support.
- ATX form factor (304.8 × 243.84 mm) — fits any standard ATX or larger chassis.
- HDMI 2.1 (8K@60Hz) and USB4 DisplayPort outputs require a processor with integrated graphics; discrete GPU users will use the GPU's own outputs.
- CUDIMM support operates in Clock Driver bypass mode only — confirm your CUDIMM modules are compatible with this mode before purchasing.
- Does not support AMD AM4 processors or DDR4 memory — this platform is AM5 and DDR5 only.
Best for
- High-bandwidth networking builds: dual wired LAN (5 Gbps + 2.5 Gbps) and Wi-Fi 7 make it well suited to users who saturate a single network link with combined gaming and file transfer loads.
- Content creators and multimedia users: USB4 at 40 Gbps supports fast external storage and 4K display output from a single Type-C cable.
- High-end Ryzen builds: the 18+2+1 VRM with dual 8-pin connectors and server-grade PCB material is designed to sustain the power demands of top-tier Ryzen 9000 series CPUs.
- Storage-intensive workstations: two PCIe Gen 5 M.2 slots plus two PCIe Gen 4 M.2 slots and four SATA ports allow a deep, tiered storage configuration without add-in cards.
- Builders prioritising RGB and aesthetics: Mystic Light RGB and a carbon black colour scheme integrate with a themed build without requiring separate lighting hardware.
Trade-offs
- Budget or mid-range builds: the X870E chipset and flagship VRM carry a price premium that is unnecessary for users running entry-level or mid-tier Ryzen processors.
- AMD AM4 platform owners: the AM5 socket is physically and electrically incompatible with all AM4 processors, so existing AM4 users cannot reuse their CPU.
- Small-form-factor builds: the ATX footprint (304.8 × 243.84 mm) will not fit Mini-ITX or Micro-ATX cases.
- Windows 10 users: MSI lists Windows 11 64-bit as the supported OS; Windows 10 is not listed as supported.
- ECC memory workloads: memory support is specified as non-ECC unbuffered only, so workloads requiring error-correcting memory are not supported.
MPG X870E CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors.
PERFORMANCE & THERMAL SOLUTION
8-Layer Server Grade PCB with 2oz Thickened Copper
7W/mK MOSFET Thermal Pads
18+2+1 Phases VRM Power
Enlarged Chipset Heatsink
18+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 18+2+1 Duet Rail Power System. Combining dual power connectors and 110A Smart Power Stage, MPG X870E CARBON WIFI is ready for the challenge of high-end processors.
FAST AND FUTURE-READY STORAGE
2x Lightning Gen 5 M.2 — 128 Gbps
2x Lightning Gen 4 M.2 — 64 Gbps
LIGHTNING GEN 5 PCI-E
PCIe SUPPLEMENTAL POWER
USB4
SUPER CHARGER +
HIGH-SPEED TRANSMISSION
Front USB Type-C with 27W PD
2x PCI-E 5.0 M.2 Slots
2x PCI-E 4.0 M.2 Slots
Networking
| Brand | MSI |
|---|---|
| Wired LAN | Realtek 5 Gbps + Realtek 2.5 Gbps |
| Wireless Standard | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB4 Throughput | 40 Gbps (2× Type-C) |
Performance
| CPU Socket | AMD AM5 |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| VRM Phases | 18+2+1 Duet Rail Power System |
| PCB | 8-layer, 2 oz thickened copper, server-grade |
| PCIe Slots | 2× PCIe 5.0 x16, 1× PCIe 4.0 x16 |
Ports & Power

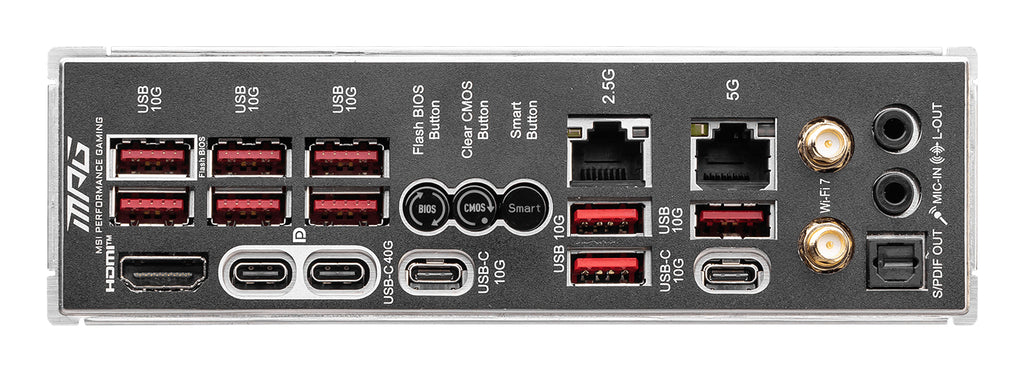

| USB Rear Panel | 2× USB4 40 Gbps Type-C, 1× USB 20 Gbps Type-C, 11× USB 10 Gbps (2 Type-C + 9 Type-A), 4× USB 5 Gbps Type-A, 4× USB 2.0 Type-A |
|---|---|
| Front USB Power Delivery | 27 W PD (Type-C) |
| Front USB 20G PD | 60 W |
| CPU Power Connectors | Dual 8-pin |
| MOSFET Thermal Pads | 7 W/mK |
| Audio | Realtek ALC4080, 8-channel HD Audio |
Physical
| Form Factor | ATX |
|---|---|
| Dimensions | 304.8 × 243.84 mm (12 × 10") |
| Memory Slots | 4× DDR5 DIMM, up to 256 GB, 8400+ MT/s (OC) |
| Storage | 2× M.2 Gen5 x4 (128 Gbps), 2× M.2 Gen4 x4 (64 Gbps), 4× SATA 6 Gbps |
| Display Output | 1× HDMI 2.1 (8K@60Hz), 2× USB4 Type-C with DisplayPort 1.4 (4K@60Hz) |
| OS Support | Windows 11 64-bit |
