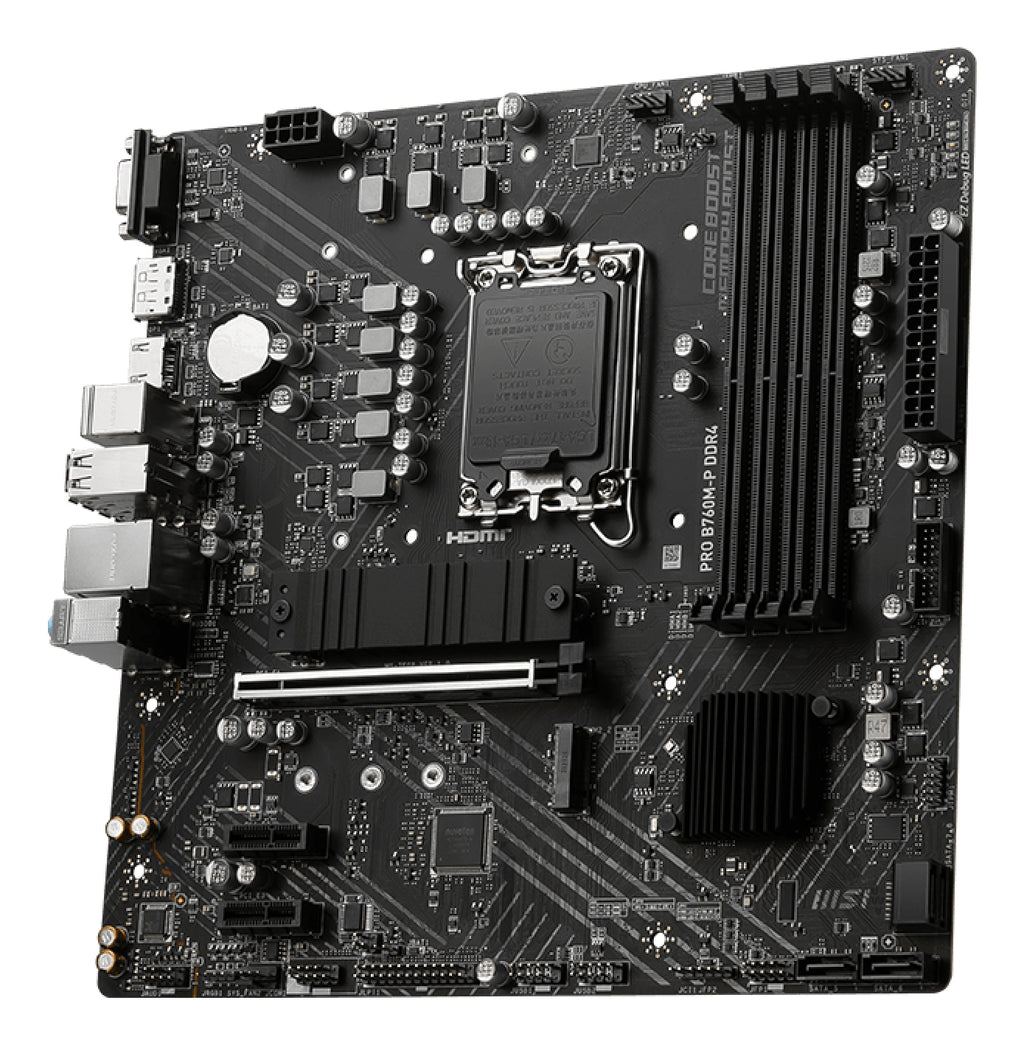

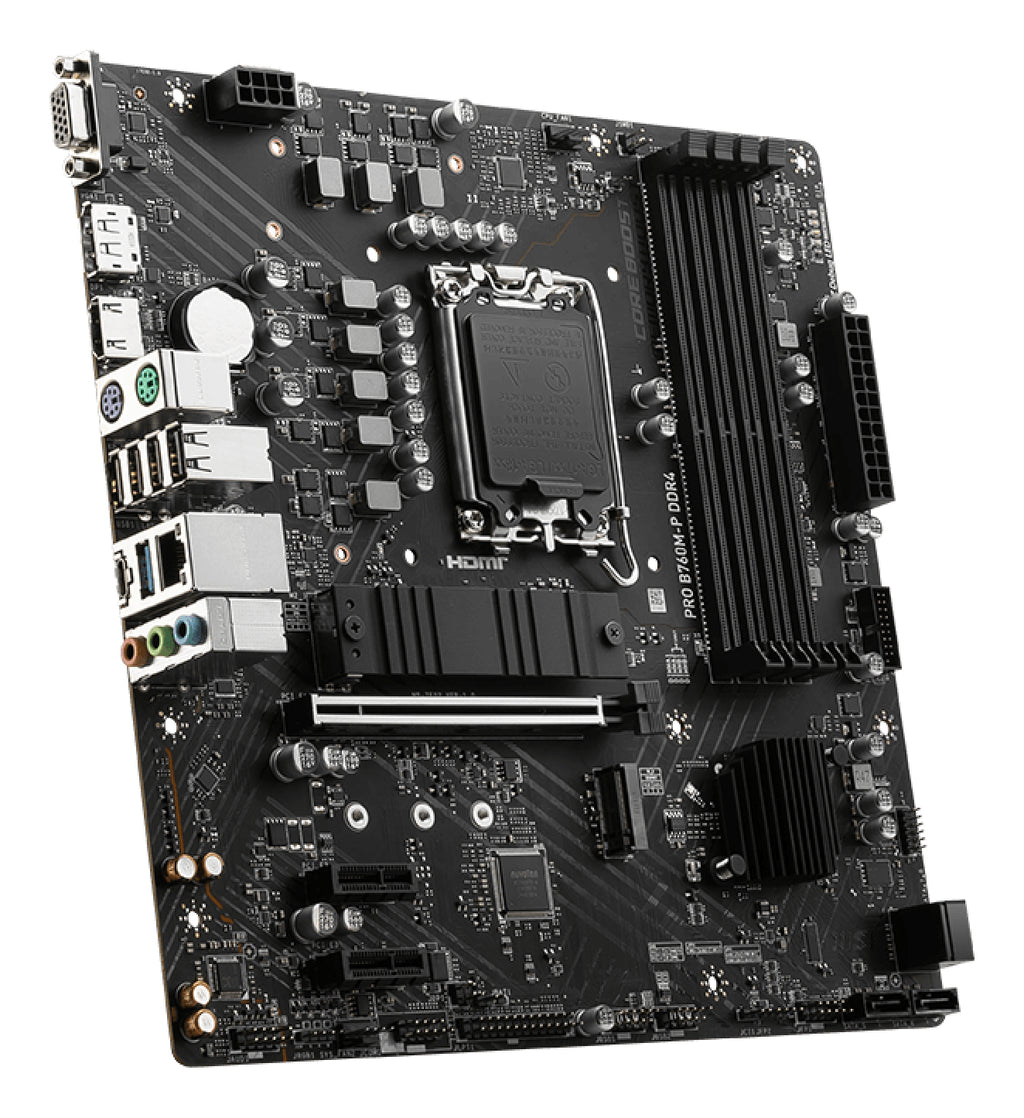

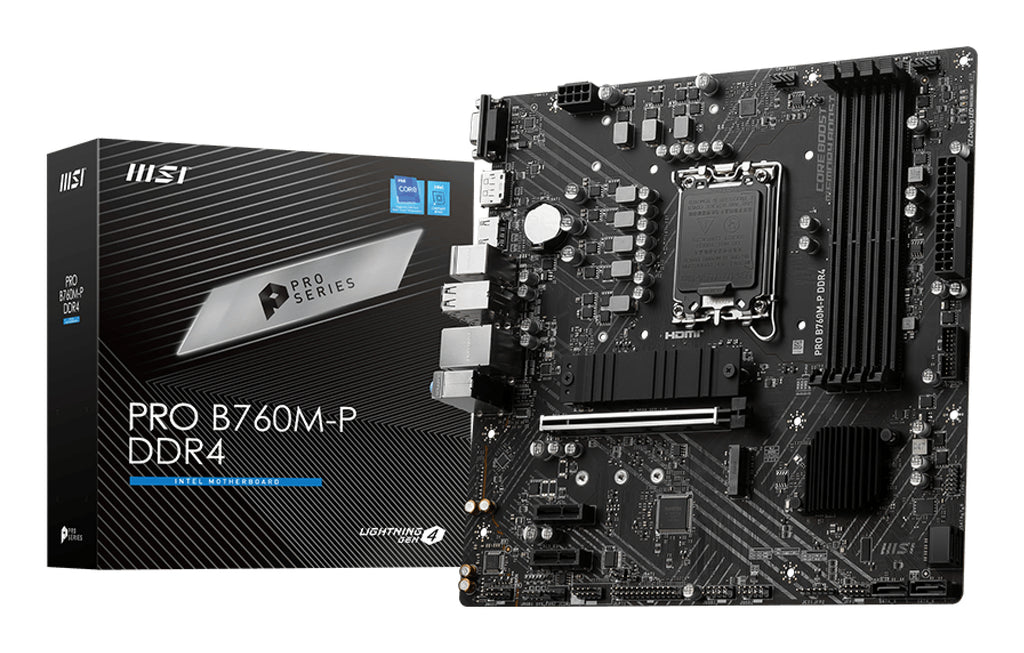

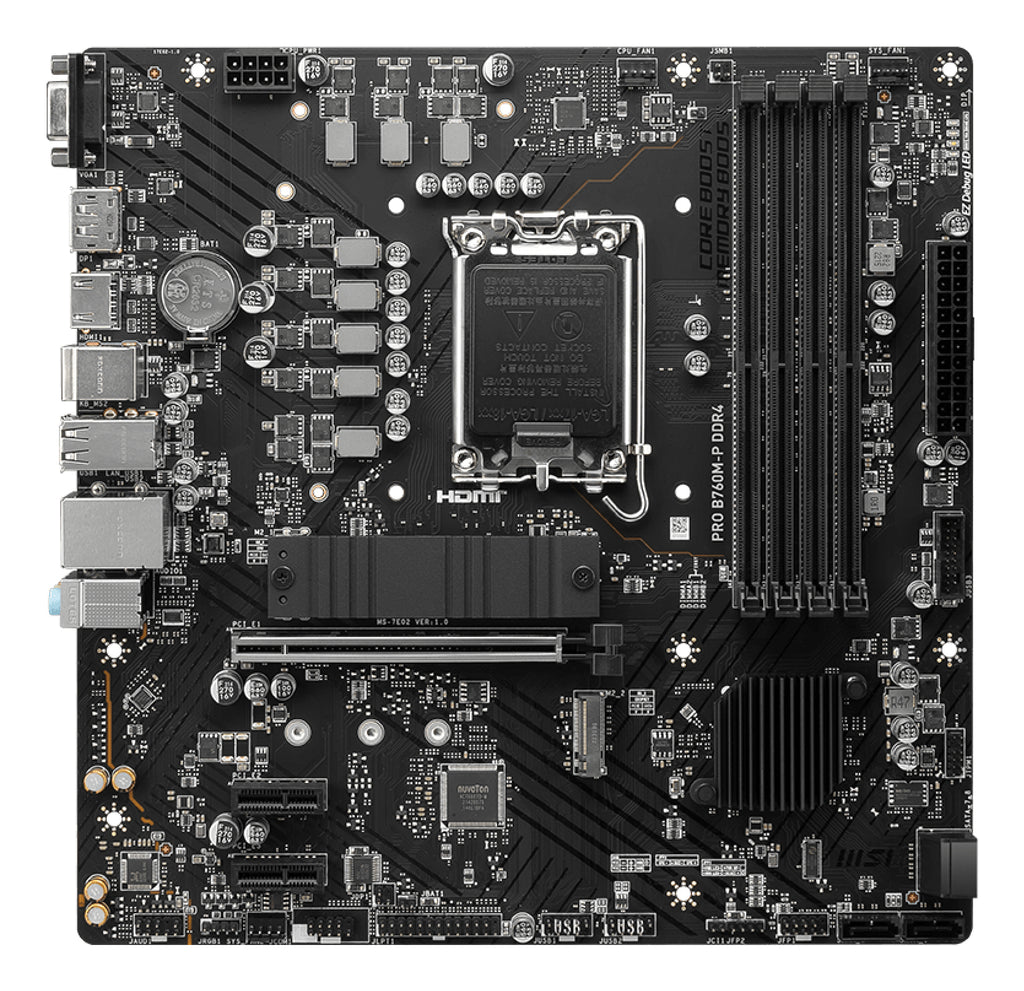

MSI PRO B760M-P DDR4 LGA 1700 Micro-ATX Motherboard
MSI
MSI PRO B760M-P DDR4 LGA 1700 Micro-ATX Motherboard
The MSI PRO B760M-P DDR4 is a micro-ATX motherboard for professionals and builders using 12th, 13th, or 14th-gen Intel processors. It combines DDR4 memory support with PCIe 4.0 connectivity and thermal management designed for stable, efficient builds.
Why this product
PCIe 4.0 with 64GB/s bandwidth
One x16 slot and two x1 slots deliver Lightning Gen4 throughput with MSI Steel Armor reinforcement for heavy graphics cards.
DDR4 up to 4800+ MHz (OC)
Four DIMM slots support dual-channel memory with MSI Memory Boost tuning for optimized performance and capacity up to 128 GB.
M.2 Shield Frozr thermal design
Two Gen4 M.2 slots with dedicated heatsink and thermal protection keep NVMe SSDs running cool under load.
CLICK BIOS 5 with XMP and VMD
One-click XMP profiles for memory tuning, VMD for direct NVMe control, and M-FLASH for fast BIOS updates.
Full fan and thermal control
Manage CPU and system fans with up to 4 temperature targets, DC/PWM auto-detect, and a chipset heatsink that reduces noise while maintaining efficiency.
- ChipsetIntel B760
- SocketLGA 1700
- Form FactorMicro-ATX
- Memory SupportDDR4-4800+ MHz (OC), up to 128 GB
- Storage2× M.2 Gen4, 4× SATA
- Warranty3 years
- SKUMSI-7467
- EAN4711377030991
- Supports Intel Core 12th, 13th, and 14th Gen processors, Pentium Gold, and Celeron in LGA 1700 socket.
- Accepts DDR4 memory only; DDR5 memory is not compatible.
- Fits standard micro-ATX cases; dimensions are 24.384 cm × 24.384 cm.
- Provides HDMI 1.4, DisplayPort 1.4, and VGA output for onboard graphics on CPUs with integrated video.
- M.2 slots support 2242, 2260, and 2280 form factors; M.2 Gen4 drives are required for full 64Gbps speed.
Best for
- Professional and prosumer builders seeking DDR4 stability with modern PCIe 4.0 performance.
- Users building compact systems in micro-ATX cases without needing full ATX expansion.
- Enthusiasts who want thermal management and fan control tuning without overclocking complexity.
- Content creators needing fast NVMe storage and reliable memory for media workflows.
Trade-offs
- DDR5 memory users; this board supports DDR4 only and cannot accept fifth-generation memory.
- Builders requiring the largest expansion footprint; micro-ATX limits expansion slots and storage bays compared to full ATX.
- Those needing WiFi or Bluetooth onboard; this board includes only Gigabit LAN with no wireless connectivity.
- Budget builds where DDR4 cost is a concern; DDR5 platforms may offer better long-term value despite higher initial price.
PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience.
PRO series motherboards tuned for better performance by Core Boost, DDR4 memory with Memory Boost, Lightning Gen4 PCIe, M.2 Shield Frozr, USB 3.2 Gen 2 Type-C.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Lightning Gen 4 PCI-e with Steel Armor
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
MSI Steel Armor
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
DDR4 Memory Solution
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
Fully Fan Control
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
CLICK BIOS 5
- XMP – Choose from a preset XMP profile and automatically overclock compatible DDR memory.
- VMD (Volume Management Device) – Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
- M-FLASH – Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
Double ESD Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
General
| Brand | MSI |
|---|---|
| Model | PRO B760M-P DDR4 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Dimensions | 24.384 cm × 24.384 cm |
CPU & Memory
| CPU Socket | LGA 1700 |
|---|---|
| Supported CPUs | Intel Core 12th, 13th, 14th Gen; Pentium Gold; Celeron |
| Memory Type | DDR4 DIMM |
| Memory Slots | 4× 288-pin |
| Memory Speed | DDR4-2133 / 2400 / 2666 / 2933 / 3200 (JEDEC); 4800+ MHz (OC) |
| Maximum Memory | 128 GB |
Storage & Expansion
| PCIe Slots | 1× PCIe 4.0 x16 (CPU); 2× PCIe 4.0 x1 (Chipset) |
|---|---|
| M.2 Slots | 2× Gen4 x4 (2242/2260/2280) |
| SATA Ports | 4× SATA 6Gbps |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
Connectivity & Audio

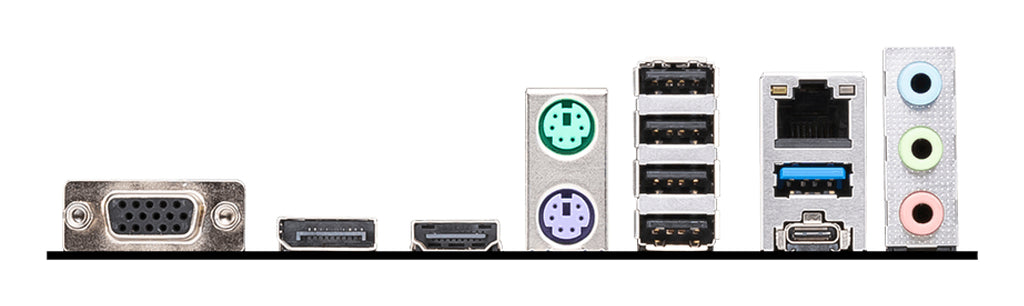

| Rear USB | 1× USB 3.2 Gen 2 Type-C; 1× USB 3.2 Gen 1 Type-A; 4× USB 2.0 |
|---|---|
| Front USB Headers | 4× USB 2.0; 2× USB 3.2 Gen 1 Type-A |
| LAN | Realtek RTL8111H Gigabit |
| Audio | 8-Channel (7.1) with Audio Boost; Realtek ALC897 Codec |
| Video Outputs | 1× HDMI 1.4 (4K@30Hz); 1× DisplayPort 1.4 (4K@60Hz); 1× VGA (1920×1200@60Hz) |
Features & BIOS
| BIOS | MSI Click BIOS 5 |
|---|---|
| BIOS Tools | XMP, VMD, M-Flash |
| Thermal Management | M.2 Shield Frozr; Chipset Heatsink; Full Fan Control with 4 temperature targets |
| ESD Protection | Double ESD Protection |
| Power Connectors | 1× 24-pin ATX; 1× 8-pin CPU |
Software & Support
| Included Software | MSI Center; AIDA64 Extreme (60-day trial) |
|---|---|
| Operating Systems | Windows 11 64-bit; Windows 10 64-bit |
| Warranty | 3 years (36 months) |
| Included Accessories | IO shield; 1× SATA cable; 2× M.2 screw/standoff sets |
