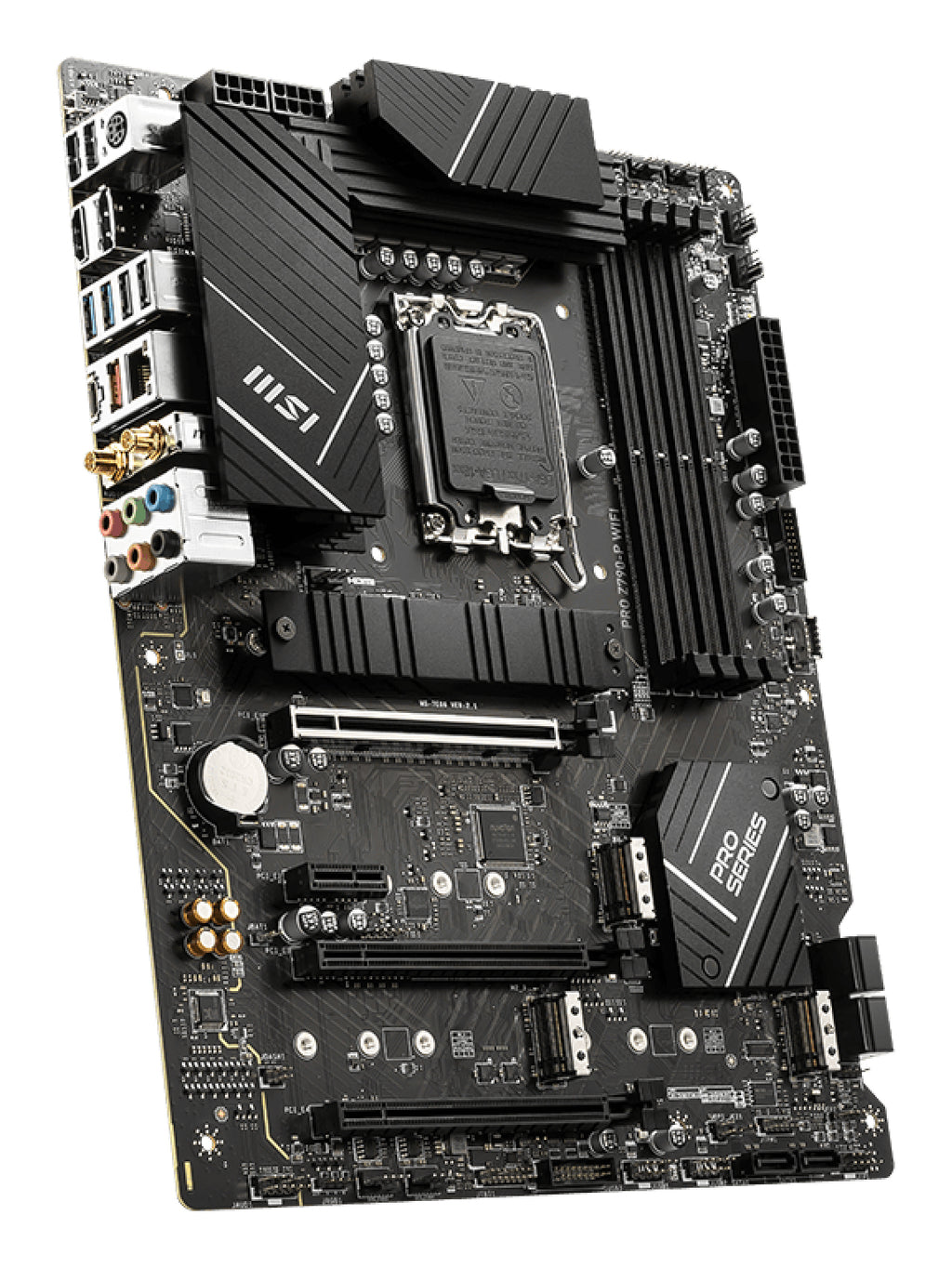

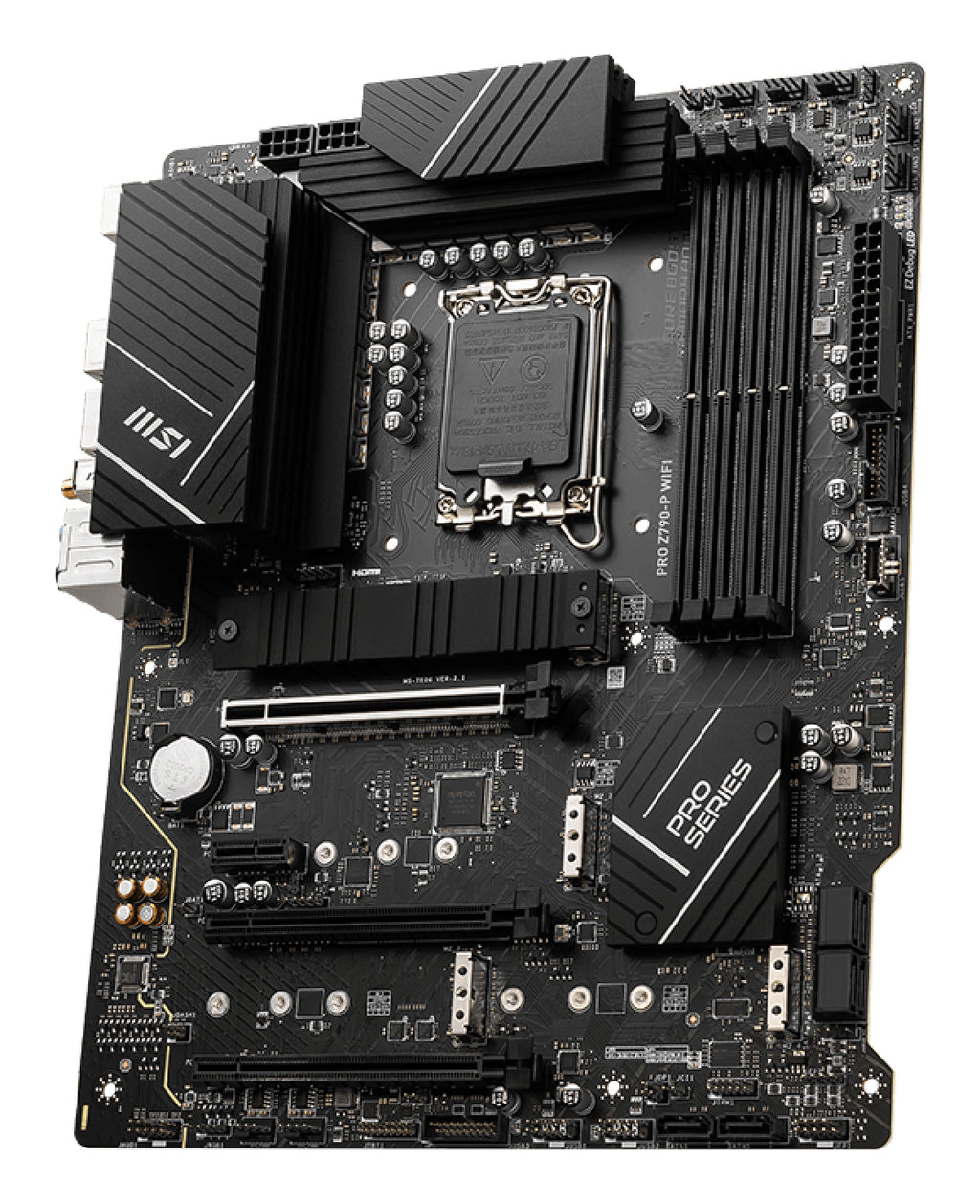

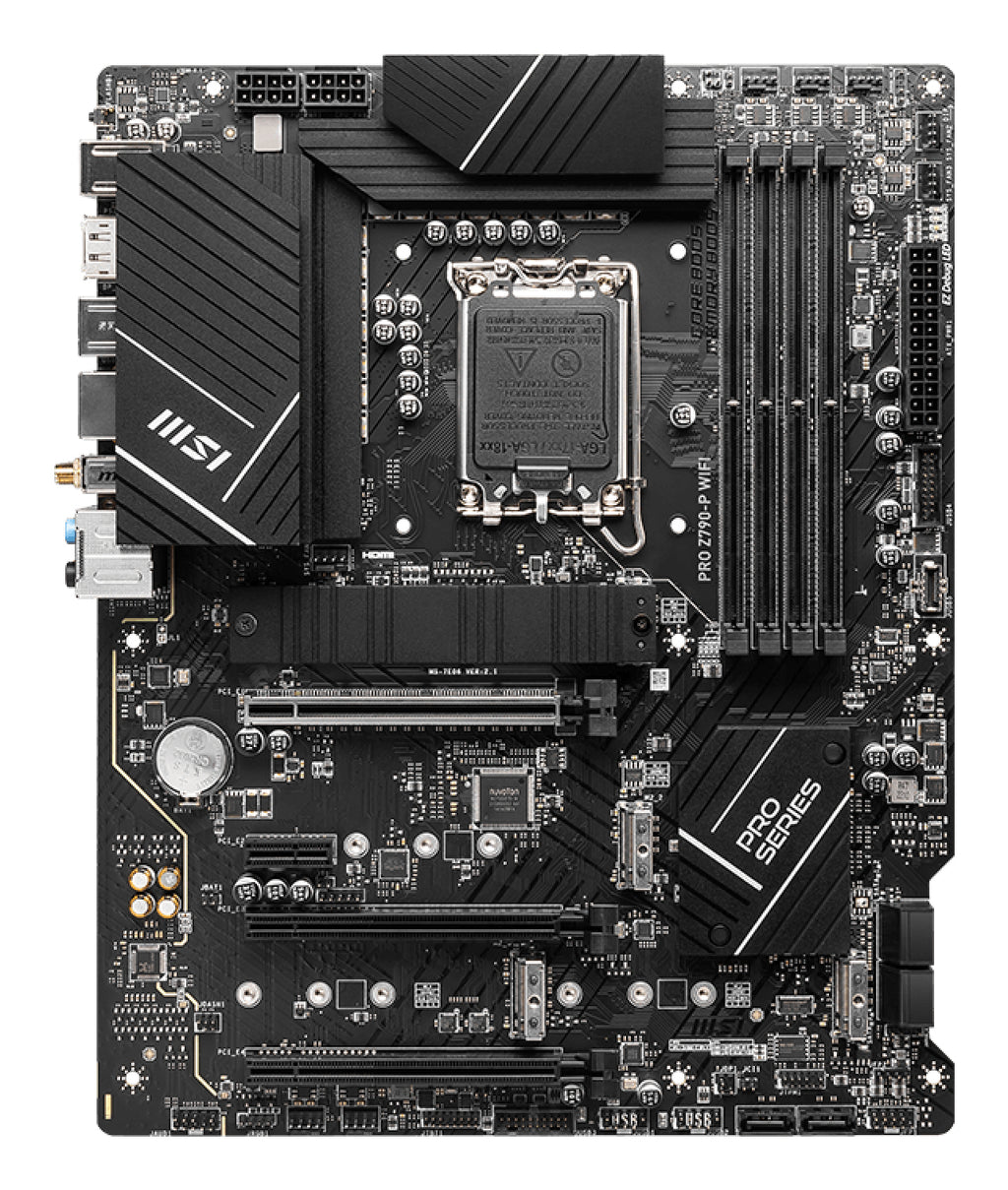

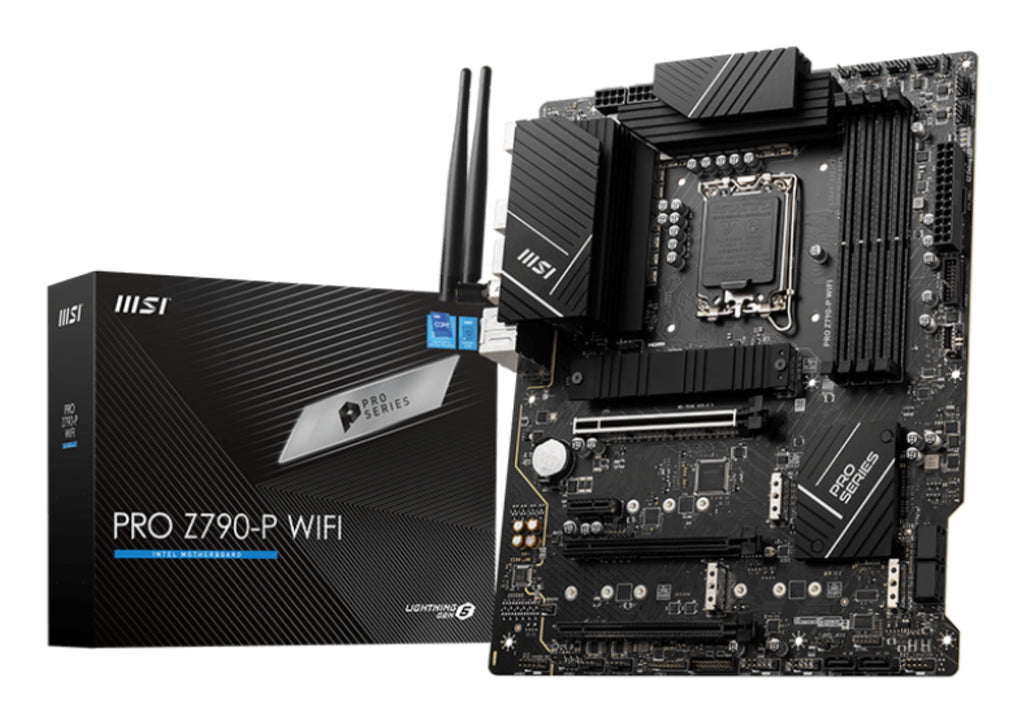

MSI PRO Z790-P WIFI LGA1700 ATX Motherboard DDR5
MSI
MSI PRO Z790-P WIFI LGA1700 ATX Motherboard DDR5
The MSI PRO Z790-P WIFI is an ATX motherboard for Intel 12th, 13th and 14th Gen processors, built around DDR5 memory, PCIe 5.0 expansion and Wi-Fi 6E networking. It suits builders who need a capable, feature-rich platform with modern connectivity and thermal management for gaming or productivity workloads.
Why this product
Wi-Fi 6E and 2.5G LAN
Dual wireless and wired networking options. The Wi-Fi 6E module supports the latest standard for faster wireless speeds, while the 2.5G LAN connection provides high-speed wired connectivity.
DDR5 memory with up to 7000+ MHz OC
Four DDR5 slots support up to 192GB total. Speed scales with configuration, reaching 7000+ MHz in optimal single-rank dual-channel mode.
PCIe 5.0 and multiple M.2 slots
One PCIe 5.0 x16 slot for the latest graphics cards or expansion devices. Four M.2 slots (two PCIe 4.0 from CPU, two from chipset) support Gen4 x4 and optional SATA.
Dual 8-pin CPU power and 14+1+1 DRPS
Enhanced power delivery for stable overclocking and sustained performance. Rated for up to 55A per phase with digital PWM.
Extended heatsinks and M.2 Shield Frozr
MOSFET thermal pads rated for 7W/mK, additional choke cooling, and M.2 thermal protection keep high-performance components cool during extended use.
- ChipsetIntel Z790
- SocketLGA 1700
- Form factorATX
- Memory slots4x DDR5 (up to 192GB)
- M.2 slots4x (PCIe Gen4 x4)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- WirelessWi-Fi 6E + Bluetooth 5.3
- SKUMSI-7640
- EAN4711377015738
- Supports Intel Core 12th, 13th and 14th Gen processors (Alder Lake, Raptor Lake, Raptor Lake Refresh) and Pentium Gold/Celeron in LGA 1700 socket.
- Accepts DDR5 memory in dual-channel configuration via four DIMM slots, with Intel XMP 3.0 support for easy overclocking profiles.
- Provides USB 3.2 Gen 2x2 (20Gbps Type-C), Gen 2 (10Gbps Type-A and Type-C), and Gen 1 (5Gbps Type-A) ports, plus eight USB 2.0 headers.
- Includes HDMI 2.1 and DisplayPort 1.4 outputs for integrated graphics on processors with iGPU (4K 60Hz maximum).
- Does not support AMD Multi-GPU; AMD Multi-GPU is listed as supported, but this is a motherboard for Intel processors only.
Best for
- Gamers building high-performance systems with DDR5 and modern graphics cards
- Content creators who benefit from PCIe 5.0 expansion slots and fast NVMe storage
- Overclockers with dual 8-pin CPU power and precise digital PWM control
- Users prioritising wireless convenience via Wi-Fi 6E and Bluetooth 5.3
Trade-offs
- Builders needing the latest PCIe 5.0 M.2 slots; this board offers PCIe 4.0 M.2 only
- Ultra-compact builds; ATX form factor is standard-sized, not ITX or micro-ATX
- Budget-conscious builders; this is a feature-rich PRO-tier board with premium power delivery and thermal solutions
PRO series motherboards tuned for better performance by 14 Duet Rail Power System, DDR5 memory with Memory Boost, Lightning Gen5 PCIe, Extended Heatsink, M.2 Shield Frozr, Wi-Fi 6E, 2.5G LAN, USB 3.2 Gen 2x2
PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
General
| Brand | MSI |
|---|
Networking
| Standard | Wi-Fi 6E (802.11ax), 2.5G LAN, Bluetooth 5.3 |
|---|---|
| Ports | 1x USB 3.2 Gen 2x2 20G Type-C, 2x USB 3.2 Gen 2 (1 Type-A + 1 Type-C), 6x USB 3.2 Gen 1 Type-A, 8x USB 2.0, HDMI 2.1, DisplayPort 1.4 |
Performance
| CPU support | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron (LGA 1700) |
|---|---|
| Memory | DDR5 dual-channel, up to 7000+ MHz (OC) |
| Storage | 4x M.2 (Gen4 x4), 6x SATA 6Gbps |
| Expansion | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1 |
| Power delivery | 14+1+1 DRPS, 55A phases, dual 8-pin CPU connectors |
Ports & power
| Power connectors | 24-pin main, 2x 8-pin ATX12V |
|---|---|
| USB (rear I/O) | 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 6x USB 3.2 Gen 1 Type-A, 8x USB 2.0 |
| Video output | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) |
Physical
| Form factor | ATX |
|---|---|
| Dimensions | 244 mm x 305 mm (9.6 in. x 12 in.) |
| PCB | 6-layer, 2oz thickened copper, server-grade materials |
| Thermal solution | Extended heatsinks, M.2 Shield Frozr, MOSFET pads (7W/mK), choke thermal pads |
