TP-Link

TP-Link Omada ES205G V1 Switch - 5 Ports - Managed

TP-Link Omada ES205G V1 Switch - 5 Ports - Managed

£32.04
£32.04
Sale Sold out
Tax included.
  • 5× 10/100/1000Mbps RJ45 ports.
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features.
  • Centralized Cloud Management via the web or the Omada app.
  • Automatic Loop Prevention, VLAN, and IGMP Snooping.
  • Fanless design for silent operation.
  • Durable metal casing and desktop/wall mounting design.

ES205G · 5× 10/100/1000Mbps RJ45 ports · Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features · Centralized Cloud Management via the web or the Omada app† · Automatic Loop Prevention, VLAN, and IGMP Snooping · Fanless design for silent operation · Durable metal casing and desktop/wall mounting design

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

  • 5× Gigabit RJ45 Ports
  • Fanless Design for Silent Operation
  • Compact Metal Casing
  • Easy to Use
  • Centralized Management†
  • Omada App†
  • Traffic Separation
  • Traffic Prioritization△
  • Automatic Loop Prevention

Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Model ES205G V1
Interface 5× 10/100/1000Mbps RJ45 Ports
Flash 64 Mbit
Port Standard IEEE 802.3i: 10BASE-T Ethernet; IEEE 802.3u: 100BASE-X Fast Ethernet; IEEE 802.3ab: 1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control; IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering; IEEE 802.1q: Virtual Bridged Local Area Networks
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbits
Transmission Method Store-and-Forward
Jumbo Frame 15 KB
VLAN MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
QoS Port-based/802.1p/DSCP QoS; 8 Priority Queues; WRR (Weighted Round Robin) Queue Weight Config
Bandwidth Control Port-Based Rating Limit
Storm Control Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
L2 Features Static Link Aggregation; Loop Prevention / Loopback Detection; 802.3x Flow Control; Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both); Port Statistics; 802.1ab LLDP
L2 Multicast IGMP Snooping (IGMP v1/v2/v3 Snooping; Fast Leave)
Surge Protection ±6 kV in common mode for Ethernet Ports
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10% RH to 90% RH non-condensing
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity 5% RH to 90% RH non-condensing

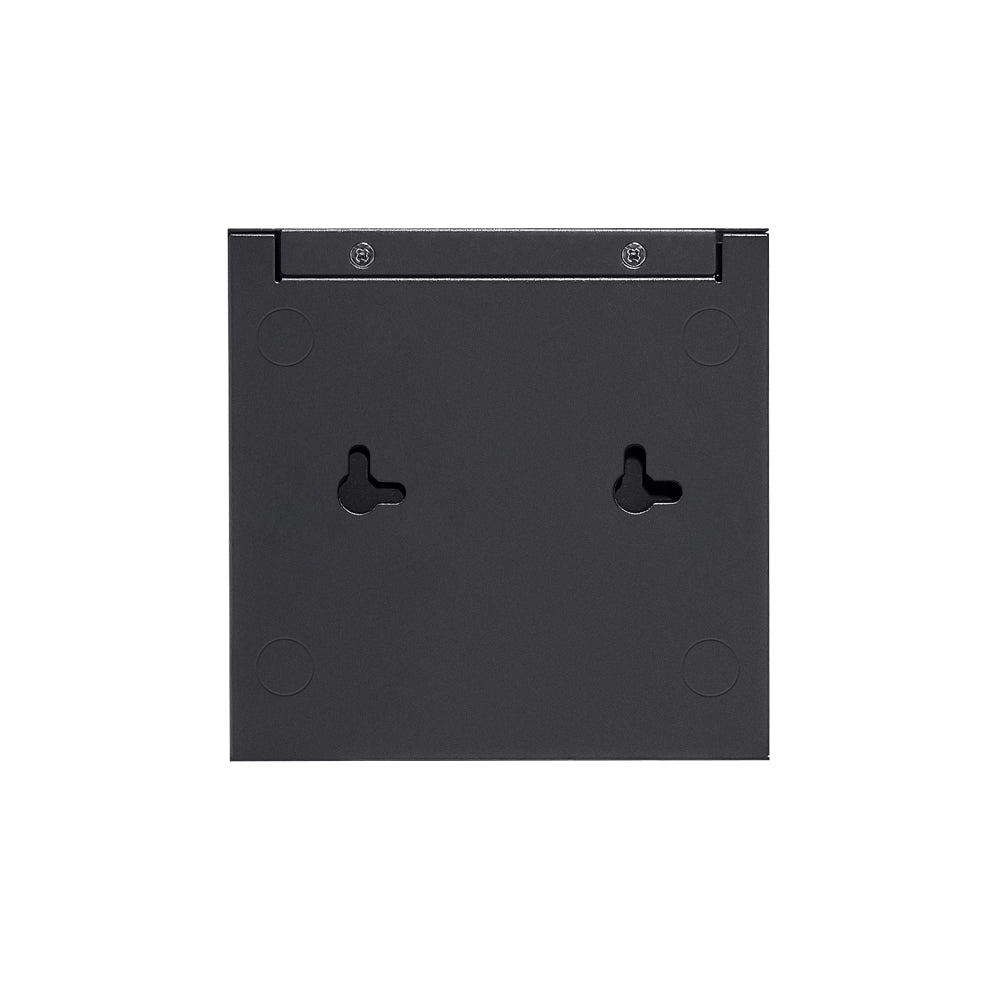

Mounting Desktop, Wall-Mountable
Omada SDN Support Support Hardware Controller, Software Controller, Cloud-Based Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
UPC 8885020620924

EAN/MPN:

8885020620924
