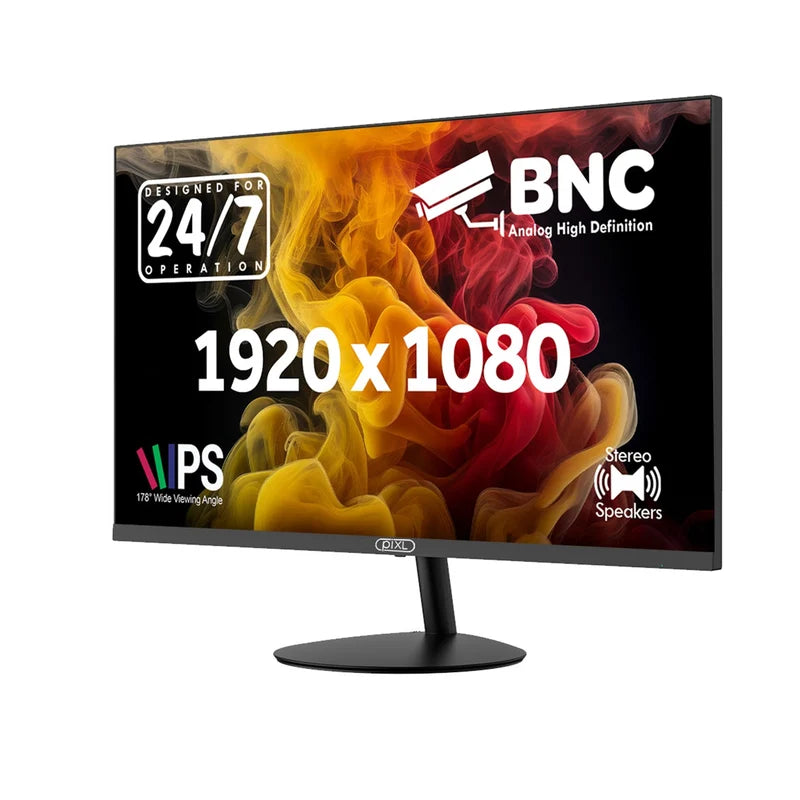

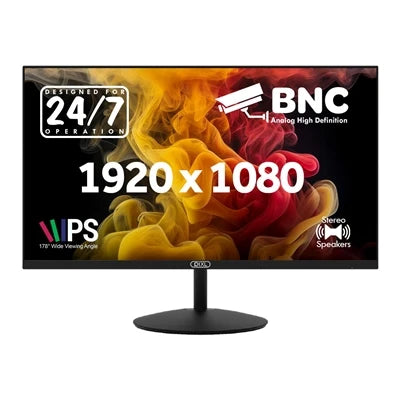

piXL 24IVHBS 24" Full HD CCTV IPS Monitor - BNC, HDMI, VGA

The piXL 24IVHBS 24" Full HD CCTV IPS Monitor is built for security professionals and system integrators who need a reliable, always-on display without the running costs of a standard monitor. Its BNC, HDMI, and VGA inputs alongside support for CVBS, AHD, TVI, and CVI signals mean it works directly with existing DVRs and CCTV infrastructure, removing the need for signal converters. At 18W typical consumption, it is designed to run continuously in control rooms, reception desks, or wall-mounted surveillance installations.

• Built for continuous 24/7 operation — Drawing only 18W typically, it runs around the clock without the energy costs associated with standard displays — a practical difference for always-on monitoring environments.
• Full HD IPS panel with wide viewing angles — The 1920 x 1080 IPS screen delivers 178° horizontal and vertical viewing angles, ensuring consistent colour and clarity whether viewed straight-on or from the side of a busy control room.
• Native CCTV signal support — CVBS, AHD, TVI, and CVI signals are all accepted natively, so it integrates directly with analogue and hybrid DVR systems without additional adapters.

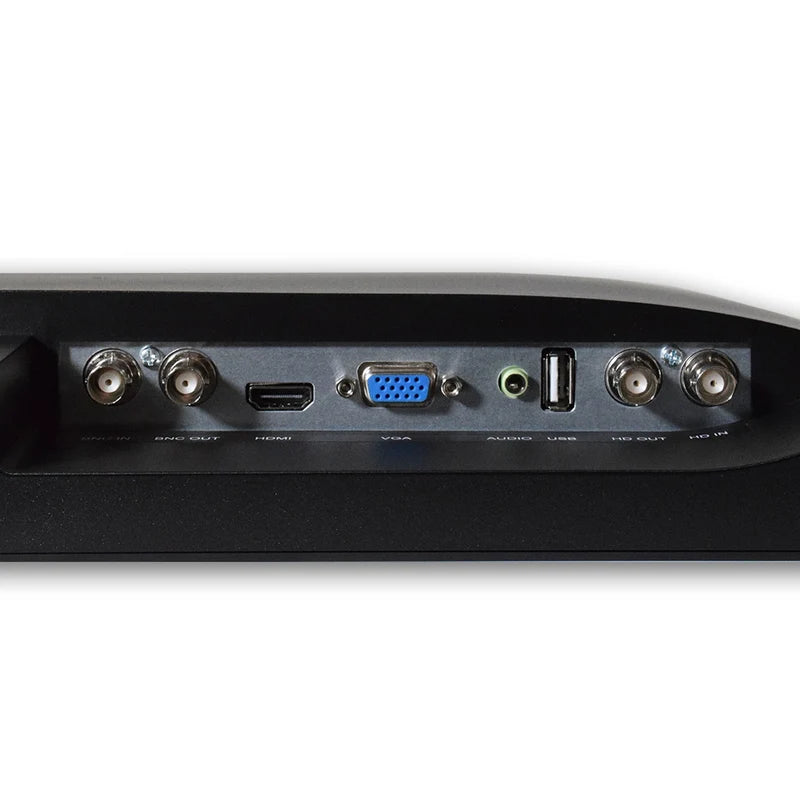

• Three input types: BNC, HDMI, and VGA — Dedicated BNC and AHD inputs sit alongside HDMI 1.4 and VGA, allowing it to serve double duty as both a surveillance monitor and a desktop display.
• VESA 75 x 75mm mounting support — The slim-bezel design pairs with 75 x 75mm VESA compatibility, making wall mounting or arm installation straightforward in space-constrained installations.
• 100% sRGB colour coverage — With 100% sRGB and 84% DCI-P3 coverage, colour reproduction is accurate enough for professional review of recorded footage as well as general desktop use.

• ✓ Compatible with CCTV DVRs and recorders via the BNC input, supporting CVBS, AHD, TVI, and CVI signal formats.
• ✓ Connects to PCs and laptops via HDMI 1.4 (1920 x 1080 @ 60 Hz) or VGA (1920 x 1080 @ 60 Hz).
• ✓ VESA 75 x 75mm mount point allows use with standard monitor arms and wall-mount brackets.
• ✓ Includes a tiltable stand for desktop use where wall mounting is not required.
• Note: AHD input is present for Analog High Definition camera signals; confirm your DVR or camera outputs AHD before relying on this connection.
• ✗ Does not support DisplayPort input; source devices that output DisplayPort only will require an active adapter.

Best for:

• Security installers and system integrators who need a monitor that accepts BNC, AHD, TVI, and CVI directly from DVRs without signal conversion.
• Always-on monitoring environments such as control rooms, retail back-offices, or reception desks where 24/7 operation and low running costs matter.
• Mixed-use workstations that switch between CCTV review and general PC use, thanks to the simultaneous availability of BNC, HDMI, and VGA inputs.
• Wall-mounted or arm-mounted installations where the 75 x 75mm VESA pattern and slim bezel keep the setup tidy and compact.

Trade-offs:

• Fast-motion gaming: the 60 Hz refresh rate and 5ms response time are specified for surveillance and professional use, not for competitive or fast-paced gaming.
• High-brightness environments: at 250 cd/m², it is not suited to installations in direct sunlight or high-ambient-light settings where a brighter panel would be required.
• Wide colour-critical professional work: the colour gamut is 81% NTSC and 80% Adobe RGB, which may not meet the requirements of colour-grading or pre-press workflows.
• DisplayPort-only sources: no DisplayPort input is listed; users whose equipment lacks HDMI or VGA output would need an active adapter.

Experience crisp, reliable performance with the piXL 24-inch CCTV monitor - designed for both security and professional applications. Featuring a Full HD 1080p display, this monitor delivers sharp visuals and true-to-life colour accuracy, ensuring you never miss a detail. With versatile connectivity options including BNC, HDMI, and VGA, it easily integrates with CCTV systems, DVRs, and PCs alike. Low-powered at only 18W, the piXL 24IVHBS is ideal for always-on 24/7 use without costing as much to run as a basic LED monitor.

The IPS screen allows for 178-degree viewing angles, as well as crisp images, bright colours and dark, inky blacks for maximum detail. Its broad compatibility allows for even Analog High Definition (AHD) signals, as well as standards like CVBS, TVI & CVI, so you can use it with your existing CCTV and security systems to provide reliable, real-time monitoring and recordings. Built with a sleek, slim bezel and VESA mount compatibility, the monitor fits seamlessly into any workspace or surveillance setup. Energy-efficient technology and a durable design make it a dependable choice for 24/7 operation.
