TP-Link TL-SF1005LP V1 Desktop Switch - 5-Port 10/100Mbps - 4-Port PoE - Unmanaged

TP-Link TL-SF1005LP V1 Desktop Switch - 5-Port 10/100Mbps - 4-Port PoE - Unmanaged

£41.22
£41.22
Sale Sold out
Tax included. Shipping calculated at checkout.
  • 5× 10/100 Mbps RJ45 ports, Auto-Negotiation MDI/MDIX.
  • 4× PoE ports (Port 1–Port 4) transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs.
  • Up to 250 m data and power transmitting range under Extend Mode.
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
  • Supports PoE Power up to 41 W for all PoE ports.
  • TL-SF1005LP can supply up to 15.4 W for each PoE port and 41 W for all PoE ports.
  • Plug and play with no configuration required.
  • The interior components are protected by high-quality metal casing to ensure a long product life.

TL-SF1005LP is a 5 10/100 Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Power Over Ethernet

Four of the 5 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802. 3af compliant Powered Devices (PDs).



Overload arrangement

TL-SF1005LP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 41 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.



Intelligent power management

Priority (port-1=port-2=port-3>port-4): this function will help to ensure the normal operation of the system; it means Port 4 will be cut off when all total PoE PDs power consumption exceeds 41 W. For example. If port 1, 2 and 4 are consuming 10 W respectively, and an additional PoE device with 15. 4 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.



Ease of use

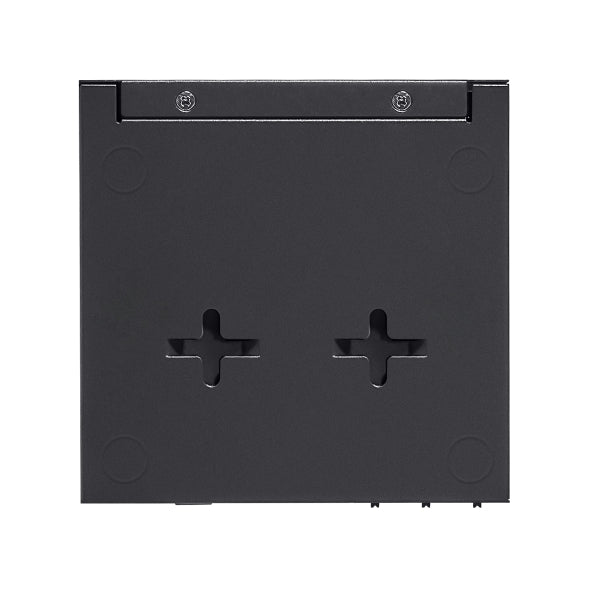

TL-SF1005LP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link's TL-SF1005LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your network.



*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.


**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x

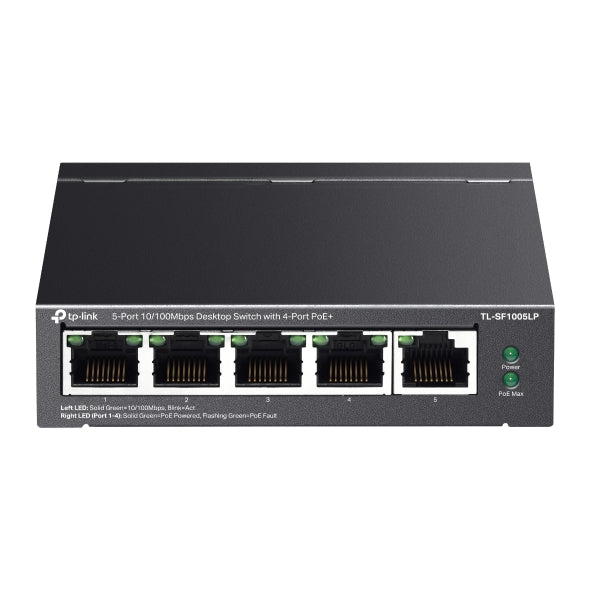

Ports 5× 10/100 Mbps RJ45 Ports, Auto-Negotiation MDI/MDIX
PoE Ports Port 1–Port 4
PoE Budget 41 W total for all PoE ports
Max PoE per Port 15.4 W
Switching Capacity 1 Gbps
Forwarding Mode Store-and-Forward
MAC Address Table 2000 entries
Cable Type 10BASE-T: UTP category 3, 4, 5 (max 100 m); 100BASE-TX: UTP category 5, 5e (max 100 m); EIA/TIA-568 100Ω STP (max 100 m)
Power Input 100–240 VAC, 50/60 Hz

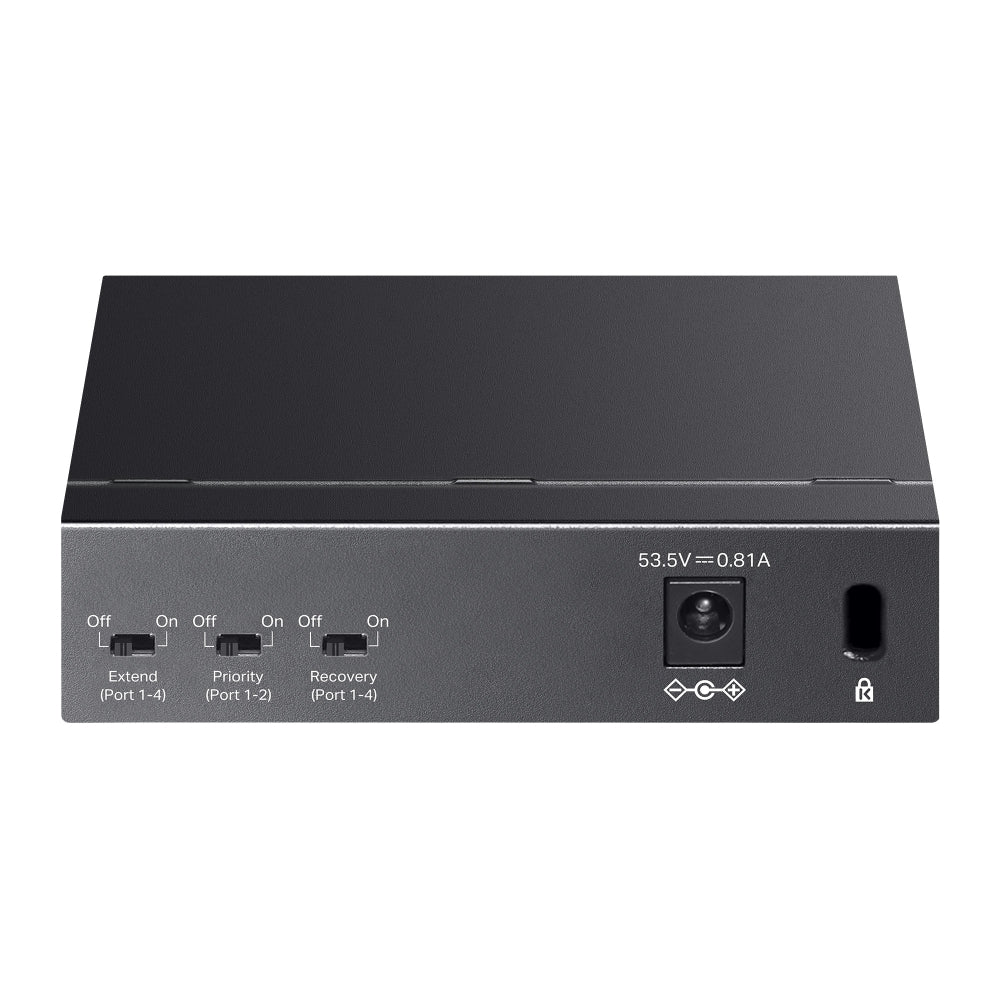

Power Output (Adapter) 53.5 VDC / 0.81 A
Max Power Consumption 47 W
MAC Address Learning Automatically learning, automatically aging
Extend Mode Range Up to 250 m (port speed downgraded to 10 Mbps)
Operating Temperature 0°C – 40°C
Mounting Desktop / Wall-mounting
Casing Metal
Management Unmanaged

EAN/MPN:

1210002616287
