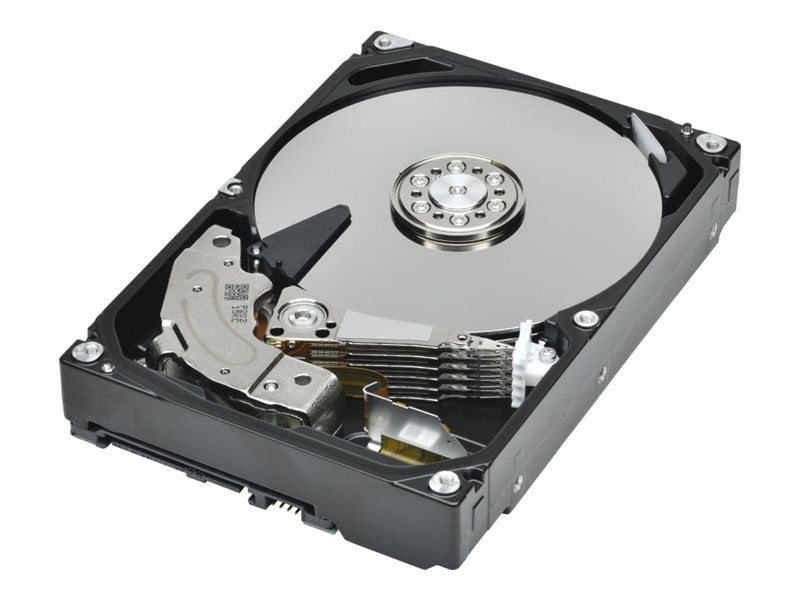

Toshiba MG10-D Series - Enterprise SAS - 12 Gb/s HDD - up to 10TB

Toshiba MG10-D Series - Enterprise SAS - 12 Gb/s HDD - up to 10TB

£309.81
£309.81
Sale Sold out
Tax included.
Size
  • Conventional Magnetic Recording (CMR) for broad compatibility.
  • Industry Standard 3.5-inch 26.1 mm height Form Factor.
  • Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED).
  • 512e / 4Kn Advanced Format sector.
  • 7200 RPM air-filled 5-disk CMR platform.
  • 512 MiB buffer cache.
  • Maximum Sustained Data Transfer Speed: 268 MiB/s
  • MTTF/MTBF: 2,000,000 hours | AFR: 0.44%.
  • Maximum rated workload: 550 Total TB Transferred per Year.
  • 24/7 enterprise reliability (8760 h/year power-on hours).



Harness the raw power of our cutting-edge MG10-D Series hard drive, delivering increased performance and power efficiency than prior models. The 7200 rpm 3.5-inch HDD delivers up to 10 TB of storage capacity and a choice of interface (SATA and SAS) with 512n and 512e sector options available. Crafted with precision engineering and years of Toshiba experience MG10-D Series delivers unrivalled quality and reliability. With SIE and SED options, valuable data is safeguarded by a storage solution known for its robust performance and unwavering dependability.



Architected to deliver improved total cost of ownership (TCO), the new MG10-D Series fits seamlessly into a wide variety of business-critical applications, such as email, data analytics, data retention, and surveillance.



The MG10-D Series is a 5-disk CMR standard 3.5-inch, 7200 RPM air-filled platform. Available capacities are 2TB, 4TB, 6TB, 8TB, and 10TB for both SAS and SATA. SATA is also available in a 1TB drive. The series supports 6Gb/s SATA or 12Gb/s SAS interface options in Advanced format 512e and 4Kn. A 512n option is available on the 1TB, 2TB, and 4TB offerings to support legacy systems with native 512 byte block sizes. Designed for 24×7 enterprise reliability, the MG10-D Series has a workload rating of 550TB, an AFR of 0.44% and an MTTF/MTBF of 2M hours.



Model Numbers (SAS 512e) MG10SDA200E (2TB), MG10SDA400E (4TB), MG10SDA800E (8TB), MG10SDA10TE (10TB)
Series MG10-D
Interface SAS-3.0
Interface Speed 12.0 Gbit/s
Sector Format 512e / 4Kn (default 512e, convertible to 4Kn)
Logical Data Block Length (512e models) HOST 512 B, DISK 4096 B; HOST 520 B, DISK 4160 B; HOST 528 B, DISK 4224 B
Rotation Speed 7200 rpm
Buffer Size 512 MiB
Maximum Sustained Data Transfer Speed (Typ.) — 10TB & 8TB 512e 268 MiB/s
Maximum Sustained Data Transfer Speed (Typ.) — 4TB 512e 268 MiB/s
Maximum Sustained Data Transfer Speed (Typ.) — 2TB 512e 268 MiB/s
Mechanical Design Air
Recording Technology CMR
Form Factor 3.5-inch (147 (L) x 101.85 (W) x 26.1 (H) mm (Max))
Weight — 10TB (MG10SDA10TE) 755 g
Weight — 8TB (MG10SDA800E) 730 g
Weight — 4TB (MG10SDA400E) 710 g
Weight — 2TB (MG10SDA200E) 670 g
Supply Voltage 12 V +/-10 %, 5 V +10/-7 %
Power Consumption — Write / Read (4KB Q1) (Typ.) 512e 9.91 W / 9.16 W
MTTF / MTBF 2.0 M hours
AFR (Annualized Failure Rate) 0.44%
Maximum Rated Workload 550 Total TB Transferred per Year
Operating Temperature 5 to 55 °C
Vibration — Operating 7.35 m/s2 {0.75 G} (5 to 300 Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz)
Vibration — Non-operating 29.4 m/s2 {3.0 G} (5 to 500 Hz)
Shock — Non-operating 2450 m/s2 {250 G} (2 ms duration)
Acoustics — Idle 34 dB

EAN/MPN:

2 TB - SAS - MG10SDA200E: 4260557513163

4 TB - SAS - MG10SDA400E: 4260557513187

8 TB - SAS - MG10SDA800E: 4260557513217

10 TB - SAS - MG10SDA10TE: 4260557513224
