TP-Link EAP650-Outdoor AX3000 WiFi 6 Outdoor Access Point
TP-Link
TP-Link EAP650-Outdoor AX3000 WiFi 6 Outdoor Access Point
The TP-Link EAP650-Outdoor is a WiFi 6 access point designed for outdoor deployments that need long-range coverage and reliable performance across multiple devices. It combines dual-band speeds up to 3 Gbps with an IP67 weatherproof enclosure, intelligent antenna switching, and centralized management through TP-Link's Omada platform.
Why this product
WiFi 6 speeds up to 3 Gbps
Delivers 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz using 802.11ax with 160 MHz channel bandwidth for higher throughput on fewer devices.
IP67 weatherproof design
Withstands dust, moisture, shock and vibration across operating temperatures from −30°C to 70°C, suitable for exposed outdoor environments.
Smart antenna technology
Dual horizontal and vertical polarized antennas with intelligent algorithm selection optimize coverage to 200 m (2.4 GHz) and 300 m (5 GHz).
Flexible PoE power
Accepts both 802.3at PoE+ and passive PoE (adapter included), simplifying installation in remote outdoor locations.
Omada cloud management
One-click adoption and centralized configuration from web UI or mobile app; supports mesh linking between access points for extended range.
- WiFi Standard802.11ax (WiFi 6)
- Dual-band throughput574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
- Weatherproof ratingIP67
- Range (5 GHz / 2.4 GHz)300 m / 200 m
- Power supply802.3at PoE+ or passive PoE
- Max concurrent clients250+
- Operating temperature−30°C to 70°C
- SKUTPL-1312
- EAN4897098682098
- Works with 802.3at PoE+ injectors or passive PoE adapters (included in box).
- Supports up to 250+ concurrent wireless clients across 16 SSIDs (8 per band).
- Integrates into TP-Link Omada SDN ecosystems with switches, gateways and other access points for unified management.
- Pole or wall mounting kits included; dimensions 280.4 × 106.5 × 56.8 mm without antenna.
- Operates outdoors within −30°C to 70°C; humidity 10–90% non-condensing. Not rated for submerged or constant spray environments.
Best for
- Large outdoor venues needing centralized WiFi
- Multi-access-point deployments with mesh and roaming
- Sites already running TP-Link Omada SDN infrastructure
- Installations where PoE power is available
Trade-offs
- Single-access-point home or small-office networks; this is a professional outdoor model designed for enterprise deployment and Omada integration.
- Locations requiring warranty information not provided in specifications.
- Setups without PoE infrastructure; passive PoE adapter is included but separate power sourcing may still be needed.
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.
Professional antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage over 2.4 GHz (200 m) and 5 GHz (300 m) wireless bands to various outdoor environments.
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

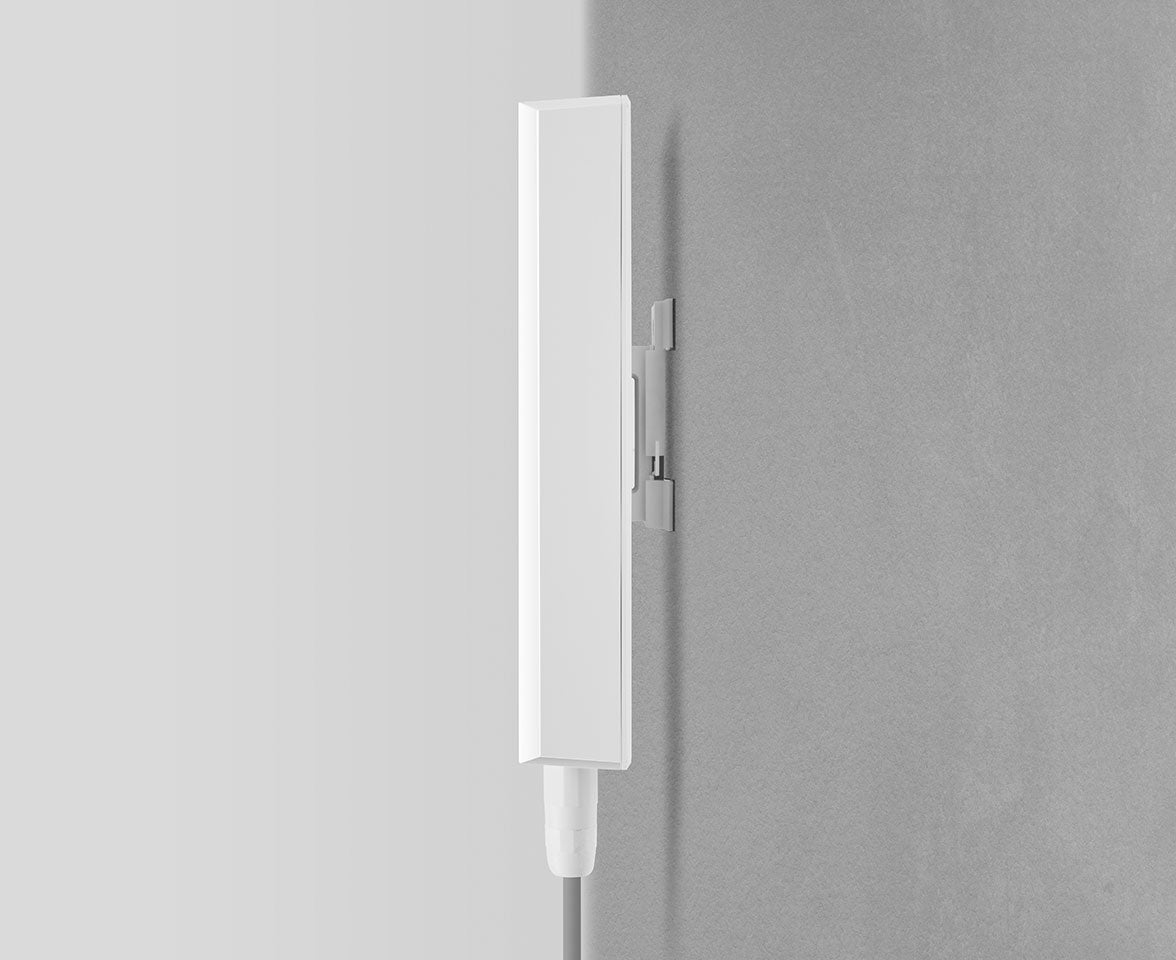

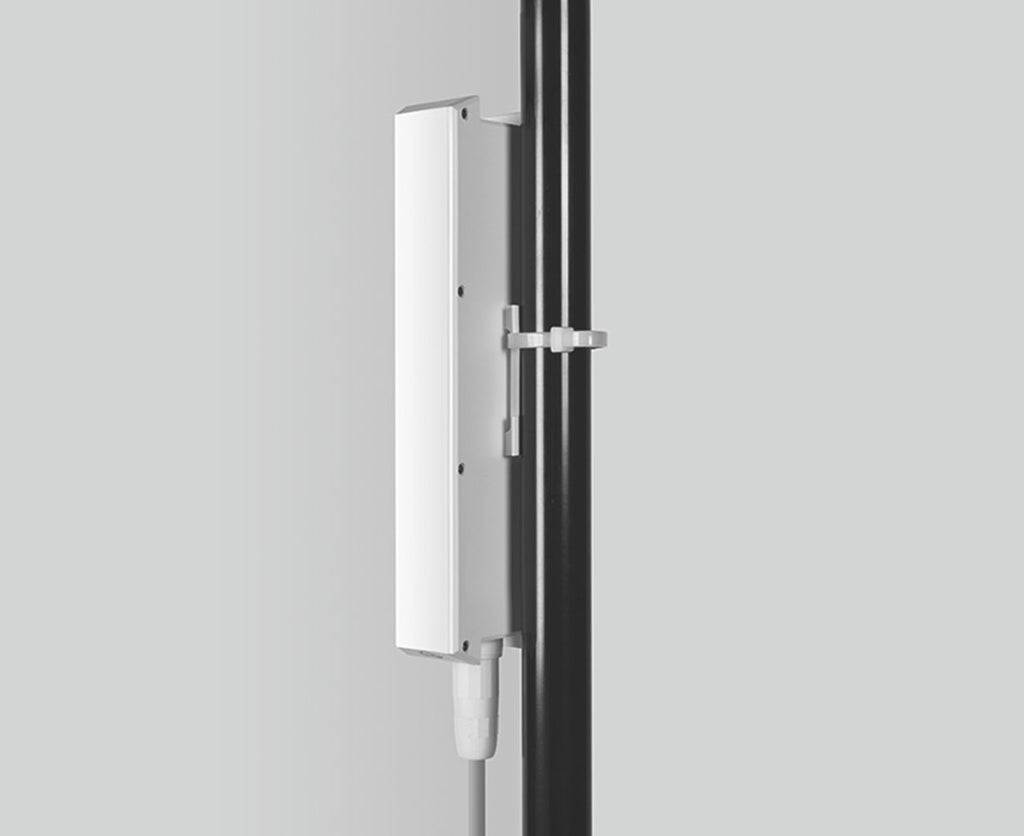

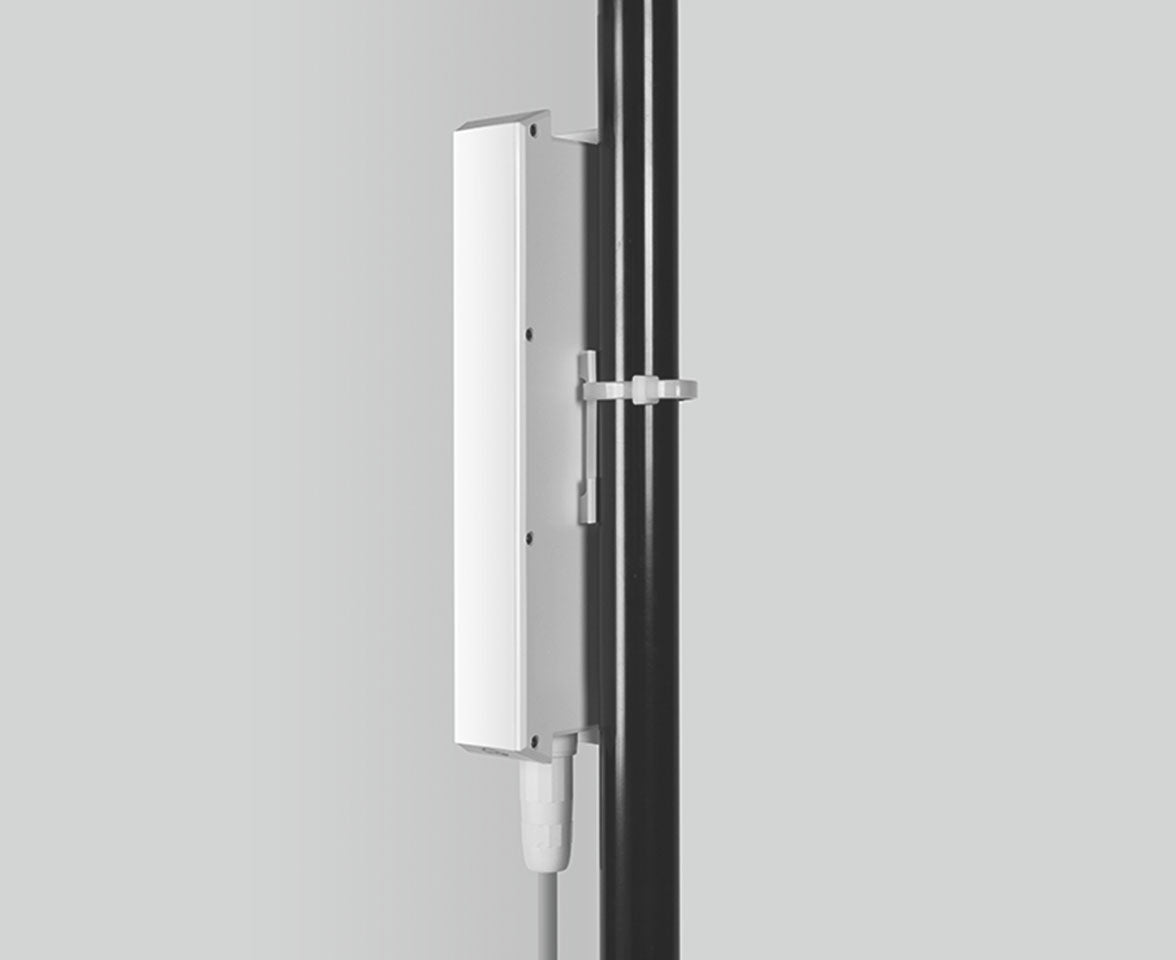

EAP650-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments. Our mounting kits provide flexible installation, whether inside or outside.
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

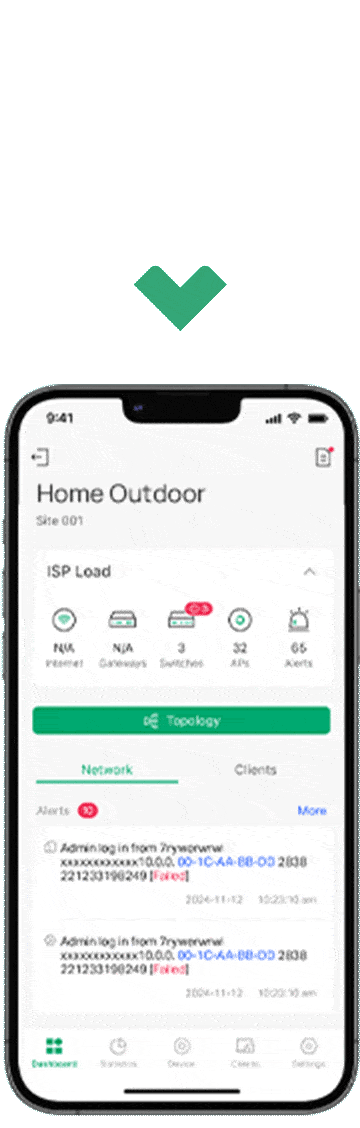

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.
Omada SDN allows users to quickly set up the EAP650-Outdoor through automatic device identification and one-click adoption. Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Networking
| Brand | TP-Link |
|---|---|
| Model | EAP650-Outdoor |
| WiFi standard | IEEE 802.11ax/ac/n/g/b/a |
| Multiple SSIDs | 16 (8 per band) |
| Security | WPA3-Personal/Enterprise, WPA2-Personal/Enterprise, WPA-Personal/Enterprise, 802.1X, Captive Portal, VLAN, Rogue AP Detection |
| Wireless features | Seamless roaming, mesh, beamforming, MU-MIMO, OFDMA, band steering, load balance, airtime fairness, QoS |
Performance
| Maximum data rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
|---|---|
| Channel bandwidth | 160 MHz (5 GHz) |
| Antennas | 2.4 GHz: 2 × 4 dBi; 5 GHz: 2 × 5 dBi |
| Wireless client capacity | 250+ |
Ports & power
| Ethernet ports | 1 × Gigabit (RJ-45, PoE) |
|---|---|
| PoE support | 802.3at PoE+ and passive PoE (adapter included) |
| Power consumption | EU: 12.5 W; US: 14.7 W |
Physical
| Dimensions | 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit) |
|---|---|
| Weatherproof rating | IP67 |
| Mounting | Pole/wall (kits included) |
| Operating temperature | −30°C to 70°C |
| Storage temperature | −40°C to 70°C |
| Operating humidity | 10–90% non-condensing |
