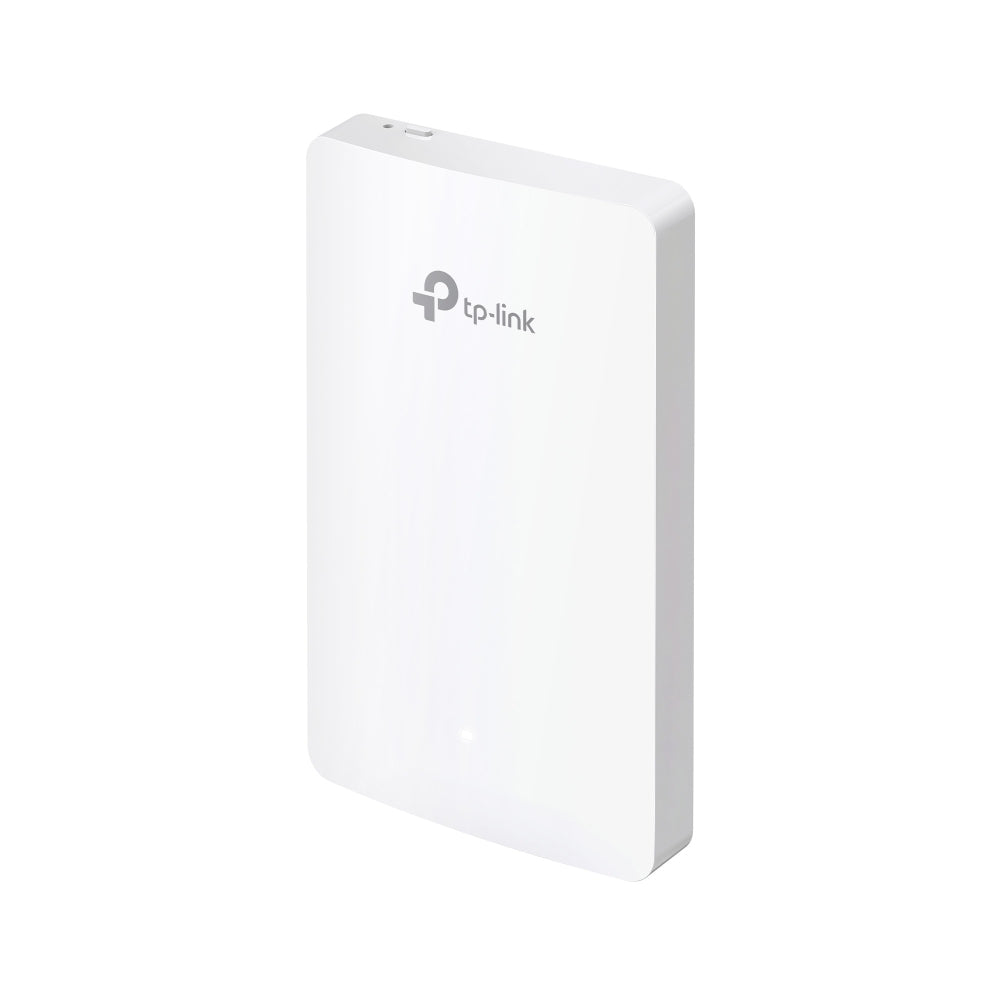

TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 AP
TP-Link
TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 AP
The TP-Link Omada EAP615-Wall is a wall-plate WiFi 6 access point designed for small offices, hotel rooms, dormitories and institutional environments where space and centralized management matter. It combines 802.11ax performance with four Gigabit Ethernet ports and PoE support in a compact form factor that integrates into TP-Link's Omada SDN platform for cloud-based network control.
Why this product
WiFi 6 with 1775 Mbps total throughput
Delivers 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz simultaneously, with OFDMA and MU-MIMO for efficient multi-device handling.
Four Gigabit Ethernet ports in wall-plate form
One uplink and three downlink ports (one supporting PoE pass-through) fit a standard 86 mm or US/EU junction box without external modules.
Cloud-managed via Omada SDN
Centralized configuration, monitoring and client management from a smartphone, tablet or web dashboard; no on-site controller required.
PoE powered with PoE pass-through
Powered by 802.3af/at PoE from the uplink port and can deliver power downstream to one wired device via a downlink port.
- WiFi Standard802.11ax (WiFi 6)
- Total Throughput1775 Mbps (574 Mbps @ 2.4 GHz + 1201 Mbps @ 5 GHz)
- Ethernet Ports4× Gigabit (1 uplink, 3 downlink)
- Power802.3af/at PoE
- Wireless Clients100+
- SSIDs16 (8 per band)
- SKUTPL-1358
- EAN4897098682128

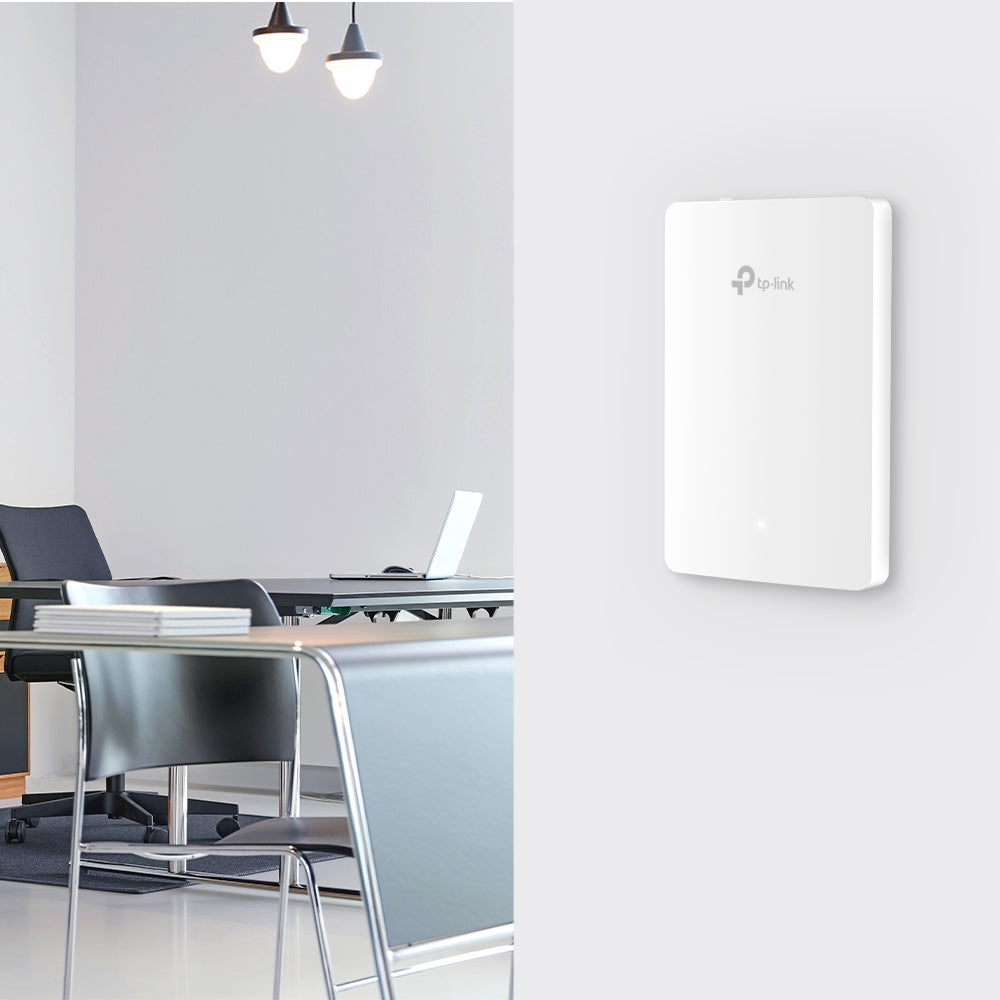

- Fits standard 86 mm, EU and US junction boxes for wall-flush mounting.
- Requires 802.3af/at PoE on the uplink port; no additional power supply needed.
- Supports WPA3, WPA2 and WPA encryption; compatible with enterprise authentication (RADIUS) and guest networks.
- Omada management requires either Omada Software Controller, Omada Hardware Controller, or the free Omada app on a smartphone or tablet.
- WiFi 6 features (OFDMA, MU-MIMO, higher speeds) require client devices that support 802.11ax; older devices fall back to 802.11ac or earlier.
Best for
- Multi-tenant environments needing per-room access control
- Facilities with existing PoE infrastructure on wall runs
- Organizations requiring centralized cloud management and reporting
- High-density deployments where support for 100+ clients per AP matters
Trade-offs
- Standalone deployments without PoE; no 12V or 24V DC option available.
- Networks built on proprietary mesh systems that do not integrate with Omada SDN.
- Ceiling-mount-only installations; this is a wall-plate unit and cannot be easily converted.

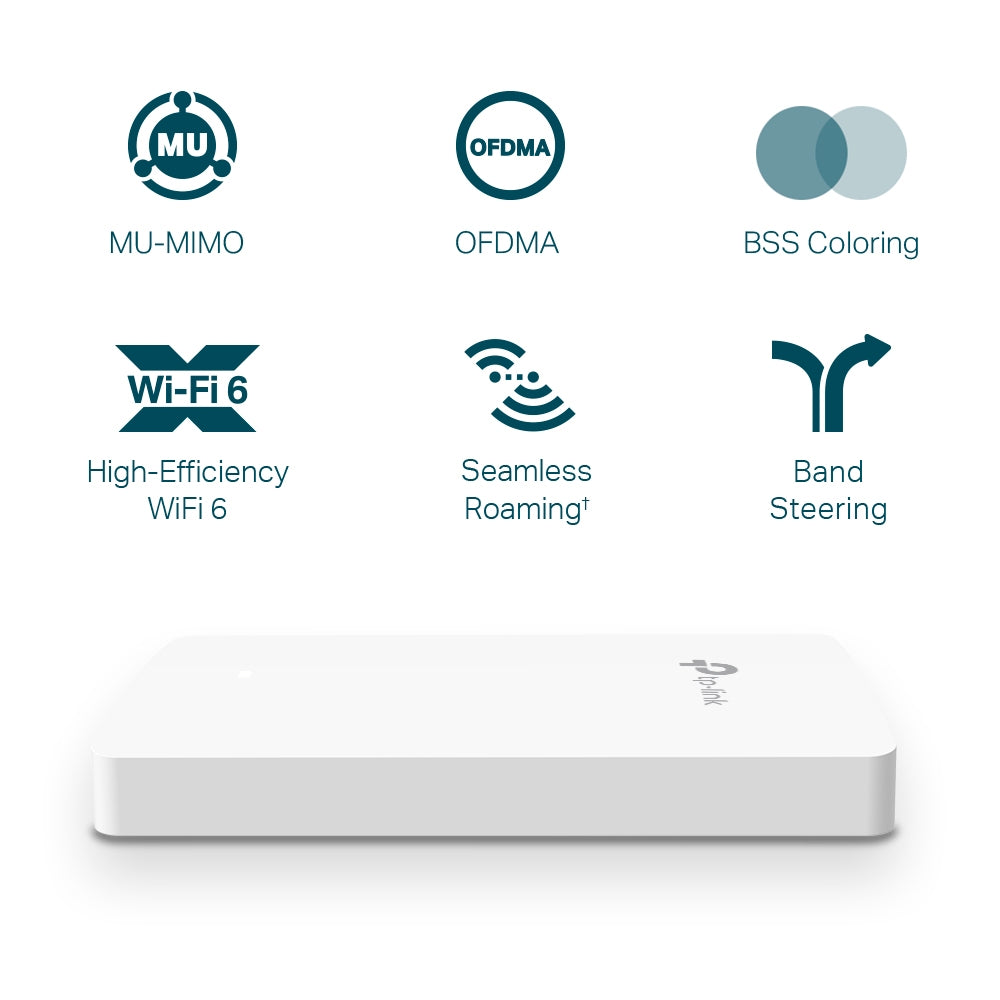

Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies* such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps**. The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency*.
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
4 Gigabit Ethernet ports for bridging (1× uplink + 1× downlink), with one downlink port supporting PoE pass-through to provide power for wired device. Ideal for the use in hotel rooms, hospital, offices, dormitories and any other environments.
*Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices to support the corresponding features. **Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary due to factors including network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. †Seamless roaming may require upgrading the firmware. The use of Omada Mesh and Seamless Roaming, and Captive Portal require Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Networking
| Brand | TP-Link |
|---|---|
| Model | EAP615-Wall |
| WiFi Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Wireless Functions | Beamforming, MU-MIMO, QoS (WMM), Seamless Roaming, Rate Limit, OFDMA, 1024-QAM |
Performance
| 2.4 GHz Throughput | 574 Mbps |
|---|---|
| 5 GHz Throughput | 1201 Mbps |
| 2.4 GHz Antennas | 2× 3 dBi Internal |
| 5 GHz Antennas | 2× 4 dBi Internal |
| Wireless Client Capacity | 100+ |
| SSIDs | 16 (8 per band) |
Ports & Power
| LAN Interfaces | 4× Gigabit Ethernet (1 uplink + 3 downlink) |
|---|---|
| PoE Pass-Through | Yes (1 downlink port) |
| Power Supply | 802.3af/at PoE |
| Transmit Power (FCC) | <21 dBm (2.4 GHz, EIRP); <21 dBm (5 GHz, EIRP) |
| Transmit Power (CE) | <20 dBm (2.4 GHz, EIRP); <23 dBm (5 GHz, EIRP) |
Physical
| Form Factor | Wall Plate |
|---|---|
| Compatible Boxes | 86 mm, EU and US standard junction boxes |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Centralized Management | Omada Software Controller, Omada Hardware Controller, Omada App |
| Package Contents | 1× EAP615-Wall, 1× Installation Guide, 1× Wall Mounting Kit |
