TP-Link Omada EAP650 AX3000 WiFi 6 Ceiling Mount Access Point
The TP-Link Omada EAP650 is an AX3000 WiFi 6 ceiling-mount access point built for business deployments in offices, campuses, retail, hotels and meeting rooms. It combines compact form factor with centralized cloud management and support for 250+ concurrent clients across up to 1500 ft² of coverage.
Why this product
AX3000 WiFi 6 performance
5 GHz band delivers up to 2402 Mbps and 2.4 GHz up to 574 Mbps. Dual 160 MHz channel support on 5 GHz doubles peak single-stream data rates.
PoE or DC power options
Supports 802.3at PoE for flexible ceiling deployment without running separate power lines, or 12V DC supply for alternative installations.
Centralized management
Omada SDN enables one-click setup and cloud-based management of access points, switches and gateways across a single network.
Enterprise security features
WPA3, guest networks with up to 16 SSIDs, 802.1x authentication, captive portal support, and rogue AP detection protect network access.
Space-efficient ceiling design

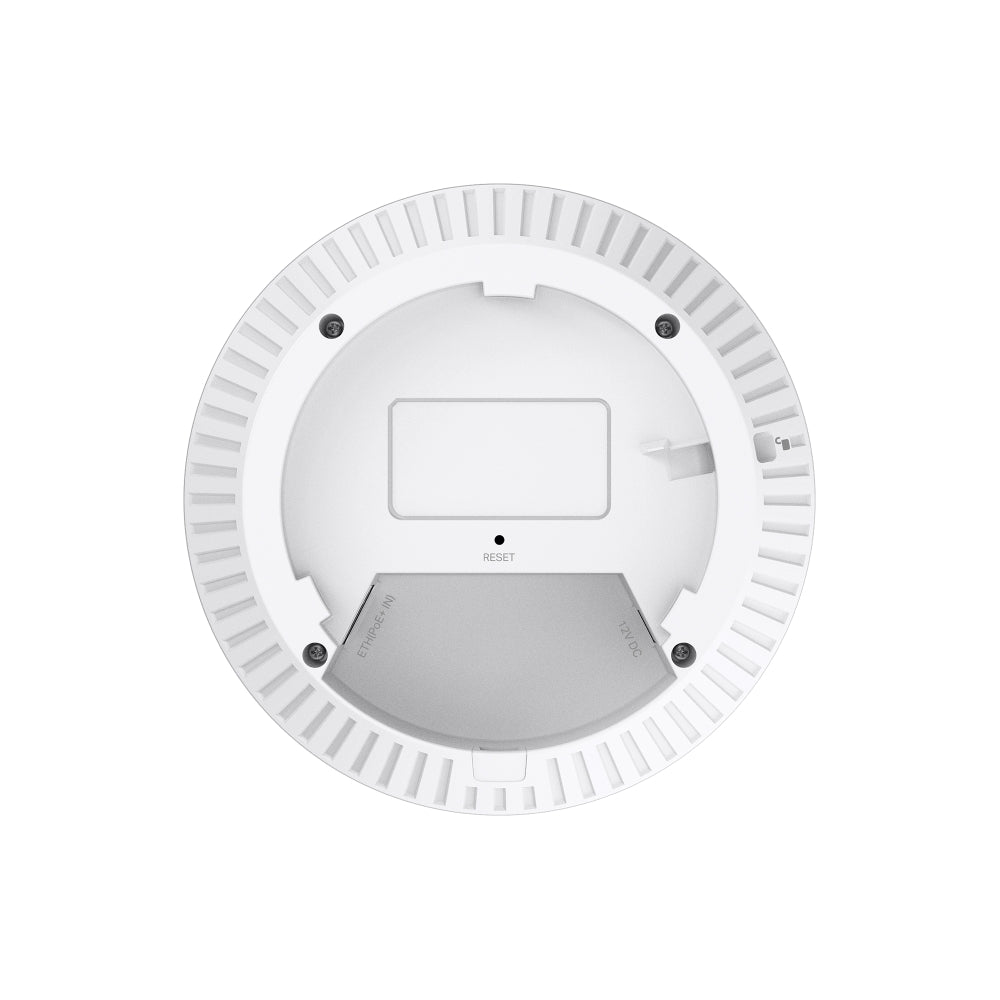

Compact 160 × 160 × 33.6 mm form factor blends into modern offices and classrooms while mounting to ceiling or wall.
- StandardIEEE 802.11ax (WiFi 6)
- Maximum throughput3.0 Gbps (2402 Mbps at 5 GHz + 574 Mbps at 2.4 GHz)
- Coverage areaUp to 1500 ft² (140 m²)
- Concurrent clients250+
- Power supply802.3at PoE or 12V DC
- MountingCeiling or wall
- SKUTPL-1091
- EAN4897098682081
- Works with IEEE 802.3at PoE switches and injectors for simplified ceiling installation without separate power runs.
- Supports concurrent connection of 250+ devices across both 2.4 GHz and 5 GHz bands.
- Integrates with Omada SDN controller for centralized management alongside compatible TP-Link switches and gateways.
- WiFi 6 features including OFDMA, HE160, and 1024-QAM require client devices that support those 802.11ax features; older devices will fall back to compatible standards.
- 160 MHz bandwidth on 5 GHz may be unavailable in some regions due to regulatory restrictions.
Best for
- Office, campus and hotel deployments where centralized cloud management and roaming across multiple APs matter.
- Environments requiring guest network segmentation, captive portal support and WPA3 enterprise-grade security.
- Ceiling installations where PoE power delivery eliminates the need for separate electrical runs to each AP.
- High-density venues like meeting rooms and retail floors where 250+ concurrent clients and mesh roaming are required.
Trade-offs
- Standalone home networks that don't need cloud management; a single consumer access point is simpler and less costly.
- Sites without 802.3at PoE infrastructure and unable to run 12V DC cabling to the ceiling, since the unit requires external power.
- Legacy wireless environments where most clients do not support WiFi 6 (802.11ax), since performance gains depend on compatible devices.
EAP650 is an AX3000 Ceiling Mount WiFi 6 Access Point with compact design, and is ideal for business scenarios requiring high performance, such as offices, campuses, retails, hotels and meeting rooms.
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
Boost overall network efficiency with a high-performance Gigabit PoE+ port, delivering blazing-fast data speeds. Compatibility with 802.3at PoE is ideal for flexible deployment.
Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network. Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup. Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming. More Connections and Wider Coverage: Supports 250+ concurrent clients and covers up to 1500 ft² (140 m²) for reliable and extensive wireless connectivity.
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management. Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. With advanced enterprise security and Enhanced Open™, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
Networking
| Brand | TP-Link |
|---|---|
| Standard | IEEE 802.11ax/ac/n/g/b/a |
| Frequency bands | 2.4 GHz and 5 GHz |
| 5 GHz throughput | Up to 2402 Mbps |
| 2.4 GHz throughput | Up to 574 Mbps |
| Maximum channel width | 160 MHz (5 GHz only) |
| Antennas | Internal omni; 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi |
Performance
| Concurrent clients supported | 250+ |
|---|---|
| Coverage area | Up to 1500 ft² (140 m²) |
| Key technologies | MU-MIMO, OFDMA, 1024-QAM, HE160 |
| Guest networks | Up to 16 SSIDs |
Ports & power
| Ethernet port | 1× Gigabit (RJ-45), supports IEEE 802.3at PoE |
|---|---|
| Power supply options | 802.3at PoE; 12V DC (EU: 1.0 A; US: 1.5 A) |
| Power consumption | EU: 13.5 W; US: 14.7 W |
Physical
| Dimensions | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
|---|---|
| Weight | 0.38 kg (0.838 lb) main unit |

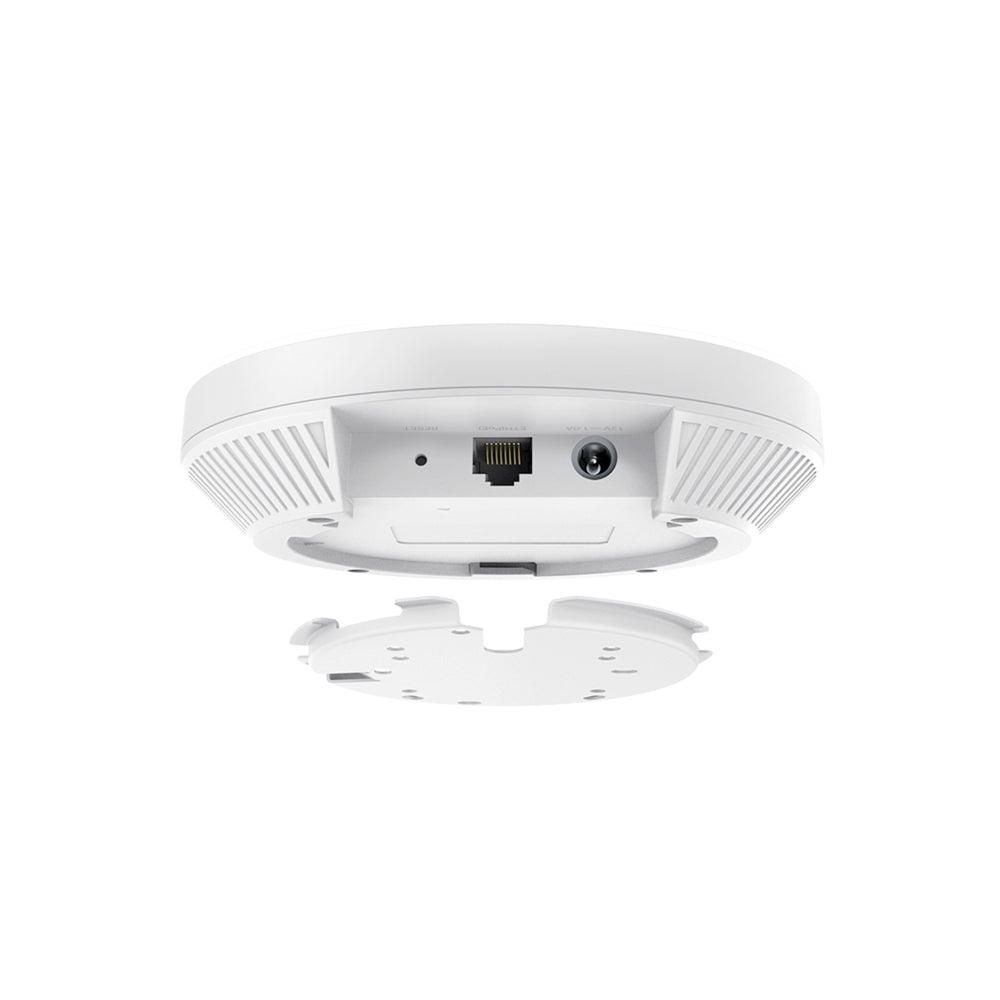

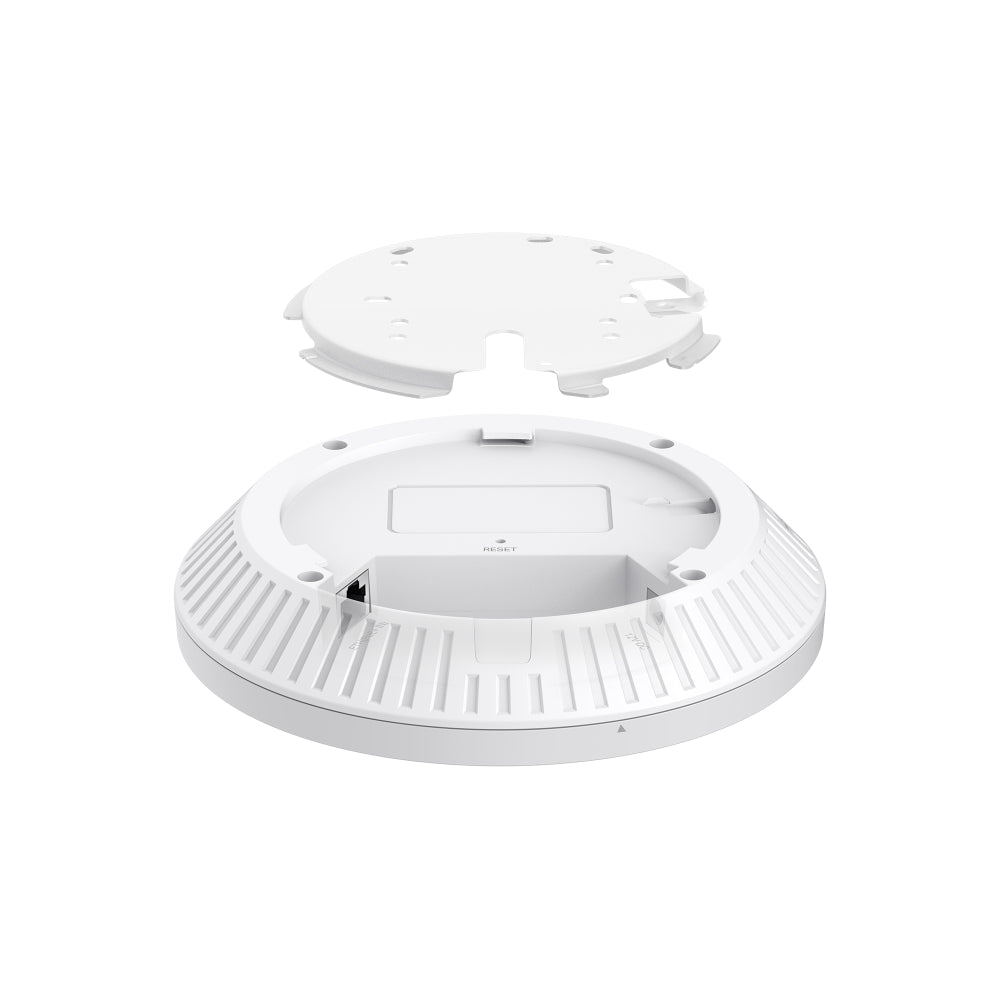

| Mounting options | Ceiling or wall (kits included); junction box mounting (sold separately) |
| Operating temperature | 0–40 ℃ (32–104 ℉) |
| Operating humidity | 10–90% RH non-condensing |
