TP-Link Omada EAP653 AX3000 WiFi 6 Ceiling Mount Access Point
TP-Link
TP-Link Omada EAP653 AX3000 WiFi 6 Ceiling Mount Access Point
The TP-Link Omada EAP653 is an AX3000 WiFi 6 ceiling mount access point designed for businesses needing reliable coverage across offices, campuses, retail spaces, hotels and meeting rooms. It combines dual-band performance with centralized cloud management and enterprise security features in a compact form factor.
Why this product
AX3000 dual-band WiFi 6 performance
Delivers up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz using 802.11ax standards with OFDMA and MU-MIMO support.
PoE powered with single Gigabit port
Runs on 802.3at PoE or optional DC adapter, eliminating separate power lines and simplifying deployment.
Centralized Omada cloud management
Integrates with TP-Link's Software-Defined Networking platform for 100% cloud-based control, scaling, and monitoring across multiple access points.
Enterprise security with WPA3
Supports WPA3 encryption, 802.1x authentication, rogue AP detection, and up to 16 SSIDs for guest networks and role-based access.
Compact ceiling mount design
Measures 160 × 160 × 33.6 mm with included mounting kits for ceiling, wall or junction box installation without disrupting office aesthetics.
- WiFi standardWiFi 6 (802.11ax)
- 5 GHz throughputUp to 2402 Mbps
- 2.4 GHz throughputUp to 574 Mbps
- CoverageUp to 1,500 ft² (140 m²)
- Concurrent clients250+
- Power method802.3at PoE or 12 V DC (adapter sold separately)
- Mounting optionsCeiling, wall, or junction box
- SKUTPL-1250
- EAN4897098685235
- Works with any 802.11ax, 802.11ac, 802.11n, 802.11g, 802.11b or 802.11a client device including laptops, phones, tablets and IoT devices.
- Compatible with 802.3at PoE switches and injectors; also supports 12 V DC adapter (sold separately).
- Integrates with Omada SDN controllers (hardware, software or cloud-based) for centralized management, or operates in standalone mode.
- 160 MHz channel width on 5 GHz is subject to regional regulatory restrictions and may not be available in all countries.
- WiFi 6 features including OFDMA, MU-MIMO and 1024-QAM require client devices that also support these 802.11ax features.
Best for
- Medium to large office environments and campuses needing reliable coverage across multiple zones.
- Venues requiring guest network access with customizable portals, SMS login and marketing pages.
- IT teams managing multiple access points from a single cloud dashboard without on-site controllers.
- Spaces where ceiling or wall mounting is preferred and compact form factor is important.
- Deployments where PoE power simplifies cable runs and eliminates separate AC outlets.
Trade-offs
- Ultra-high density environments: supports 250+ concurrent clients, which may be insufficient for very large gatherings.
- Installations requiring external antenna options; this model features internal omnidirectional antennas only.
- Budget-conscious deployments where PoE infrastructure does not already exist and adding it increases total cost.
EAP653 · AX3000 Dual-Band Wi-Fi 6† · 1× Gigabit Port · 802.3at PoE · Omada Mesh & Seamless Roaming△ · Centralized Cloud Management · Enhanced Security · Easy, Quick Setup · Compact Design · Lightning-Fast AX3000 Wi-Fi 6 Speeds · 5 GHz · 2402 Mbps · 2.4 GHz · 574 Mbps · Boost overall network efficiency with a high-performance Gigabit PoE+ port, delivering blazing-fast data speeds. Compatibility with 802.3at PoE is ideal for flexible deployment.
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Secure Guest Network with up to 16 SSIDs · Boost Your Business with SMS Login · WPA3 for Worry-Free Open Public Networks · Rogue AP Detection
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management. Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. ‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. *Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. §Omada Mesh, Seamless Roaming, Captive Portal
Networking
| Brand | TP-Link |
|---|---|
| Model | EAP653 |
| WiFi standard | IEEE 802.11ax/ac/n/g/b/a |
| WiFi generation | WiFi 6 (802.11ax) |
| Frequency bands | 2.4 GHz and 5 GHz |
| Security | WPA3, WPA2, WPA, WEP; 802.1x authentication; Rogue AP detection; Captive portal (SMS, Facebook WiFi, Voucher) |
| Management | Omada SDN (hardware, software, or cloud-based controller); Omada app; Web UI; Standalone mode |
| SSIDs | Up to 16 (8 per band) |
| Wireless functions | 1024-QAM, 4× longer OFDM symbol, OFDMA, MU-MIMO, Beamforming, Band Steering, Seamless Roaming, Omada Mesh, Load Balancing, Airtime Fairness |
Performance
| 5 GHz throughput | Up to 2402 Mbps |
|---|---|
| 2.4 GHz throughput | Up to 574 Mbps |
| Channel width | 160 MHz (5 GHz; subject to regional regulatory restrictions) |
| Coverage | Up to 1,500 ft² (140 m²) |
| Concurrent clients | 250+ |
Ports & power

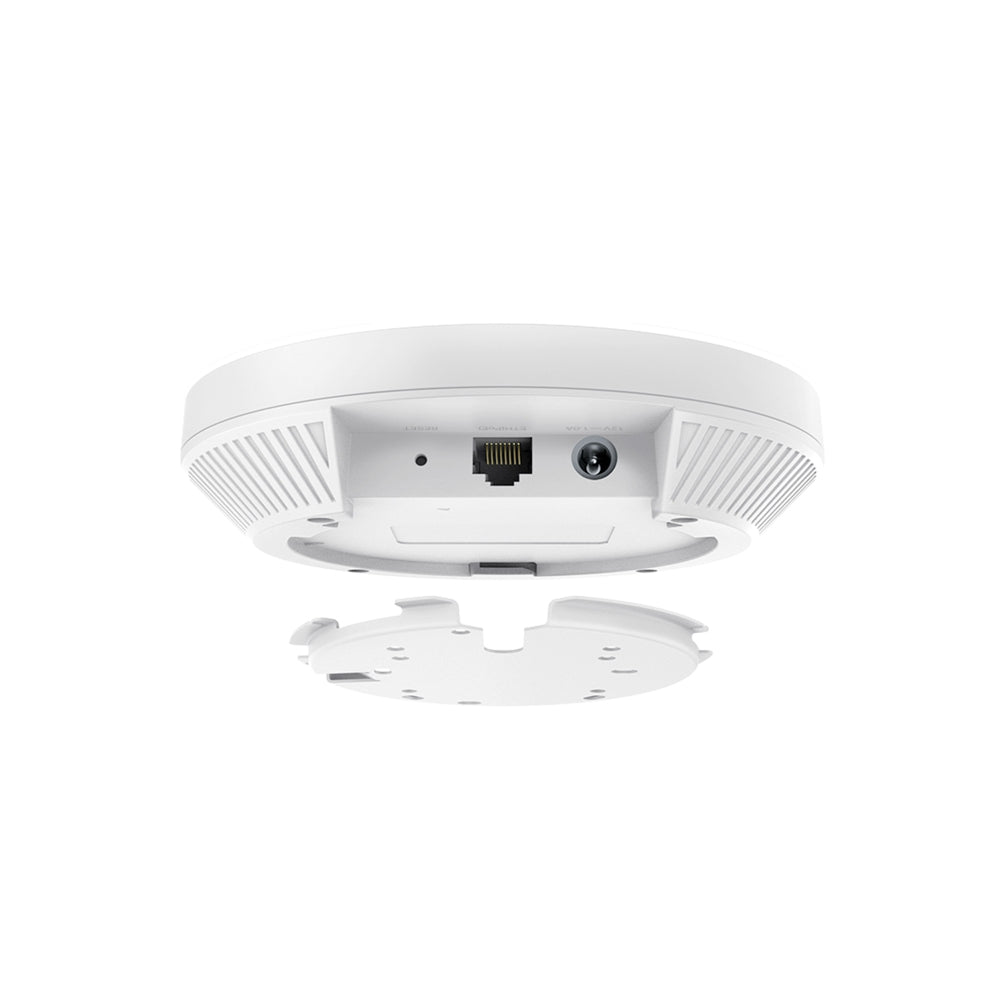

| Ports | 1 × Gigabit Ethernet (RJ45) with 802.3at PoE support |
|---|---|
| Power supply | 802.3at PoE or 12 V / 1.0 A DC (adapter sold separately) |
| Power consumption (PoE) | EU: 13.5 W; US: 14.7 W |
| Power consumption (DC) | EU: 12 W; US: 13.25 W |
Physical
| Dimensions | 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in.) |
|---|---|
| Weight | 352 g |
| Enclosure material | Top: polycarbonate; Bottom: aluminum alloy; Mounting rack: stainless steel |

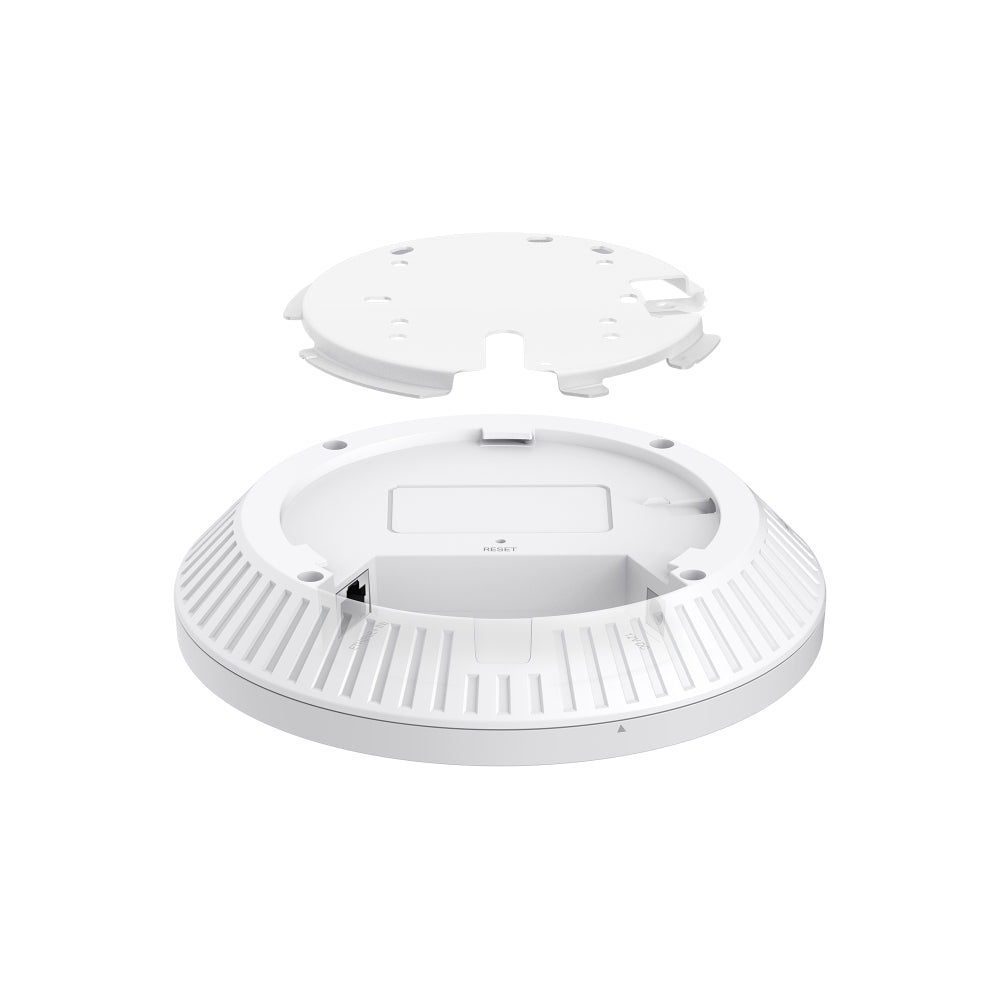

| Mounting | Ceiling, wall, or junction box (kits included) |
| Antenna | Internal omnidirectional; 2.4 GHz: 2 × 4 dBi; 5 GHz: 2 × 5 dBi |
| Operating temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Operating humidity | 10% – 90% non-condensing |
| Lightning protection | Air discharge: ±8 kV; Contact discharge: ±4 kV; Common mode 10/700: ±4 kV |
| Certifications | CE, FCC, RoHS, IC |
Shipping
