TP-Link Omada EAP683 UR AX6000 Wi-Fi 6 Access Point
TP-Link
TP-Link Omada EAP683 UR AX6000 Wi-Fi 6 Access Point
The TP-Link Omada EAP683 UR is an AX6000 Wi-Fi 6 access point designed for business environments that need high-performance wireless coverage across large spaces. It combines dual-band speeds of up to 6 Gbps with a 2.5 Gigabit Ethernet port and centralized cloud management through Omada SDN, making it suited to offices, campuses, retail locations, and hotels.
Why this product
AX6000 dual-band speeds
4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz with 8-stream MIMO ensures fast, concurrent connections across a large user base.
Covers 2,000 ft² per unit
4 × 4 MIMO internal antennas deliver stable connectivity across expansive deployments without dead zones.
2.5 Gigabit Ethernet
Multi-gigabit backhaul port provides the bandwidth needed to sustain Wi-Fi 6 speeds without bottlenecking at the uplink.
PoE+ or DC power
Supports 802.3at PoE and 12V DC supply, eliminating the need for nearby outlets and simplifying ceiling installation.
Centralized Omada SDN management
One-click setup and cloud-based control across multiple access points, switches, and gateways scales with your network.
- Wi-Fi Standard802.11ax (Wi-Fi 6)
- Max Throughput6 Gbps (4804 Mbps 5 GHz + 1148 Mbps 2.4 GHz)
- Coverage Area2,000 ft² (185 m²)
- Connections510+ concurrent
- Ethernet Port1 × 2.5 Gigabit PoE+
- Power802.3at PoE or 12V DC
- MountingCeiling or wall
- SKUTPL-1354
- EAN8885020621945
- Compatible with TP-Link Omada ecosystem (switches, gateways, controllers) for integrated SDN management.
- Supports 802.3at PoE+ standard for powered deployment from any PoE-enabled network switch.
- Works with Windows XP, Vista, 7, 8, 10, 11 and Linux systems for management and control.
- Ceiling and wall mounting hardware included; fits standard drop-tile and wall installation.
- Requires 802.3at PoE or dedicated 12V / 2A DC supply; power adapter not included with DC option.
Best for
- Large open spaces needing wireless coverage without roaming gaps
- Multi-user environments such as offices and classrooms with 510+ concurrent connections
- Networks already running Omada SDN controllers and managed switches
- Deployments where PoE simplifies cabling and eliminates extra power runs
- Environments requiring low-latency, interference-free connections across dual bands
Trade-offs
- Non-Omada networks. It is designed to integrate with Omada controllers and managed infrastructure; standalone use is less advantageous than dedicated standalone APs.
- Budget-conscious deployments. Enterprise-grade management and multi-gigabit performance command a premium over consumer-grade access points.
- Locations without PoE switches. DC power option requires separate adapters and cabling, reducing the convenience of PoE deployment.
- Small spaces under 185 m². Its coverage area is designed for expansive commercial deployments; smaller premises will not justify its cost.
EAP683 UR is an AX6000 ultra-range Ceiling Mount WiFi 6 Access Point, and is ideal for business scenarios requiring high performance, such as offices, campuses, retails, hotels and meeting rooms.

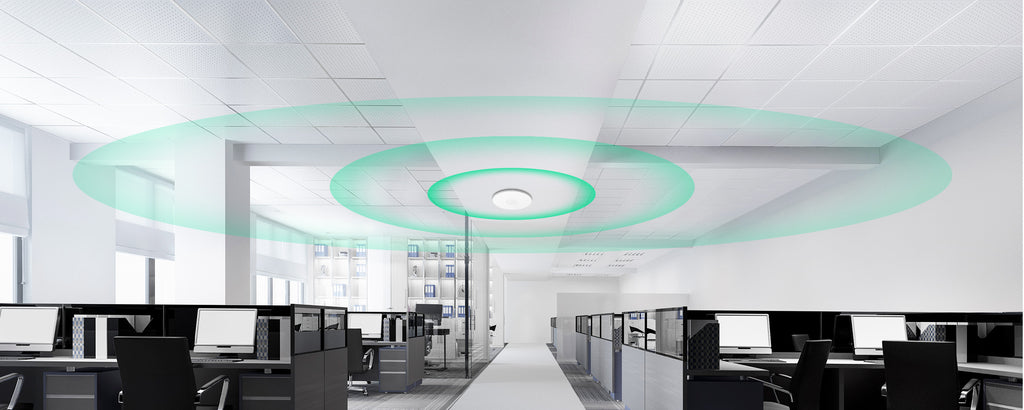

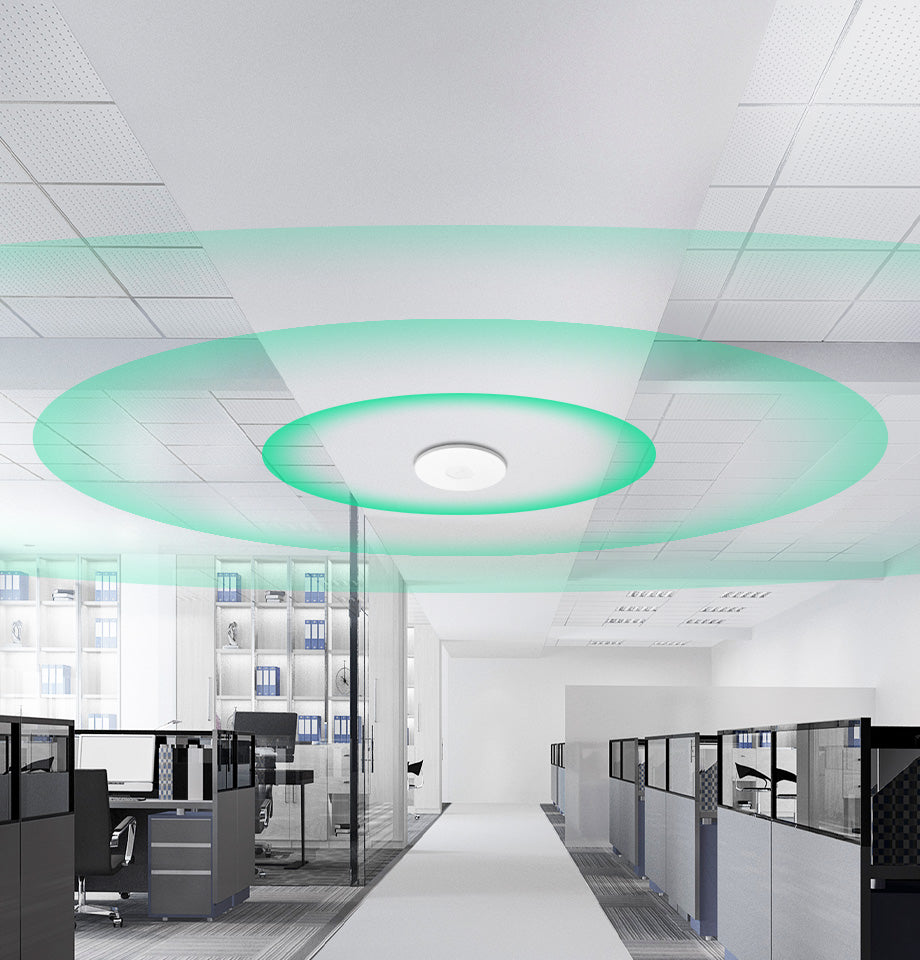

4 × 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
With a 2.5 Gigabit Ethernet Port, EAP683 UR delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Networking
| Brand | TP-Link |
|---|---|
| Standard | IEEE 802.11a/b/g/n/ac/ax |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Throughput (5 GHz) | 4804 Mbps |
| Throughput (2.4 GHz) | 1148 Mbps |
| MIMO | 4 × 4 dual-band |
| Wireless Clients per Band | 256 per band |
| Total Concurrent Connections | 510+ |
| Multiple SSIDs | 16 (8 per band) |
| Bluetooth | 5.2 |
Performance
| Coverage Area | 185 m² (2,000 ft²) |
|---|---|
| Channel Bandwidth | 160 MHz |
| Modulation | 1024-QAM |
| 5 GHz Antenna Gain | 4 × 5.0 dBi |
| 2.4 GHz Antenna Gain | 4 × 4.0 dBi |
Ports & Power

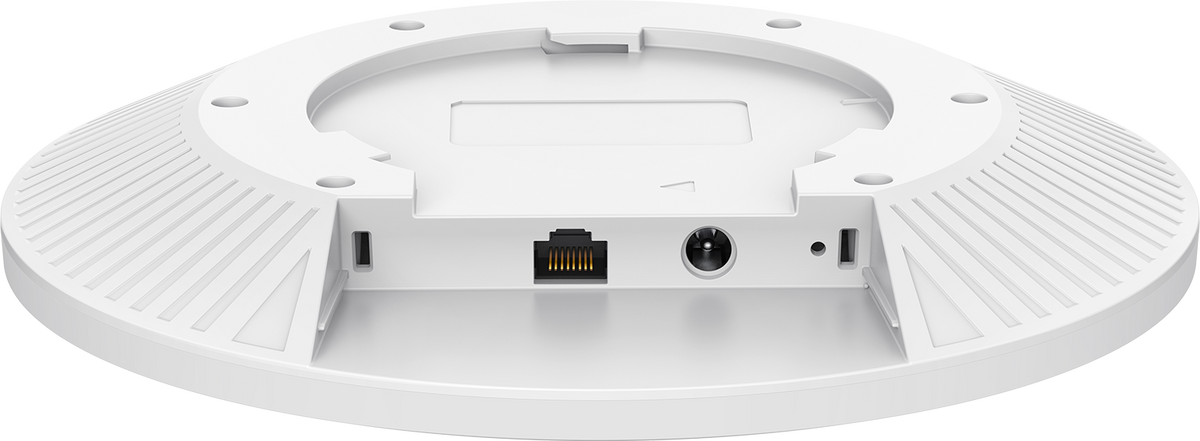

| Ethernet Port | 1 × 2.5 Gigabit PoE+ |
|---|---|
| PoE Standard | 802.3at |
| Power Supply | 802.3at PoE or 12V / 2A DC |
| Max Power (PoE, EU) | 20.43W |
| Max Power (DC, EU) | 17.7W |
| Max Power (PoE, US) | 23.51W |
| Max Power (DC, US) | 20.63W |
Physical
| Mounting | Ceiling or wall (hardware included) |
|---|---|

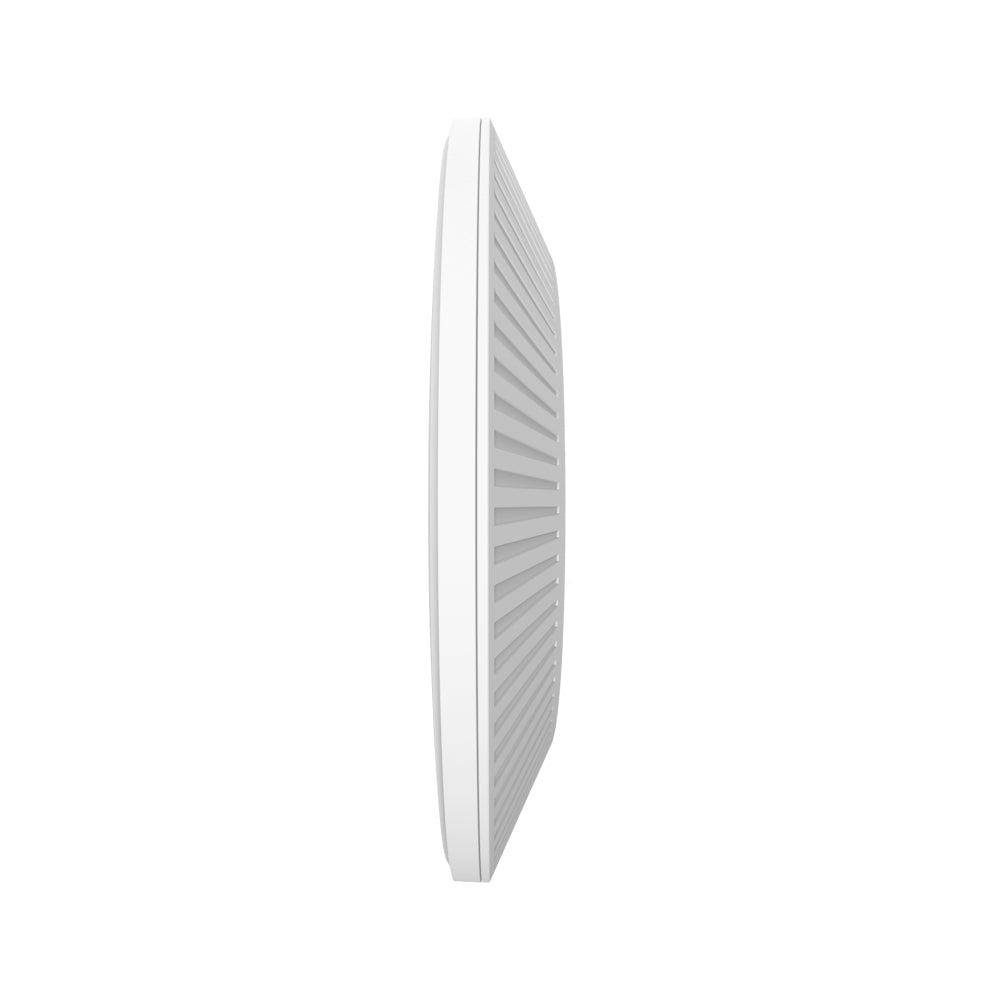

| Dimensions | 220 × 220 × 32.5 mm (8.7 × 8.7 × 1.3 in.) |
| Weight | 694.6 g |
| Top Cover Material | PC-V0 |
| Bottom Shell Material | Aluminum alloy ADC-12 |
| Mounting Rack Material | SUS304 stainless steel |
| Lightning Protection | Air discharge ±8kV, contact ±4kV, common mode ±4kV |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Certifications | CE, FCC, RoHS |
