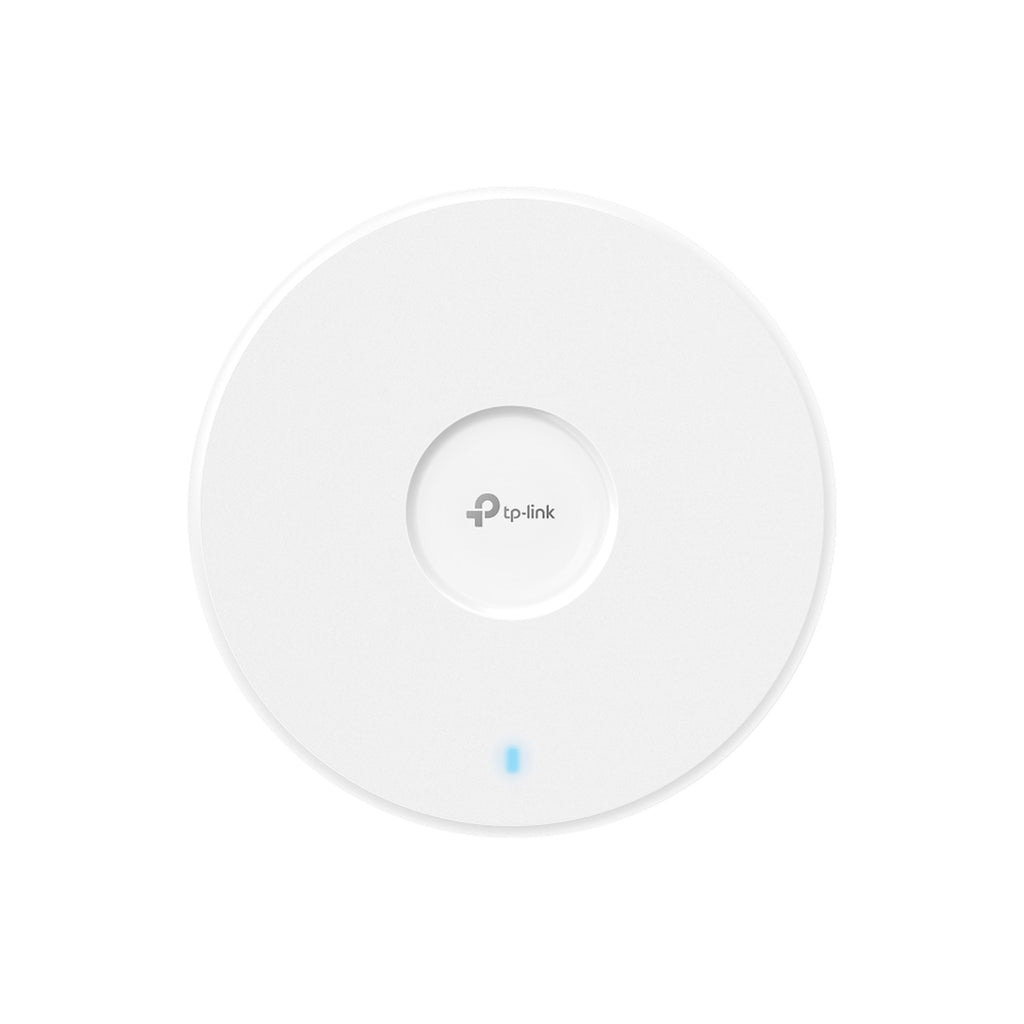

TP-Link Omada EAP723 BE3600 Wi-Fi 7 Ceiling Access Point
TP-Link
TP-Link Omada EAP723 BE3600 Wi-Fi 7 Ceiling Access Point
The TP-Link Omada EAP723 BE3600 Wi-Fi 7 Ceiling Access Point is built for businesses and venues that need fast, reliable wireless coverage across a high density of connected devices. It delivers dual-band Wi-Fi 7 with Multi-Link Operation, Multi-RUs, and 4K-QAM to reduce latency and boost throughput, while integrating into TP-Link's Omada SDN ecosystem for centralised cloud management and zero-touch provisioning.
Why this product
Wi-Fi 7 with multi-link operation
It supports IEEE 802.11be (Wi-Fi 7) with Multi-Link Operation, Multi-RUs, and 4K-QAM, improving throughput, connection stability, and the number of devices served simultaneously.
2.5G port for multi-gigabit backhaul
A single 2.5 Gbps Ethernet port provides a wired uplink capable of handling the combined wireless throughput of both bands without becoming a bottleneck.
Supports 250+ concurrent clients
It is rated for more than 250 concurrent wireless clients, with per-band client capacity of 128 on both 2.4 GHz and 5 GHz, making it suited to busy public or commercial environments.
Flexible power: PoE or DC
It accepts 802.3at PoE or a 12 V/1.5 A DC supply, giving installers the choice of running a single PoE cable or using a local power adapter — though the adapter is not included.
Advanced security across up to 16 SSIDs
It supports WPA3 encryption, a secure guest network with up to 16 SSIDs, SMS login authentication, and rogue AP detection for safer deployments in public-facing environments.
Omada SDN cloud management
It integrates with Omada switches, gateways, and controllers for end-to-end visibility, automated optimisation, batch configuration, and one-click setup from a single cloud interface.
- Wi-Fi StandardWi-Fi 7 (802.11be)
- Max Throughput (EU)688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
- Uplink Port1× 2.5 Gbps Ethernet
- Power802.3at PoE or 12 V/1.5 A DC
- Client Capacity250+ concurrent (128 per band)
- CoverageUp to 1500 ft² (140 m²)
- MountingCeiling or wall (kit included)
- Dimensions160 × 160 × 36.7 mm
- SKUTPL-1193
- EAN8885020623048
- Ceiling or wall mounting — a mounting kit is included in the box.
- 802.3at PoE switches — can be powered directly over a single Ethernet cable without a separate adapter.
- Omada SDN ecosystem — works with Omada software controllers, hardware controllers, and the Omada app for unified management.
- DC power supply is supported (12 V/1.5 A), but the power adapter is not included and must be sourced separately.
- The 3.6 Gbps aggregate speed and coverage figures (up to 1500 ft² / 140 m²) are under ideal conditions; real-world results will vary.
- Outdoor installation — this is a ceiling/wall-mount indoor access point and carries no outdoor or weatherproofing rating.
Best for
- High-density indoor venues such as offices, hotels, or retail spaces that need to serve 250+ concurrent wireless clients reliably.
- Businesses already on Omada SDN — it integrates directly with existing Omada switches, gateways, and controllers for zero-touch provisioning and centralised management.
- Installations where cabling is limited — 802.3at PoE support means a single cable can carry both data and power, simplifying deployment.
- Security-conscious deployments requiring WPA3, up to 16 SSIDs, SMS login, and rogue AP detection across guest and business networks.
- Environments ready for Wi-Fi 7 — buyers who want to future-proof their wireless infrastructure with the latest 802.11be standard and multi-gigabit uplink.
Trade-offs
- Outdoor deployments — it carries no outdoor or weatherproofing rating and is specified for indoor ceiling or wall mounting only.
- Networks without PoE switches or DC power — it does not include a power adapter, so a compatible power source must already be available or purchased separately.
- Non-Omada managed environments — while web and SNMP management are available, full feature access (zero-touch provisioning, batch config, cloud dashboard) requires an Omada controller.
- Buyers expecting a tri-band or 6 GHz radio — this is a dual-band device covering only 2.4 GHz and 5 GHz; there is no 6 GHz band.
The Omada BE3600 Dual-Band Ceiling Mount Access Point EAP723 is the ideal choice for a Wi-Fi 7 solution, delivering a fast, reliable, and secure dual-band Wi-Fi 7 experience.
Featuring superb Wi-Fi 7 technologies including Multi-Link Operation, Multi-RUs, and 4K-QAM, Omada EAP723 significantly enhances throughput, connection stability, and concurrent capacity, ensuring faster and higher quality connections for more devices.
With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
EAP723 offers advanced security features, including a secure guest network with up to 16 SSIDs, SMS login for enhanced business authentication, WPA3 encryption for worry-free open public access, and rogue AP detection, ensuring safer and more reliable network experiences for both guests and business operations.
As part of Omada's unified SDN ecosystem, EAP723 integrates seamlessly with Omada switches, gateways, and controllers, delivering end-to-end visibility, automated optimization, zero-touch provisioning, and batch configuration—all managed from a single cloud interface.
General
| Brand | TP-Link |
|---|---|
| Model | EAP723 |
| Certifications | CE, FCC, RoHS, IC |

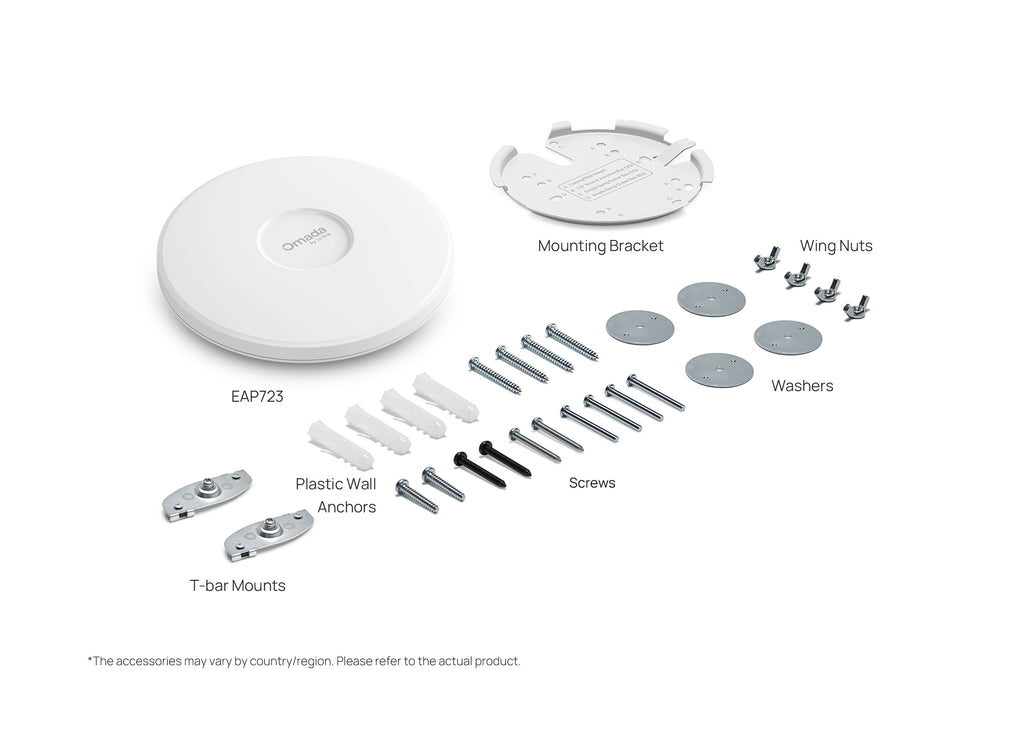

| Package Contents | 1× EAP723, 1× Installation Guide, 1× Ceiling/Wall Mounting Kit |
Networking
| Standard | IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7) |
|---|---|
| Throughput (EU) | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Antennas | 2.4 GHz: 2 × 4 dBi; 5 GHz: 2 × 5 dBi |
| Bluetooth | Bluetooth 5.2, 1 × 3 dBi |
| Client Capacity | 2.4 GHz: 128; 5 GHz: 128 (250+ concurrent total) |
| SSIDs | Up to 16 |
| Security | WPA3, guest network, SMS login, rogue AP detection |
| Management | Web, Omada Software Controller, Hardware Controller, App, SNMP v1/v2c/v3, SSH, NTP, Syslog, Web updates |
Ports & Power
| Ports | 1× 2.5 Gbps Ethernet |
|---|---|
| PoE | 802.3at PoE |
| DC Power | 12 V/1.5 A (adapter not included) |
| Power Consumption (PoE) | 18.6 W |
| Power Consumption (DC) | 16.0 W |
Physical
| Dimensions (W × D × H) | 160 × 160 × 36.7 mm (6.3 × 6.3 × 1.4 in.) |
|---|---|
| Net Weight | 410 g |
| Mounting | Ceiling or wall |
| Operating Humidity | 10%–90% non-condensing |
| Storage Temperature | -40°C – 70°C (-40°F – 158°F) |
| Storage Humidity | 5%–90% non-condensing |
