TP-Link Omada ER706W AX3000 WiFi 6 Gigabit VPN Router
TP-Link
TP-Link Omada ER706W AX3000 WiFi 6 Gigabit VPN Router
The TP-Link Omada ER706W is an enterprise-grade WiFi 6 router designed for businesses and remote networks that need high performance, multiple internet connections, and flexible VPN capabilities. It combines AX3000 wireless speeds with six Gigabit Ethernet ports and support for advanced security and centralized management.
Why this product
WiFi 6 with 3 Gbps total throughput
Dual-band AX3000 speeds reach 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, delivering concurrent transmission rates up to 3 Gbps.
Six Gigabit ports plus SFP uplink

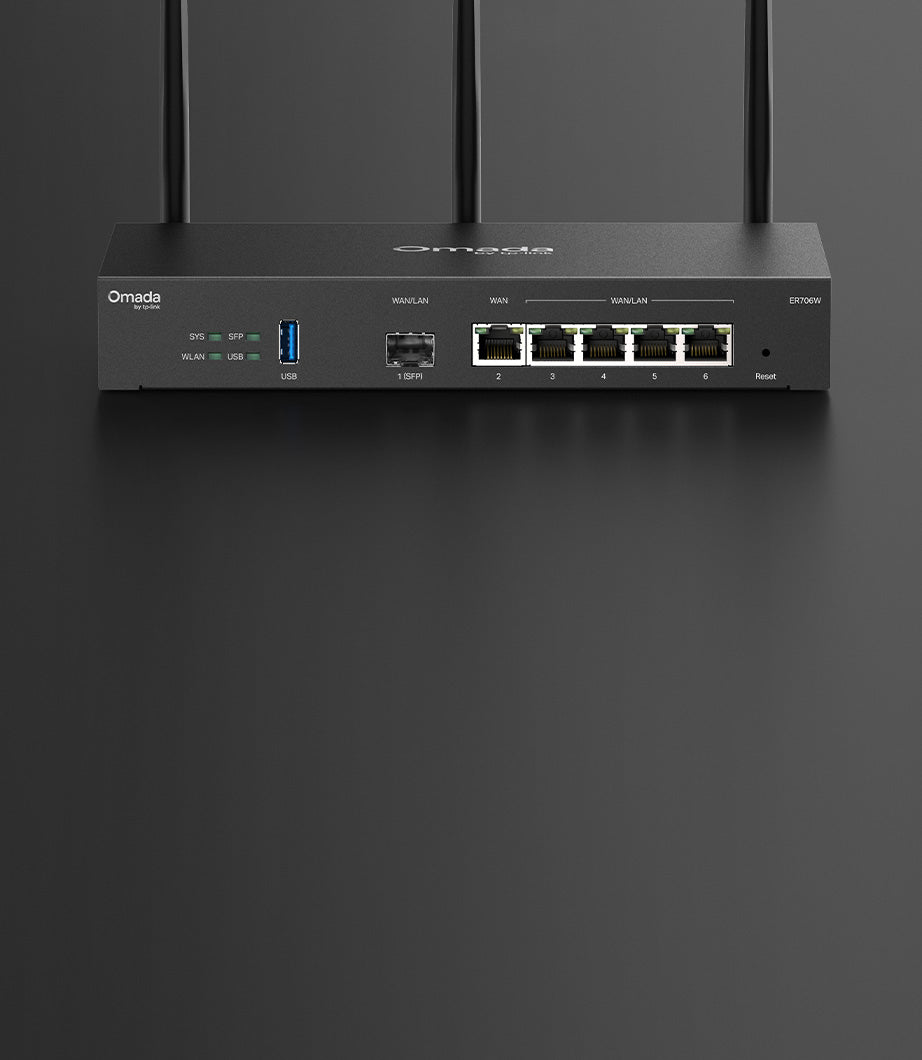

One SFP WAN/LAN port, one RJ45 WAN port, and four switchable WAN/LAN RJ45 ports enable flexible multi-connection and multi-WAN load balancing.
Multiple VPN protocols with hardware acceleration
Supports IPSec, SSL, WireGuard, OpenVPN, PPTP, and L2TP with a built-in hardware engine that accelerates VPN throughput.
Advanced firewall and DoS defense
Includes IP/MAC/URL filtering, IDS/IPS, ACL, ARP binding, and automatic detection of TCP/UDP/ICMP flooding and Ping of Death attacks.
Omada SDN centralized management
Cloud access and Omada app allow standalone or controller-mode setup with remote administration from anywhere.
Omada Mesh support for coverage
Integrates with EAPs that support mesh technology; triple external antennas extend WiFi range for larger deployments.
- WiFi StandardWiFi 6 (802.11ax)
- Dual-Band Speed3 Gbps total (2402 Mbps 5 GHz + 574 Mbps 2.4 GHz)
- Ethernet Ports1× SFP + 5× Gigabit RJ45
- ProcessorDual-core ARM Cortex-A53
- Memory512 MB DDR4 RAM / 128 MB Flash
- Power12VDC / 2A adapter
- Dimensions226 × 131 × 35 mm
- SKUTPL-1255
- EAN4895252500691
- Fits standard networking racks and desktop deployment; compact at 226 × 131 × 35 mm.
- Connects to any Gigabit Ethernet network and supports USB 3.0 for LTE dongle or storage expansion.
- 12VDC / 2A power adapter included; operates with standard power supply.
- WiFi 6 features including OFDMA, HE160, and 1024-QAM require client devices that support these standards.
- Omada Mesh technology requires EAPs (access points) that support mesh functionality; standalone mesh mode is also available.
Best for
- Remote and branch offices needing secure VPN with multiple internet connections
- Networks requiring centralized SDN management across multiple locations
- Deployments combining wired and wireless connectivity with high throughput demands
- Organizations prioritizing DoS protection, IP filtering, and advanced firewall rules
- Large spaces needing WiFi 6 coverage extended by compatible mesh access points
Trade-offs
- Environments requiring PoE power delivery to connected devices; this router does not provide PoE on its ports.
- Small offices or home users seeking simple plug-and-play setup without SDN infrastructure.
- Networks limited to four or fewer wired connections; requires understanding of multi-WAN setup.
- Older WiFi 5 or earlier client devices unable to leverage WiFi 6 standards and optimizations.
ER706W is an enterprise-grade dual-band wireless router. It's ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more. Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W's concurrent transmission rate reaches up to 3 Gbps.
Bufferless network experience is at your fingertips. Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilisation rate of multi-line broadband.
Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.
Advanced firewall policies protect your network and data. Forcefully prevent viruses and attacks from intruders. Create virtual network segments for enhanced security and simplified network management. Reserves static IP assignment for clients to defend against ARP attacks and spoofing. Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats. One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.
The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.

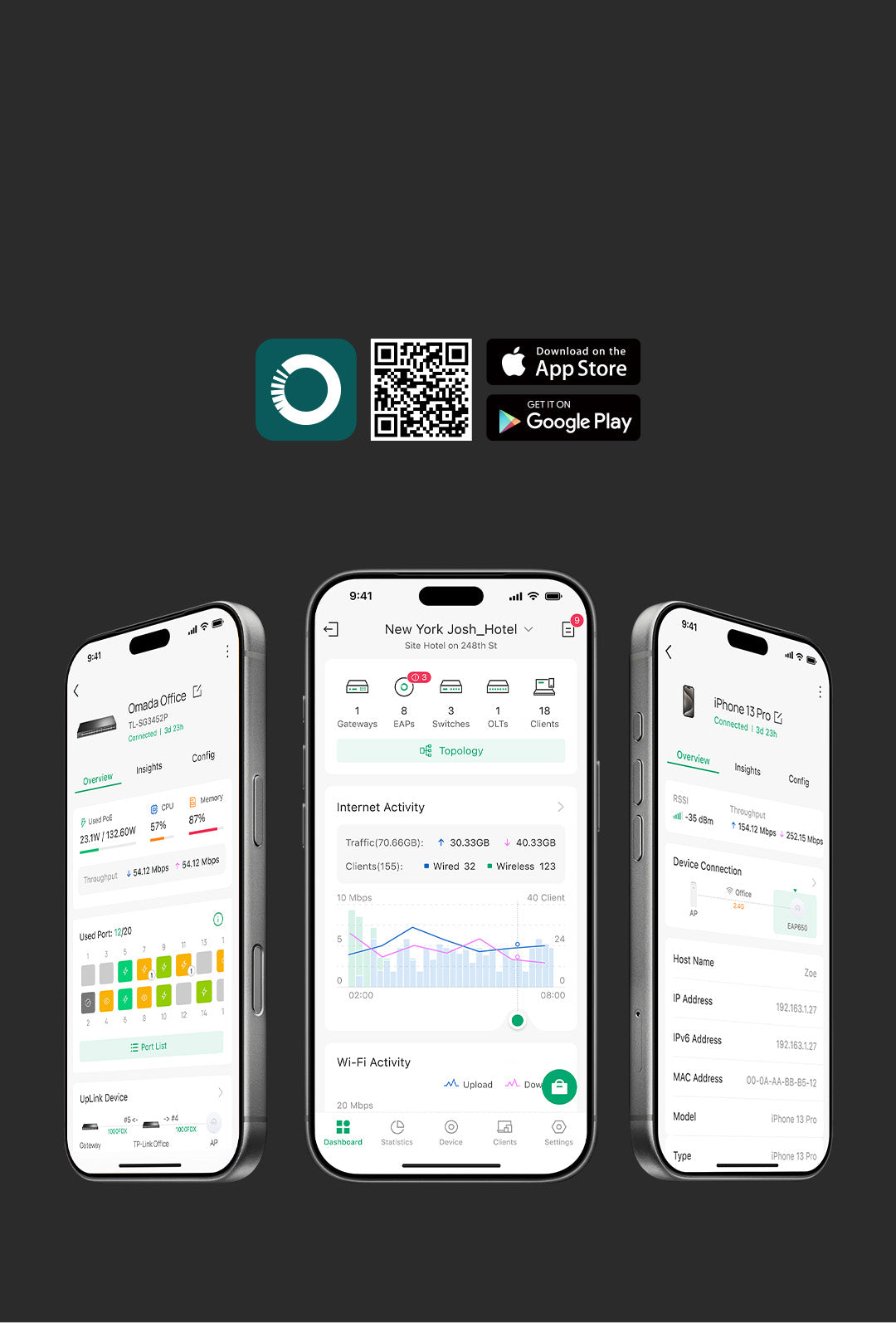

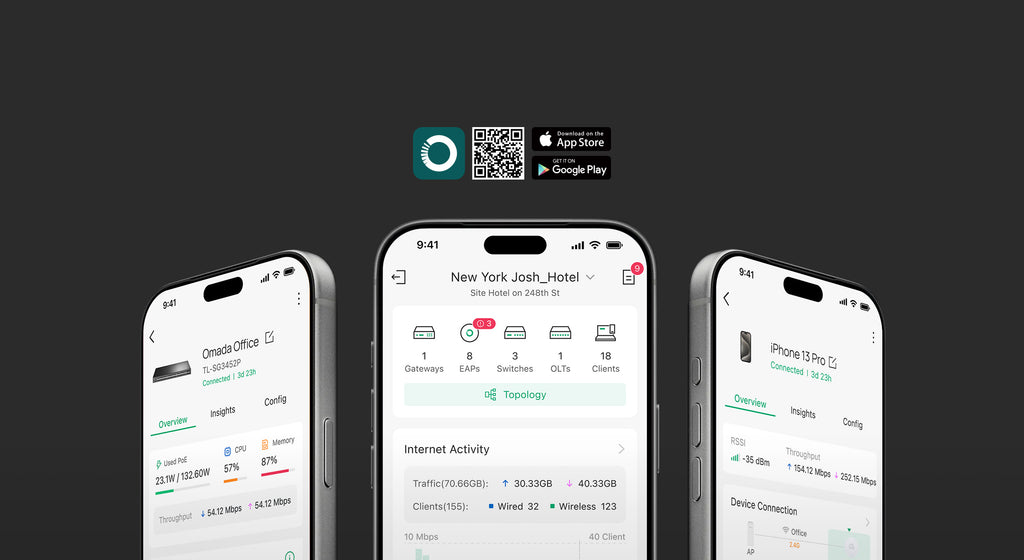

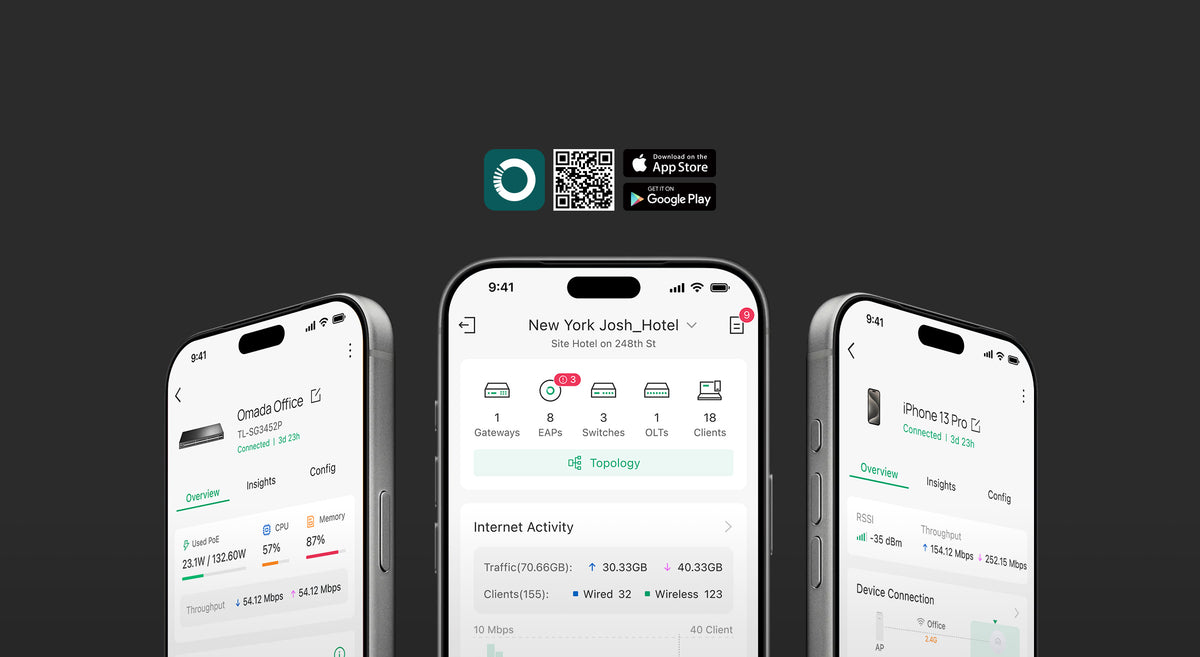

Users can configure ER706W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers. Follow the configuration instructions on the app to get set up in minutes. Multi-function configuration is ready to go, including network status monitoring and client management, all from the comfort of a smartphone or tablet.

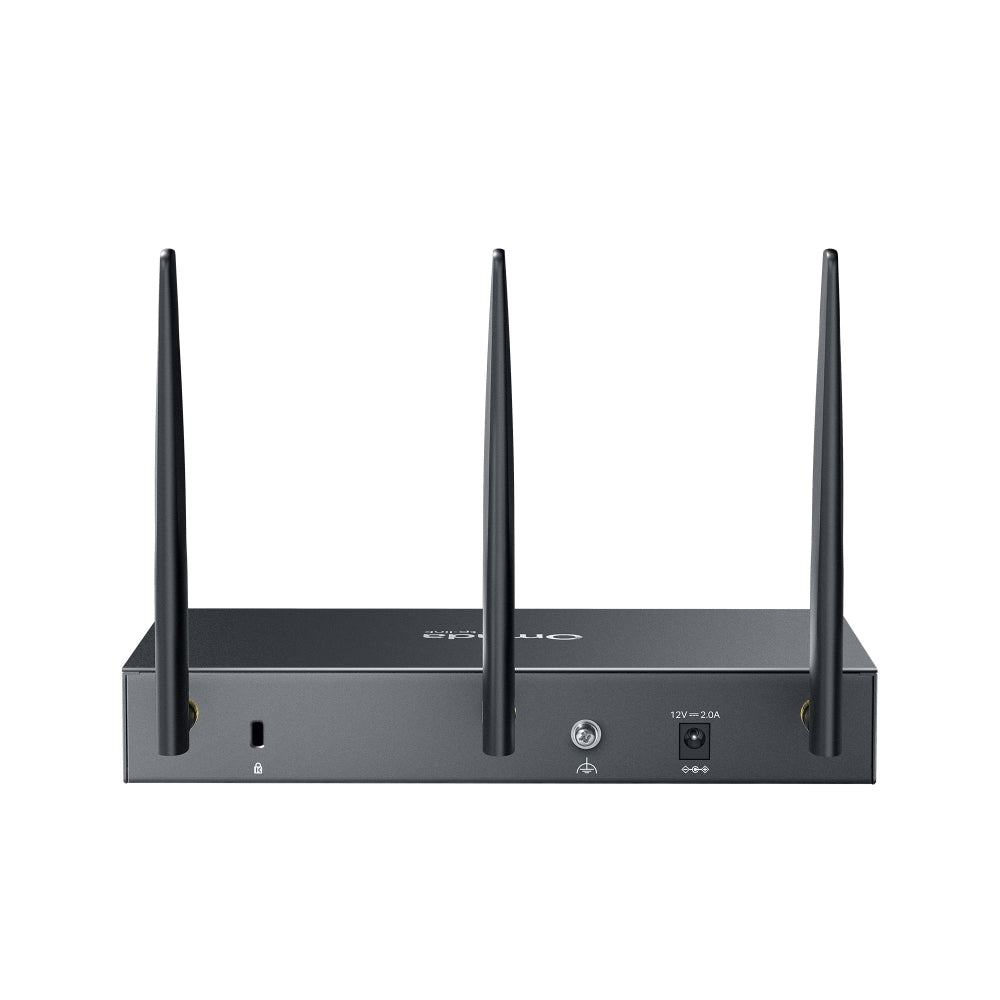

ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.
Footnotes:
※At least one WAN/LAN port needs to function as a LAN port.
△For PPTP VPN and L2TP VPN, ER706W can connect with up to 10 VPN servers. For OpenVPN, ER706W can connect with up to 5 VPN servers.
#This model supports manual URL entry only and does not support category-based URL Filtering.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
**Omada Mesh Technology requires the use of EAPs that support mesh functionality. Additionally, ER706W also supports standalone Mesh.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features.
Networking
| Brand | TP-Link |
|---|---|
| Standard | WiFi 6 (802.11ax) |
| Wireless Features | OFDMA, MU-MIMO, Beamforming, HE160, 1024-QAM, Omada Mesh |
| VPN Protocols | IPSec, SSL, WireGuard, OpenVPN, PPTP, L2TP |
| Management | Omada SDN Controller (Cloud / Hardware / Software), Omada App (Standalone & Controller Mode) |
Performance
| 5 GHz Speed | 2402 Mbps (HE160) |
|---|---|
| 2.4 GHz Speed | 574 Mbps |
| Concurrent Transmission Rate | Up to 3 Gbps |
| Processor | Dual-core ARM Cortex-A53 |
| RAM | 512 MB DDR4 |
| Flash | 128 MB NAND |
Ports & Power

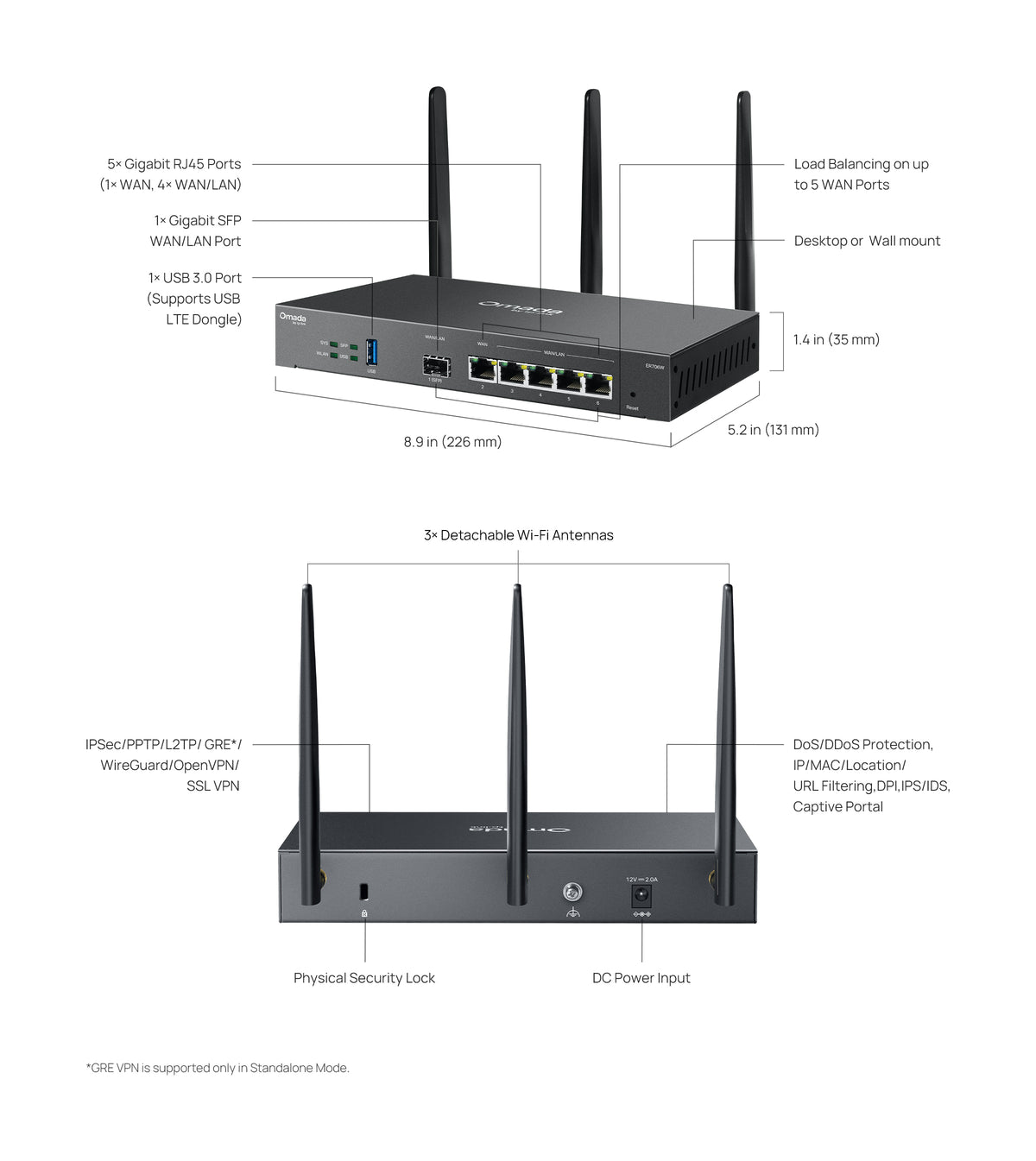

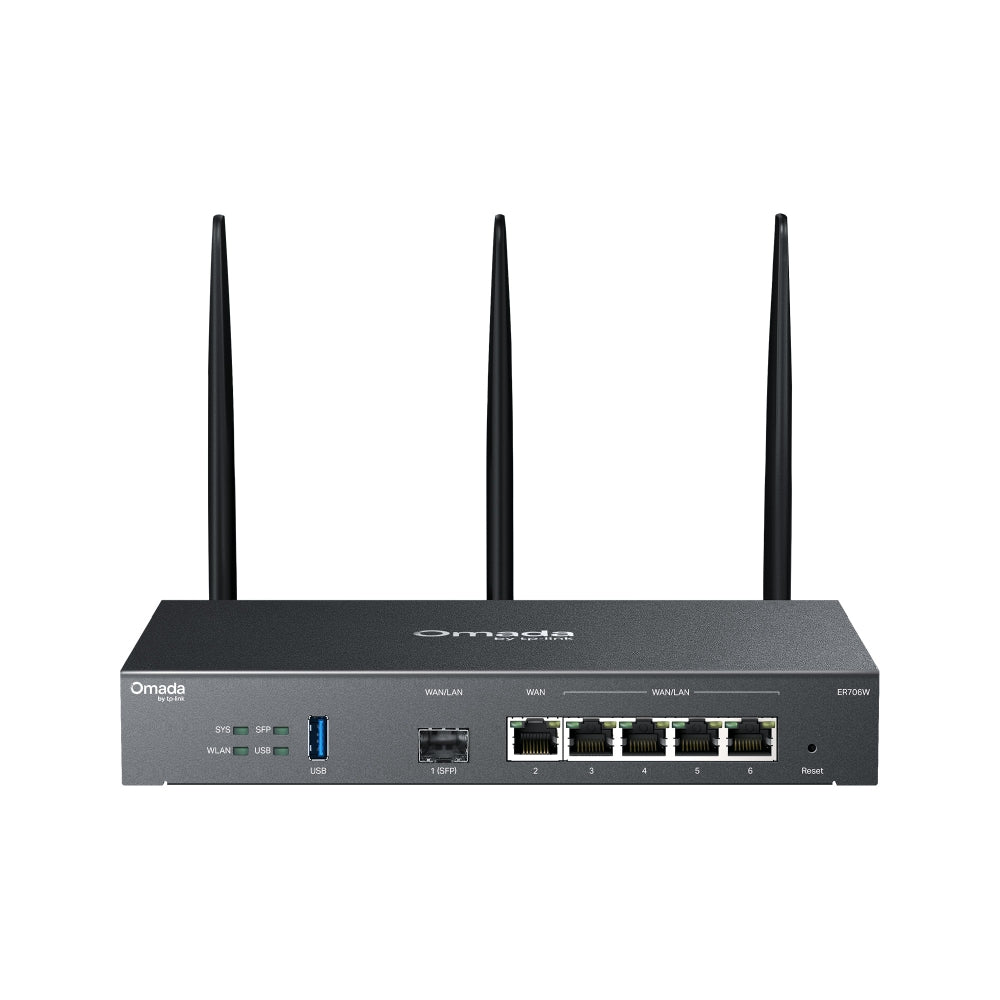

| Ports | 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports |
|---|---|
| USB | 1× USB 3.0 (supports USB LTE dongle and USB Storage) |
| Power Supply | 12VDC / 2A Power Adapter |
| Reset Button | Yes |
Security
| Features | Advanced firewall policies, DoS defense (TCP/UDP/ICMP Flooding, Ping of Death), IP/MAC/URL filtering, IDS/IPS, ACL, ARP binding |
|---|---|
| VPN Servers (PPTP/L2TP) | Up to 10 |
| VPN Servers (OpenVPN) | Up to 5 |
Physical
| Dimensions (W × D × H) | 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 in.) |
|---|---|
| Antennas | 3× detachable external antennas |
| Material | Steel (for thermal conductivity and heat dissipation) |
