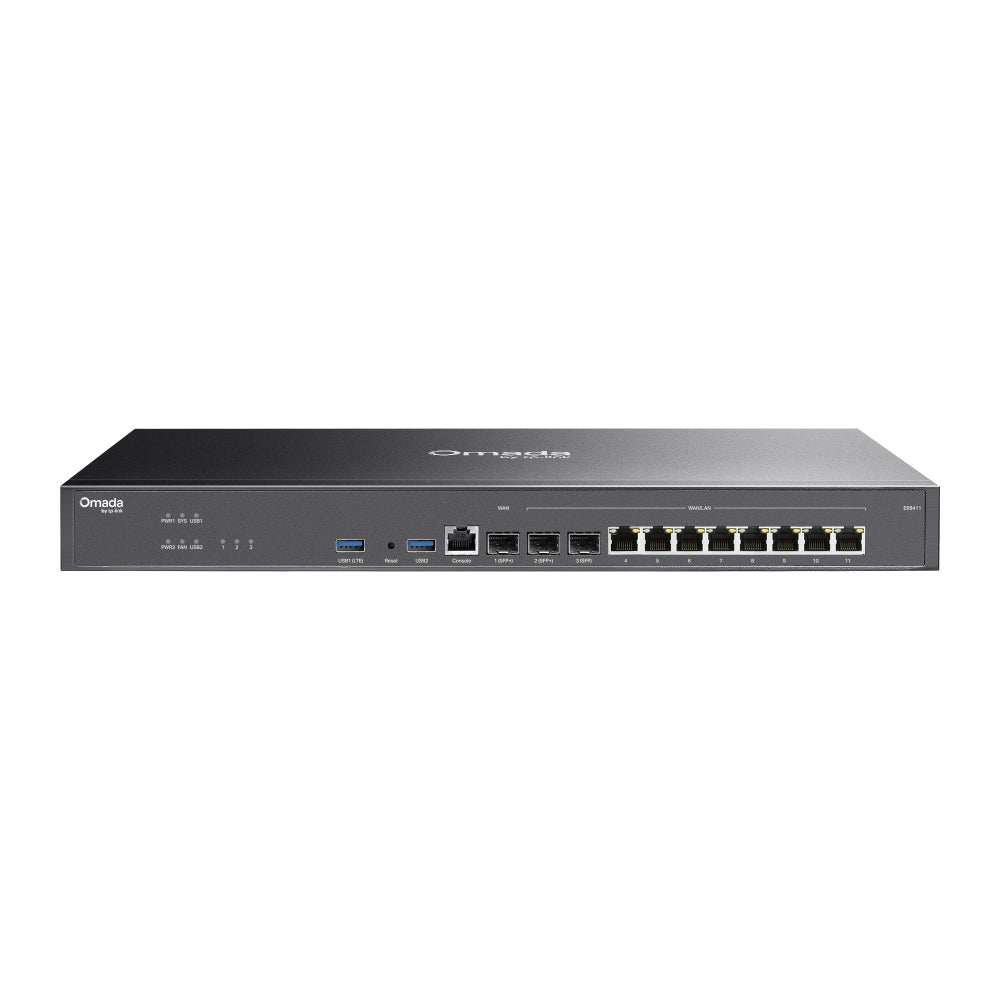

TP-Link Omada ER8411 VPN Router - 10G, Up to 10 WAN Ports
The TP-Link Omada ER8411 is an enterprise VPN router built for organizations that need high-speed, reliable connectivity across multiple locations. It combines 10G ports, multi-WAN load balancing, and comprehensive security features to support large-scale deployments like offices, schools, and hotels.
Why this product
10G and Gigabit connectivity
Two 10G SFP+ ports plus nine Gigabit ports provide flexible, high-speed connections for WAN and LAN. Supports up to 10 WAN ports with load balancing for redundant internet links.
Multiple VPN protocols
IPSec, OpenVPN, WireGuard, L2TP, PPTP, GRE, and SSL VPN let you choose the right encryption standard for each connection. Supports up to 300 IPSec tunnels for branch-to-headquarters links.
Built-in threat protection
Deep Packet Inspection (DPI), IPS/IDS, and DoS/DDoS protection keep networks safe. Content filtering by category and time helps enforce acceptable use policies.

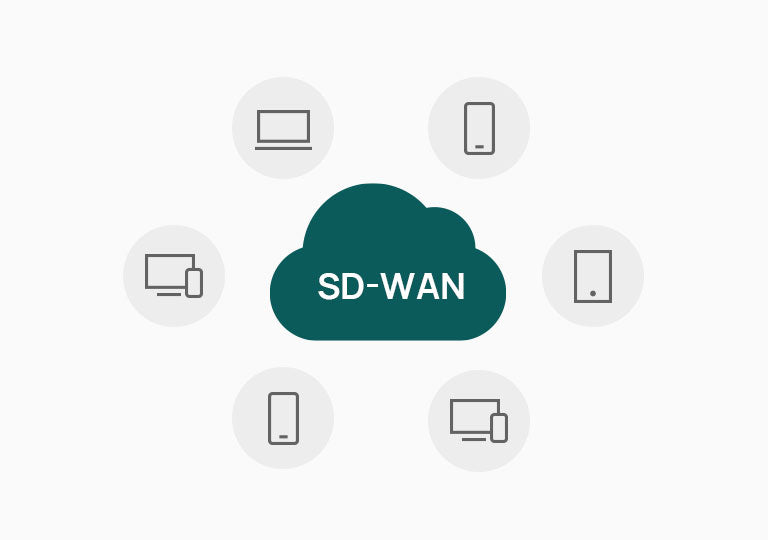

SD-WAN and multi-site management
Connect branch offices to headquarters with minimal setup. Centralized cloud management via Omada App or web console simplifies deployment and monitoring across distributed sites.
Redundant power and LTE backup
1+1 redundant power supply ensures continuous operation. USB 3.0 ports support 4G/3G modems as automatic WAN backup when primary links fail.
- CPUQuad-Core Cortex-A72 @ 2.2 GHz
- WAN portsUp to 10 (load balanced)
- Max concurrent sessions2,300,000
- NAT throughputUp to 9.4 Gbps
- IPSec VPN throughputUp to 2.1 Gbps
- Power consumption26.36 W (with USB); 19.12 W (without USB)
- Dimensions440 × 220 × 44 mm
- New sessions per second20,000
- SKUTPL-1371
- EAN4897098683132
- Suited to multi-site enterprise networks needing centralized management and secure branch-to-HQ connectivity.
- Works with standard Ethernet cables (RJ45) for all eight Gigabit ports and supports SFP+ optical modules for 10G connections.
- Integrates with TP-Link Omada ecosystem controllers (OC200/OC300, software, or cloud-based) for unified network management.
- Supports Windows, macOS, iOS, and Android devices via the Omada management app and standard VPN clients.
- 4G/3G modem backup via USB requires a compatible dongle; the router does not include one.
Best for
- Multi-location businesses that need to connect branch offices securely to headquarters.
- Organizations requiring high-capacity VPN tunnels; achieves 2140 Mbps with IPSec encryption.
- Networks demanding redundancy; built-in multi-WAN load balancing and 1+1 power supplies minimize downtime.
- IT teams managing distributed deployments; centralized cloud-based management and zero-touch provisioning reduce operational overhead.
Trade-offs
- Small offices or home users; this is enterprise-grade hardware with complexity and cost suited to larger operations.
- Fiber-only networks without Ethernet fallback; requires at least one RJ45 WAN port or SFP module per connection type.
- Budget-conscious deployments; enterprise features and redundancy carry a premium price.
Build your lightning-fast network with Omada ER8411 — an enterprise VPN gateway with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.
2× 10G SFP+ Slots (1× WAN, 1× WAN/LAN) & 9× Gigabit Ports (1× SFP WAN/LAN, 8× RJ45 WAN/LAN), 2× USB 3.0 Ports (One Supports LTE Backup with LTE Dongle), 1× RJ45 Console Port. Load Balancing on up to 10 WAN Ports. 1 + 1 Redundant Power Supply. IPSec/PPTP/L2TP/OpenVPN/GRE/WireGuard/SSL VPN. DPI, IPS/IDS, DoS/DDoS Protection, IP/MAC/URL/Content Filtering. SD-WAN for Multi-Site Connectivity. Centralized Cloud Management via Omada App or Web.
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study in distributed environments.

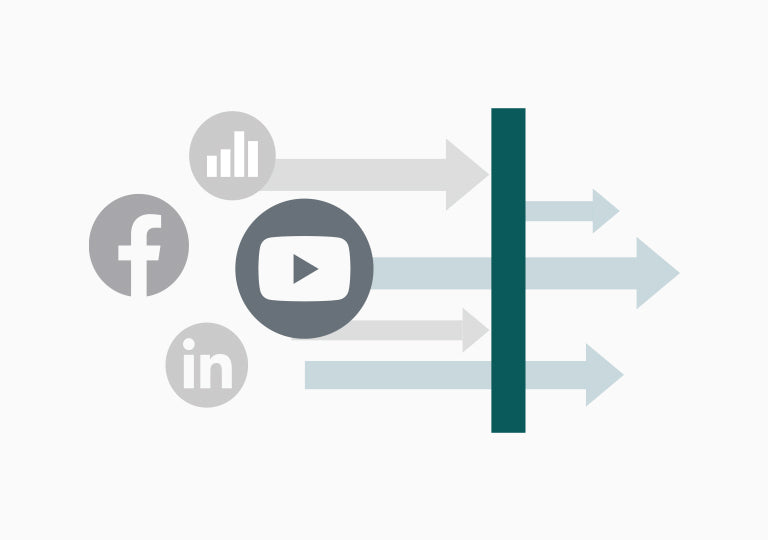

DPI delivers precise application identification and intelligent traffic control to keep your network at peak performance, and Content Filtering offers flexible category- and time-based rules, simplifying internet management and facilitating the enforcement of policies for employees or families.
Connect branch offices to headquarters in just a few clicks—no complex VPN setup required.
Networking
| Brand | TP-Link |
|---|---|
| Model | ER8411 |
| VPN protocols | IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN |
| IPSec tunnels | 300 |
| WAN connection types | Static/Dynamic IP, PPPoE, PPTP, L2TP, Mobile Broadband (4G/3G via USB) |
| SD-WAN support | Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller, Standalone Mode |
| Management | Cloud access and Omada App; Zero-Touch Provisioning; Centralized Cloud Management; Intelligent Monitoring |
| Security features | DPI, IPS/IDS, DoS/DDoS Protection, IP/MAC/URL/Content Filtering |
Performance
| CPU | Quad-Core Cortex-A72 @ 2.2 GHz |
|---|---|
| Concurrent sessions | 2,300,000 |
| New sessions per second | 20,000 |
| NAT throughput (Static IP) | Up 9445.82 Mbps / Down 9449.26 Mbps |
| NAT throughput (DHCP) | Up 9426.83 Mbps / Down 9426.20 Mbps |
| NAT throughput (PPPoE) | Up 9413.96 Mbps / Down 9102.01 Mbps |
| IPS throughput | TCP 4924 Mbps; UDP 4521 Mbps |
| DPI throughput | TCP 5524 Mbps; UDP 3547 Mbps |
| IPSec VPN throughput | ESP-SHA1-AES256: 2140.45 Mbps; ESP-SHA256-AES256: 2080.20 Mbps |
| OpenVPN throughput | 1665.64 Mbps |
| SSL VPN throughput | 1511.10 Mbps |
| WireGuard VPN throughput | 1411 Mbps |
| 64 byte packet forwarding rate | Up 1080 Mbps / Down 1030 Mbps |
Ports & power
| 10G ports | 2× 10GE SFP+ (1 WAN, 1 WAN/LAN) |
|---|---|
| Gigabit ports | 8× 1GE RJ45 (WAN/LAN) + 1× 1GE SFP (WAN/LAN) |
| Console | 1× RJ45 |
| USB | 2× USB 3.0 (one supports 4G/3G modem backup) |

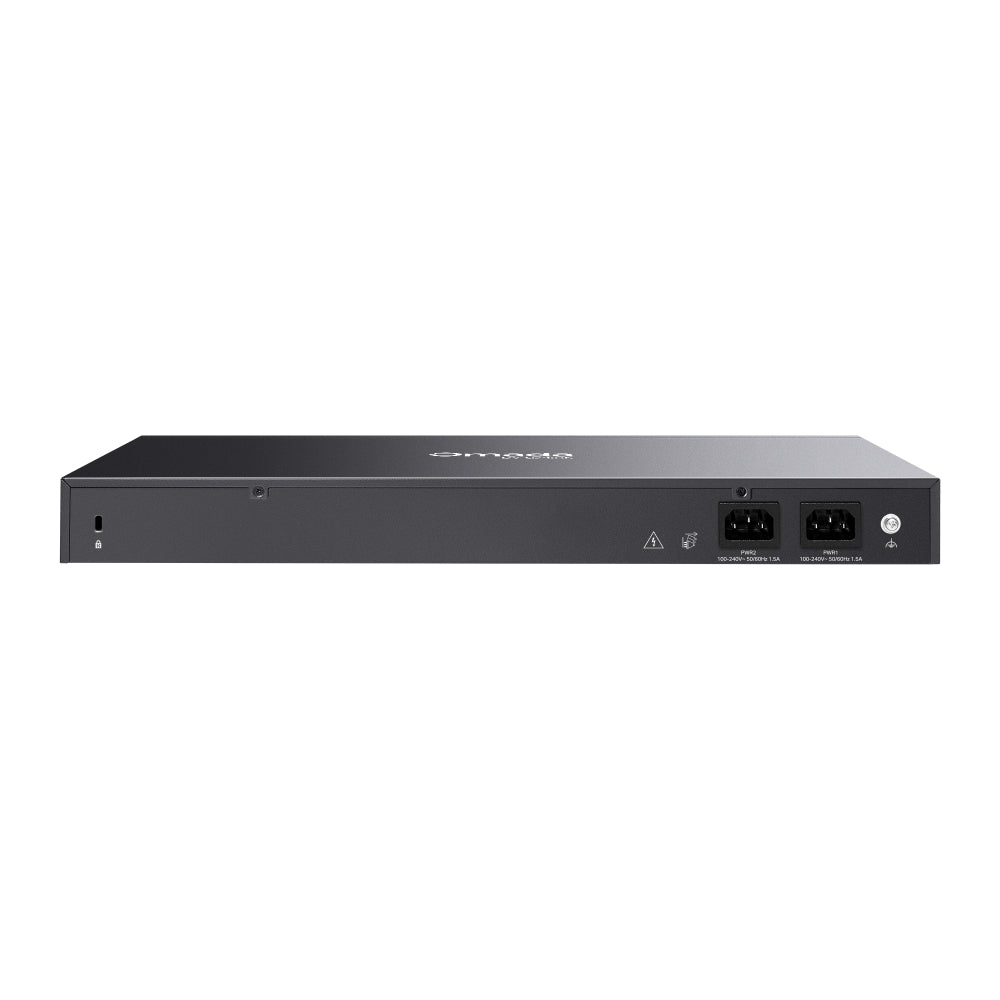

| Power supply | 1 + 1 Redundant |
| Max power consumption | 26.36 W (with USB 3.0); 19.12 W (without USB 3.0) |
Physical
| Dimensions | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) |
|---|
