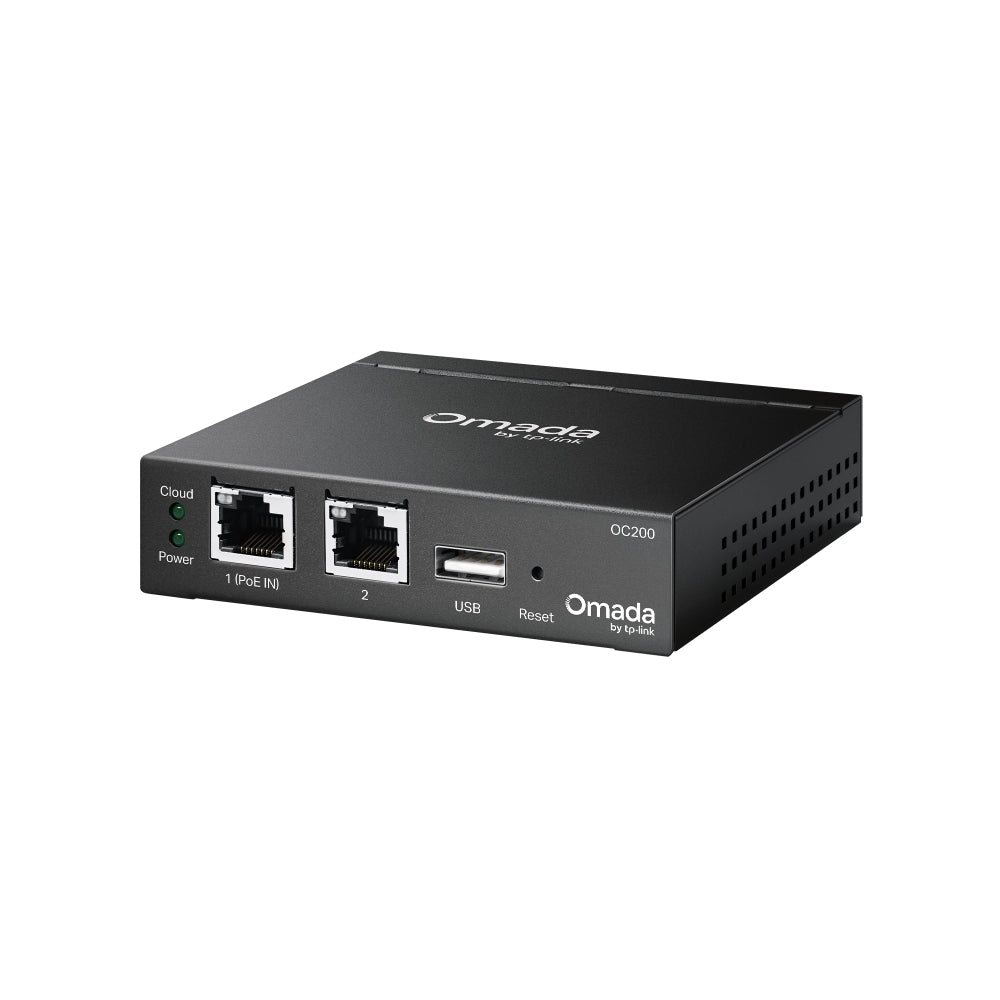

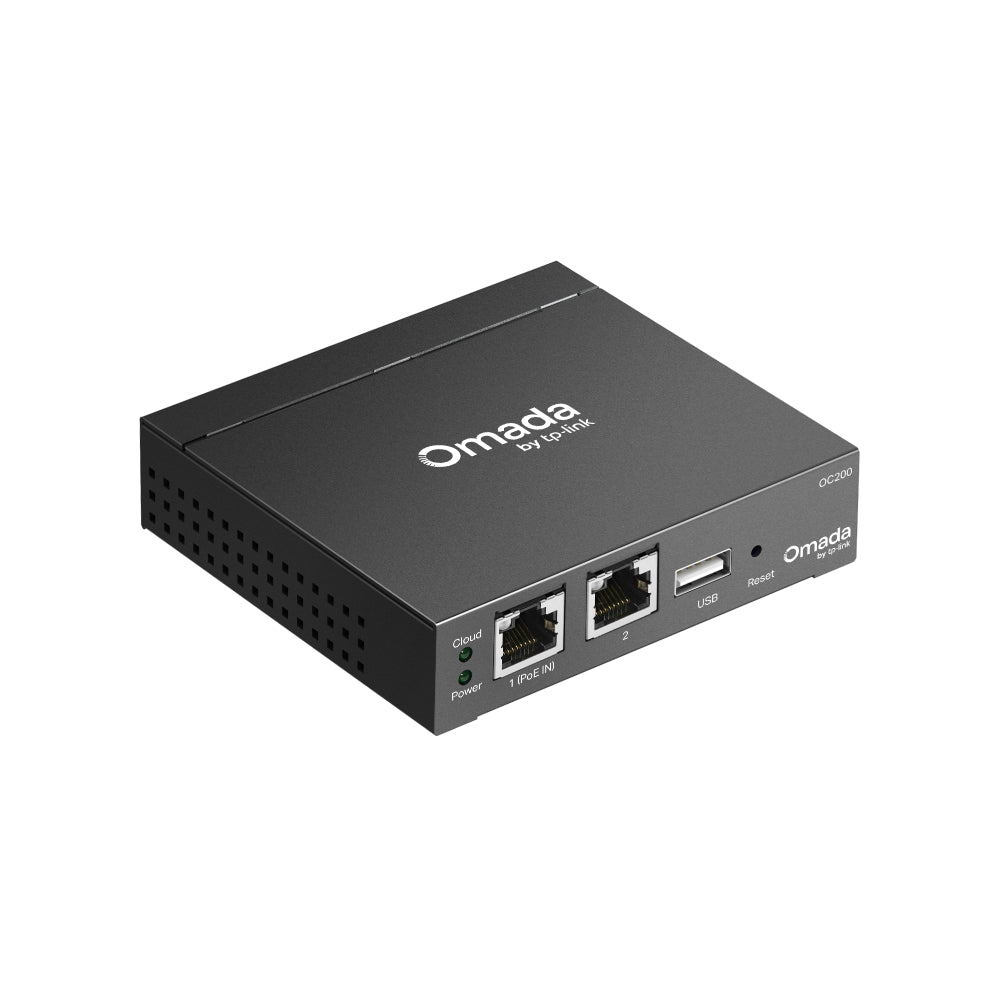

TP-Link Omada OC200 Hardware Cloud Controller
TP-Link
TP-Link Omada OC200 Hardware Cloud Controller
The TP-Link Omada OC200 is a compact hardware controller designed for IT administrators who need to centrally manage and monitor Omada networking devices across one or multiple sites. It combines local on-premises management with cloud access, offering flexible deployment for networks that require both security and remote oversight.
Why this product
Dual management options
Manage your network locally for maximum security or access it remotely via the Omada app and web interface from anywhere, giving you flexibility in how you operate.
Real-time topology visualization
A unified dashboard shows connected and disconnected devices, VLANs, and network topology at a glance, helping you troubleshoot issues faster.
Supports up to 100 access points
Centralized management scales to handle 100 Omada access points, 10 gateways, and 20 switches in a single deployment.
Flexible power and mounting

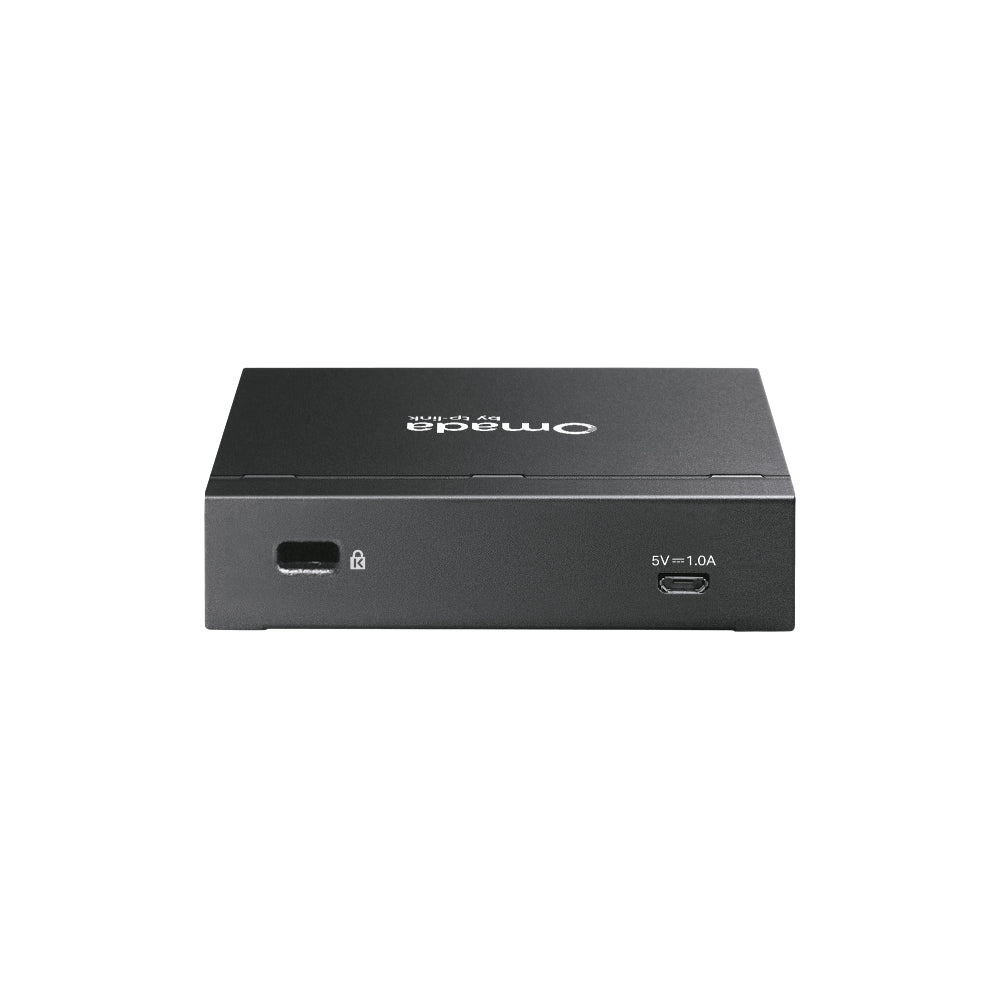

Choose between PoE power or Micro-USB, and mount it on a desktop or wall to fit your installation space constraints.
- BrandTP-Link
- ModelOC200 (V3)
- ProcessorQuad-Core A53 @ 2.0 GHz/Core
- Memory1 GB DDR4
- Ethernet Ports2× 10/100/1000 Mbps
- Power Consumption5 W
- WarrantyLimited Lifetime Warranty
- SKUTPL-1226
- EAN6935364084233
- Works with Omada access points, gateways, switches, and DeltaStream GPON OLTs within the specified device limits.
- Supports both PoE (802.3af/at) and Micro-USB power input for flexible deployment in different environments.
- Provides cloud-based remote access via the Omada app and web UI for management from any location.
- On-premises management requires local network connectivity; cloud access requires internet connection and TP-Link account.
Best for
- Multi-site network administrators
- Small to mid-sized Omada deployments
- Organizations requiring local security
- Space-constrained installations
Trade-offs
- Very large deployments requiring more than 100 access points or 20 switches in a single controller.
- Non-Omada networks — it is designed exclusively for TP-Link Omada ecosystem devices.
- High-traffic core networks with minimal processing overhead needs; it prioritizes management capability over throughput optimization.

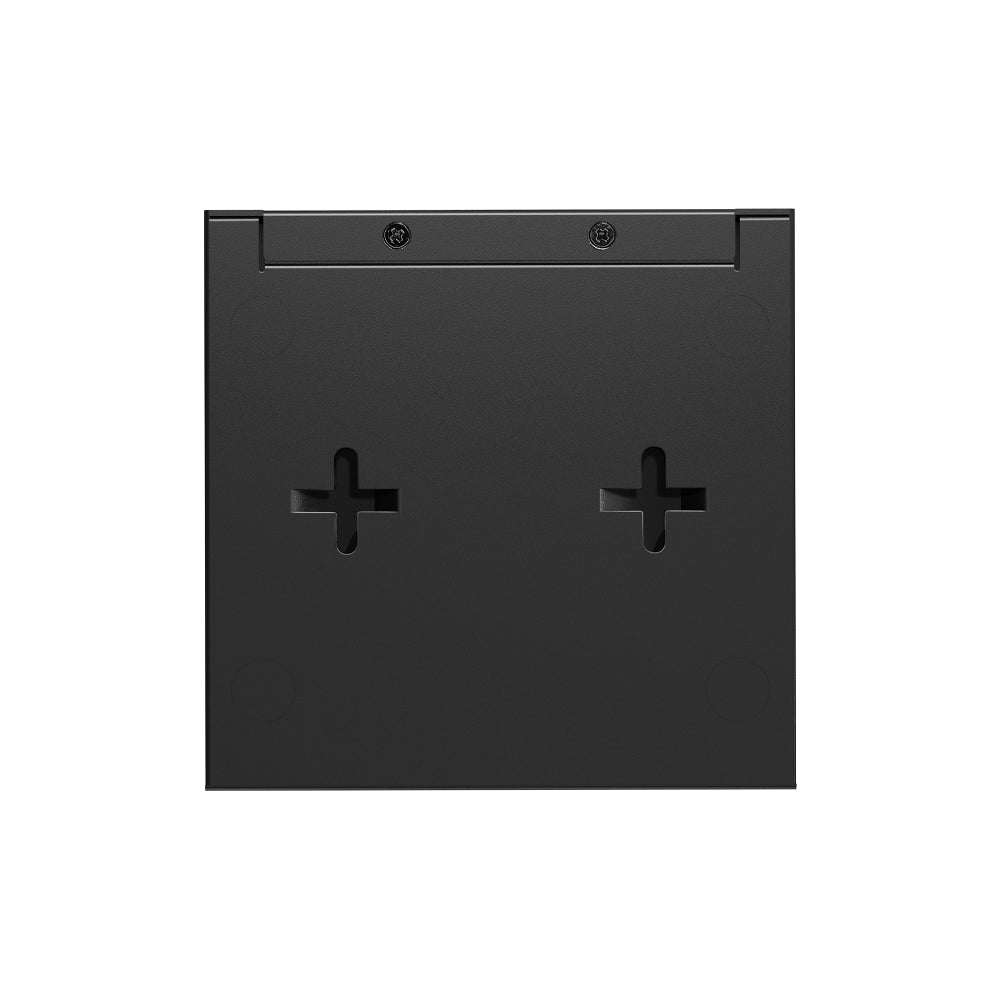

Equipped with an advanced design and the latest chipset, the Omada OC200 delivers more than enough processing power to support massive network management—while its enterprise-grade reliability ensures uninterrupted, 24/7 operation under heavy loads. Desktop/wall mounting design provides easier and more flexible installation.
Experience instant clarity with the redesigned dashboard — Overview, Topology, Wi-Fi, Client, and Traffic — delivering richer visual insights for faster monitoring and key data tracking to drive better business outcomes.
A unified topology view displays connected/disconnected devices, VLAN, and more customizable filters to tailor the view and accelerate troubleshoot. Wireless client auto-recognition simplifies management, and enhanced client data charts offer clearer visibility into network activity and performance.
General
| Brand | TP-Link |
|---|---|
| Model | OC200 (V3) |
Processing & Memory
| Processor | Quad-Core A53 @ 2.0 GHz/Core |
|---|---|
| RAM | 1 GB DDR4 |
| Storage | 4 MB Nor Flash; 8 GB eMMC |
Connectivity

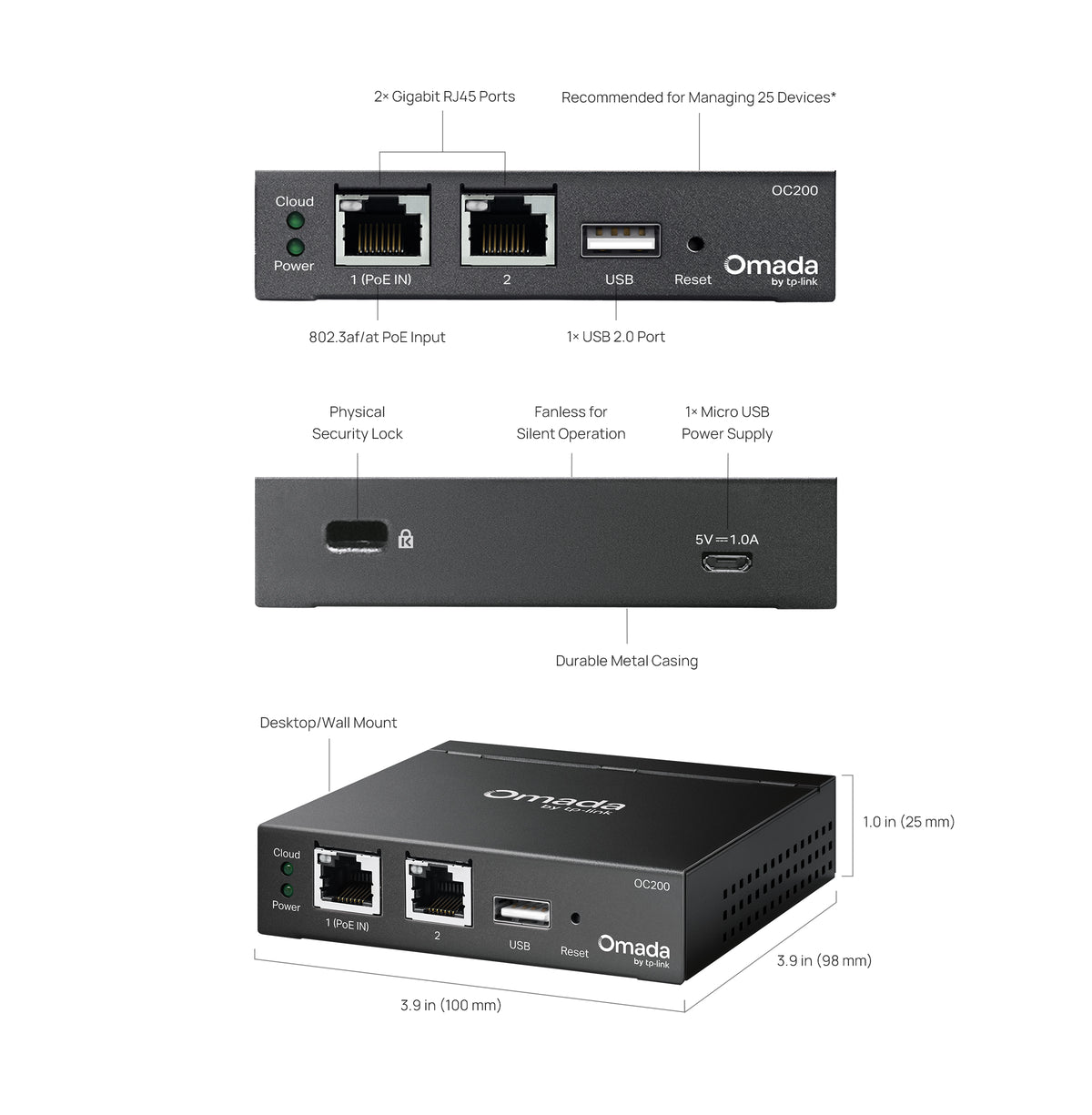

| Ethernet Ports | 2× 10/100/1000 Mbps |
|---|---|
| USB Ports | 1× USB 2.0 Port; 1× Micro-USB Port (power only) |
| Power Supply | 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) |
Physical & Management
| Dimensions | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
|---|---|
| Weight | 10.58 oz |
| Material | Metal |
| Power Consumption | 5 W |
| Environmental Certification | RoHS |
| Supported Devices | Up to 100 Omada access points, 10 gateways, 20 switches, and 2 DeltaStream GPON OLTs |
| Warranty | Limited Lifetime Warranty |
