TP-Link Omada OC300 Hardware Cloud Controller - SDN

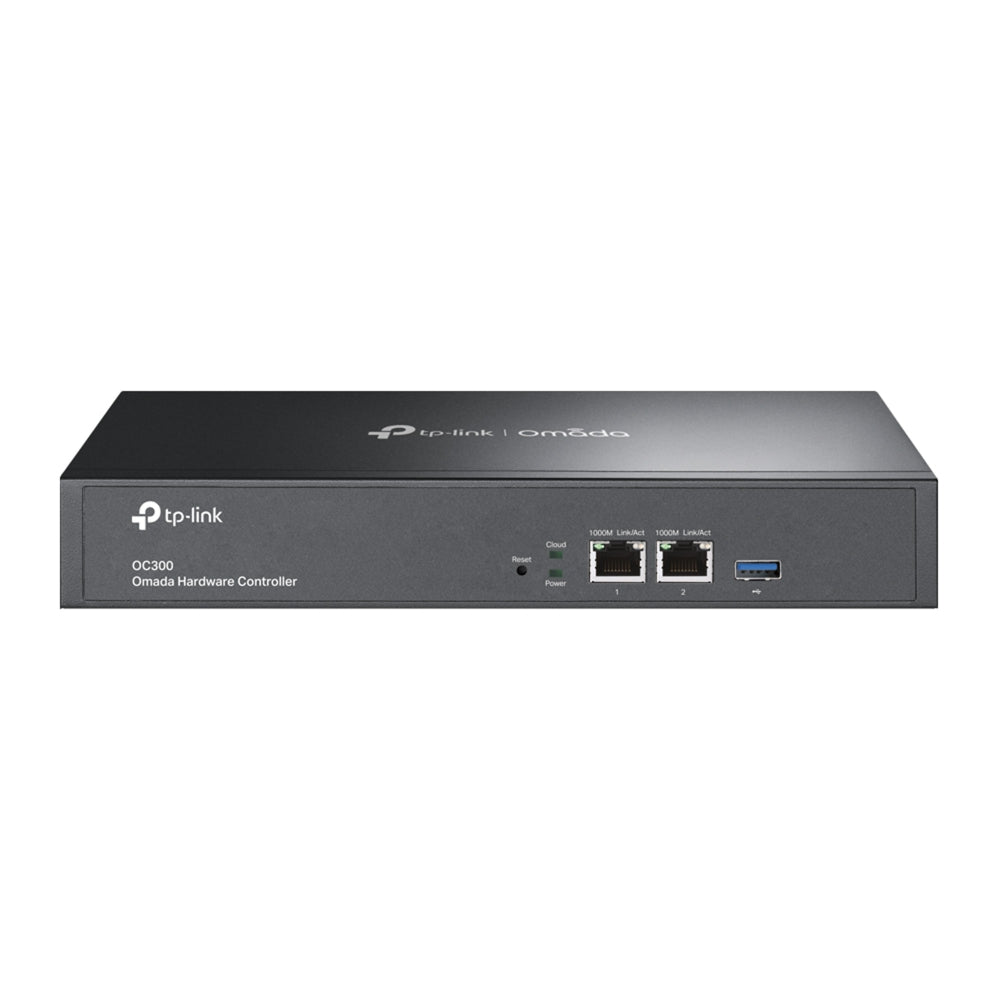

The TP-Link Omada OC300 Hardware Cloud Controller is a dedicated on-premises management appliance for TP-Link's Omada Software Defined Networking platform. It centralizes control of access points, switches, and routers across single or multiple sites, with both local and cloud-based access. Built for organizations that need enterprise-grade network management without running a separate server.
Why this product
Supports up to 500 access points
Manages 500 Omada APs, 100 JetStream switches, and 100 Omada routers from a single controller, plus up to 15,000 connected clients.
Hybrid cloud and local control
Access and manage the network remotely via cloud, or keep all traffic local for maximum security and control.
No dedicated server needed
Purpose-built hardware eliminates the cost and complexity of running management on a separate PC or server.
Dual Gigabit Ethernet ports
Two 10/100/1000 Mbps ports provide network connectivity and redundancy options.
Multi-site and multi-tenant ready
Manage multiple network sites and separate user accounts with granular role-based access control.
Low power consumption
Uses only 9 W without USB or 14.8 W with USB connected, making it efficient in any environment.
- BrandTP-Link
- ModelOC300
- ProcessorQuad-Core A72 @ 1.2 GHz
- Memory2 GB DDR4
- Storage2 MB Nor Flash; 8 GB eMMC
- Managed DevicesUp to 500 access points, 100 switches, 100 routers
- Power Consumption9.0 W (no USB); 14.8 W (with USB)
- Multi-Site ManagementYes
- SKUTPL-1095
- EAN6935364089863
- Manages all Omada access points, JetStream switches, and Omada routers in the SDN ecosystem.
- Operates as a standalone on-premises controller or connects to TP-Link's Omada cloud for remote access.
- Cloud access requires internet connectivity; local management operates independently of cloud services.
- Does not manage non-Omada or non-TP-Link network equipment.
Best for
- Multi-site enterprises needing centralized management across locations
- Organizations requiring on-premises control for security or compliance
- Service providers managing separate customer networks with role-based access
- Networks with 100+ access points where cloud-only management is not viable
Trade-offs
- Small networks with fewer than 10 devices; cloud-based Omada controller or mobile app alone may suffice.
- Organizations using exclusively non-TP-Link or non-Omada networking hardware.
- Deployments requiring redundant or clustered controllers for high availability.

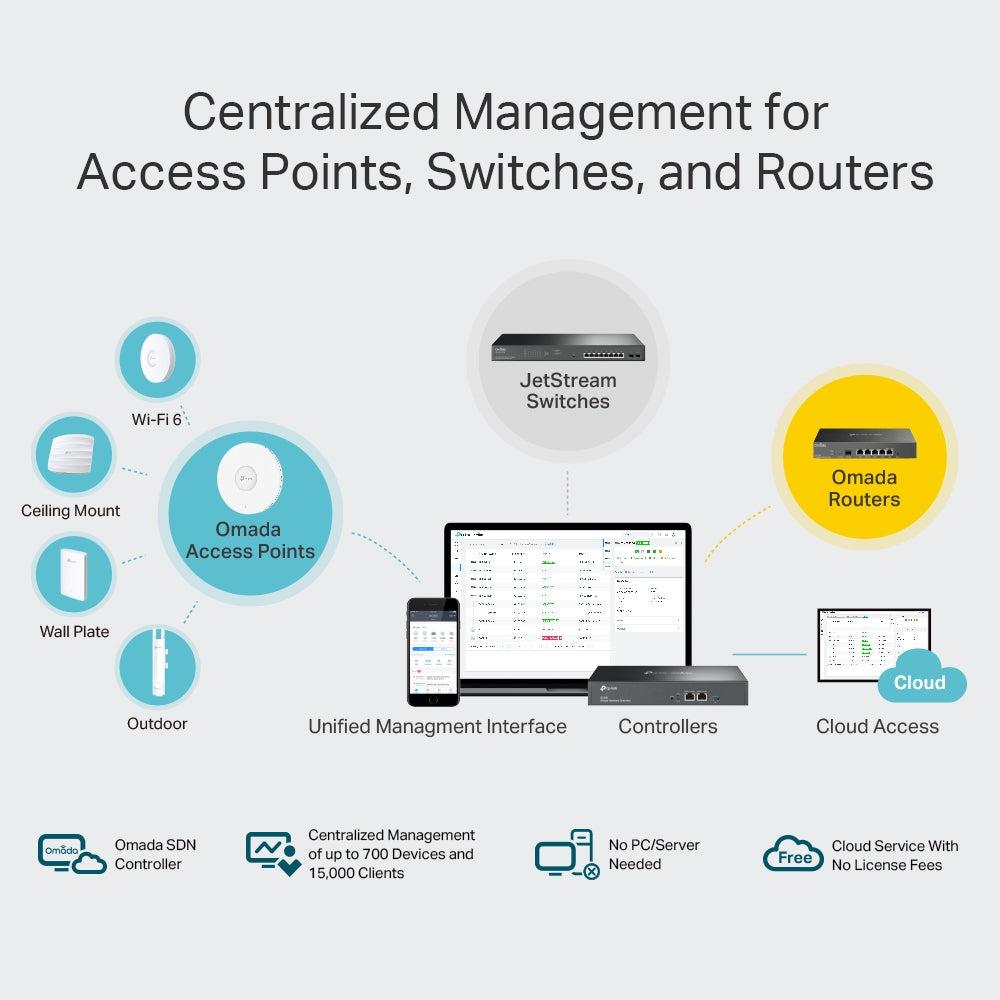

OC300, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, JetStream switches, and Omada routers—all controlled from a single interface.
With the OC300, networks can be managed without the need of an additional dedicated PC/server.

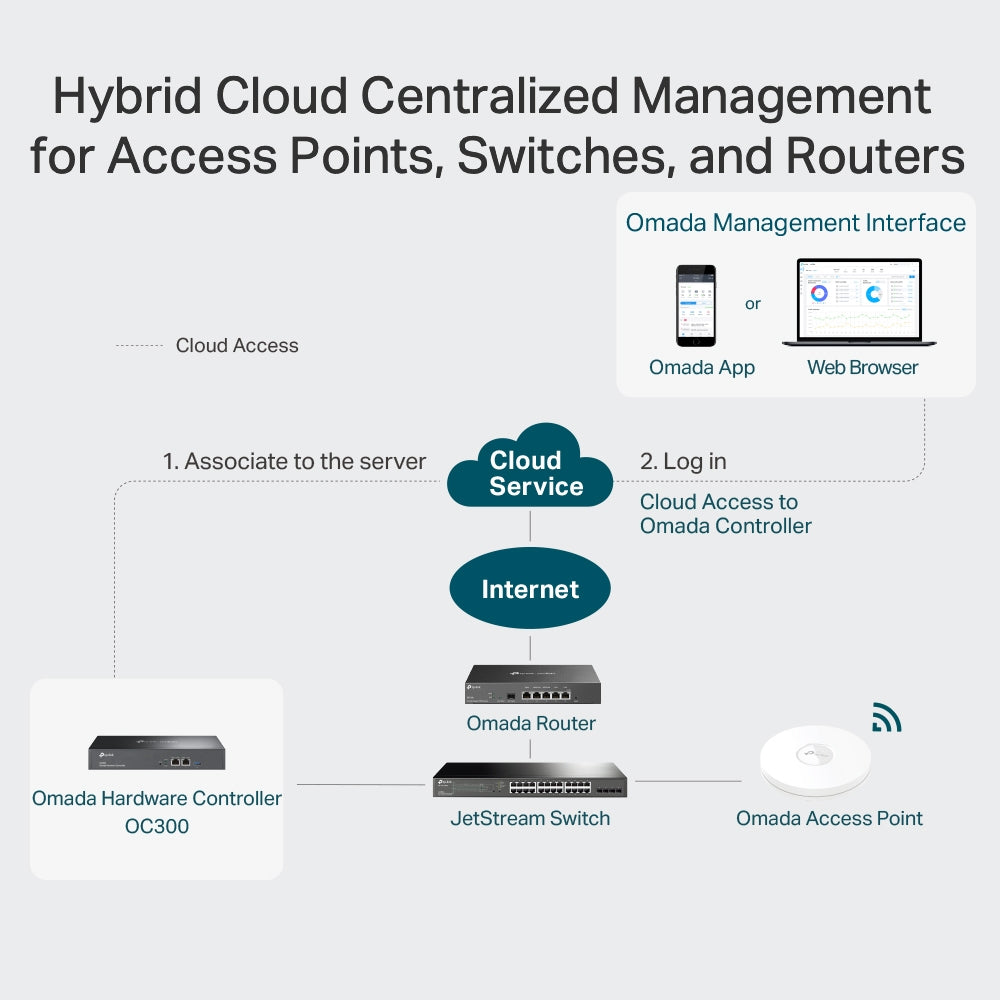

Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

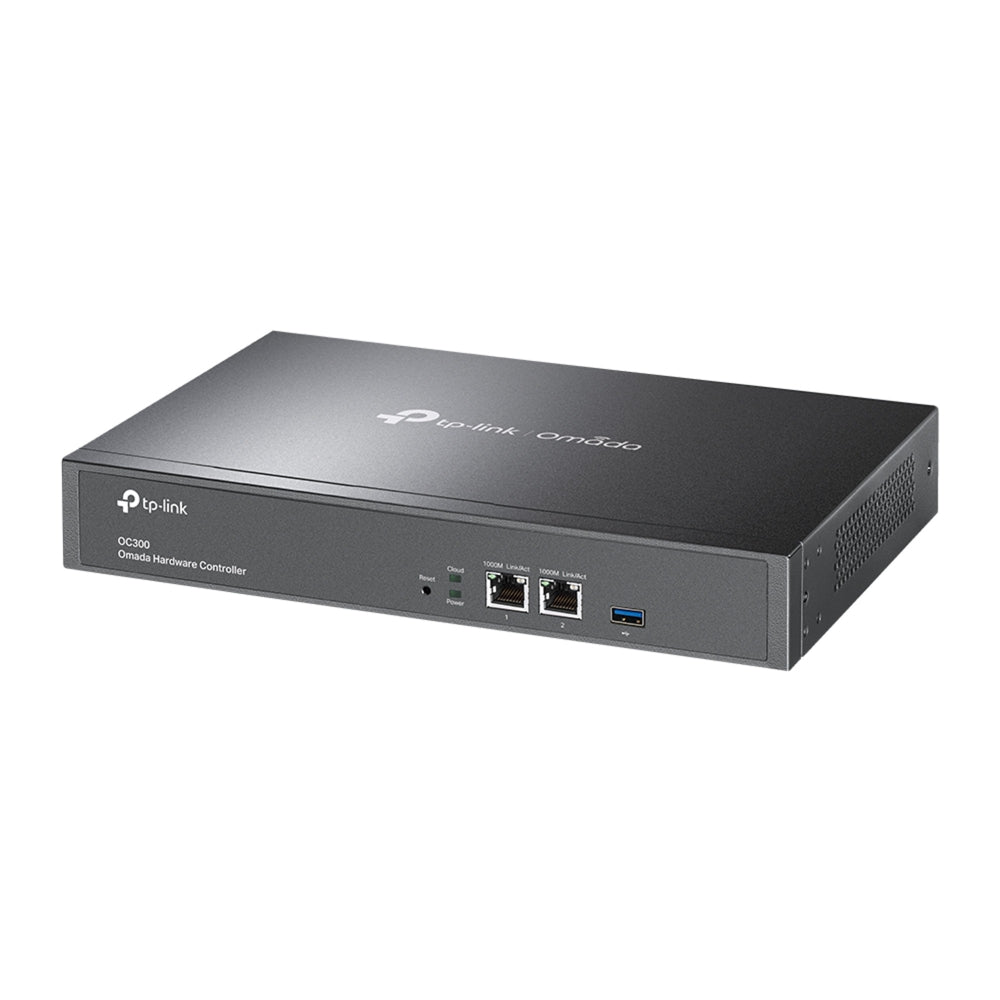

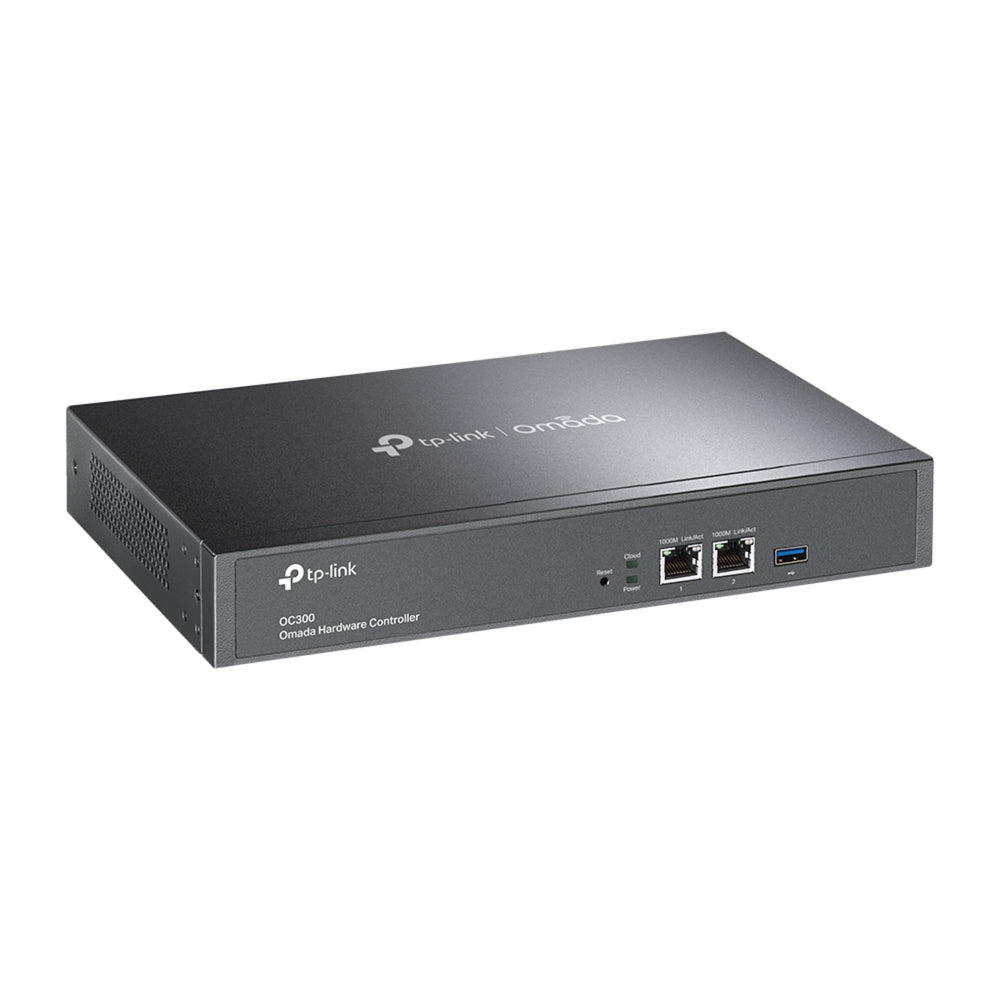

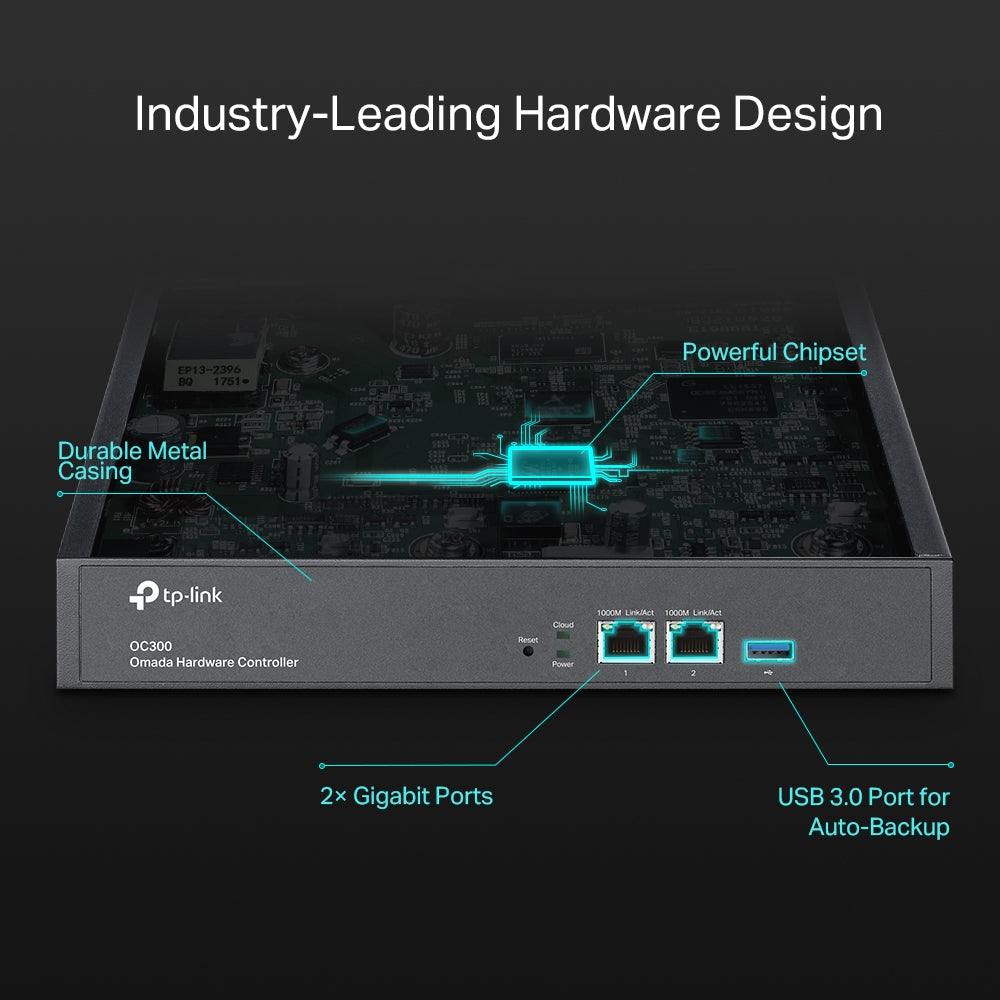

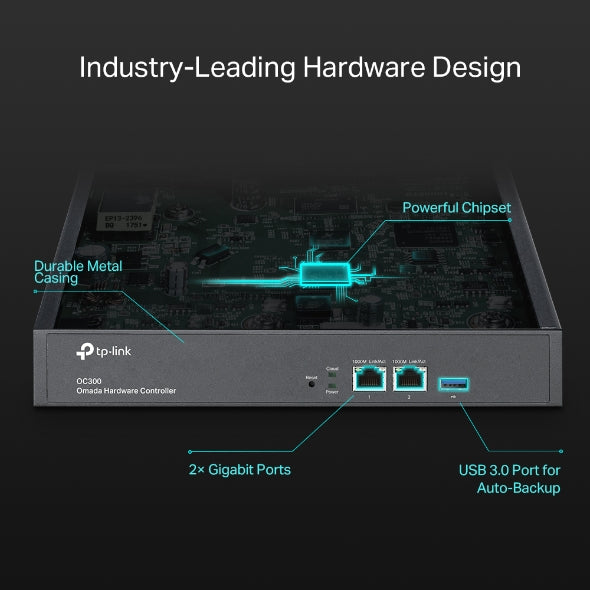

Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
General
| Brand | TP-Link |
|---|---|
| Model | OC300 |
Processor & Memory
| Processor | Quad-Core A72 @ 1.2 GHz |
|---|---|
| Memory | 2 GB DDR4 |
| Storage | 2 MB Nor Flash; 8 GB eMMC |
Connectivity
| Ethernet Ports | 2 × 10/100/1000 Mbps |
|---|---|
| USB Port | 1 × USB 3.0 |
Management Capacity
| Omada Access Points | Up to 500 |
|---|---|
| JetStream Switches | Up to 100 |
| Omada Routers | Up to 100 |
| Connected Clients | Up to 15,000 |
| Multi-Site Management | Yes |
| Multi-Tenant Management | Yes (Role/Site/Device Privileges) |
| Cloud Access | Yes |
Power & Environment

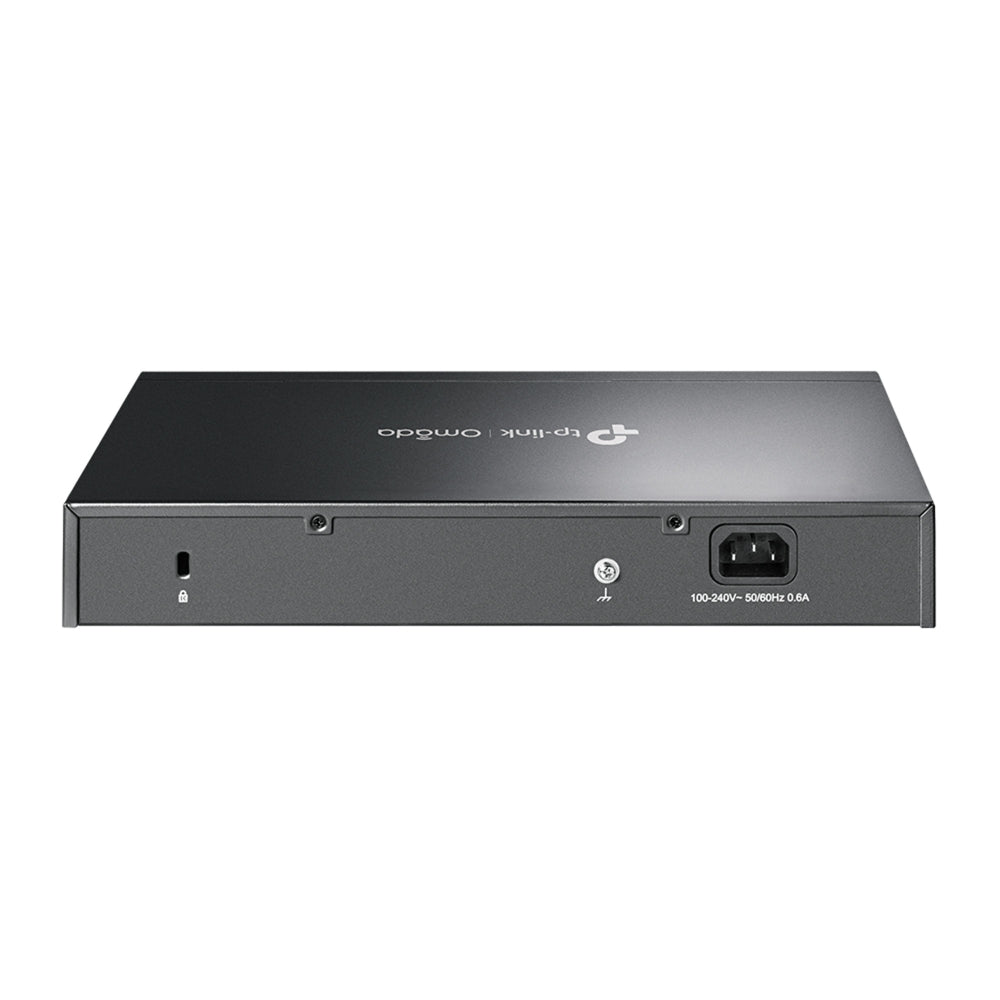

| Power Supply | 100-240 V ~ 50/60 Hz AC |
|---|---|
| Max Power Consumption | 9.0 W (no USB 3.0); 14.8 W (with USB 3.0) |
| Operating Temperature | 0–50 ℃ (32–122 ℉) |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| Operating Humidity | 10–90% RH non-condensing |
Physical
| Dimensions | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
|---|---|
| Mounting | Rackmount/Desktop (Kit Included) |
