TP-Link TL-ER7206 SafeStream Multi-WAN Gigabit VPN Router
TP-Link
TP-Link TL-ER7206 SafeStream Multi-WAN Gigabit VPN Router
The TP-Link TL-ER7206 SafeStream Multi-WAN Gigabit VPN Router is a professional gateway designed for businesses that need secure remote access, high-speed connectivity across multiple internet lines, and centralized network management. It supports up to 100 IPSec VPN tunnels and integrates with TP-Link's Omada SDN platform for cloud-based control across distributed locations.
Why this product
Up to 4 WAN ports in one device
One SFP and one RJ45 WAN port, plus two changeable WAN/LAN ports, let you bond multiple internet connections for load balancing and failover.
100 IPSec tunnels plus four VPN protocols
Supports IPSec, OpenVPN, L2TP, PPTP, and L2TP over IPSec, allowing flexible site-to-site and remote-access configurations with up to 100 LAN-to-LAN IPSec connections.
Centralized cloud management via Omada SDN
Deploy, monitor, and manage the router remotely from a single dashboard, with Zero-Touch Provisioning to simplify setup across multiple sites.
Advanced firewall and DoS protection
Built-in SPI firewall, IP/MAC/URL filtering, and automatic DoS defense against TCP/UDP/ICMP flooding and other common attacks.
930+ Mbps symmetric throughput
Static IP NAT throughput reaches 930.5 Mbps upload and 937.3 Mbps download, with 217 Mbps IPSec VPN throughput on AES128 encryption.
- WAN portsUp to 4 (1× SFP, 1× RJ45 fixed; 2× RJ45 changeable)
- LAN ports2× Gigabit RJ45
- IPSec VPN throughput217.0 Mbps (AES128)
- Static IP NAT throughput930.5 Mbps upload / 937.3 Mbps download
- VPN tunnels100× IPSec, 50× OpenVPN, 50× L2TP, 50× PPTP
- Concurrent sessions150,000
- Maximum clientsUp to 700
- SKUTPL-1096
- EAN6935364072407
- Integrates with TP-Link Omada SDN ecosystem (access points, switches, controllers) for unified management.
- Supports standard Ethernet cabling and SFP connectors for WAN links.
- Works in standalone mode with web UI or mobile app management if Omada controller is not available.
- Supports SNMP v1/v2c/v3 for integration with third-party network monitoring tools.
- OpenVPN requires an Omada Hardware Controller, Software Controller, or Cloud-Based Controller; it cannot function in standalone mode.
Best for
- Multi-site businesses needing secure VPN tunnels between offices
- Networks using multiple ISP connections requiring load balancing and failover
- Organizations deploying Omada SDN for centralized, cloud-based network management
- Remote workers requiring IPSec or OpenVPN access to corporate resources
- Environments like hospitality, education, and retail requiring guest access control and advanced firewall policies
Trade-offs
- Small offices or home networks where multi-WAN and VPN tunnels are unnecessary
- Users who require OpenVPN without an Omada controller infrastructure
- Deployments needing wireless access points built into the gateway itself
- Networks requiring PoE power delivery to connected devices
TL-ER7206 supports Gigabit Ethernet connections on both WAN and LAN ports and multiple VPN protocols and high-security, high-performance VPN capabilities, making employees' remote connections to their main offices as secure as if they were in the main office.

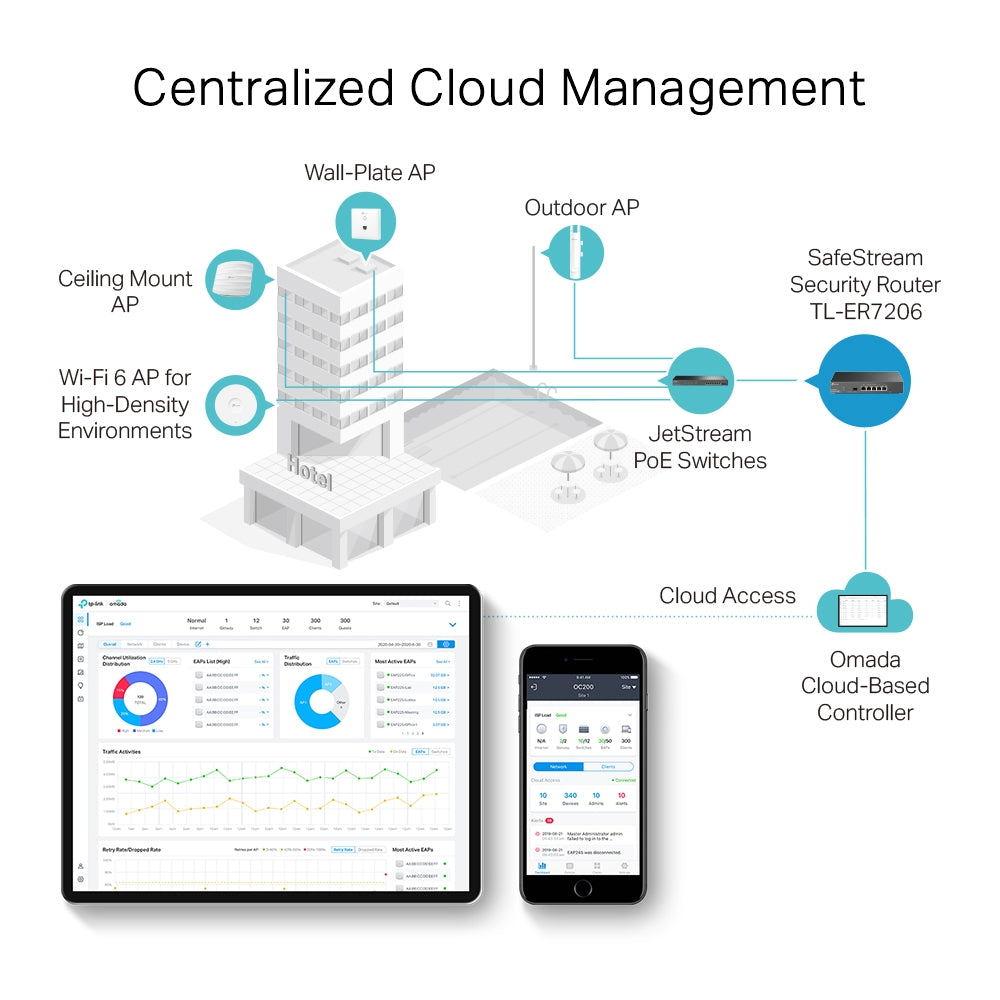

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

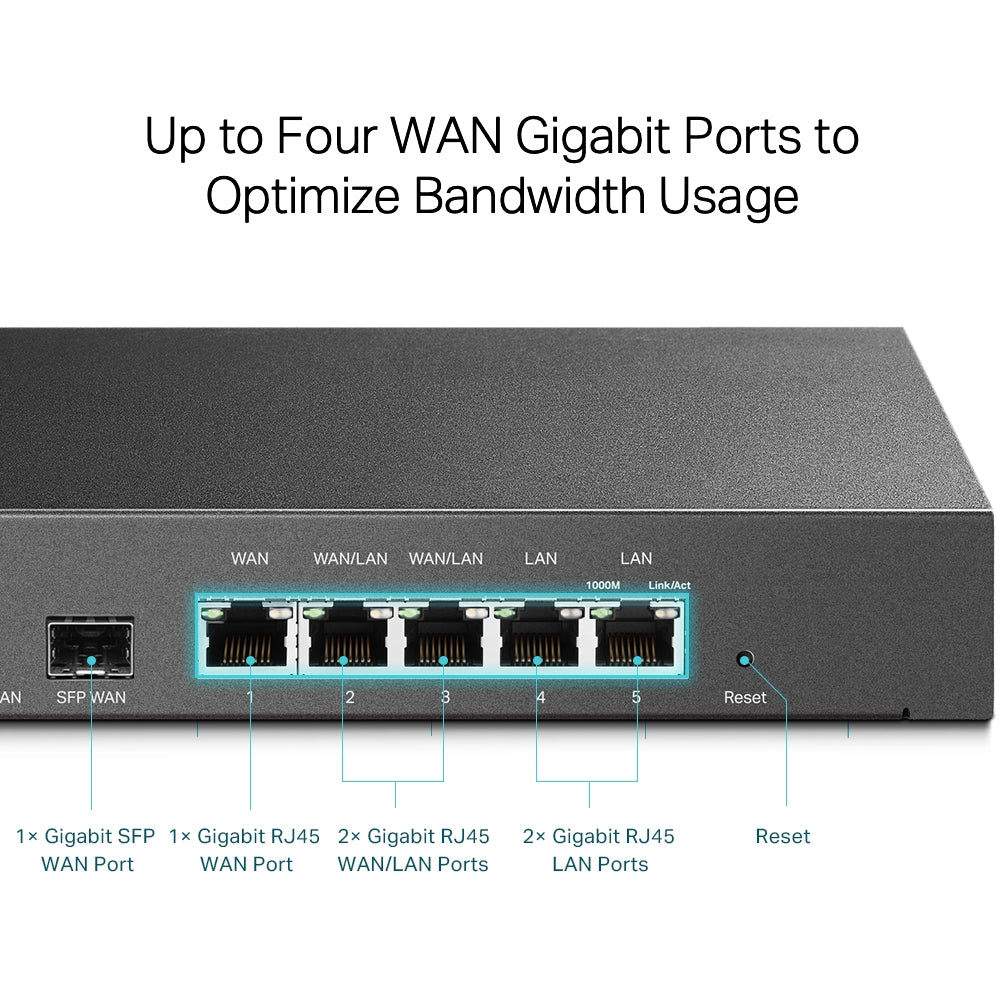

One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

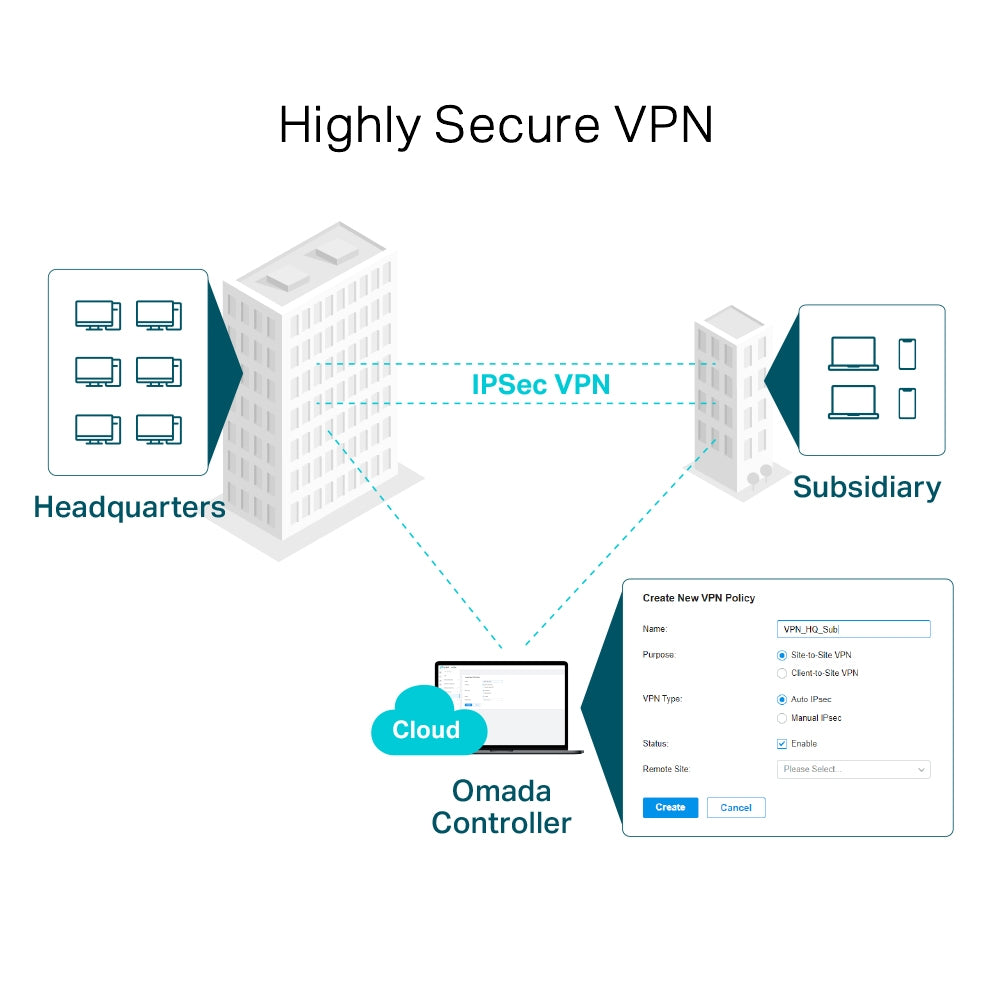

TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Advanced firewall policies protect your network and data. Create virtual network segments for enhanced security and simplified network management. Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats. Forcefully prevent viruses and attacks from intruders. Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
*OpenVPN requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller. **Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
Networking
| Brand | TP-Link |
|---|---|
| Model | TL-ER7206 |
| WAN ports | 1× Fixed Gigabit SFP WAN Port; 1× Fixed Gigabit RJ45 WAN Port; 2× Changeable Gigabit RJ45 WAN/LAN Ports |
| LAN ports | 2× Fixed Gigabit RJ45 LAN Ports |
| Total ports | 1× Gigabit SFP + 5× Gigabit RJ45 |
| VPN protocols | IPSec, PPTP, L2TP, L2TP over IPSec, OpenVPN, SSL |
| VPN tunnels | Up to 100× LAN-to-LAN IPSec, 50× OpenVPN, 50× L2TP, 50× PPTP |
| Management | Web UI, Omada App, Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller, Standalone Mode |
Performance
| Processor | 64-bit dedicated dual-core |
|---|---|
| Memory | 512MB DDR3 |
| Flash | 132MB |
| IPSec VPN throughput (AES128) | 217.0 Mbps |
| Static IP NAT throughput (upload) | 930.5 Mbps |
| Static IP NAT throughput (download) | 937.3 Mbps |
| Concurrent sessions | 150,000 |
| New sessions per second | 4,500 |
| Maximum clients | Up to 700 |
Ports & power
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q |
|---|---|
| Security features | SPI Firewall, DoS Defense, IP/MAC/URL Filtering, ARP Binding, 4 kV Lightning Protection |
Physical
| Operating temperature | 0–40 ℃ |
|---|---|
| Storage temperature | -40–70 ℃ |
| Operating humidity | 10–90% RH non-condensing |
| Storage humidity | 5–90% non-condensing |
