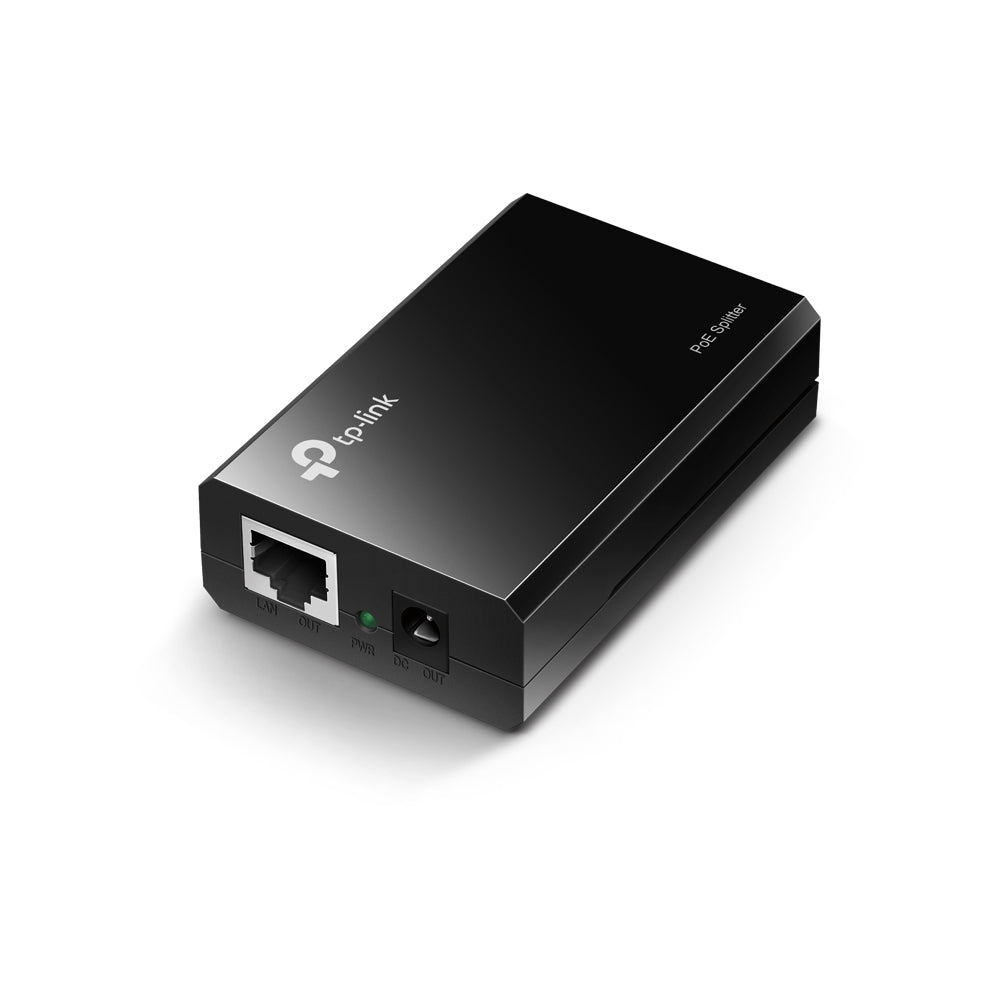

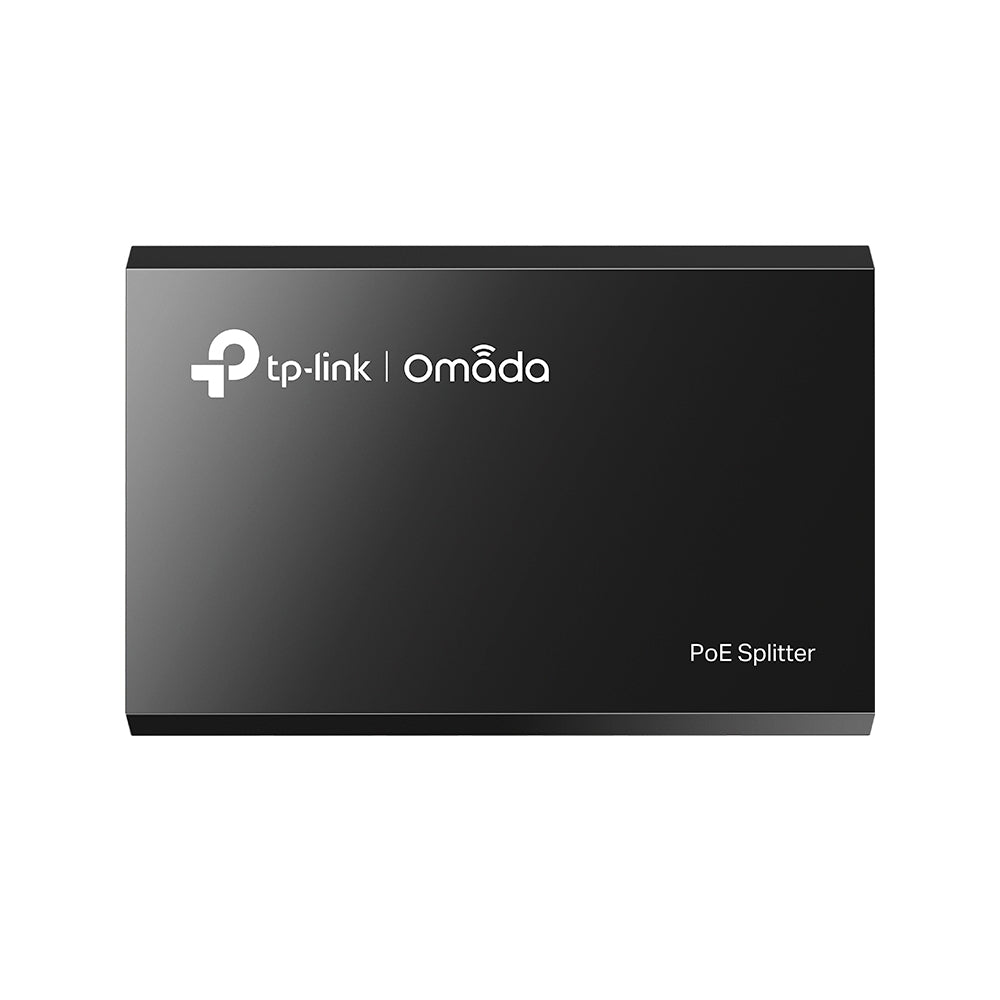

TP-Link TL-POE10R IEEE 802.3af Gigabit PoE Splitter 12V/9V/5V
TP-Link
TP-Link TL-POE10R IEEE 802.3af Gigabit PoE Splitter 12V/9V/5V
The TP-Link TL-POE10R is an IEEE 802.3af compliant PoE splitter that separates power and data from a single Ethernet cable, letting you place wireless access points, IP cameras, and IP phones in locations without power outlets. It outputs selectable voltage at 5V, 9V, or 12V and supports Gigabit Ethernet speeds.
Why this product
Selectable output voltage

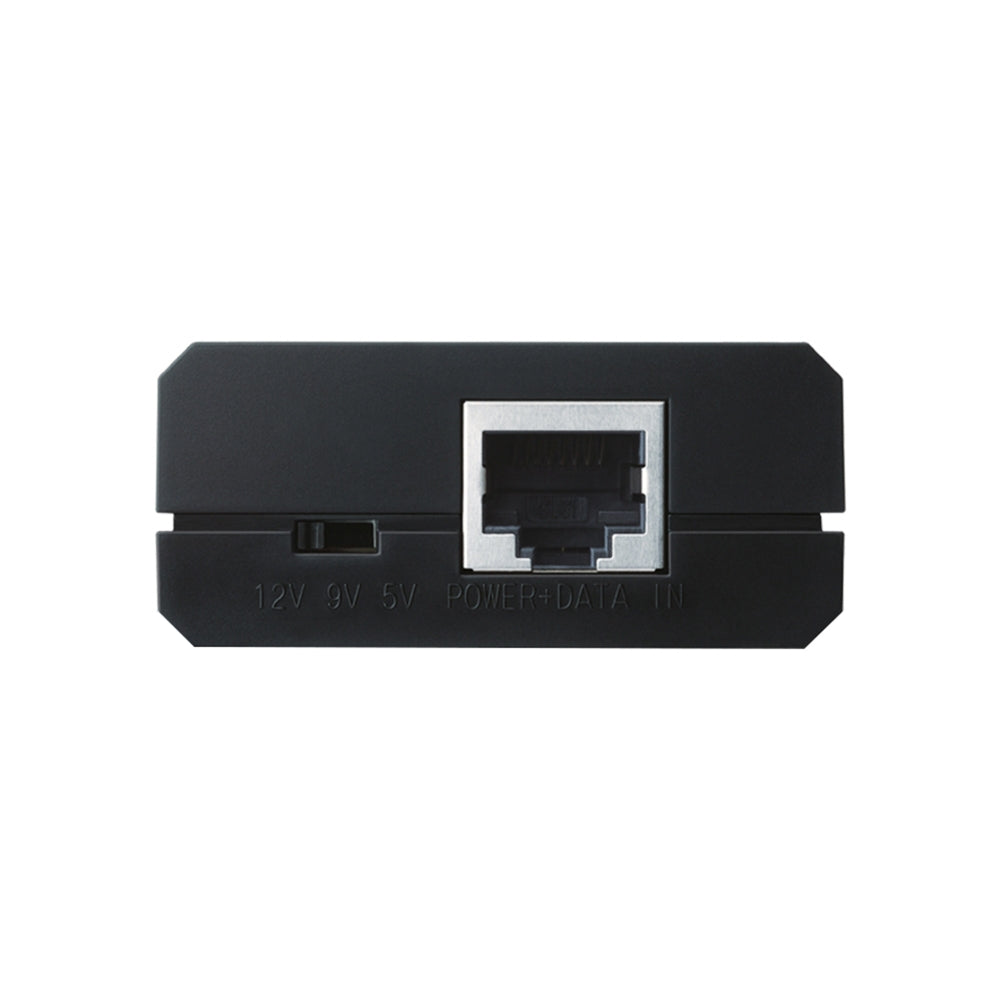

Slide switch lets you choose between 5V, 9V, or 12V DC depending on your device's power needs, eliminating the need for multiple splitters.
Plug-and-play installation
No configuration required—connect to any IEEE 802.3af PoE source and it immediately separates power and data for your remote device.
Gigabit Ethernet passthrough
Maintains full 1000Mbps network speeds while delivering power, so network performance stays uncompromised.
Built-in protection
Short circuit protection and auto-disconnection for overvoltage, undervoltage, or overcurrent prevent damage to connected devices.
- StandardIEEE 802.3af
- Output voltage5V / 9V / 12V selectable
- Maximum power10W at 5V, 9W at 9V, 12W at 12V
- Network speed1000 Mbps Gigabit

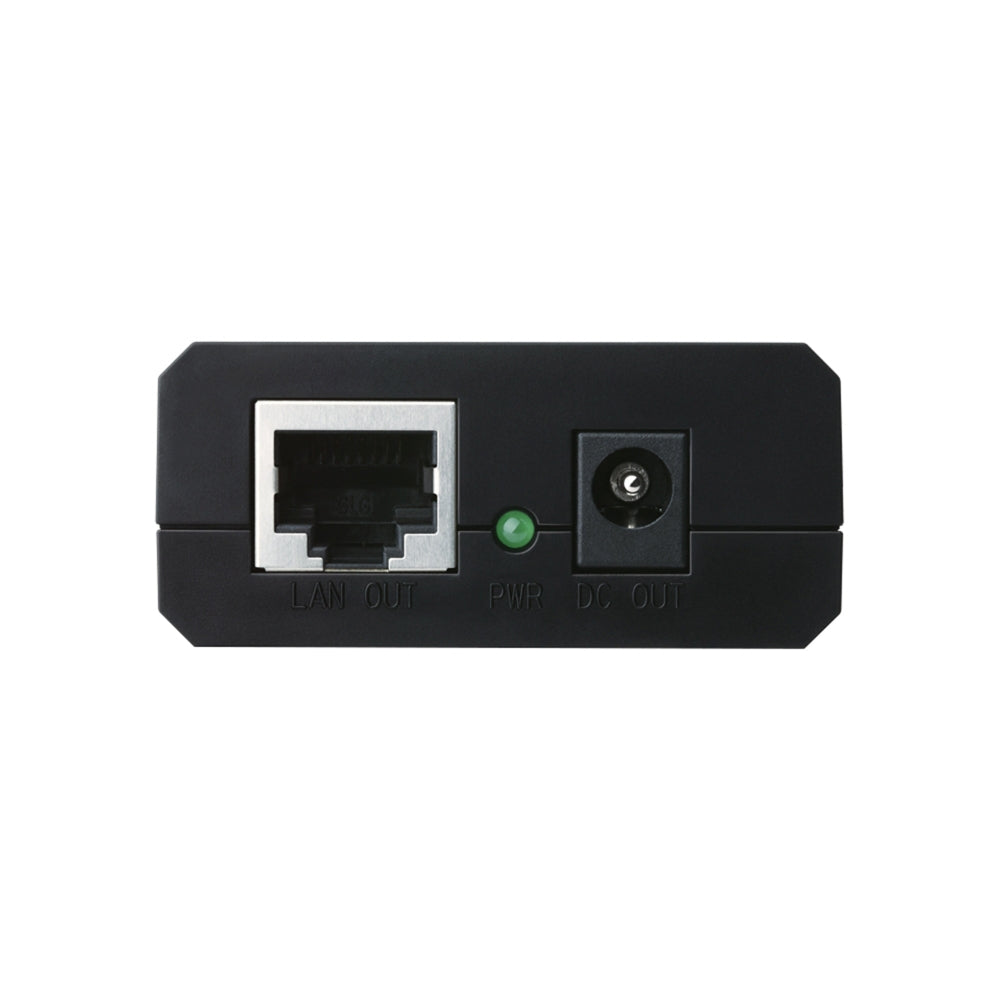

- Ports1 PoE RJ45 in, 1 Gigabit RJ45 out, 1 DC power out
- Dimensions80.8 × 54 × 24 mm
- SKUTPL-1106
- EAN6935364030490
- Works with any IEEE 802.3af PoE injector or PoE-enabled switch, including TP-Link models and third-party equivalents.
- Supports standard Ethernet cabling up to 100m for 10/100BASE-T and up to 100m for Gigabit (1000BASE-T).
- Maximum power delivery varies by output voltage: 10W at 5V, 9W at 9V, or 12W at 12V—confirm your device's power draw before use.
- Not compatible with PoE++ (High Power PoE) or IEEE 802.3at/802.3bt standards—only IEEE 802.3af supported.
Best for
- Remote IP cameras and access points where running separate power lines is impractical or costly.
- Small office or industrial deployments needing simple PoE-powered devices without reconfiguration.
- Installations already running Gigabit Ethernet where you want to preserve full network speed.
Trade-offs
- High-power devices: Maximum output of 12W is insufficient for power-hungry equipment; you need a higher-rated splitter or injector.
- PoE++ or 802.3at devices: This splitter only handles standard 802.3af; newer high-power PoE standards are not supported.
- Devices requiring fixed voltage: If your equipment needs one specific voltage and cannot tolerate a wrong selection, this manual switch format adds configuration risk.
The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
TP-Link's PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-Link's T2600G-28MPS, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.
General
| Brand | TP-Link |
|---|---|
| Model | TL-POE10R |
| Standards supported | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af |
Power and Output
| Output voltage options | 5VDC, 9VDC, or 12VDC (selectable via slide switch) |
|---|---|
| Maximum current per voltage | 5V: 2A, 9V: 1A, 12V: 1A |
| Maximum power delivery | 10W at 5V, 9W at 9V, 12W at 12V |
| Power output connector | 5.5 mm round barrel |
Network Performance
| PoE input port | 1 × 10/100/1000 Mbps RJ45 (auto-negotiation, auto MDI/MDIX) |
|---|---|
| Network output port | 1 × 10/100/1000 Mbps RJ45 (auto-negotiation, auto MDI/MDIX) |
| Maximum cable distance | 100m for 10/100BASE-T and 1000BASE-T |
Environmental & Safety
| Operating temperature | 0°C to 40°C |
|---|---|
| Storage temperature | -40°C to 70°C |
| Operating humidity | 10% to 90% non-condensing |
| Storage humidity | 5% to 90% non-condensing |
| Protection features | Short circuit protection, auto-disconnection for overvoltage, undervoltage, and overcurrent |
