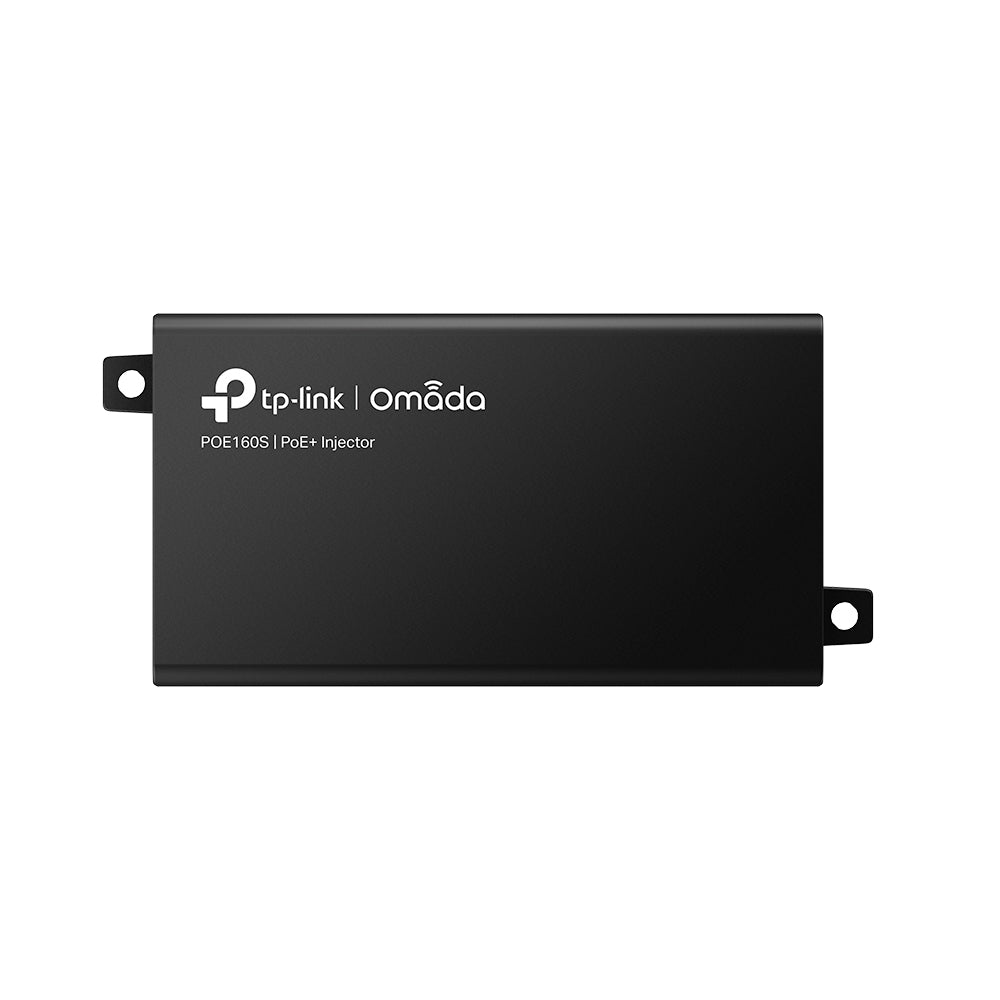

TP-Link TL-POE160S IEEE 802.3at 30W PoE+ Injector Gigabit
TP-Link
TP-Link TL-POE160S IEEE 802.3at 30W PoE+ Injector Gigabit
The TP-Link TL-POE160S IEEE 802.3at 30W PoE+ Injector Gigabit delivers power and data to network devices over a single Ethernet cable, eliminating the need for separate power outlets. It suits installers and network managers who need to power access points, IP cameras, or IP phones in locations where electrical outlets are unavailable or impractical.
Why this product
30W PoE+ power output

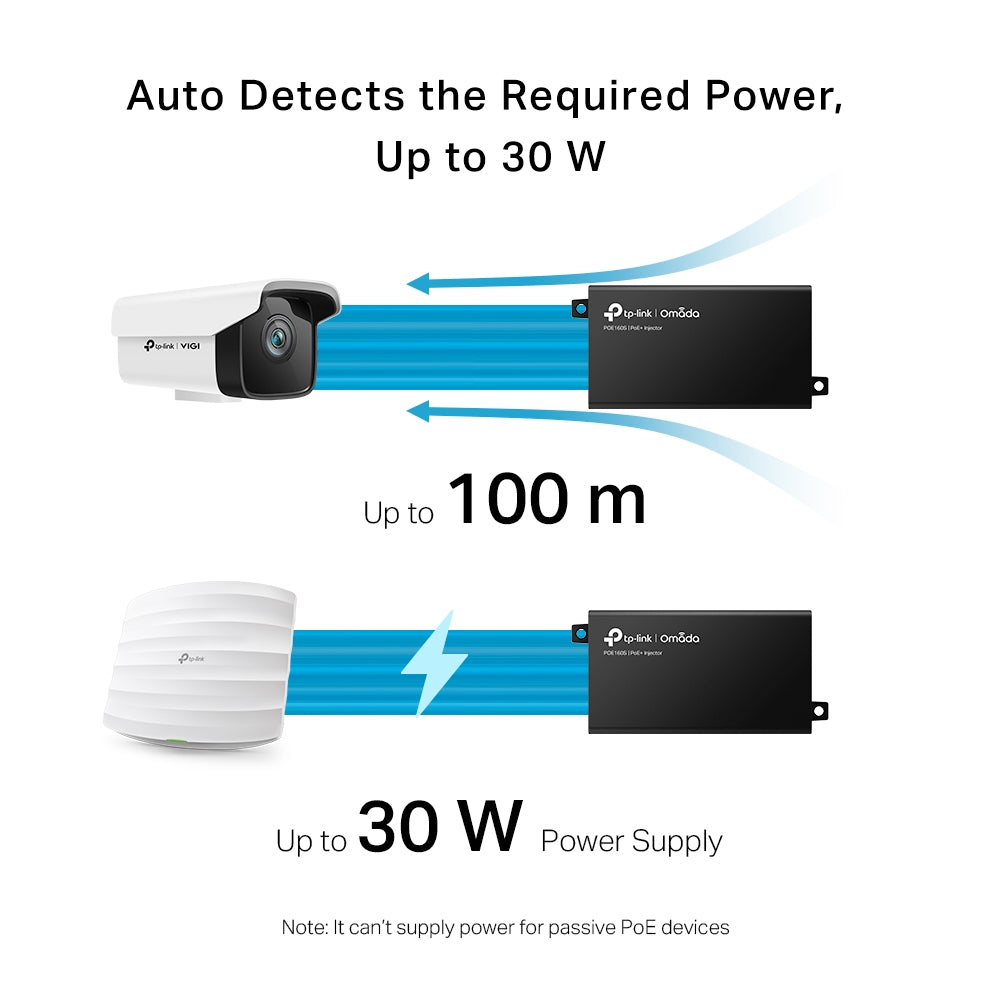

Supplies up to 30 W of power to IEEE 802.3af/at compliant devices, with automatic detection and adjustment to each device's actual requirements.
Gigabit data and power combined
Two Gigabit ports handle 10/100/1000 Mbps transmission, combining network data and power delivery over standard Ethernet cabling.
Plug-and-play installation
No configuration required. Connects between a power source and networked device; the auto-sensing algorithm detects and powers compatible PDs automatically.
Flexible mounting options
Wall-mounting brackets and desktop design accommodate both fixed installations and temporary setups.
- BrandTP-Link
- ModelTL-POE160S
- Maximum power output30 W
- Data ports2× Gigabit (10/100/1000 Mbps)
- StandardsIEEE 802.3af/at
- InstallationPlug-and-play, no configuration
- Power input100–240 V AC, 50/60 Hz
- SKUTPL-1403
- EAN6935364073084
- Works with all IEEE 802.3af/at compliant powered devices, including TP-Link PoE receivers, access points, IP cameras and IP phones.
- Supports standard Ethernet cabling up to 100 m in length for 10BASE-T, 100BASE-TX and 1000BASE-T.
- Not suitable for devices requiring more than 30 W of power or using proprietary power standards outside IEEE 802.3af/at.
Best for
- Remote network locations without nearby power outlets
- Cost-effective infrastructure expansion using existing Ethernet runs

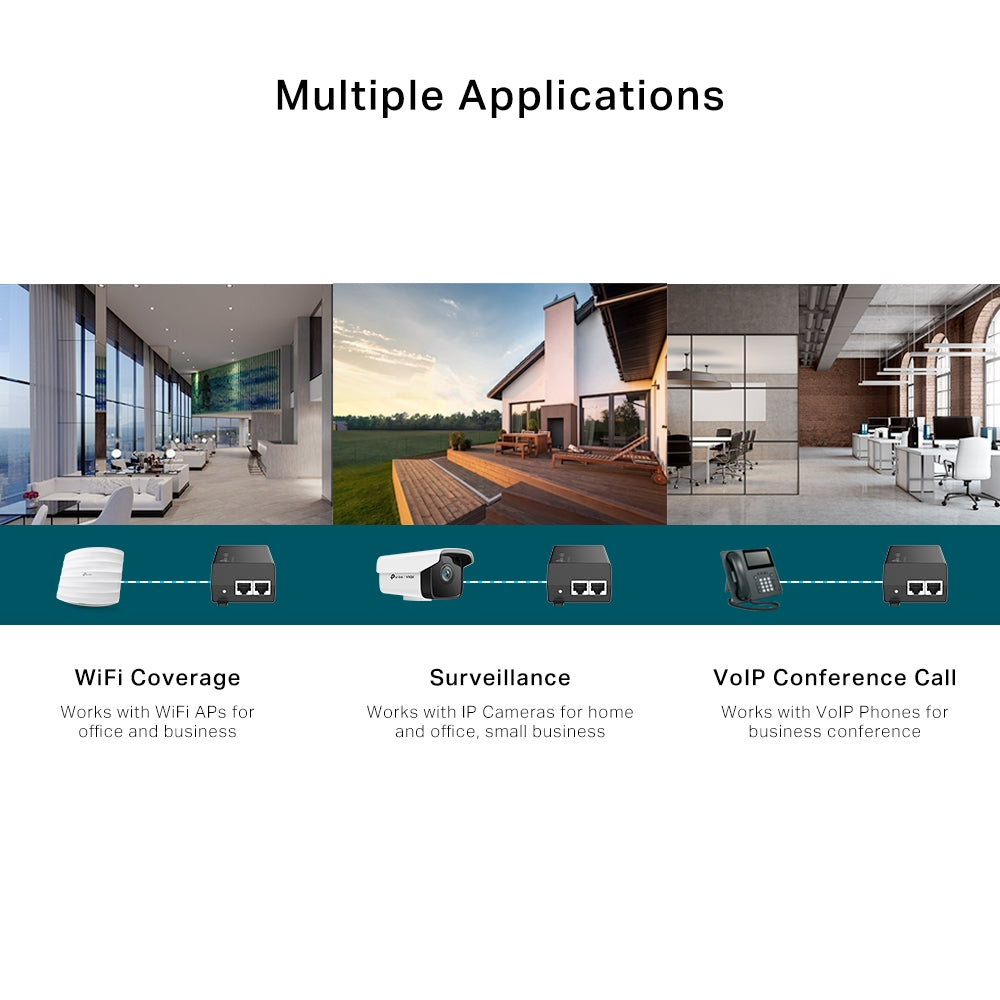

- Quick deployments of wireless access points and IP cameras
- Installers who value zero-configuration operation
Trade-offs
- High-power devices: Limited to 30 W output; devices needing more power or PoE++ support require a different injector.
- Long cable runs beyond 100 m: Maximum distance is 100 m; longer installations require additional infrastructure.
- Non-standard or legacy PDs: Only compatible with IEEE 802.3af/at devices; proprietary or older protocols are not supported.
The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Splitters, such as TP-Link's POE10R (TL-POE10R), or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
General
| Brand | TP-Link |
|---|---|
| Model | TL-POE160S |
Power & Performance
| Power output (maximum) | 30 W |
|---|---|
| Power output mode | Auto-sensing; determines exact power per device |
| Power input | 100–240 V AC, 50/60 Hz |
Connectivity

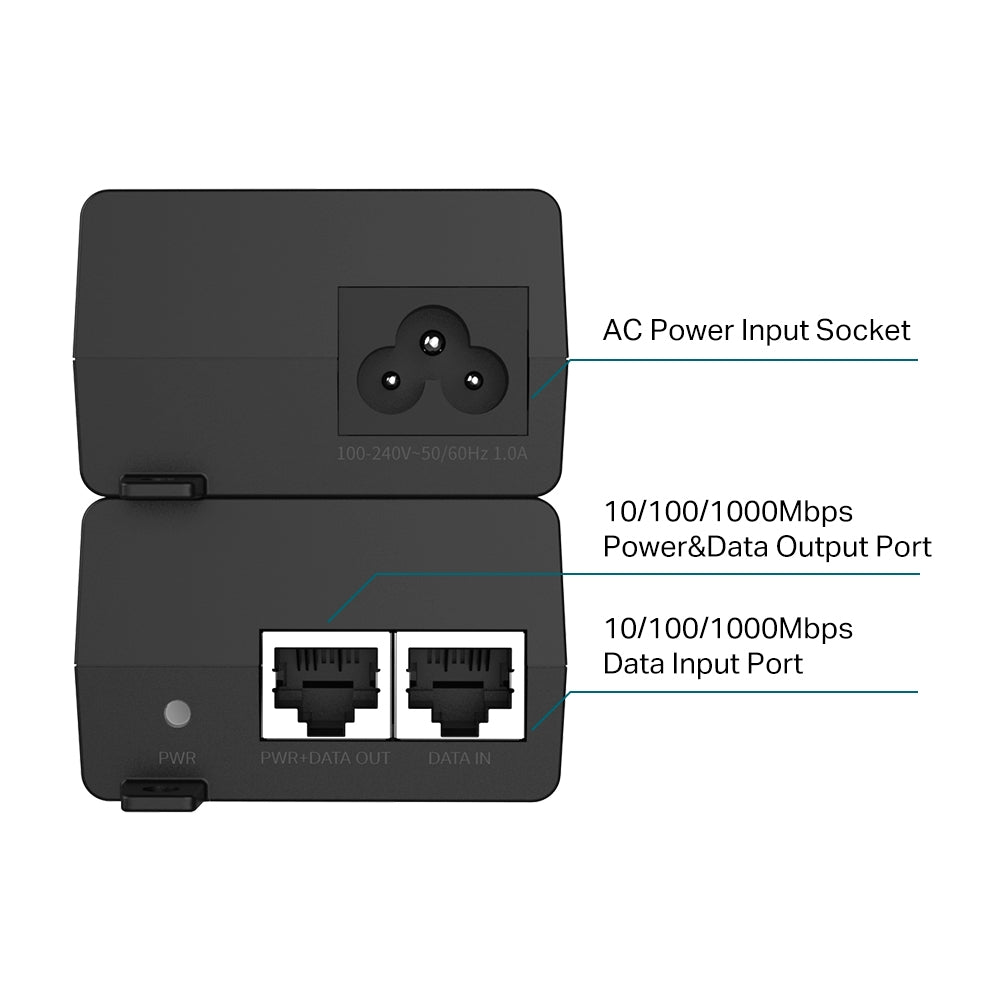

| Data-in port | 1× 10/100/1000 Mbps RJ45 |
|---|---|
| Power+data-out port | 1× 10/100/1000 Mbps RJ45 |
| Standards compliance | IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at |
| Cable support | UTP cat. 3/4/5 or STP 100 Ω; max. 100 m |
Physical & Operating
| Installation | Wall-mount or desktop; plug-and-play |
|---|---|
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 90% RH non-condensing |
| Certifications | FCC, CE, RoHS |

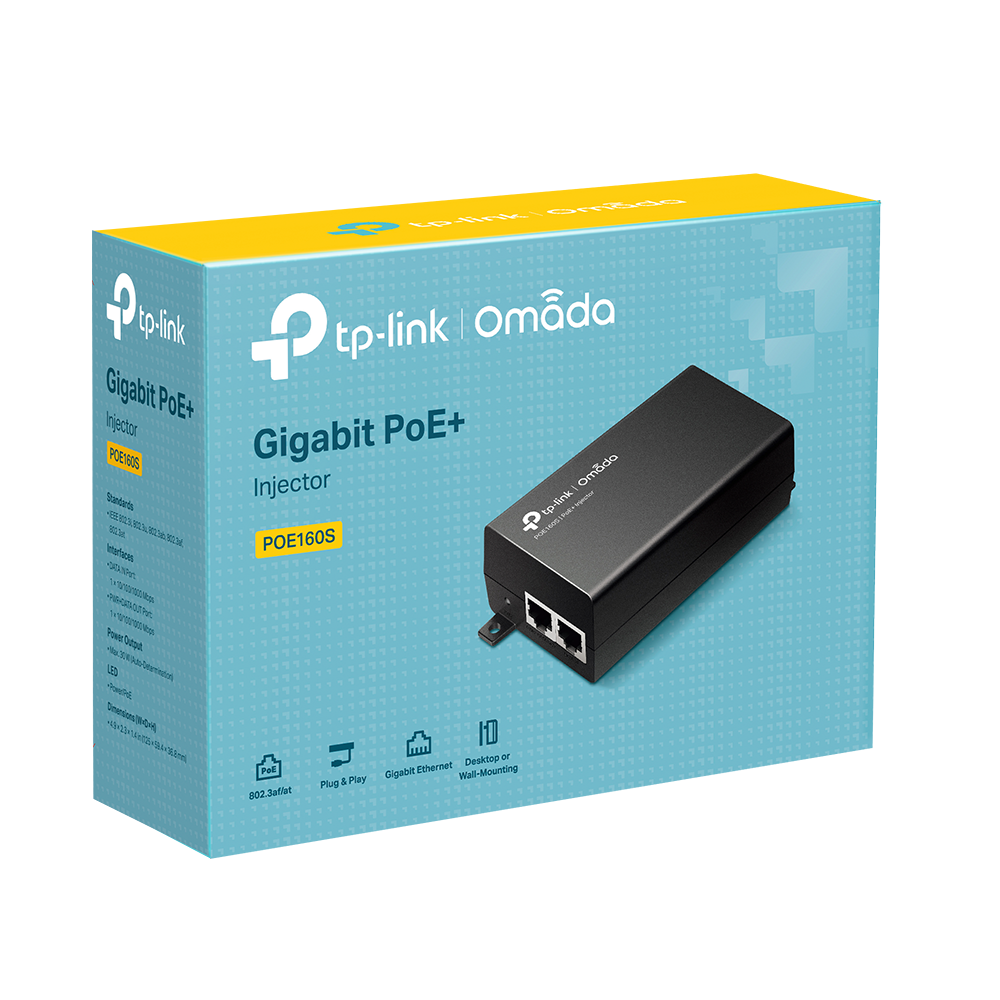

| Package contents | Injector, power cord, RJ45 cable, installation guide, wall-mounting kits |
