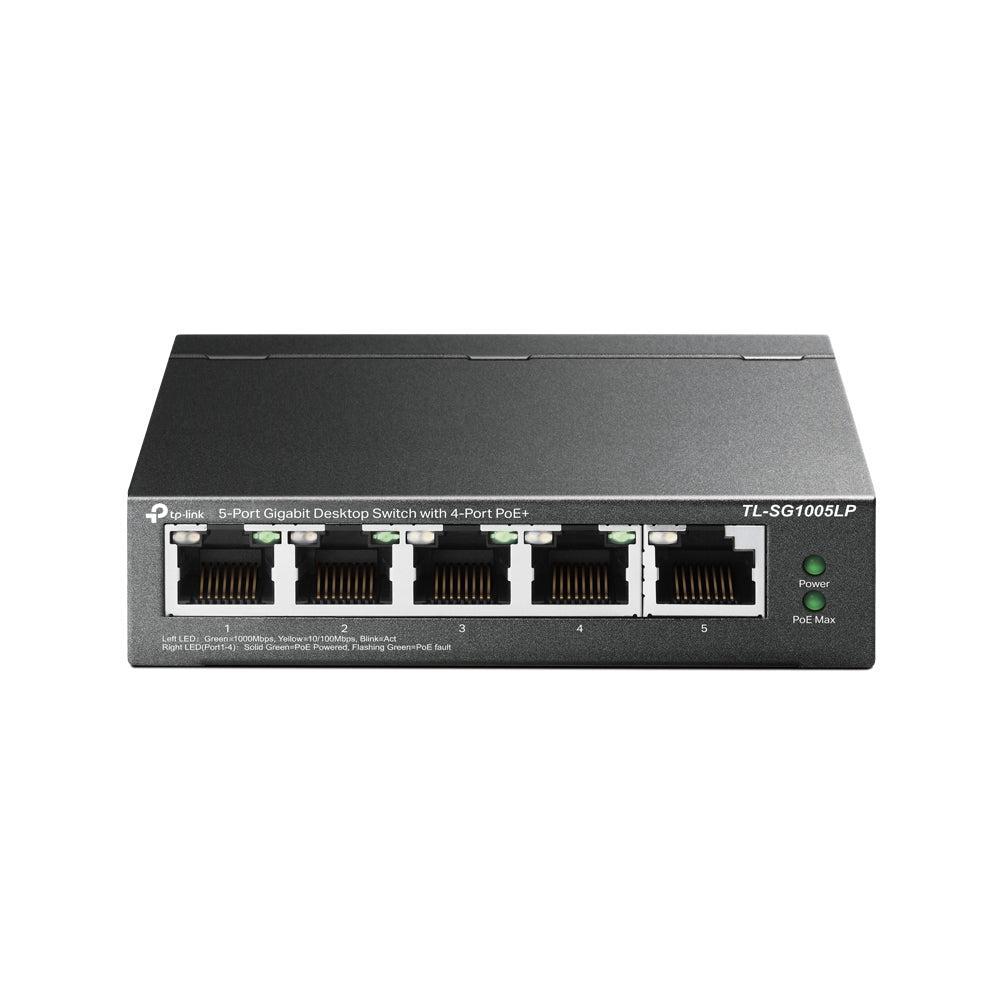

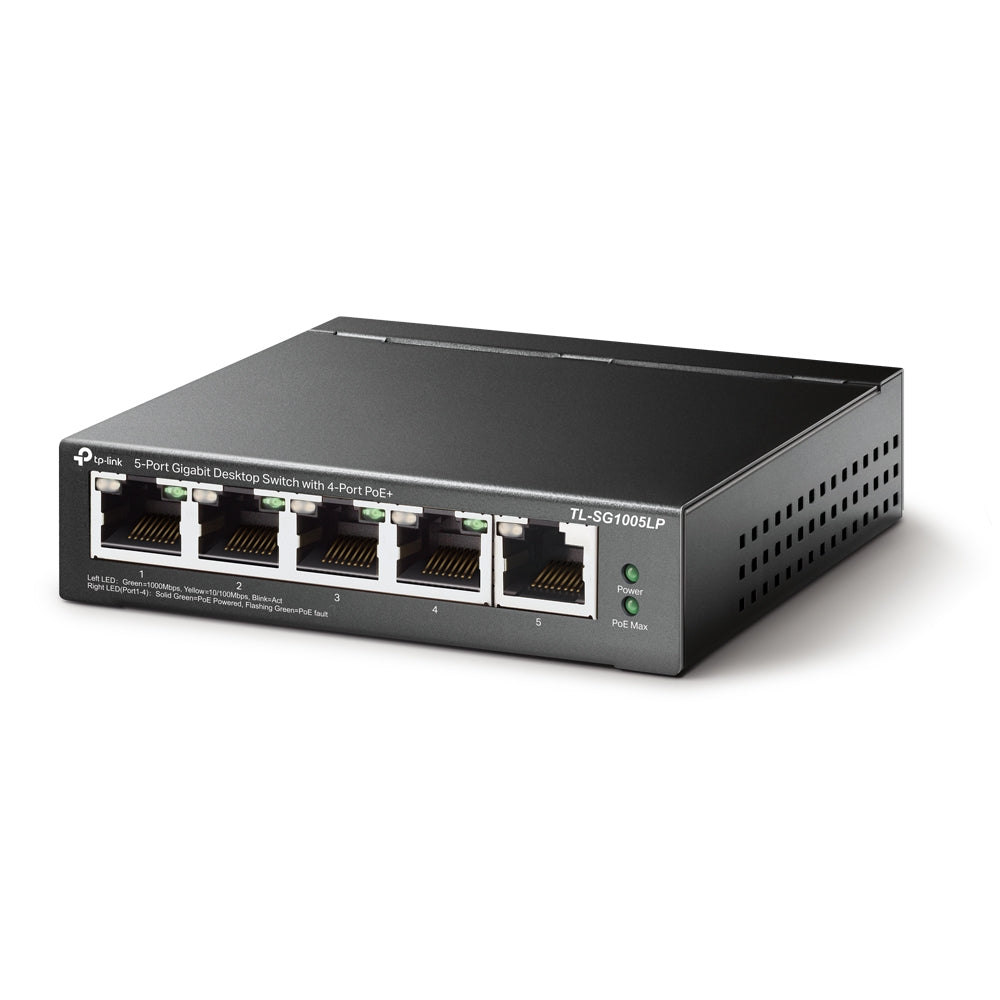

TP-Link TL-SG1005LP 5-Port Gigabit PoE+ Switch 40W
TP-Link
TP-Link TL-SG1005LP 5-Port Gigabit PoE+ Switch 40W
The TP-Link TL-SG1005LP is a 5-port desktop switch designed for small networks that need to power devices like IP cameras, wireless access points, or VoIP phones over a single cable. It combines gigabit switching with PoE+ power delivery in a compact, plug-and-play unit that requires no configuration.
Why this product

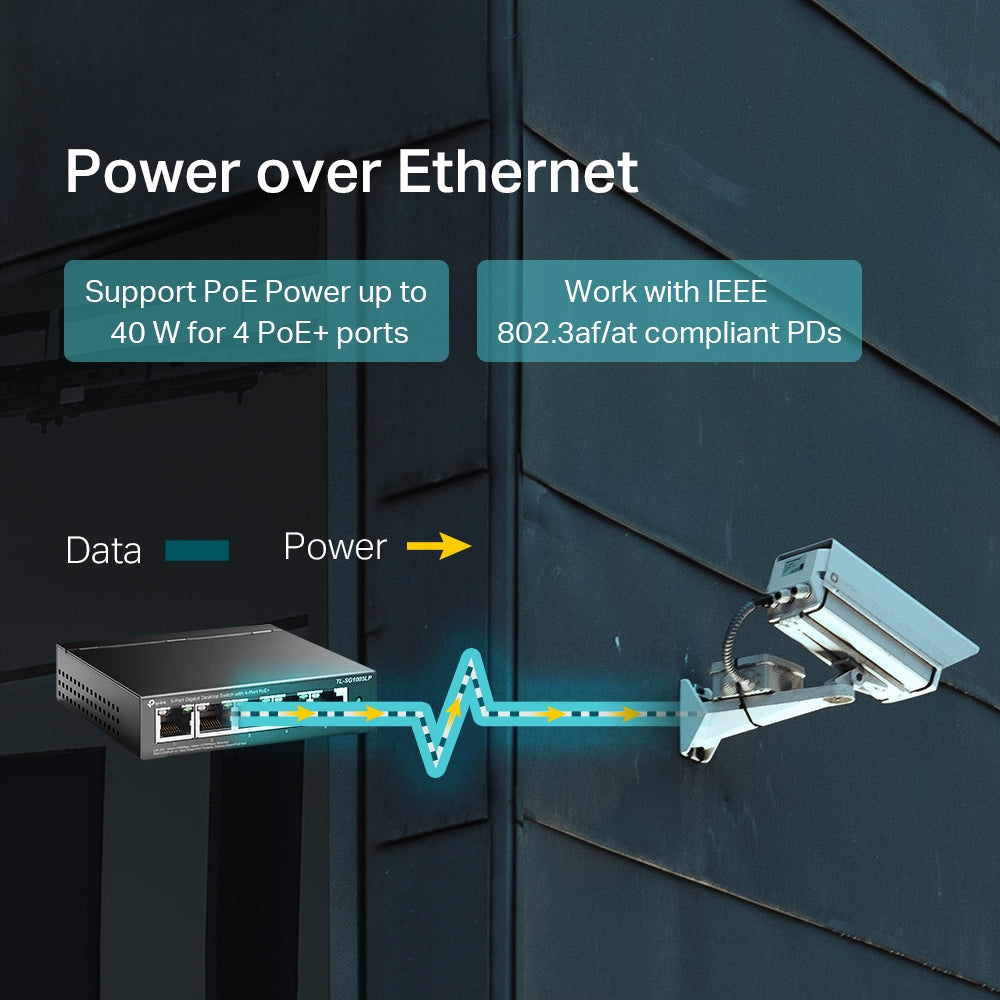

PoE+ on 4 ports, 40 W total budget
Delivers up to 30 W per port to power compatible devices while also carrying data, eliminating the need for separate power cables.
Intelligent power management protects against overload
When demand exceeds the 40 W budget, the switch automatically prioritises higher-priority ports and throttles lower ones, preventing outages.
Gigabit throughput, 10 Gbps switching fabric
All five ports run at full 10/100/1000 Mbps with enough backplane capacity to handle multiple gigabit streams simultaneously.
QoS and IGMP snooping for smooth multimedia
Prioritises voice and video traffic to prevent lag, and optimises multicast delivery for IPTV and similar applications.
Fanless, compact metal chassis
No moving parts, minimal noise, and reinforced casing designed to survive years of continuous operation in tight spaces.
- Ports5× Gigabit RJ45, 4 with PoE+
- PoE budget40 W total, 30 W per port max
- Switching capacity10 Gbps
- Dimensions99.8 × 98 × 25 mm
- Power draw (no PD)4.12 W
- Operating temperature0–40 °C
- SKUTPL-1220
- EAN6935364052737
- Works with any IEEE 802.3af or 802.3at PoE device: IP cameras, wireless access points, VoIP phones, and PoE-powered sensors.
- Non-PoE devices connect to any of the five ports without risk; the switch automatically detects and protects both PoE and non-PoE equipment.
- Desktop placement only; no DIN rail or wall-mount provision in this model.
- Requires a single 40 W power adapter (included); if all four PoE ports are loaded to maximum, total power draw reaches 47.5 W.
Best for
- Small office or retail sites with a handful of IP cameras or wireless APs
- Budget-conscious deployments where plug-and-play setup saves installation labour
- Environments where fanless operation and low electrical draw matter
Trade-offs
- More than four PoE devices — only four ports deliver power; the fifth is data-only.
- High-power PoE devices — maximum 30 W per port is below the 90 W High Power PoE (HP-PoE) standard.
- Rack-mount installations — this is a desktop-only form factor with no mounting hardware.
- Managed switching requirements — no web interface, CLI, or SNMP; QoS and IGMP are fixed, not user-configurable.
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Networking
| Standard | IEEE 802.3i, 802.3u, 802.3x, 802.1p, 802.3af, 802.3at |
|---|---|
| Port type | 5× 10/100/1000 Mbps RJ45 with AUTO Negotiation and AUTO MDI/MDIX |
| Cable distance | Up to 100 m (UTP category 5e or above for gigabit) |
Performance
| Switching capacity | 10 Gbps |
|---|---|
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
Ports & power
| PoE ports | 4 ports (Port 1–4) with PoE+ |
|---|---|
| PoE budget | 40 W total |
| PoE per port | Up to 30 W |
| Max power consumption (no PD) | 4.12 W |
| Max power consumption (with 40 W PD) | 47.5 W |
Physical
| Brand | TP-Link |
|---|---|
| Dimensions (W × D × H) | 99.8 × 98 × 25 mm |
| Operating temperature | 0–40 °C |
| Operating humidity | 10–90% RH non-condensing |
| Certifications | FCC, CE, RoHS |
