TP-Link TL-SG1005P 5-Port Gigabit Desktop PoE+ Switch 65W
TP-Link
TP-Link TL-SG1005P 5-Port Gigabit Desktop PoE+ Switch 65W
The TP-Link TL-SG1005P is a 5-port unmanaged gigabit switch with four PoE+ ports designed for small offices, dormitories and surveillance deployments where power infrastructure is limited. It supplies up to 30 W per port from a shared 65 W budget, letting you run access points, IP cameras and phones from a single cable without nearby outlets.
Why this product
Four PoE+ ports with 65 W total budget
Powers compatible devices across four ports while simultaneously delivering gigabit data. The priority system automatically manages load: if demand exceeds 56 W, it cuts power to the lowest-priority port rather than failing.
No configuration needed
Plug and play unmanaged switch. There is no software to install, no web interface to learn, no passwords to remember.
10 Gbps switching capacity
All five ports run at full gigabit speed simultaneously, with QoS to prioritise video and voice traffic.
Metal casing and fanless design
Durable construction passes stringent reliability tests. Silent operation with no moving parts.
- Ports5× 10/100/1000 Mbps RJ45
- PoE+ ports4 ports (Ports 1–4)
- Power per PoE portUp to 30 W
- Total PoE budget65 W
- Switching capacity10 Gbps
- WarrantyLimited Lifetime Protection
- SKUTPL-1336
- EAN6935364083229
- IEEE 802.3af and 802.3at powered devices: access points, IP cameras, IP phones and other PoE-compliant equipment on ports 1–4.
- Standard gigabit Ethernet devices on all five ports, whether PoE-powered or not.
- Port 5 is non-PoE; use it for unpowered devices or to add a powered device via a separate power supply.
- Devices requiring more than 30 W per port or more than 65 W total across all four PoE ports.
Best for
- Small offices and dormitories needing to power cameras or phones without running new electrical lines.
- Surveillance setups where multiple IP cameras must run from a single switch with shared power.
- Locations where silence matters—fanless design produces no noise.
- Installers who prefer zero-touch setup and no ongoing management overhead.
Trade-offs
- High-power PoE devices. Limited to 30 W per port and 65 W total; devices needing PoE++ (higher wattage) will not be supported.
- Managed networks requiring SNMP, VLANs or traffic filtering. This switch has no management interface and cannot be configured.
- Multi-switch stacking or redundancy. It is not stackable and has no failover capability.

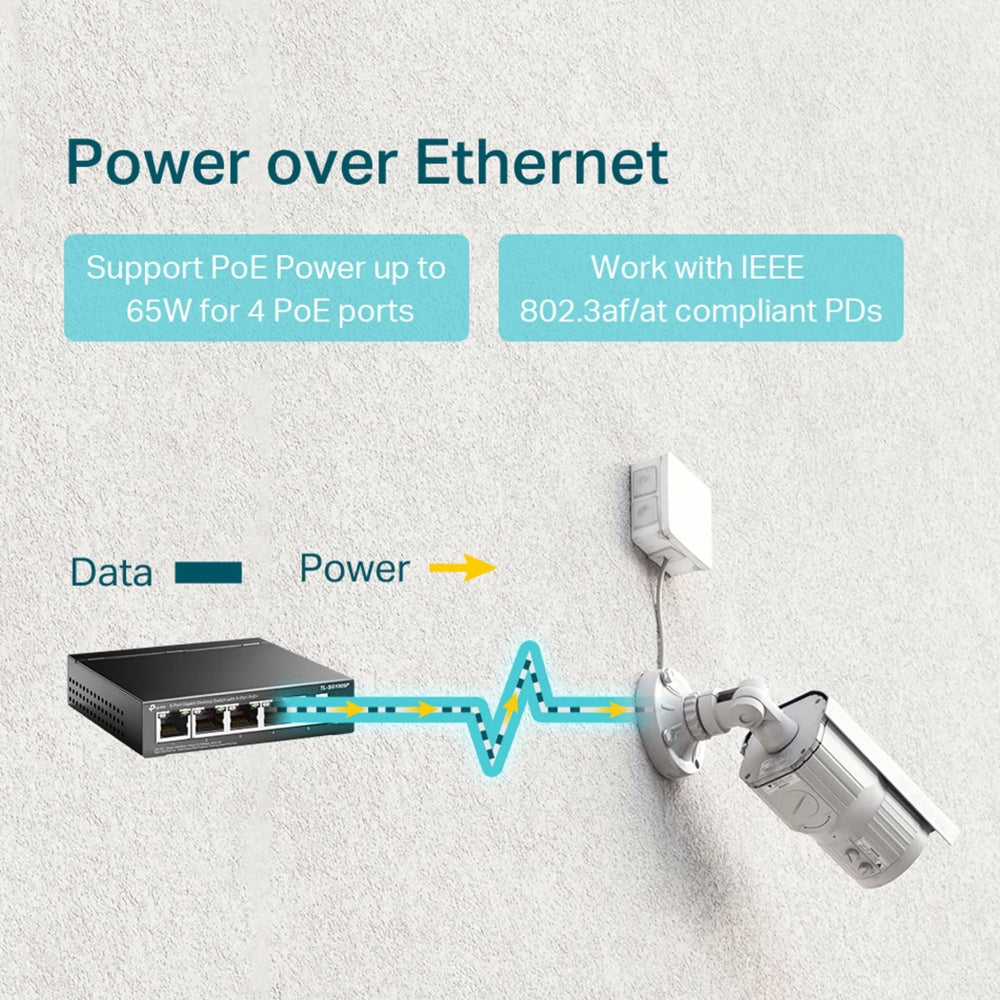

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
The total 65 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses.
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

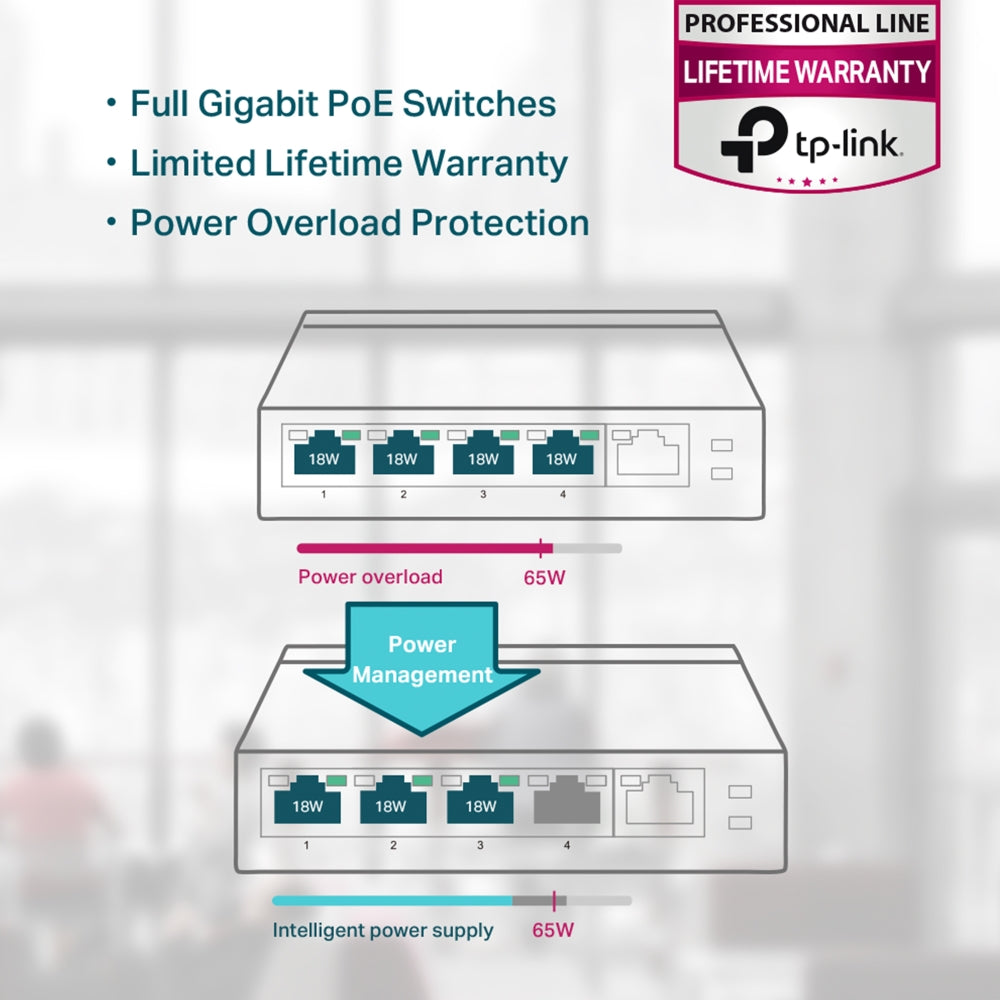

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is more or equal than 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps.
Actual transmission distance may vary from the quality of the cables.
Networking
| Brand | TP-Link |
|---|---|
| Standard | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| QoS | 802.1p/DSCP QoS |
| Multicast | IGMP Snooping |
Performance
| Switching capacity | 10 Gbps |
|---|---|
| MAC address table | 2K |
| Transfer method | Store-and-Forward |
Ports & power
| Ports | 5× 10/100/1000 Mbps RJ45 (Ports 1–4: PoE+; Port 5: Non-PoE) |
|---|---|
| PoE+ ports | 4× (IEEE 802.3at/af) |
| Power per PoE port | Up to 30 W |
| Total PoE budget | 65 W |
| Power supply | External adapter, 100–240 V AC, 50/60 Hz |
| Max power consumption | 63.31 W (with PoE) |
Physical
| Dimensions | 99.8 × 98 × 25 mm |
|---|---|
| Weight | 249 g |
| Casing | Metal |
| Cooling | Fanless (Silent) |
| Warranty | Limited Lifetime Protection |
