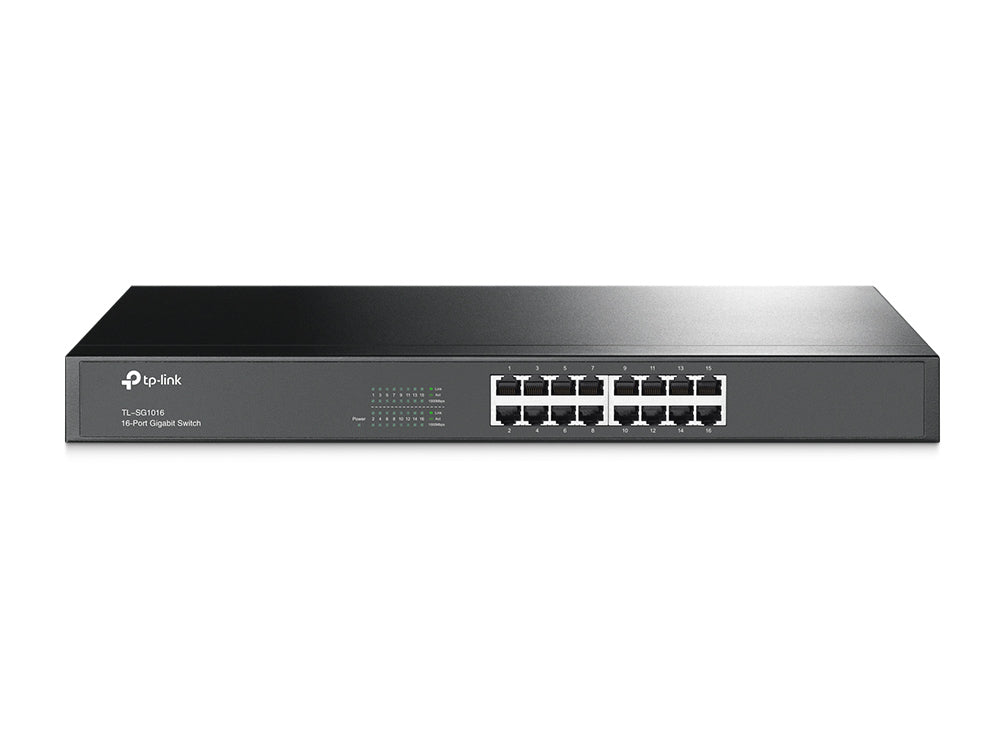

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
TP-Link
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
The TP-Link TL-SG1016 is a 16-port unmanaged Gigabit switch designed for small to medium businesses looking to upgrade legacy networks to Gigabit speeds without complexity. It handles mixed network environments with automatic negotiation and requires no configuration—plug in cables and it works. All ports support both older 10/100 Mbps devices and modern Gigabit equipment simultaneously.
Why this product
16 Gigabit ports, mixed-speed compatible
All ports run at 10/100/1000 Mbps and auto-negotiate, so older 10 and 100 Mbps devices work alongside Gigabit equipment without setup.
No cables to think about
Auto MDI/MDIX detects cable orientation automatically. Standard RJ45 patch cables work in any port; no crossover cables needed.
Non-blocking 32 Gbps fabric
Forwards and filters packets at full wire-speed with Store-and-Forward switching and 10KB Jumbo frame support for smooth large-file transfers.
Fanless, 19-inch rack mount
Silent operation fits standard server racks. Uses only 9.26W at full load and includes mounting hardware.
Plug and play, no management needed
Unmanaged design means zero software, no IP configuration, and no firmware updates to worry about—install and forget.
- Ports16 × 10/100/1000 Mbps RJ45
- Switching capacity32 Gbps
- Packet forwarding rate23.8 Mpps
- Power consumption9.26 W (maximum)
- Form factor19-inch rackmount, 1U
- MountingRackmount brackets and rubber feet included
- SKUTPL-1109
- EAN6935364020095
- Works with 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet devices on the same network.
- Mains power required (100–240 VAC, 50/60 Hz); no PoE support.
- Fits standard 19-inch server racks; includes mounting brackets and rubber feet for desk placement.
- Operates in climates between 0°C and 40°C; extended storage range is −40°C to 70°C.
Best for
- Small offices upgrading from 100 Mbps to Gigabit without replacing old equipment.
- Low-power network deployments where a fanless, silent switch is essential.
- Installers who need zero-configuration networking—unmanaged means no VLAN, QoS, or IP management overhead.
- Budget-conscious businesses seeking Gigabit density in a compact 1U form factor.
Trade-offs
- Advanced network control: This is an unmanaged switch with no VLAN, spanning tree, or traffic shaping—it has no IP address and cannot be remotely configured.
- High-throughput aggregation: At 32 Gbps backplane and 23.8 Mpps forwarding, it is not designed for data center or carrier-grade core switching.
- Power-over-Ethernet needs: No PoE or PoE+ on any port; cannot power IP cameras, wireless access points, or VoIP phones.
- Environments above 40°C: Operating temperature maxes out at 40°C, making it unsuitable for hot server rooms or outdoor deployments.
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials.
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large file transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly. The auto features of this gigabit switch make installation plug and play and hassle-free.
Networking
| Brand | TP-Link |
|---|---|
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x |
| Port type | 16 × RJ45 10/100/1000 Mbps with auto-negotiation and auto MDI/MDIX |
| Maximum cable distance | 100 m (UTP category 3, 4, 5 or above) |
| MAC address table | 8K |
| Flow control | IEEE 802.3x (Full Duplex) and backpressure (Half Duplex) |
Performance
| Switching capacity | 32 Gbps |
|---|---|
| Packet forwarding rate | 23.8 Mpps |
| Switching architecture | Non-blocking, Store-and-Forward |
| Jumbo frame support | 10 KB |
Ports & power
| Power input | 100–240 VAC, 50/60 Hz |
|---|---|
| Maximum power consumption | 9.26 W |
| Cooling | Fanless |
Physical
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.) |
|---|---|
| Mounting | 19-inch rack mount (1U); includes rackmount brackets and rubber feet |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% to 90% non-condensing |
| Certifications | FCC, CE, RoHS |
