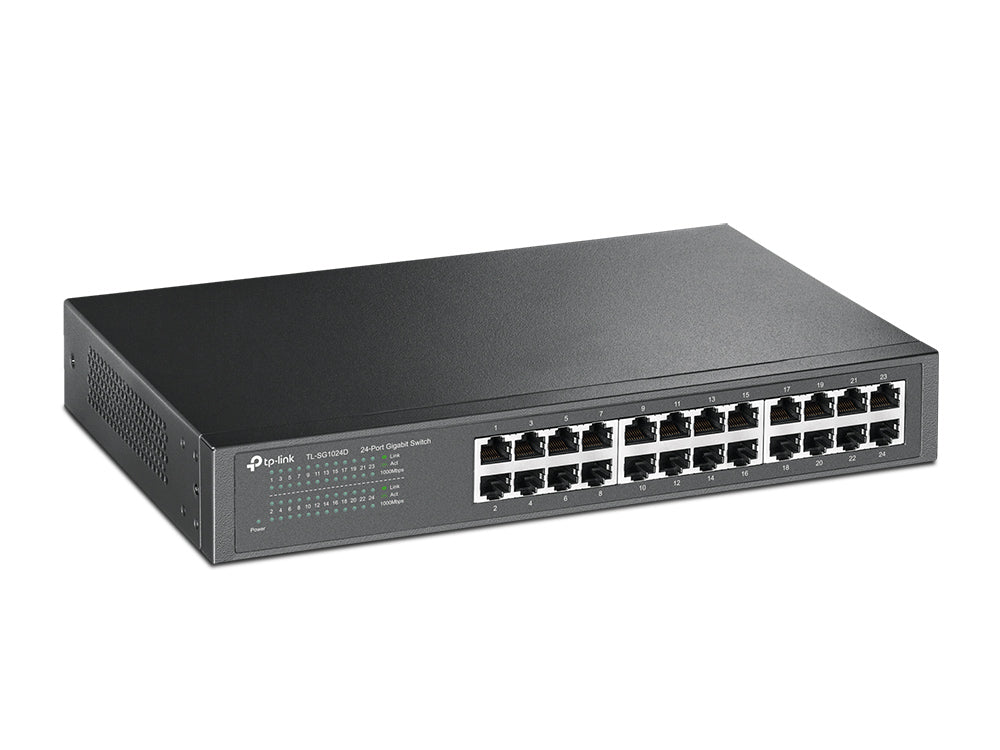

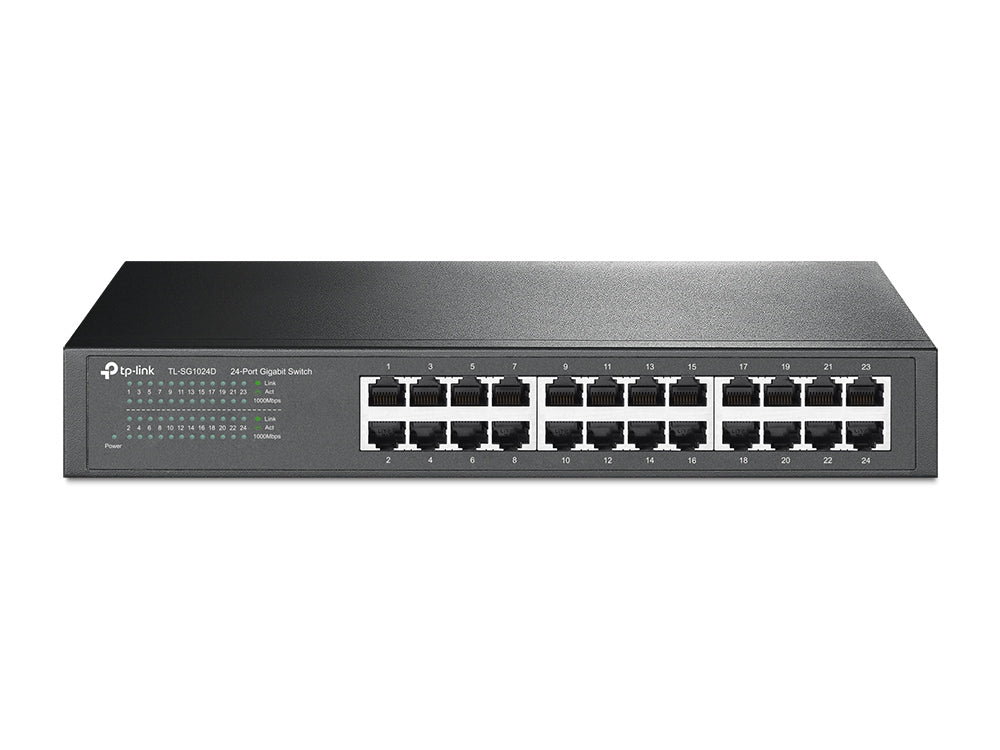

TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch
TP-Link
TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch
The TP-Link TL-SG1024D is a 24-port Gigabit unmanaged switch designed for offices, workgroups and creative environments that need to move large files quickly across a network. It expands network capacity with full-speed Gigabit ports and includes energy-efficient features that cut power consumption by up to 20%.
Why this product
24 Gigabit ports, one device
All 24 ports run at 10/100/1000 Mbps with auto-negotiation, so any computer or network device plugs in and works at full speed without configuration.
48 Gbps switching capacity
Non-blocking architecture forwards packets at full wire-speed, delivering 35.7 million packets per second with no bottlenecks.
Energy-efficient, fanless design
It detects idle ports and cable length, adjusting power use automatically. No moving parts means silent operation and minimal heat.
Plug-and-play setup
Auto MDI/MDIX means any standard Ethernet cable works—no crossover cables needed. Mounts on a desk or in a rack.
Handles large file transfers
10 KB jumbo frame support improves throughput for graphics, CAD, video and multimedia workflows.
- Ports24 × 10/100/1000 Mbps RJ45
- Switching capacity48 Gbps
- Packet forwarding35.7 Mpps
- Max power consumption13.62 W
- MountingDesktop or rack-mount
- DesignFanless, unmanaged
- SKUTPL-1118
- EAN8459730206206
- Works with any Gigabit or Fast Ethernet device: computers, servers, printers, NAS drives and other network equipment that use standard RJ45 connectors.
- Operates on any standard AC power supply between 100–240 VAC, 50–60 Hz with the included power cord.
- Fits in a standard 19-inch rack with the included mounting kit, or sits on a desk using the rubber feet.
- Unmanaged design means no VLAN, QoS, or traffic prioritization controls—suited for straightforward connectivity, not complex network segmentation.
- Does not support PoE (Power over Ethernet), so powered devices like IP cameras or wireless access points need their own power source.
Best for
- Offices and workgroups moving large files daily
- Creative production teams transferring graphics, CAD and multimedia
- Data centres and server rooms needing low power draw and silent operation
- Organisations prioritising eco-friendly networking hardware
Trade-offs
- Networks requiring VLAN isolation or traffic management—this is an unmanaged switch with no QoS or administrative controls.
- Installations where powered devices (IP cameras, VoIP phones, access points) need power delivered over Ethernet—no PoE support.
- Environments where managed switching, SNMP monitoring or remote configuration are essential.
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network.
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet) in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
General
| Brand | TP-Link |
|---|
Networking
| Standard | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|---|---|
| Ports | 24 × 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX) |
| Network media | UTP category 5, 5e or above, maximum 100 m |
| MAC address table | 8K |
Performance
| Switching capacity | 48 Gbps |
|---|---|
| Packet forwarding rate | 35.7 Mpps |
| Transfer method | Store-and-Forward |
| Jumbo frame | 10 KB |
| Flow control | IEEE 802.3x (Full Duplex), Backpressure (Half Duplex) |
Ports & power
| Power supply | 100–240 VAC, 50/60 Hz |
|---|---|
| Max power consumption | 13.62 W (220V/50Hz) |
| Max heat dissipation | 46.44 BTU/h |
| Fan | Fanless |
| Green technology | Yes, up to 20% power savings |
Physical
| Dimensions | 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in.) |
|---|---|
| Mounting | Rack-mountable with included kit, or desktop with rubber feet |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating humidity | 10–90% non-condensing |
| Certification | FCC, CE, RoHS |
