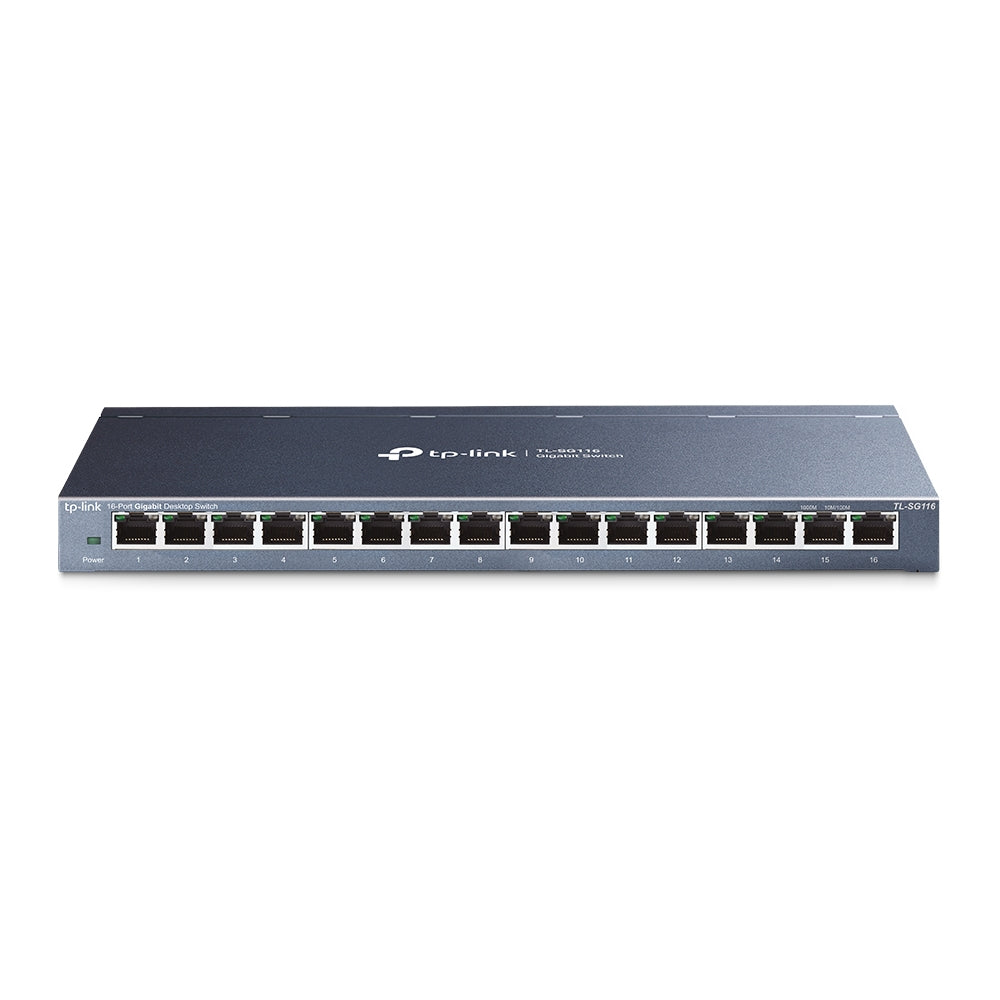

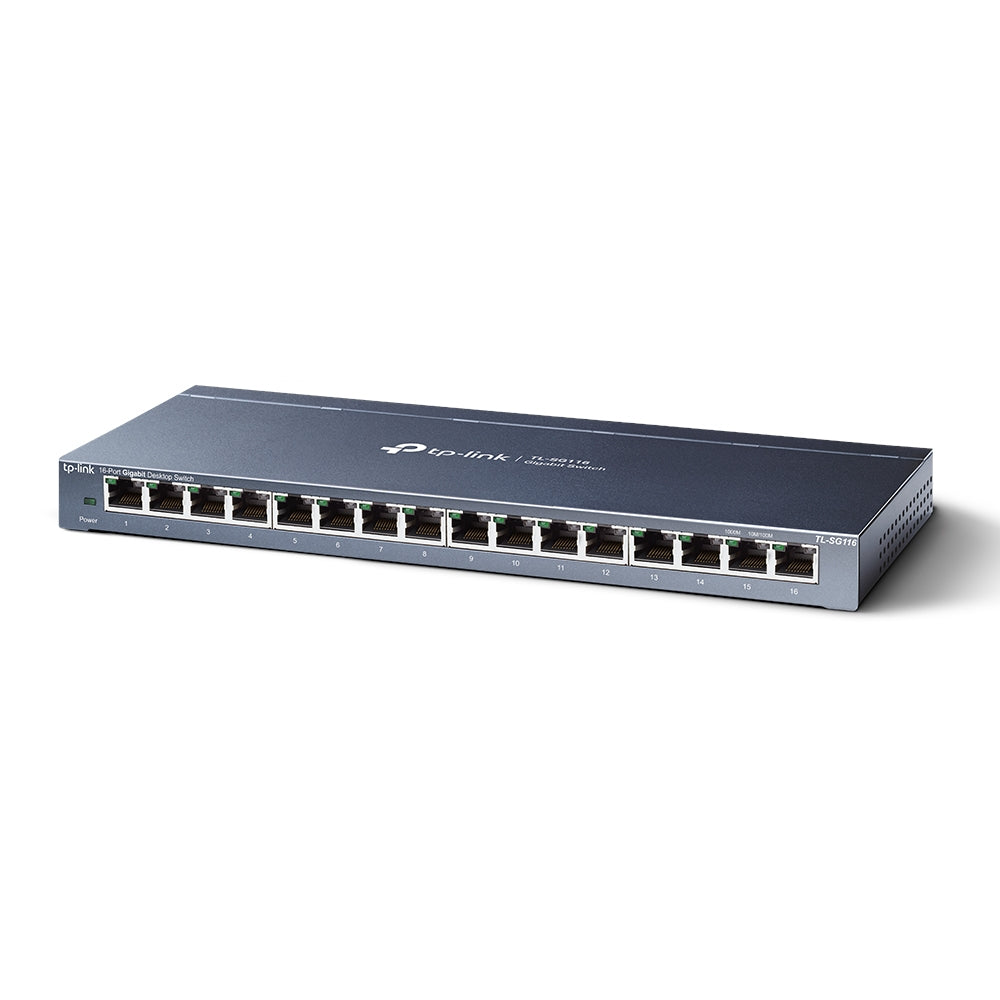

TP-Link TL-SG116 16-Port Gigabit Unmanaged Desktop Switch
TP-Link
TP-Link TL-SG116 16-Port Gigabit Unmanaged Desktop Switch
The TP-Link TL-SG116 is a 16-port gigabit switch designed for small offices and home networks that need to expand their wired connectivity without adding complexity or power draw. It requires no configuration—just plug it in and connect devices—and uses energy-efficient technology to keep power consumption low.
Why this product
16 gigabit ports, plug and play
All 16 ports run at 10/100/1000 Mbps with automatic speed detection. No crossover cables needed; Auto-MDI/MDIX handles that automatically.
Green Ethernet saves power
It draws just 10W and adjusts consumption based on link status and cable length, reducing your network's carbon footprint.
QoS for voice and video
802.1p and DSCP quality-of-service settings smooth out latency-sensitive traffic, while IGMP Snooping optimizes multicast streams.
Steel housing, desktop or wall mount
Compact 286 × 112 × 25 mm frame fits easily on a desk or mounts on a wall. Rubber feet are included.
- Ports16 × 10/100/1000 Mbps
- Auto-negotiationYes, with Auto-MDI/MDIX
- Power consumption10W maximum
- FanlessYes
- MountingDesktop or wall-mount
- Throughput23.8 Mpps
- SKUTPL-1120
- EAN693536408433
- Works with any device that has a standard Ethernet port: computers, printers, NAS drives, IP cameras, VoIP phones.
- Supports 10, 100, and 1000 Mbps devices on the same network; auto-negotiation adjusts each port to the connected device's speed.
- No PoE (Power over Ethernet); connected devices must draw power from their own sources or a separate PoE injector.
- Unmanaged design means no VLAN, port mirroring, or traffic shaping controls; suited for simple plug-and-play networks only.
Best for
- Home offices and small businesses adding wired devices
- Centralizing printers, NAS storage, and IP cameras without configuration
- Networks where low power draw and silent operation matter
- Users who want gigabit speeds at a low total cost of ownership
Trade-offs
- Power-hungry devices. No PoE support means phones, cameras, and access points must use separate power supplies.
- Advanced network management. Unmanaged switching offers no VLAN, port mirroring, traffic shaping, or remote configuration.
- Rack-mount deployments. Desktop-only form factor; not designed for server room or cabinet installation.
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. 802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream. The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Networking
| Brand | TP-Link |
|---|---|
| Model | TL-SG116 |
| Standards | IEEE 802.3i/802.3u/802.3ab/802.3x/802.1p |
| QoS | 802.1p and DSCP; IGMP Snooping |
| MAC address table | 8K |
| Packet buffer memory | 4.1 Mb |
| Jumbo frame support | 10 KB |
Ports & power
| Ports | 16 × 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX |
|---|---|
| Power supply | External 12VDC / 1.0A adapter |
| Max power consumption | 10W |
| Flow control | IEEE 802.3x |
Performance
| Packet forwarding rate | 23.8 Mpps |
|---|---|
| Heat dissipation | 34.12 BTU/h |
Physical
| Dimensions | 286 × 112 × 25 mm (11.26 × 4.4 × 1.0 in.) |
|---|---|
| Housing | Steel; desktop or wall-mount design |
| Cooling | Fanless |
| Physical security lock | Yes |
| Included accessories | Power adapter, installation guide, rubber feet |
