TP-Link TL-SG3428X 24-Port Gigabit L2+ Managed Switch 10GE SFP+
TP-Link
TP-Link TL-SG3428X 24-Port Gigabit L2+ Managed Switch 10GE SFP+
The TP-Link TL-SG3428X is a managed L2+ switch with 24 gigabit ports and 4 SFP+ 10 Gbps uplink slots, built for enterprise networks that need centralized management and high-bandwidth capacity. It integrates into the Omada SDN platform for remote control and monitoring across distributed locations.
Why this product
24 gigabit ports plus 4 × 10G uplinks
Supports 128 Gbps switching capacity and 95.23 Mpps forwarding rate with non-blocking architecture.
Omada SDN platform integration
Zero-touch provisioning, cloud-based management, and the Omada app enable centralized control across multiple sites.
Enterprise-grade security and routing
IP-MAC-Port binding, 802.1X authentication, ACLs, DDoS defense, and static routing for IPv4 and IPv6 networks.
QoS and multimedia optimization
L2/L3/L4 quality-of-service controls and IGMP snooping prioritize voice and video traffic reliably.
- Gigabit Ethernet ports24× 10/100/1000 Mbps
- 10 Gbps uplink slots4× SFP+
- Switching capacity128 Gbps
- Packet forwarding rate95.23 Mpps
- ManagementWeb UI, CLI, SNMP, Omada app
- Form factor19-inch rack-mountable
- SKUTPL-1272
- EAN6935364010539
- Fits standard 19-inch rack with included rackmount kit.
- Supports both IPv4 and IPv6 with full dual-stack networking.
- Manages via web UI, SSH, Telnet, SNMP, or the Omada mobile app.
- Zero-touch provisioning requires a cloud-based Omada controller; standalone management is available but ZTP cannot operate without it.
Best for
- Medium to large enterprise environments that need centralized control across multiple sites
- Networks requiring high-bandwidth uplinks for datacenter or campus core connections
- Organizations running Omada SDN infrastructure for software-defined network automation
- Networks prioritizing voice, video, and real-time applications through QoS and IGMP controls
Trade-offs
- Small offices with no need for remote or centralized management—a simpler unmanaged switch is more cost-effective
- Networks that cannot integrate with Omada SDN or require standalone-only operation with no cloud dependency
- Deployments needing Power over Ethernet on access ports; this switch does not support PoE
Build and expand your lightning-fast network with TP-Link TL-SG3428X—a fully managed switch with 24 gigabit Ethernet ports and 4× 10 Gbps SFP+ uplink ports. TL-SG3428X is seamlessly integrated into Omada SDN system and is capable of being centrally managed via web UI or Omada app. Ideal for small, medium, and large enterprise networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
Networking
| Brand | TP-Link |
|---|---|
| Standard | L2+ Managed Switch |
| SDN platform | Omada Software Defined Networking |
| Routing | Static routing (IPv4 and IPv6) |
| Security features | IP-MAC-Port binding, ACL, port security, DoS defense, storm control, DHCP snooping, 802.1X, Radius authentication |
| QoS | L2/L3/L4 QoS, IGMP snooping |
| IPv6 support | Dual IPv4/IPv6 stack, MLD snooping, IPv6 ACL, DHCPv6 snooping, IPv6 interface, PMTU discovery, IPv6 neighbor discovery |
Performance
| Switching capacity | 128 Gbps |
|---|---|
| Packet forwarding rate | 95.23 Mpps |
Ports & power

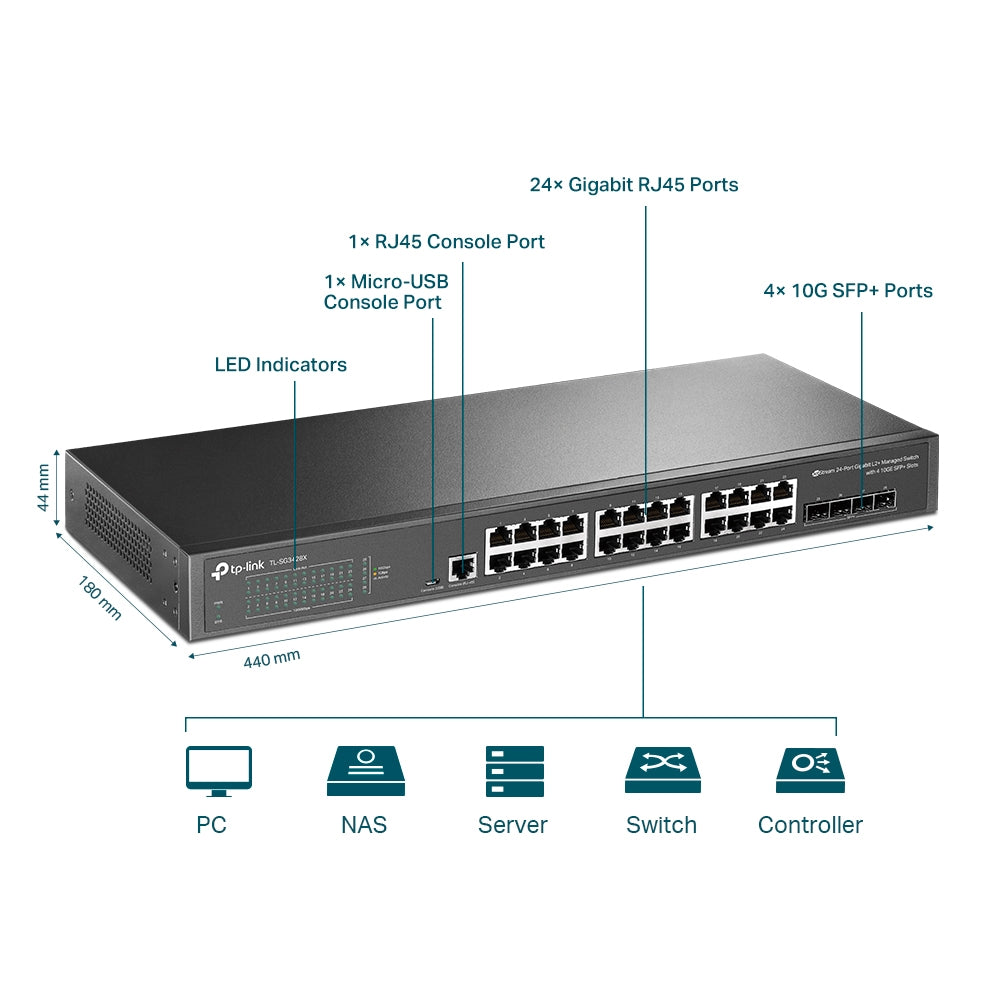

| Gigabit RJ45 ports | 24× 10/100/1000 Mbps |
|---|---|
| SFP+ slots | 4× 10 Gbps |
| Console ports | 1× RJ45, 1× Micro-USB |

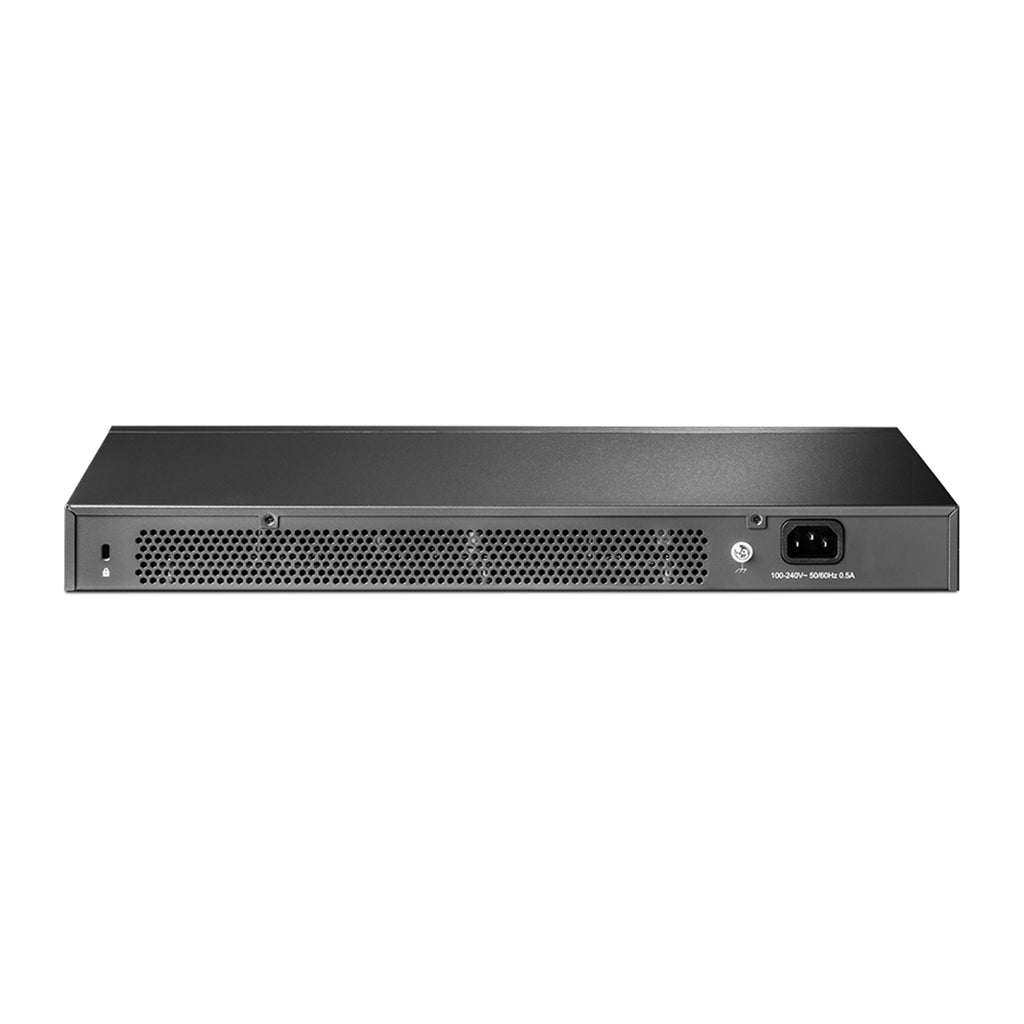

| Power input | AC 100–240 V (50/60 Hz) |
| Management interfaces | Web UI, CLI (console, Telnet, SSH), SNMP, RMON, Omada app, cloud-based controller |
Physical
| Mounting | 19-inch rack-mountable |
|---|---|
| Dimensions | 440 × 330 × 44 mm |
| Included accessories | Power cord, quick installation guide, rackmount kit, rubber feet |
