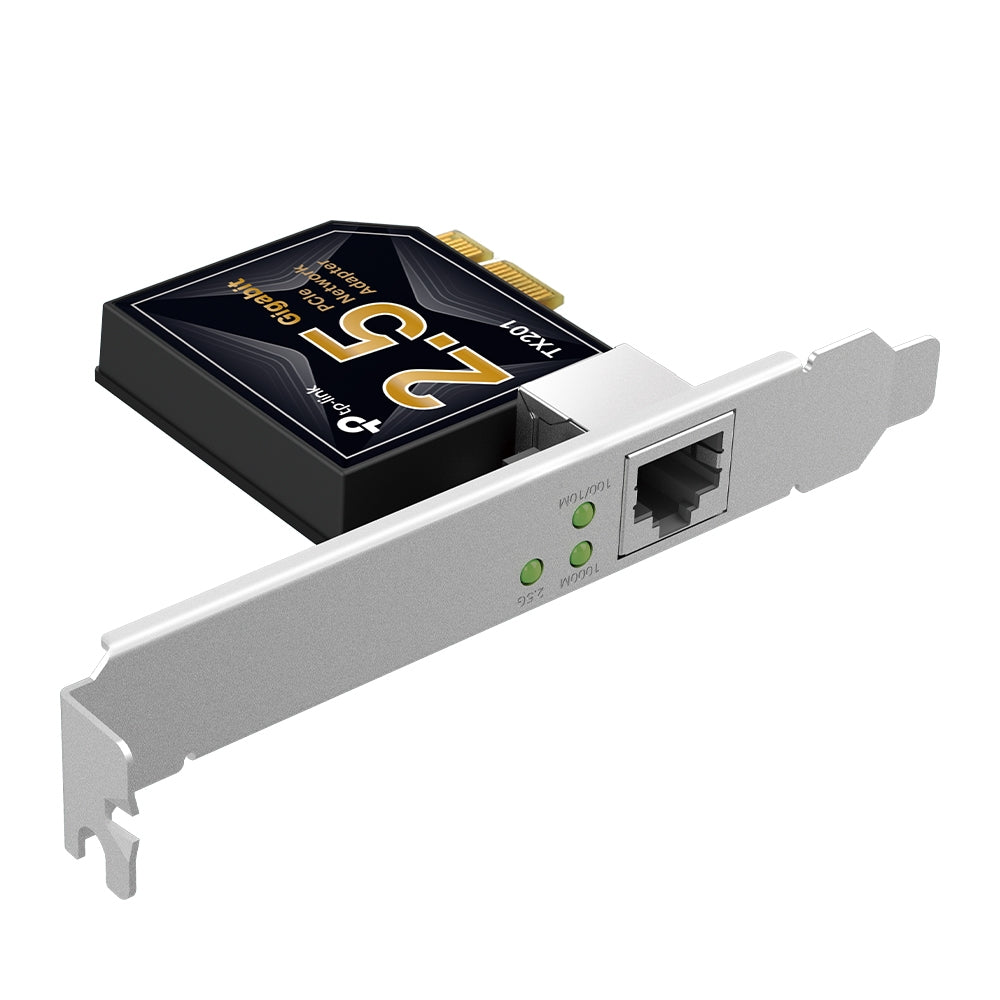

TP-Link TX201 2.5 Gigabit PCIe Network Adapter
TP-Link
TP-Link TX201 2.5 Gigabit PCIe Network Adapter

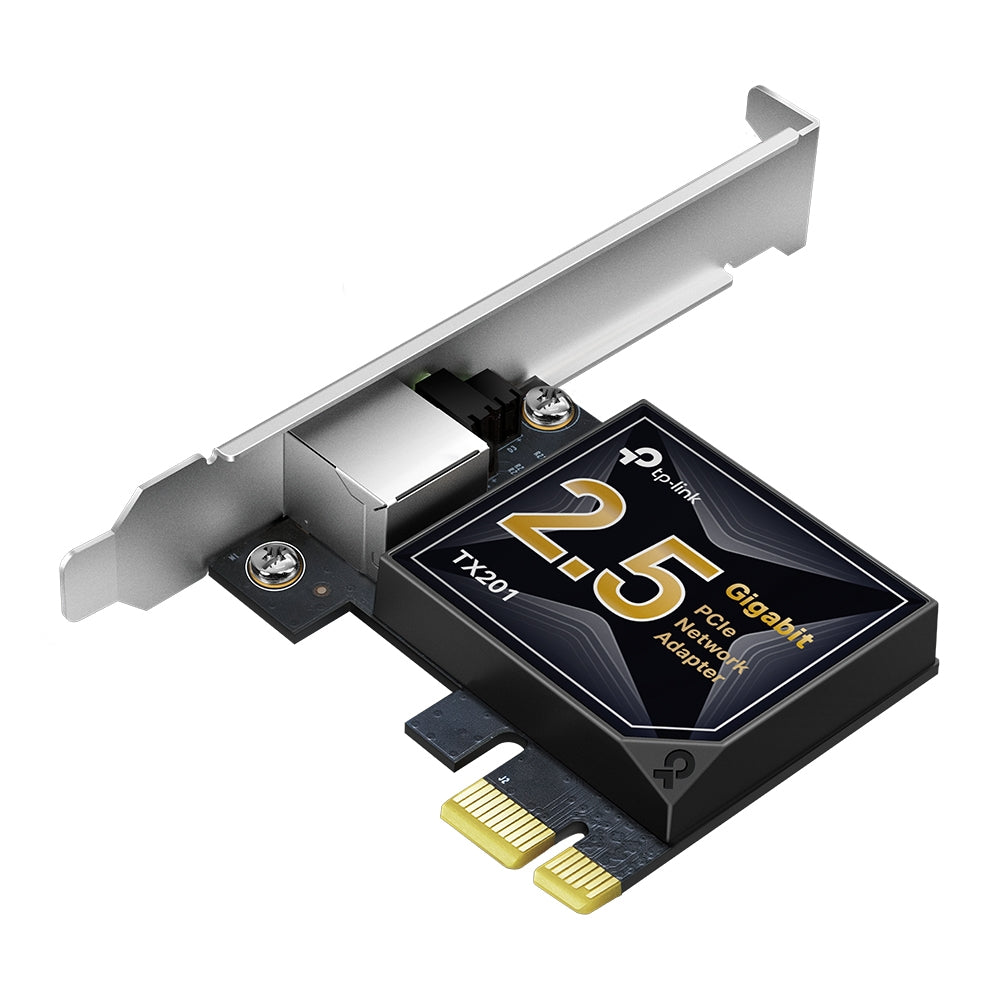

The TP-Link TX201 is a 2.5 Gigabit PCIe network adapter that upgrades desktop and workstation connections from standard Gigabit speeds to 2.5 Gbps, making it ideal for local file transfers, media workflows, and bandwidth-intensive office tasks. It works with budget CAT5e cables, supports both full-height and low-profile brackets, and is backward compatible with existing Gigabit and Fast Ethernet equipment.
Why this product
2.5 Gbps over standard Gigabit
Delivers up to 2.5 billion bits per second—2.5× faster than 1 Gbps Ethernet—over the same CAT5e or CAT6 cables you may already have in place.
Two bracket options included
Ships with both standard and low-profile brackets, so it fits full-size towers and compact mini cases without modification.
Backward compatible
Automatically negotiates down to Gigabit and Fast Ethernet speeds when connected to older switches or devices, with no configuration needed.
Wide OS support
Works on Windows 7 through 11, Windows Server 2008 R2 through 2022, and Linux systems.
- Max speed2.5 Gbps
- InterfacePCIe 2.1 x4
- Port1× RJ45
- BracketsStandard and low-profile
- SKUTPL-1303
- EAN4897098687840
- PCIe 2.1 x4 slot required. Works in any desktop or workstation with an open PCIe slot.
- Requires RJ45 Gigabit/Megabit network port on your switch or router to reach 2.5 Gbps speeds.
- Will operate at 1 Gbps or 100 Mbps if connected to older switches or network equipment, automatically negotiating the highest available speed.
Best for
- Local area network upgrades where a central storage server feeds multiple workstations over 2.5 Gbps.
- Media production and large file workflows that benefit from faster inter-machine transfers within the same office or home.
- Desktop builders with compact cases who need a network adapter that fits without external modifications.
Trade-offs
- Internet speed upgrades above 1 Gbps, since most ISPs deliver under 2.5 Gbps to residential connections.
- Servers or switches that lack 2.5GBase-T ports—it will fall back to 1 Gbps, negating its speed advantage.
- Laptops or systems without a PCIe slot, as this is an internal card adapter.
2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

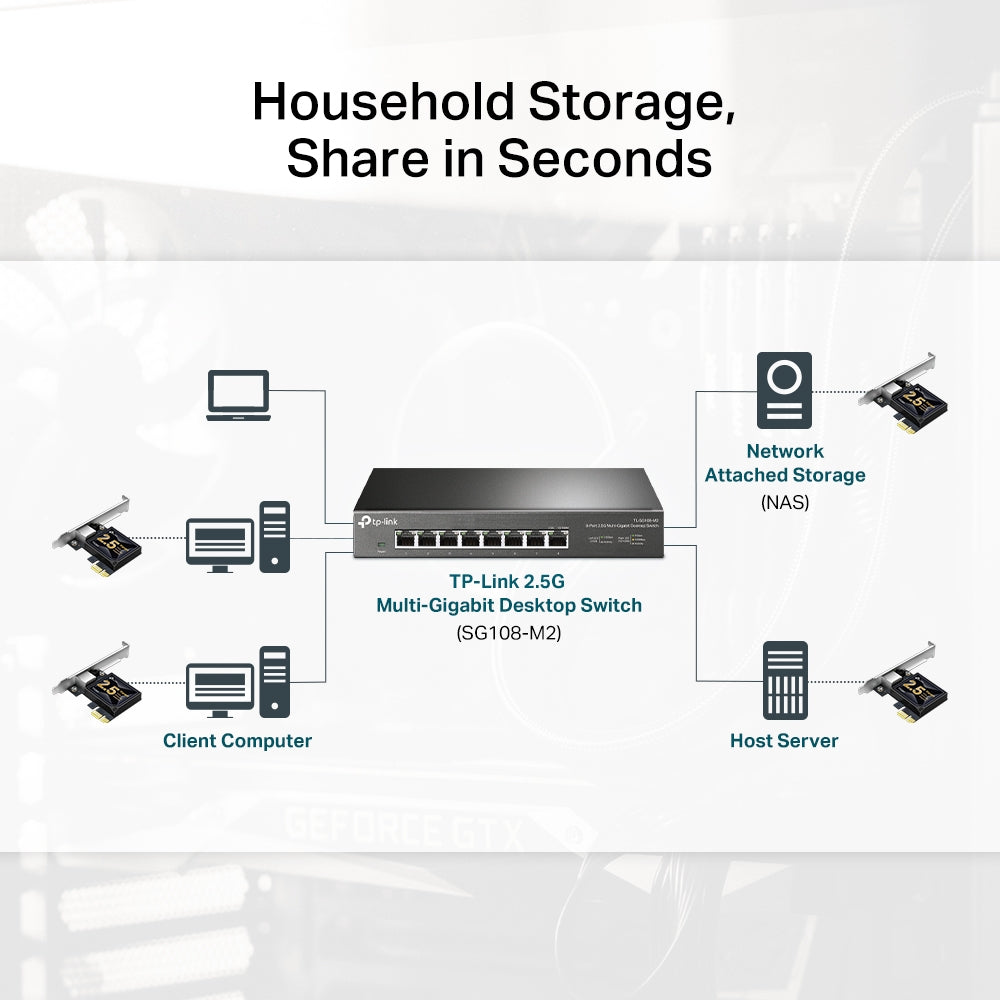

For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
You don't need a costly fiber cable network to reach speeds up to 2.5 Gbps. A low-cost CAT5e Ethernet cable will do the trick.

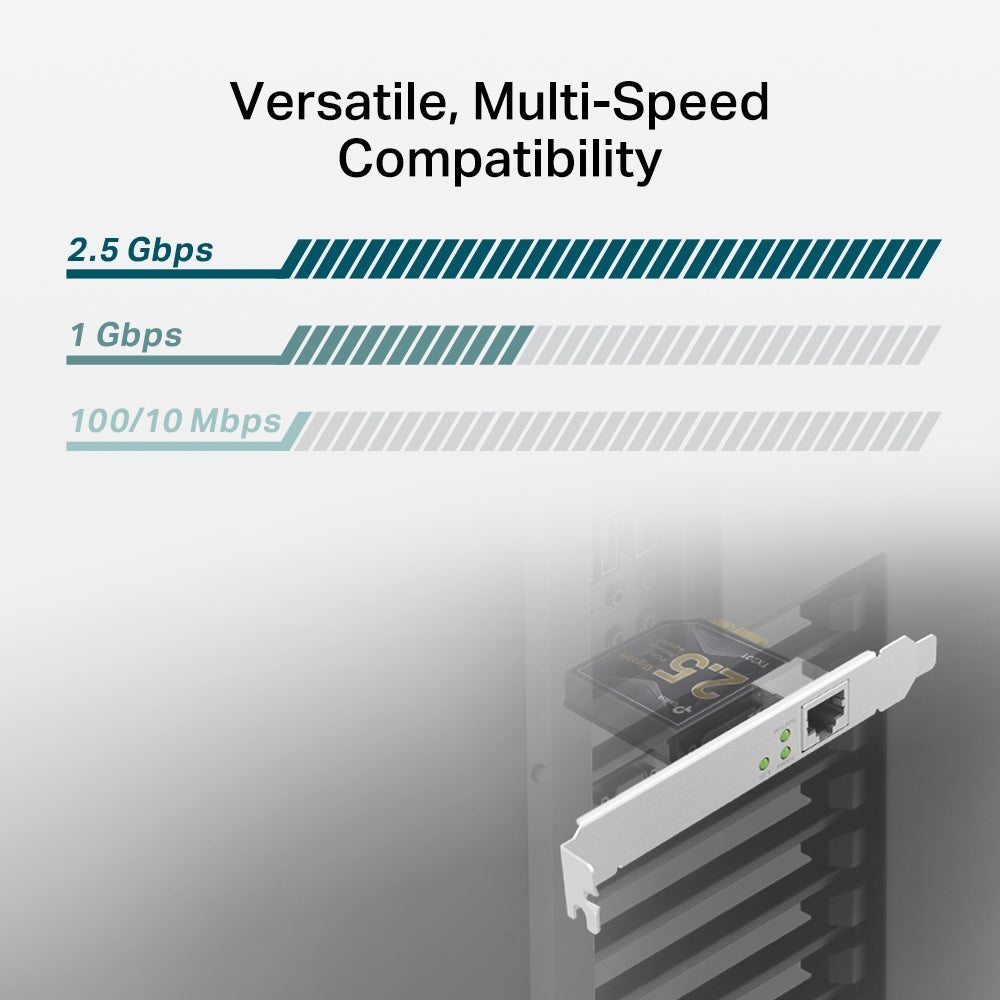

With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.
Networking
| Brand | TP-Link |
|---|---|
| Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3az, 802.3x |
| Throughput | 100 Mbps, 1 Gbps, 2.5 Gbps (full-duplex); 200 Mbps, 2 Gbps (full-duplex mode) |
| Network media | 2.5GBASE-T / 1000BASE-T / 100BASE-TX |
| Flow control | 802.3x |
Ports & power
| Ports | 1× RJ45 Gigabit/Megabit, 1× PCIe 2.1 x4 |
|---|---|
| LEDs | 2.5/1 Gbps and 100 Mbps Link/Act |
Physical
| Mounting | PCIe 2.1 x4 slot with standard and low-profile bracket options |
|---|---|
| Dimensions | 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in) |
| Operating temperature | 0–40°C (32–104°F) |
| Operating humidity | 10–90% non-condensing |
| Certifications | FCC, CE, RoHS |
Compatibility
| Operating systems | Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022; Linux |
|---|
