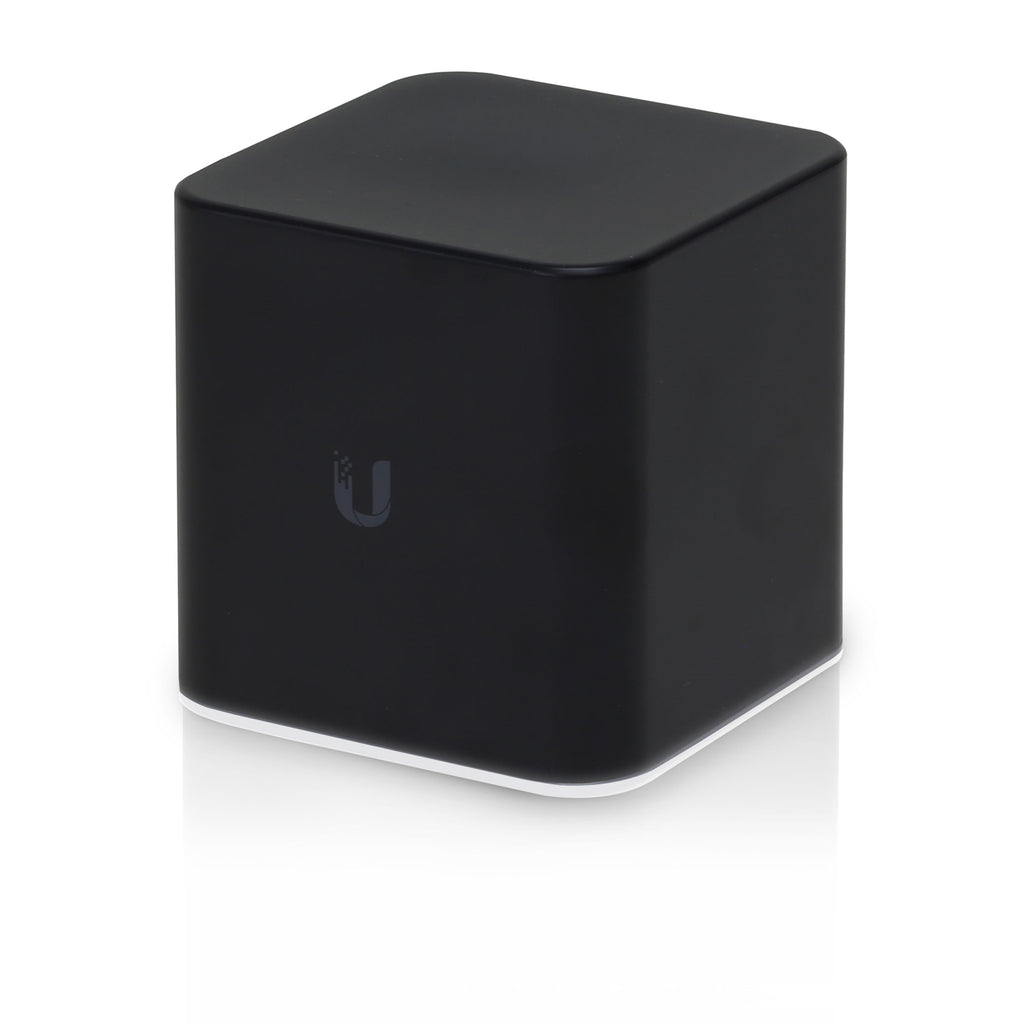

Ubiquiti ACB-AC airCube AC Home WiFi Access Point 24V PoE EU
Ubiquiti
Ubiquiti ACB-AC airCube AC Home WiFi Access Point 24V PoE EU
The Ubiquiti ACB-AC airCube AC Home WiFi Access Point 24V PoE EU is a compact home router designed for small spaces and integration with airMAX wireless networks. It combines dual-band WiFi with integrated 24V Power over Ethernet passthrough, letting you power the device and extend power to connected equipment on the same cable.
Why this product
Dual-band 802.11ac with integrated PoE
Delivers up to 866.7 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, while accepting and passing through 24V PoE power on a single connection.
Four Gigabit Ethernet ports
Wired devices connect at full gigabit speed, and the fourth port doubles as a PoE passthrough output for powering remote equipment.
UISP mobile management
Set up and monitor the access point through the UISP app on Android or iOS, or manage it remotely via web interface for multi-site deployments.
Compact form factor
At 87.8 × 89.5 × 89.25 mm and 280 g, it fits tight ceiling or wall spaces where full-size routers would not.
- Standard802.11ac 2x2
- Max. speeds866.7 Mbps (5 GHz), 300 Mbps (2.4 GHz)
- Ports4× Gigabit Ethernet
- Power24V PoE in/out or included PSU
- Dimensions87.8 × 89.5 × 89.25 mm
- Weight280 g
- SKUUBI-1132
- EAN810354026652
- Works with Ubiquiti airMAX CPE (customer premises equipment) and other 802.11ac WiFi devices.
- Accepts 24V PoE input on port 1 (LAN), or operates from the included 24V DC power supply.
- Managed via Ethernet or WiFi, and integrates with UISP platform for centralised multi-site management.
- PoE output on port 4 (WAN) is controllable and requires configuration; not all devices will be compatible without checking power budget.
Best for
- Small residential spaces or tight installation areas where a standard router is too large
- Low-power remote installations relying on 24V PoE infrastructure without needing AC mains
- Ubiquiti airMAX networks requiring a managed access point with remote provisioning
- Deployments where one cable carries both power and network data to reduce cabling
Trade-offs
- High-speed wired networks: Maximum 866.7 Mbps on 5 GHz is adequate for most home use but falls short of WiFi 6 or gigabit-saturating throughput.
- Large homes or enterprise range: Antenna gain of 4 dBi (2.4 GHz) and 5 dBi (5 GHz) is modest; coverage in multi-storey or sprawling layouts may require additional access points.
- Users without UISP or Ubiquiti infrastructure: Management is optimised for UISP integration; standalone operation is supported but loses the benefit of centralised provisioning.
With a compact design and integrated 24V PoE passthrough, airCube AC is a high-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
- 802.11ac 2x2
- 24V PoE in and out or power in via included PSU
- UISP Mobile app support for fast setup
- UISP support for remote network management
- UISP mobile app for Android and iOS
Networking
| Brand | Ubiquiti |
|---|---|
| Standard | 802.11ac 2x2 |
| Management Interface | Wi-Fi / Ethernet |
Performance
| Throughput (5 GHz) | 866.7 Mbps |
|---|---|
| Throughput (2.4 GHz) | 300 Mbps |
| Antenna Gain (5 GHz) | 5 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power | 22 dBm |
Ports & power
| Ports | 4× Gigabit Ethernet |
|---|---|

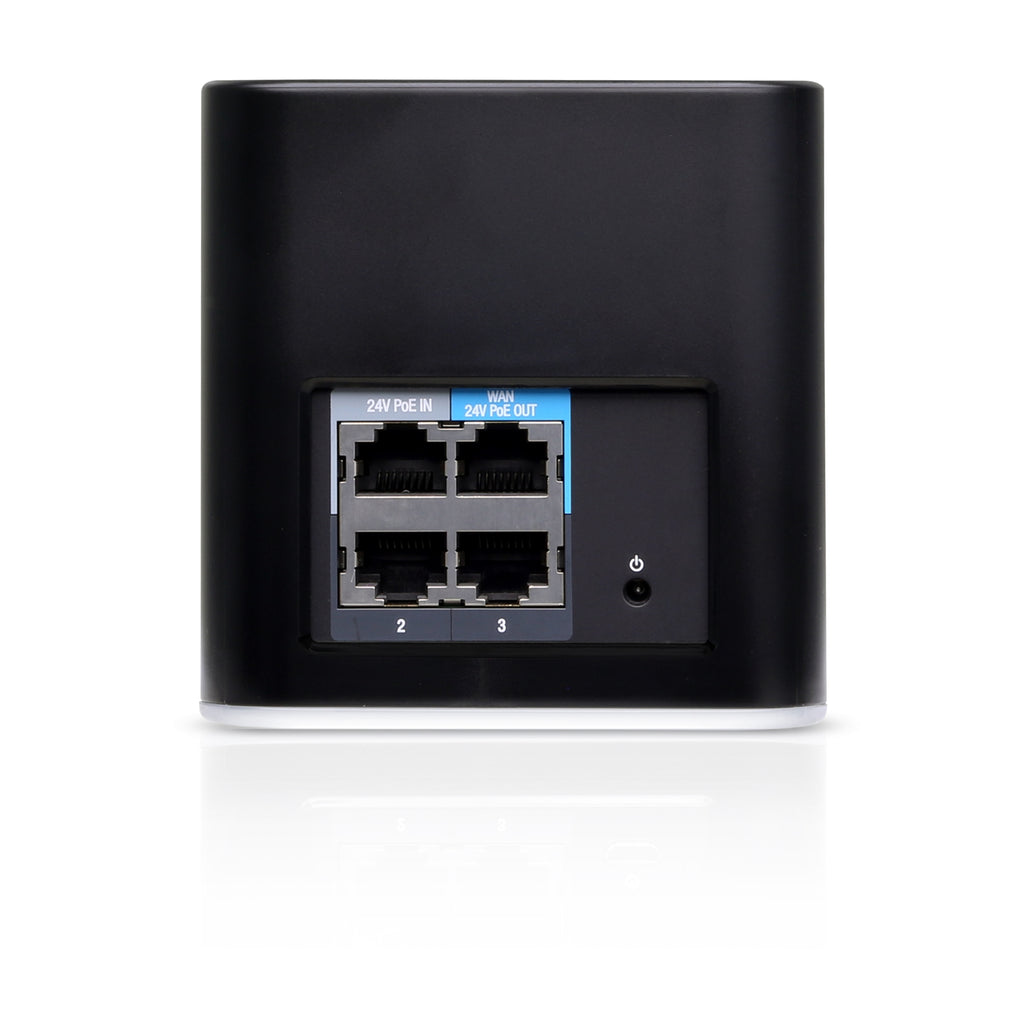

| PoE | 24V in (LAN port 1), 24V out controllable (WAN port 4) |
| Power supply | 24V DC, 0.83A (included PSU or PoE |
| Supported voltage | 22–26V |
| Max. power consumption | 8.5W |
Physical
| Dimensions | 87.80 × 89.50 × 89.25 mm |
|---|---|
| Weight | 280 g |
| Operating temperature | −10 to +50 °C |
| LED | Status |
