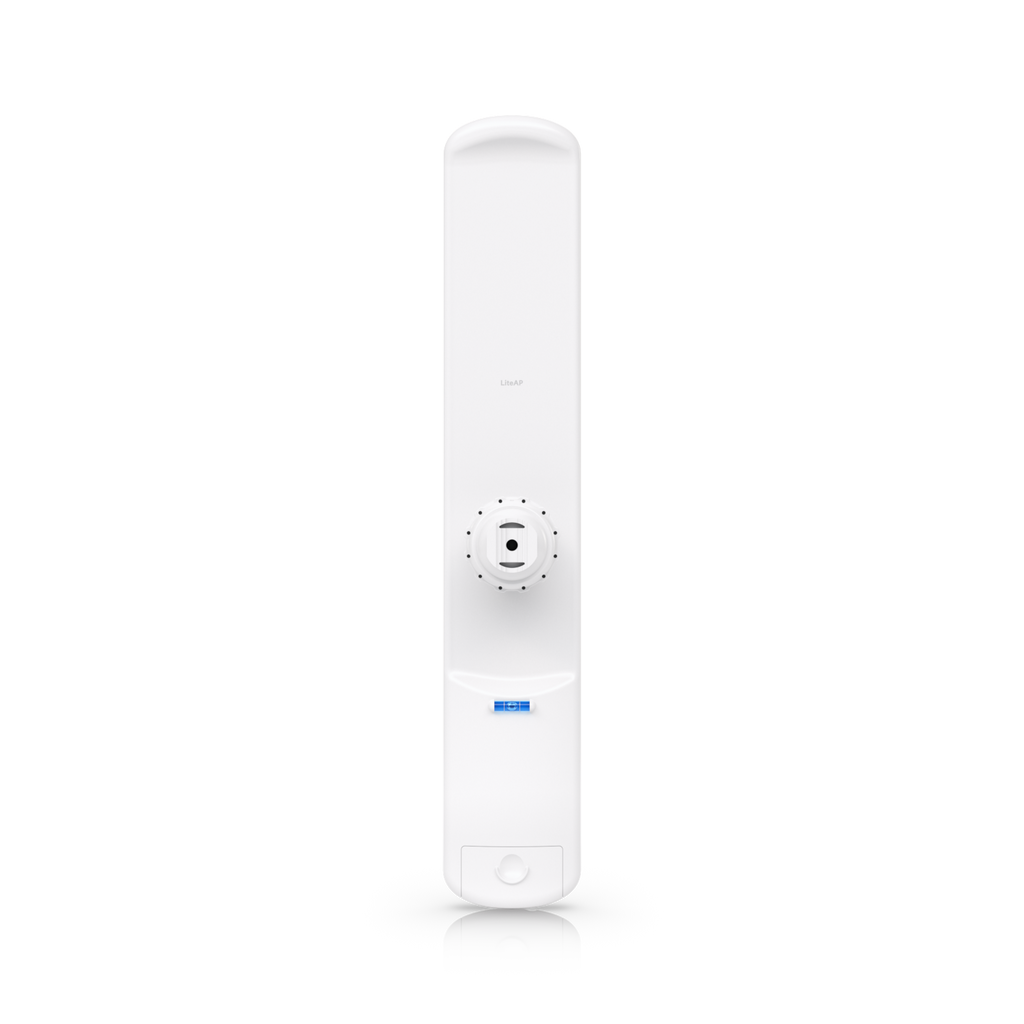

Ubiquiti LAP-120 LiteAP AC 5GHz 16dBi Outdoor Access Point
Ubiquiti
Ubiquiti LAP-120 LiteAP AC 5GHz 16dBi Outdoor Access Point
The Ubiquiti LAP-120 LiteAP AC is an ultra-lightweight 5 GHz outdoor access point designed for long-distance wireless broadband and point-to-multipoint coverage. It combines Ubiquiti's airMAX protocol with a compact, tool-free design to deliver sector coverage across a 120° area with minimal installation effort.
Why this product
120° sector coverage with 2x2 MIMO
Communicates with multiple airMAX ac CPEs across a wide coverage area, capable of supporting high-capacity, long-distance links beyond 30 km.
Tool-free assembly and three-axis alignment
Fully assembles in seconds with no tools needed; only a single wrench required for pole mounting. Three-axis ball-join mount allows flexible positioning.
Lightweight and durable construction
Weighs only 420 g and survives winds up to 200 km/h (125 mph). Operates across the full worldwide 5 GHz range with -40 to 70° C temperature resilience.
airOS®8 management and analytics
Includes real-time RF analytics, intelligent QoS for voice and video priority, and airMAX TDMA protocol to eliminate hidden-node collisions and maximize airtime efficiency.
Gigabit Ethernet and PoE power
Single 10/100/1000 Ethernet port supports high throughput. Powered by included 24V Gigabit PoE adapter with passive PoE implementation on standard pairs.
- Frequency band5 GHz (5150–5875 MHz, worldwide license-free)
- Antenna gain16 dBi
- Coverage area120° sector
- Max TX power25 dBm
- Weight420 g (14.82 oz)
- Operating temperature-40 to 70° C
- Wind survivability200 km/h (125 mph)
- SKUUBI-1344
- EAN817882025539
- Works with Ubiquiti airMAX ac CPEs and other 5 GHz devices operating in the 5150–5875 MHz band.
- Operates in Access Point or Station mode, supporting both point-to-point and point-to-multipoint configurations.
- Requires 24V Gigabit PoE power via the included adapter; passive PoE injector or compatible switch required for deployment.
- Certified for CE, FCC, and IC; NDAA compliant for U.S. government procurement.
- Single Ethernet port limits simultaneous wired backhaul and powered device connections; additional PoE injectors or switches may be needed in larger deployments.
Best for
- Long-distance point-to-point and point-to-multipoint wireless broadband links
- Remote or difficult-to-reach installations where minimal tool use and fast deployment matter
- Harsh outdoor environments with extreme temperatures or high wind exposure
- Cost-conscious ISPs and network operators needing high-capacity sector coverage
Trade-offs
- Small indoor spaces: Designed exclusively for outdoor pole or mast mounting; 16 dBi directional antenna delivers sector coverage, not omnidirectional home or office Wi-Fi.
- High-throughput consumer applications: 533 MHz processor and 64 MB memory are optimized for long-distance links, not bulk data transfer or video streaming to many simultaneous clients.
- Plug-and-play consumer deployment: Requires airOS management interface, PoE infrastructure, and outdoor mounting knowledge; not suitable for users expecting standard consumer Wi-Fi setup.
- Environments with strict latency guarantees: airMAX TDMA timeslot scheduling introduces predictable but measurable latency unsuitable for real-time gaming or synchronous voice.
The LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
The LiteAP™ ac is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license‑free 5 GHz frequency range with high‑performance speeds. The LiteAP ac combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost‑effective value.
Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks® airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. Compared to other systems in its class, the LiteAP ac product delivers superior performance in reduced latency, throughput, and scalability.
- Intelligent QoS – Priority is given to voice/video for seamless access.
- Scalability – High capacity and scalability.
- Long Distance – Capable of high‑speed, 30+ km links.
Networking
| Brand | Ubiquiti |
|---|---|
| Model | LAP-120 |
| Operating modes | Access Point, Station |
| MIMO antenna | 2x2 |
| airMAX protocol | Yes |
| airOS version | airOS®8 |
Performance
| Operating frequency | 5150–5875 MHz |
|---|---|
| Antenna gain | 16 dBi |
| Max TX power | 25 dBm |
| Coverage area | 120° sector |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB |
Ports & power
| Ethernet ports | 1x Gigabit (10/100/1000) |
|---|---|
| Power supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max power consumption | 8W |
Physical
| Dimensions (no mount) | 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14") |
|---|---|
| Weight (no mount) | 420 g (14.82 oz) |
| Mounting kit | Pole Mounting Kit (Included) |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Shock and vibration certification | ETSI300-019-1.4 |
| ESD/EMP protection | ± 24 KV Contact / Air |
| Certifications | CE, FCC, IC |
| ETSI specification | EN 302 326 DN2 |
| NDAA compliant | Yes |
