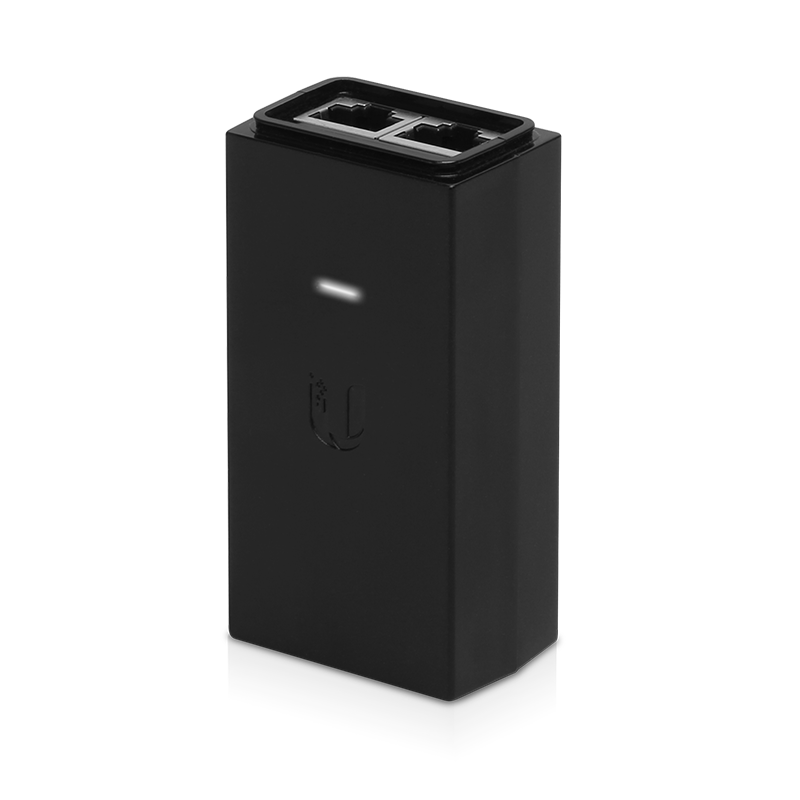

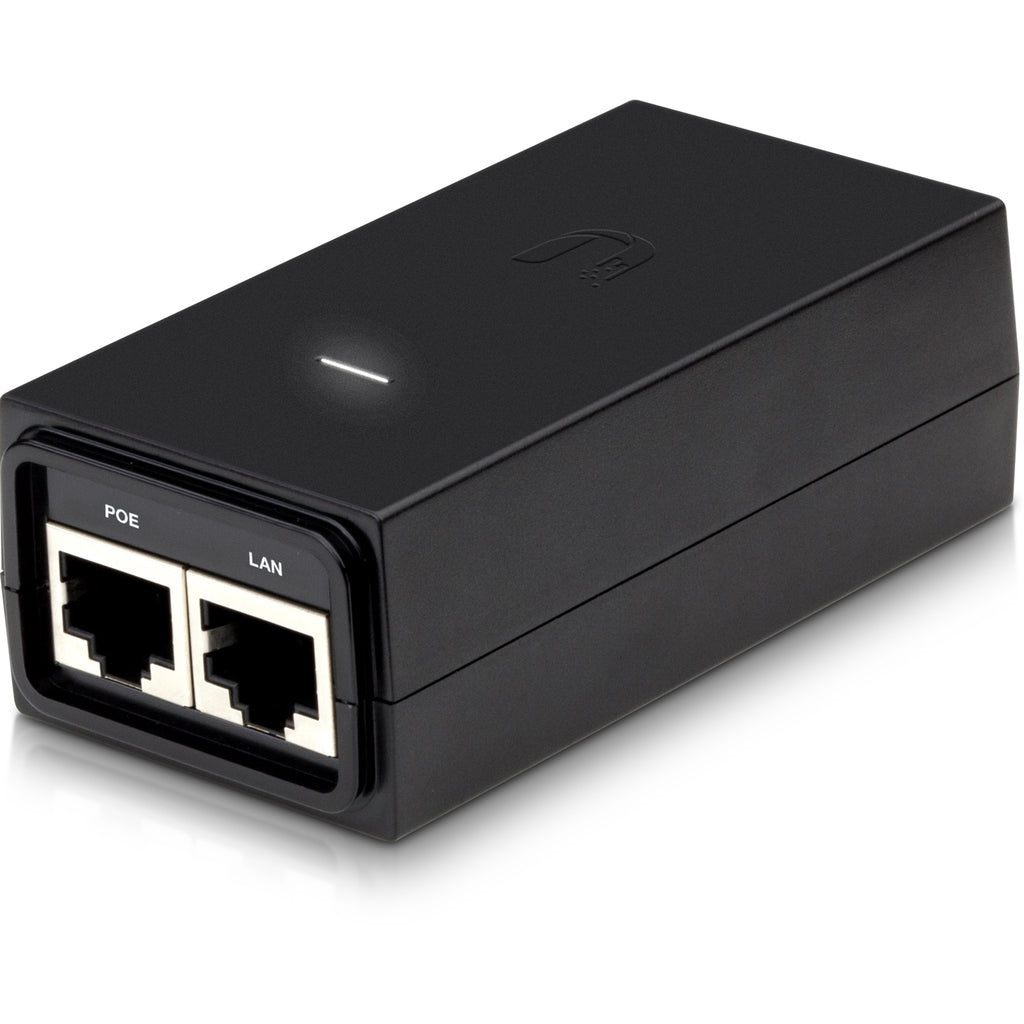

Ubiquiti POE-24-12W 24V 12W Fast Ethernet PoE Injector
Ubiquiti
Ubiquiti POE-24-12W 24V 12W Fast Ethernet PoE Injector
The Ubiquiti POE-24-12W is a 24V power-over-Ethernet injector for remote Ubiquiti network devices. It supplies power and Fast Ethernet connectivity over a single cable, with built-in surge and ESD protection for outdoor installations.
Why this product
ESD and surge protection
Grounded design with 1500A surge discharge capacity and clamping protection guards against electrostatic discharge, the leading cause of outdoor device failures.
Remote reset capable
Supports remote power cycling of connected devices without physical access, useful for troubleshooting or scheduled maintenance.
Wide AC input range
Accepts 90–260V AC at 47–63Hz, making it suitable for installations across different regional power standards.
Fast Ethernet only
Delivers 10/100 Mbps over RJ45; not compatible with Gigabit LAN ports or devices requiring higher bandwidth.
- Output Voltage24V DC @ 0.5A
- Output Power12W
- Network InterfaceFast Ethernet (10/100 Mbps), RJ45
- Surge Discharge1500A (8/20 µs)
- Remote ResetYes
- Operating Temperature0 to 40°C (32 to 104°F)
- SKUUBI-1324
- EAN810354022982
- Ubiquiti airFiber, airMAX, EdgeMAX, mFi, UniFi AP, UniFi Protect, UniFi LED, and U Fiber series devices
- Works with most Ubiquiti PoE devices, but check your specific model's power requirements against the 12W output capacity before purchase
- Gigabit-capable switches, routers, or devices with Gigabit LAN ports; this unit is limited to Fast Ethernet (100 Mbps)
Best for
- Outdoor Ubiquiti wireless access points and cameras
- Remote installations requiring ESD protection and surge clamping
- Budget-conscious deployments of low-power Ubiquiti devices that do not need Gigabit speeds
- Installations in variable-voltage regions with 90–260V AC supply
Trade-offs
- High-bandwidth applications. Fast Ethernet (100 Mbps) ceiling makes it unsuitable for video surveillance streams, large file transfers, or modern mesh networks requiring Gigabit throughput.
- High-power devices. 12W output limits its use to low-power Ubiquiti products; devices drawing more than 0.5A at 24V will not function.
- Gigabit-capable equipment. Explicitly not compatible with Gigabit LAN ports; forced downgrade to 100 Mbps max.
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products.
The PoE Adapters are compatible with most Ubiquiti PoE devices, including:
- airFiber®
- airMAX®
- EdgeMAX®
- mFi®
- UniFi® AP
- UniFi Protect / airVision®
- UniFi LED
- U Fiber
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
General
| Brand | Ubiquiti |
|---|---|
| Part Number | POE-24-12W |
Power Output
| Output Voltage | 24V DC @ 0.5A |
|---|---|
| Output Power | 12W |
| Output Ripple | 1% Max. |
Power Input
| Input Voltage Range | 90–260V AC @ 47–63Hz |
|---|---|
| Input Current | 0.3A @ 120V AC, 0.2A @ 240V AC |
| AC Connector | IEC-320 C6 |
Protection & Interface
| Networking Interface | Fast Ethernet (10/100 Mbps), RJ45 |
|---|---|
| Gigabit LAN Port | No |
| Surge Discharge | 1500A (8/20 µs) |
| Remote Reset Capability | Yes |
Environmental
| Operating Temperature | 0 to 40°C (32 to 104°F) |
|---|---|
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Operating Humidity | 35–95% non-condensing |
