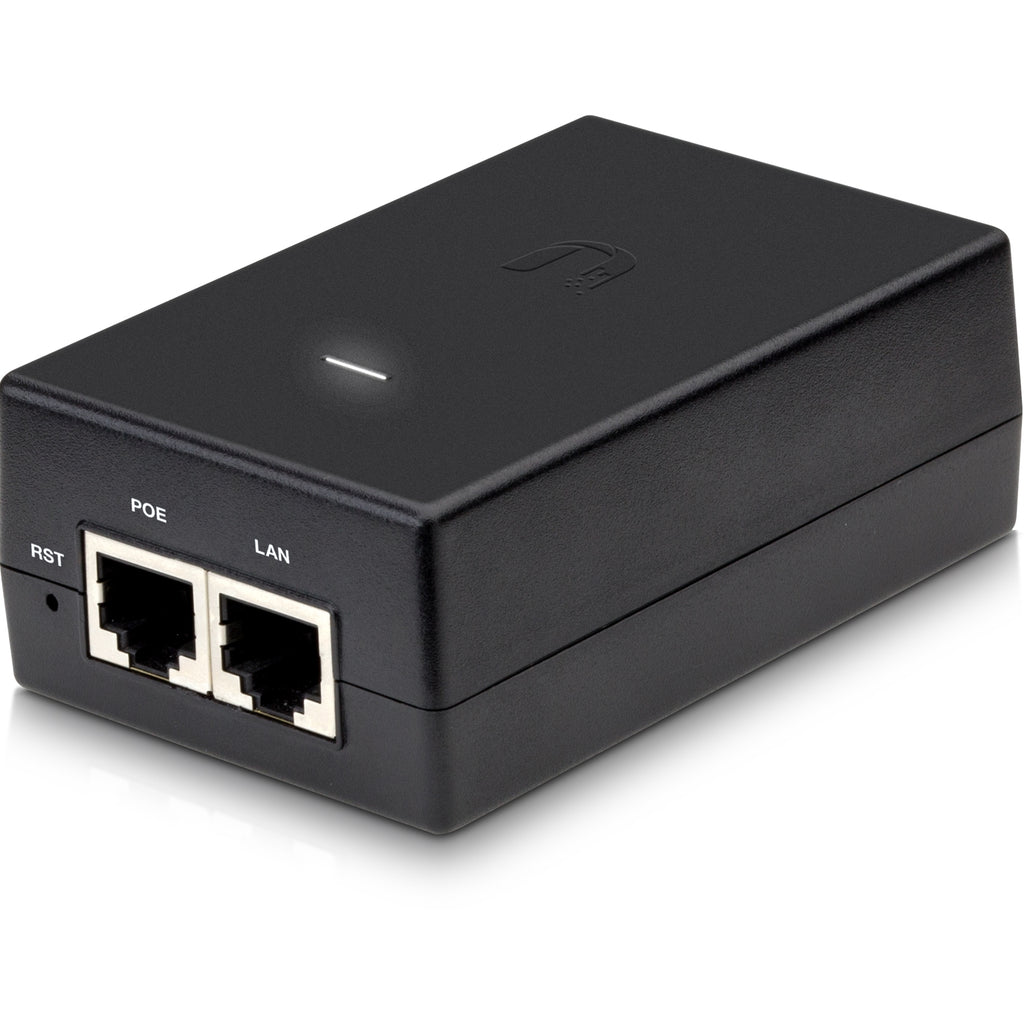

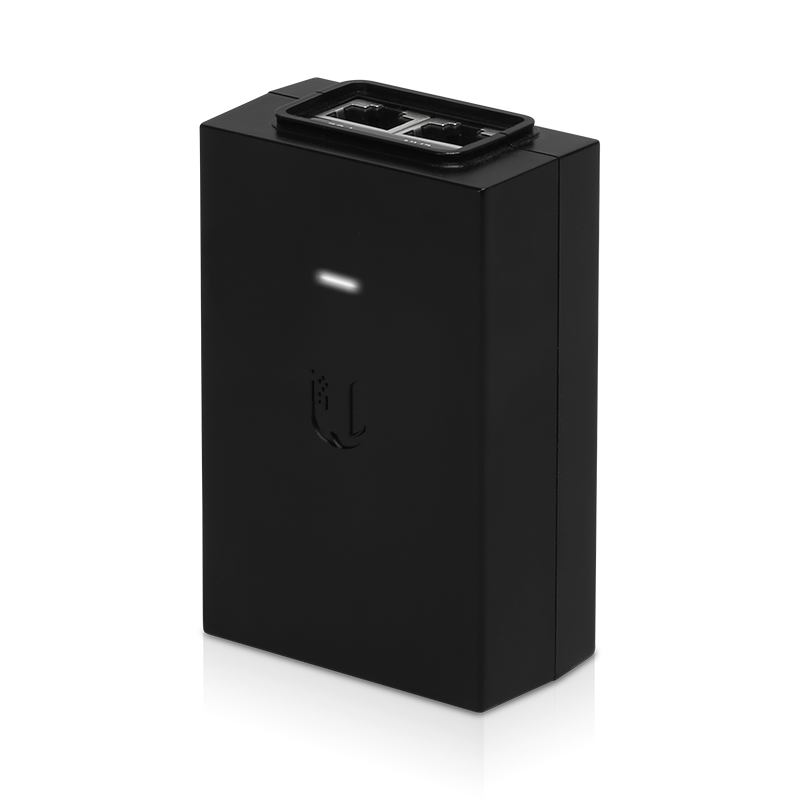

Ubiquiti POE-24-24W Passive PoE Injector 24V 24W
Ubiquiti
Ubiquiti POE-24-24W Passive PoE Injector 24V 24W
The Ubiquiti POE-24-24W is a passive PoE injector designed to power remote network devices over Ethernet cable. It delivers 24V at 24W and includes surge and ESD protection to safeguard outdoor equipment from electrical damage.
Why this product
Surge and ESD protection
Built-in surge protection, clamping protection, and grounded AC cable help prevent damage from electrostatic discharge, the leading cause of outdoor device failures.
24V 24W output
Delivers a stable 24VDC at 1.0A with 1% maximum output ripple for consistent power to compatible devices.
Gigabit Ethernet passthrough
Maintains full gigabit LAN connectivity while injecting power over pins 4, 5 and 7, 8 of the Ethernet cable.
Remote reset capability
Includes both a physical reset button and remote reset functionality for device management without site visits.
- Output Voltage24VDC @ 1.0A
- Input Power100-240VAC @ 50/60Hz
- Gigabit LANYes
- ProtectionSurge, clamping, ESD
- Dimensions88 x 57 x 33 mm
- Weight158.5 g
- SKUUBI-1139
- EAN810354023033
- Powers Ubiquiti and other devices rated for 24V PoE input using standard Gigabit Ethernet cabling.
- Maximum output of 24W; devices drawing more than 1.0A at 24V require a higher-capacity injector.
- Not suitable for devices requiring different voltage outputs or devices that expect powered pairs on different pin positions.
Best for
- Outdoor wireless access points and cameras
- Remote installations where power outlets are unavailable
- Deployments requiring ESD protection in harsh environments
Trade-offs
- High-power devices exceeding 24W; this injector maxes out at 1.0A output.
- Devices designed for PoE++ or higher voltage standards.
- Devices requiring powered data pairs in positions other than 4, 5, 7, 8.
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
General
| Brand | Ubiquiti |
|---|
Power Output
| Output Voltage | 24VDC |
|---|---|
| Output Current | 1.0A |
| Maximum Power | 24W |
| Output Ripple | 1% Max. |
Power Input
| Input Voltage | 100-240VAC |
|---|---|
| Frequency | 50/60Hz |
| Input Current @ 120VAC | 0.6A |
| Input Current @ 240VAC | 0.4A |
| Efficiency | 0.8 |
Protection & Features
| Surge Protection | Yes |
|---|---|
| Clamping Protection | Yes |
| ESD Protection | Yes |
| Gigabit LAN Port | Yes |
| Reset Button | Yes |
| Remote Reset | Yes |
| Powering Mode | 2-Pair (Pins 4, 5 and 7, 8) |
Physical & Operating
| Dimensions | 88 x 57 x 33 mm |
|---|---|
| Weight | 158.5 g |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -30 to 70°C |
