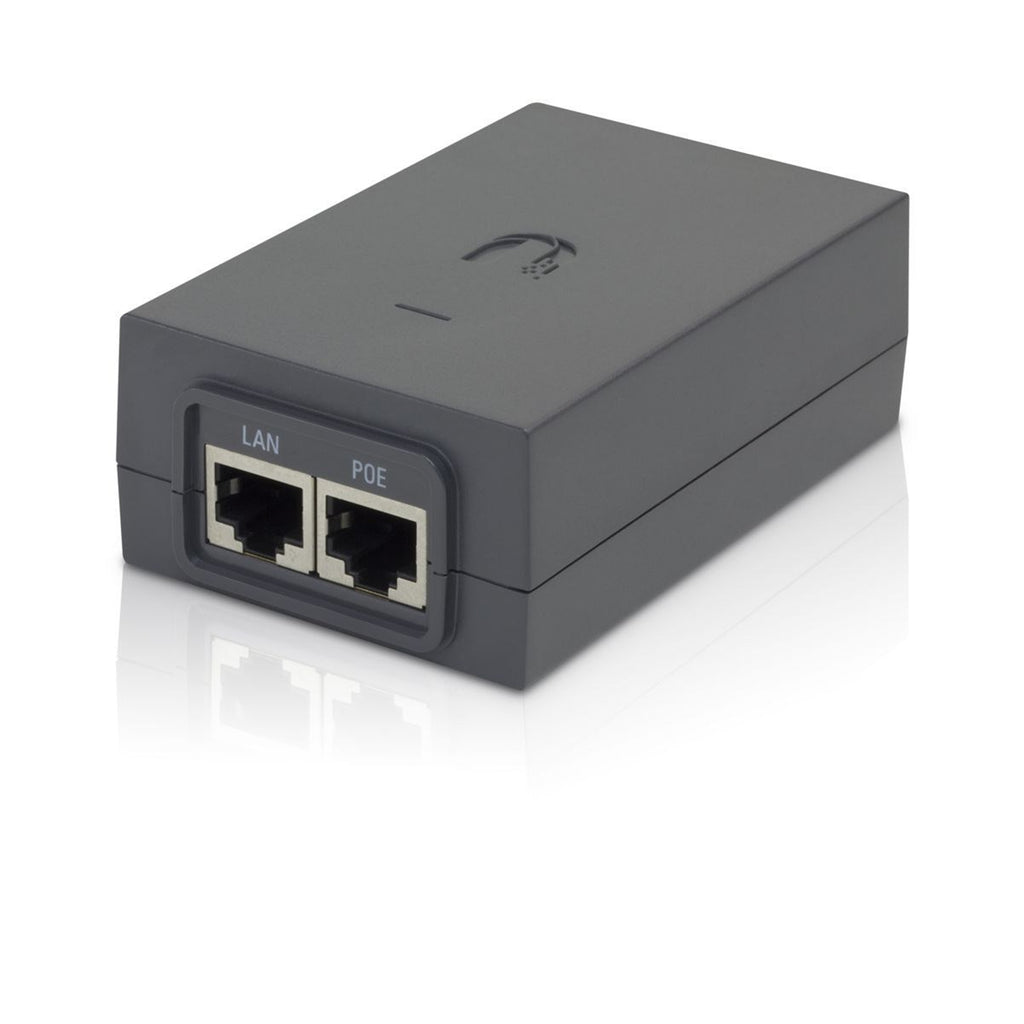

Ubiquiti POE-48-24W 48V 24W Passive PoE Power Injector
Ubiquiti
Ubiquiti POE-48-24W 48V 24W Passive PoE Power Injector
The Ubiquiti POE-48-24W is a 48V passive PoE power injector designed for Ubiquiti devices that support passive Power over Ethernet. It combines compact form with surge and ESD protection, making it suitable for outdoor and indoor deployments where reliable power delivery and device protection are priorities.
Why this product
Surge and ESD protection
Built-in clamping protection and maximum surge discharge ratings help safeguard connected devices against electrostatic discharge and power spikes, especially when paired with Ubiquiti TOUGHCable.
Compact and lightweight
At 92 × 60 × 33 mm and 158.5 g, it fits easily into tight spaces and won't burden cable runs or mounting brackets.
Wide input voltage range
Accepts 90–260 VAC at 47–63 Hz, so it works reliably across different power grids and countries without a separate voltage converter.
Stable 48V output
Output ripple stays below 1% with line and load regulation of ±0.5% and ±1% respectively, ensuring clean power for sensitive networking equipment.
- Output voltage48V DC @ 0.5A (24W max)
- Input voltage90–260 VAC @ 47–63 Hz
- Dimensions92 × 60 × 33 mm
- Weight158.5 g
- Operating temperature−10 to +60°C
- Warranty1 Year
- CertificationsUL, CCC, IEC, FCC
- SKUUBI-1240
- EAN810354023064
- Powers Ubiquiti devices that support 48V passive PoE input.
- Suitable for operating temperatures between −10 and +60°C, covering most indoor and sheltered outdoor environments.
- Surge protection and grounding benefits are maximized when used with Ubiquiti TOUGHCable; standard cables do not provide the same earth grounding.
- No built-in Gigabit LAN port; it is a power injector only and does not route data.
Best for
- Outdoor and remote Ubiquiti deployments
- Space-constrained installations
- Multi-region deployments
- Equipment protection budgets
Trade-offs
- High-power PoE devices. Output is limited to 24W (0.5A at 48V); devices requiring more than 24W will be undersupplied.
- Data routing or network switching. This is a passive power injector with no Gigabit LAN port; it cannot route traffic or serve as a network switch.
- Hot environments. Operating temperature tops out at +60°C; installations in direct sunlight or enclosed hot enclosures may exceed this limit.
- Applications requiring longer warranties. The 1-year warranty is shorter than many industrial PoE injectors, which often carry 2–3 year or lifetime terms.
Power over Ethernet Adapters
PoE Adapters power Ubiquiti products that support passive PoE.
Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
General
| Brand | Ubiquiti |
|---|---|
| Model | POE-48-24W |
Power Output
| Output voltage | 48 VDC |
|---|---|
| Output current | 0.5 A |
| Maximum power | 24 W |
| Output ripple | 1% Max |
| Switching frequency | 200 kHz |
Power Input
| Input voltage range | 90–260 VAC @ 47–63 Hz |
|---|---|
| Input current @ 120VAC | 0.3 A |
| Input current @ 230VAC | 0.2 A |
| Inrush current @ 120VAC | <15 A Peak |
| Inrush current @ 230VAC | <30 A Peak |
| Efficiency | 70+% |
Regulation & Environmental
| Line regulation | ±0.5% |
|---|---|
| Load regulation | ±1% |
| Operating temperature | −10 to +60°C |
| Storage temperature | −20 to +85°C |
| Operating humidity | 35 to 95% Noncondensing |
| Dimensions (W × H × D) | 92 × 60 × 33 mm |
| Weight | 158.5 g |
| Certifications | UL, CCC, IEC, FCC |
