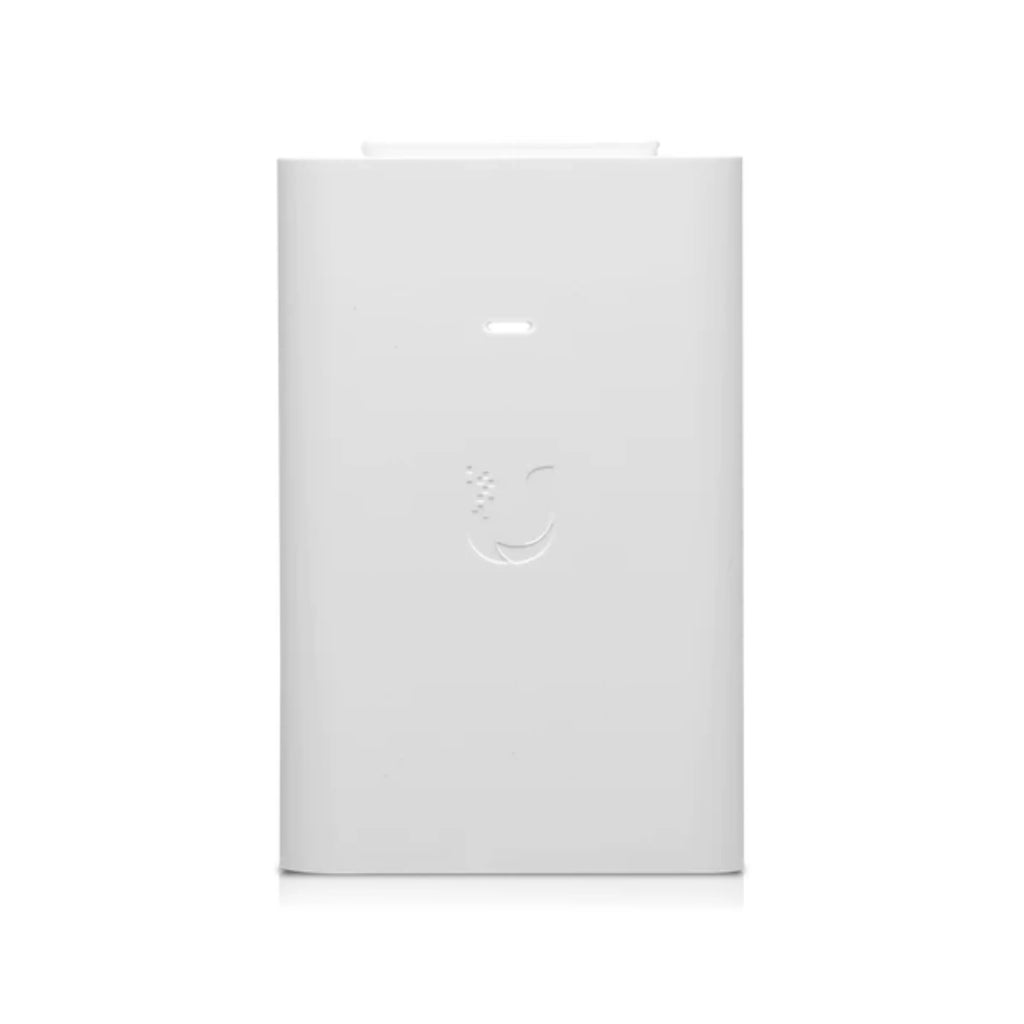

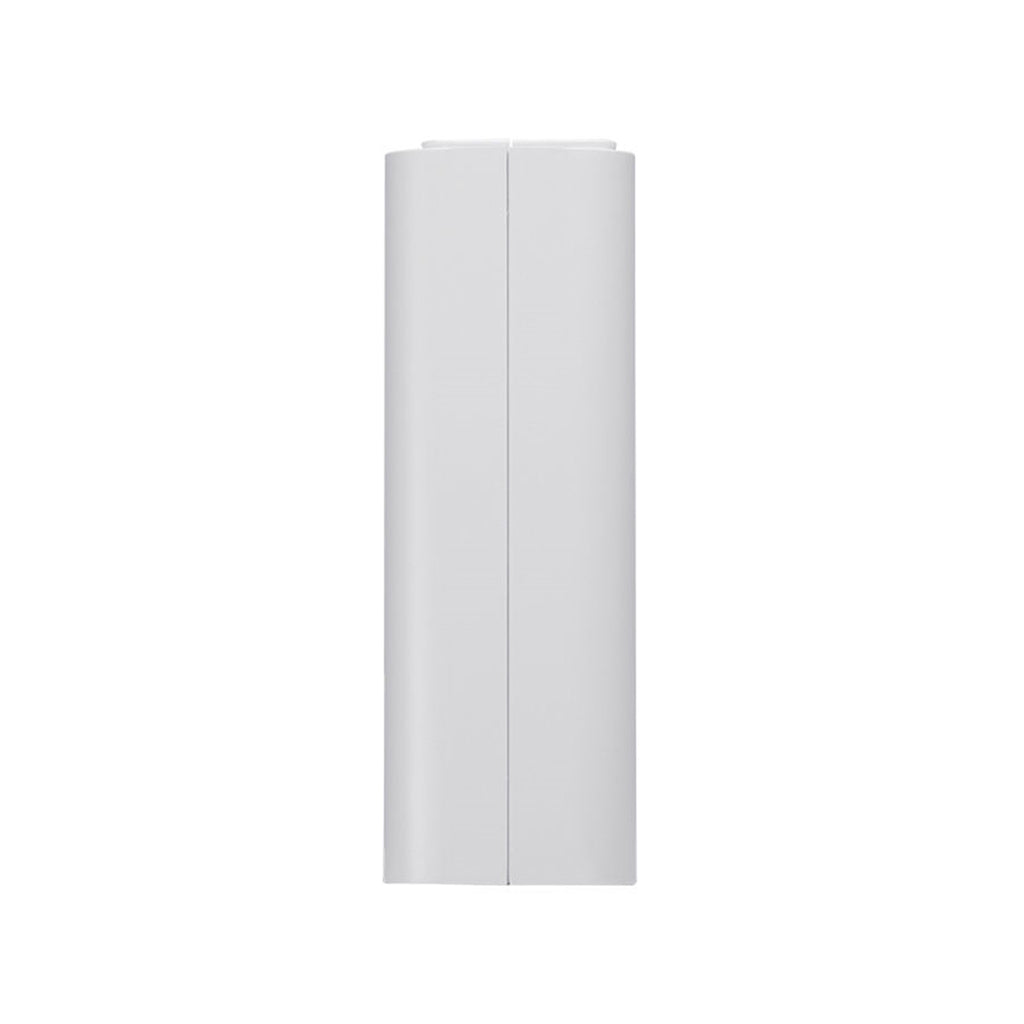

Ubiquiti POE-48-24W-WH 48V 24W PoE Power Injector White
![Ubiquiti 48V DC 0.5A 24W Replacement PoE White [POE-48-24W-WH]](http://tech-syndicate.co.uk/cdn/shop/files/Ubiquiti_POE-48-24W-WH.webp?v=1789814580&width=3840)
Ubiquiti

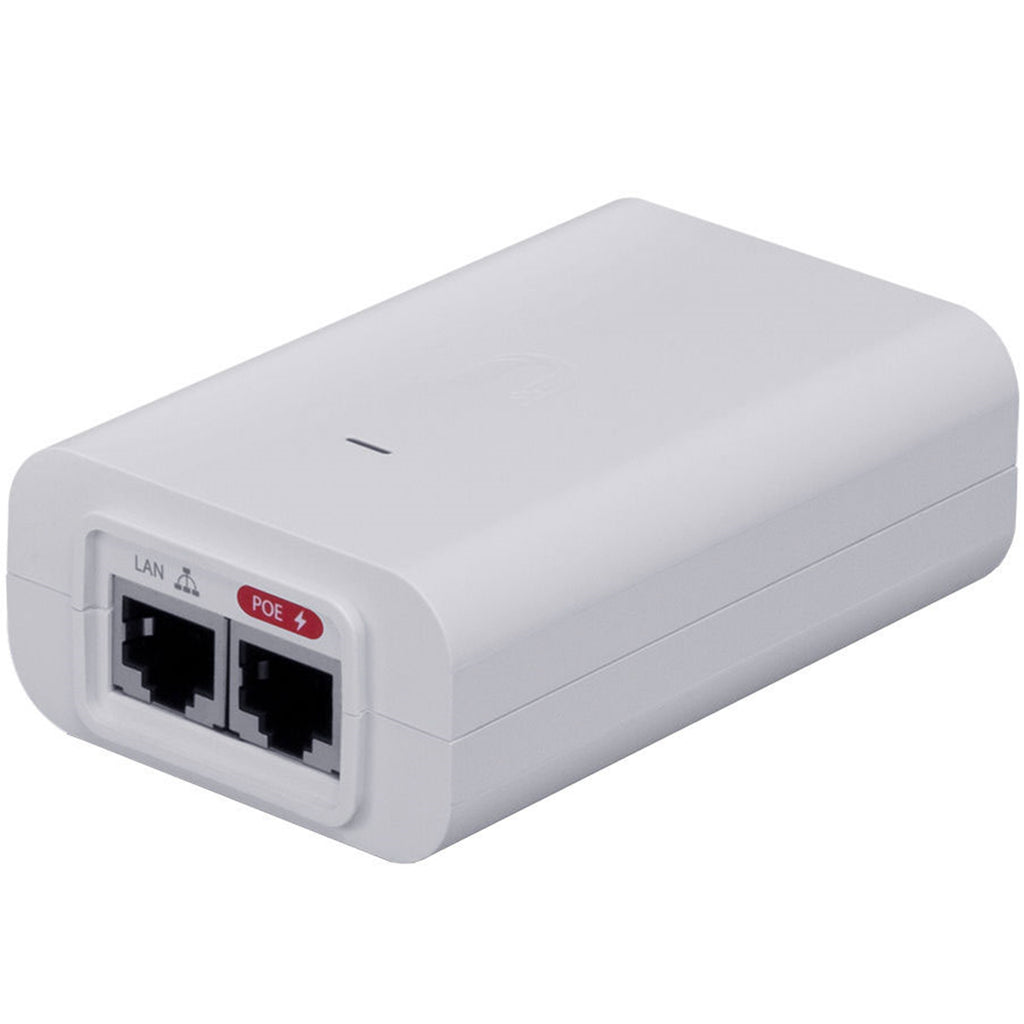

Ubiquiti POE-48-24W-WH 48V 24W PoE Power Injector White
The Ubiquiti POE-48-24W-WH is a 48V PoE power injector designed for airMAX and UniFi network devices. It supplies power over Ethernet while protecting connected equipment from surge and electrostatic discharge damage via a grounded AC input and protective clamping circuits.
Why this product
Surge and ESD protection built in
The injector includes surge discharge rated at 1500A and peak pulse current protection at 36A, with an earth-grounded AC cable to defend against electrostatic discharge, the leading cause of outdoor device failures.
Works with Ubiquiti airMAX and UniFi
Compatible with a wide range of Ubiquiti wireless and wired network products that accept 48V PoE input.
Wide input voltage range
Accepts 90–260VAC at 47–63Hz, so it operates across different regional power standards without a converter.
Compact and lightweight design
Measures 88 × 57 × 33 mm and weighs 135.5 g, making it easy to mount near the device it powers.
- Output Voltage48VDC @ 0.5A
- Output Power24W
- Input Voltage90–260VAC @ 47–63Hz
- Surge Protection1500A (8/20 µs)
- Peak Pulse Current36A (10/1000 µs)
- Dimensions88 × 57 × 33 mm
- Weight135.5 g
- ColorWhite
- SKUUBI-1241
- EAN810354025990
- Works with Ubiquiti airMAX and UniFi network devices rated for 48V PoE input.
- Requires a compatible Ubiquiti device with 48V PoE input; check your device documentation before purchase.
- Does not include a LAN activity indicator or gigabit Ethernet port for monitoring connection status.
Best for
- Outdoor Ubiquiti wireless deployments
- Users in regions with unstable or high-voltage AC mains
- Installations requiring surge and ESD protection on a budget
- Simple point-to-point or small mesh network setups
Trade-offs
- Monitoring-heavy deployments: lacks a LAN activity indicator or status feedback.
- Large multidevice networks: supplies only 24W total power; multiple injectors may be needed for many devices.
- Non-Ubiquiti equipment: designed specifically for Ubiquiti airMAX and UniFi products, not compatible with other vendor PoE devices.
- Users needing remote reset: offers no remote reset capability or physical reset button.
This Ubiquiti Networks PoE adapter, POE-48-24W, is a 48VDC 0.5A injector for use with various airMAX and UniFi products.
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
General
| Brand | Ubiquiti |
|---|---|
| Part Number | POE-48-24W-WH |
Power Specifications
| Output Voltage | 48VDC @ 0.5A |
|---|---|
| Output Power | 24W |
| Output Ripple | 1% Max. |
| Input Voltage | 90–260VAC @ 47–63Hz |
| Input Current @ 120VAC | 0.6A |
| Input Current @ 240VAC | 0.4A |
Protection Features
| Surge Discharge | 1500A (8/20 µs) |
|---|---|
| Peak Pulse Current | 36A (10/1000 µs) |

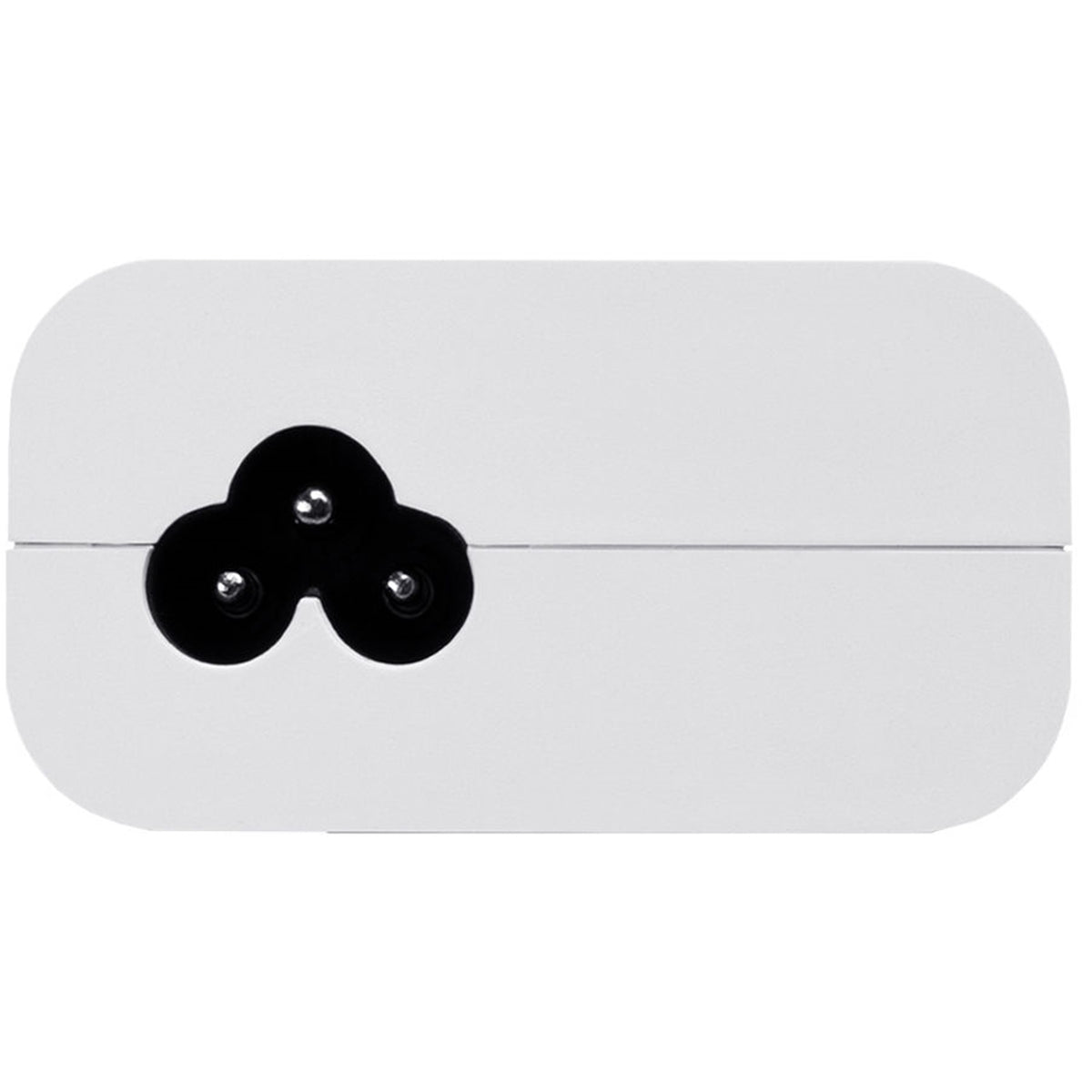

| Grounded AC Cable | Yes |
Physical & Interface
| Dimensions | 88 × 57 × 33 mm (3.47 × 2.24 × 1.30") |
|---|---|
| Weight | 135.5 g (4.78 oz) |
| Color | White |
| LAN Activity Indicator | No |
| Gigabit LAN Port | No |
| Reset Button | No |
| Remote Reset Capability | No |
| Certifications | CE, FCC, IC, UL |
