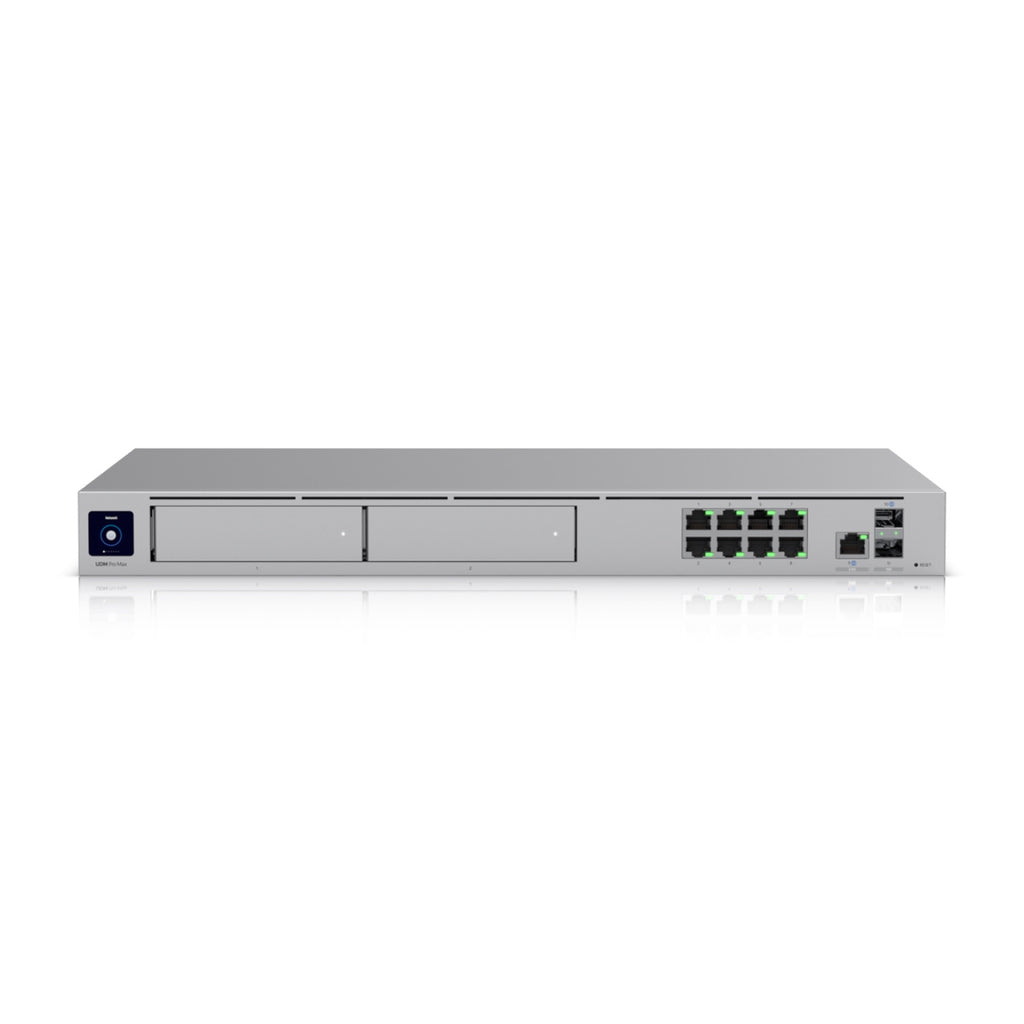

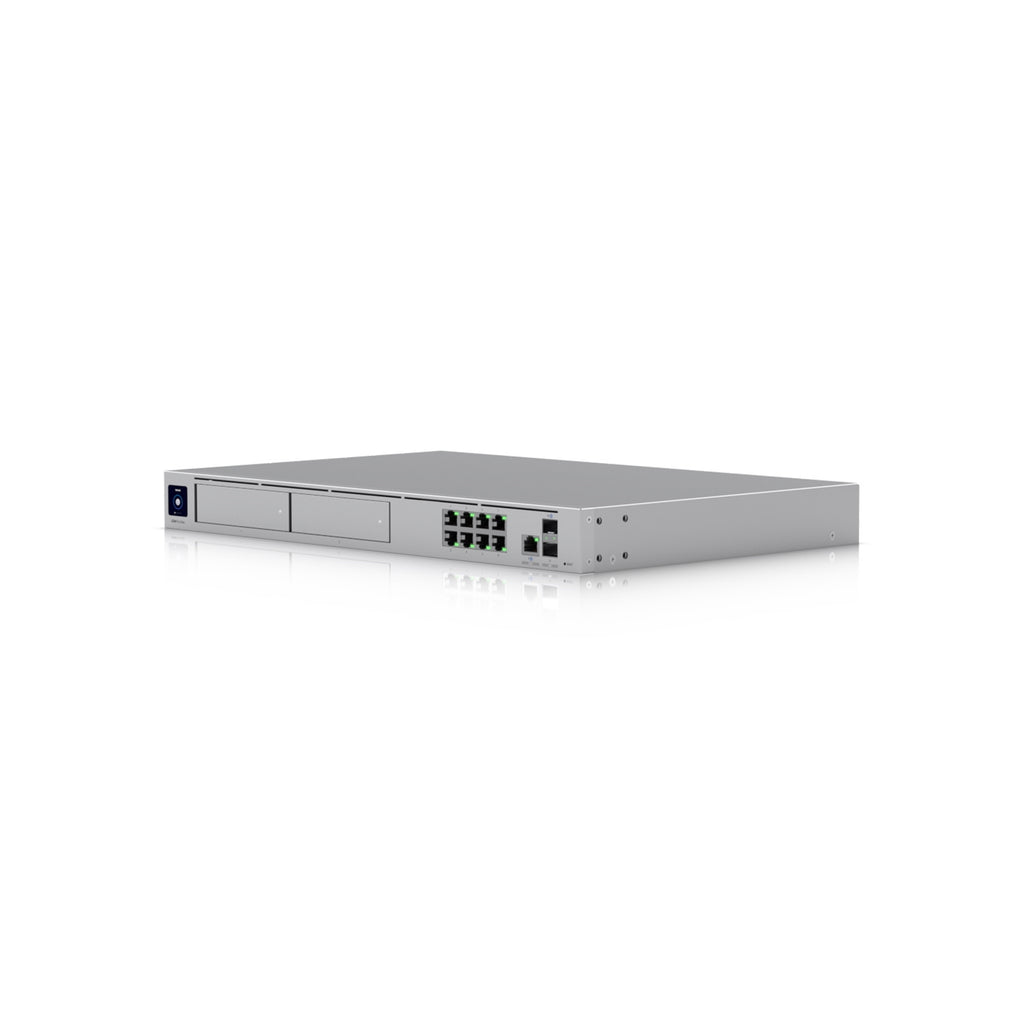

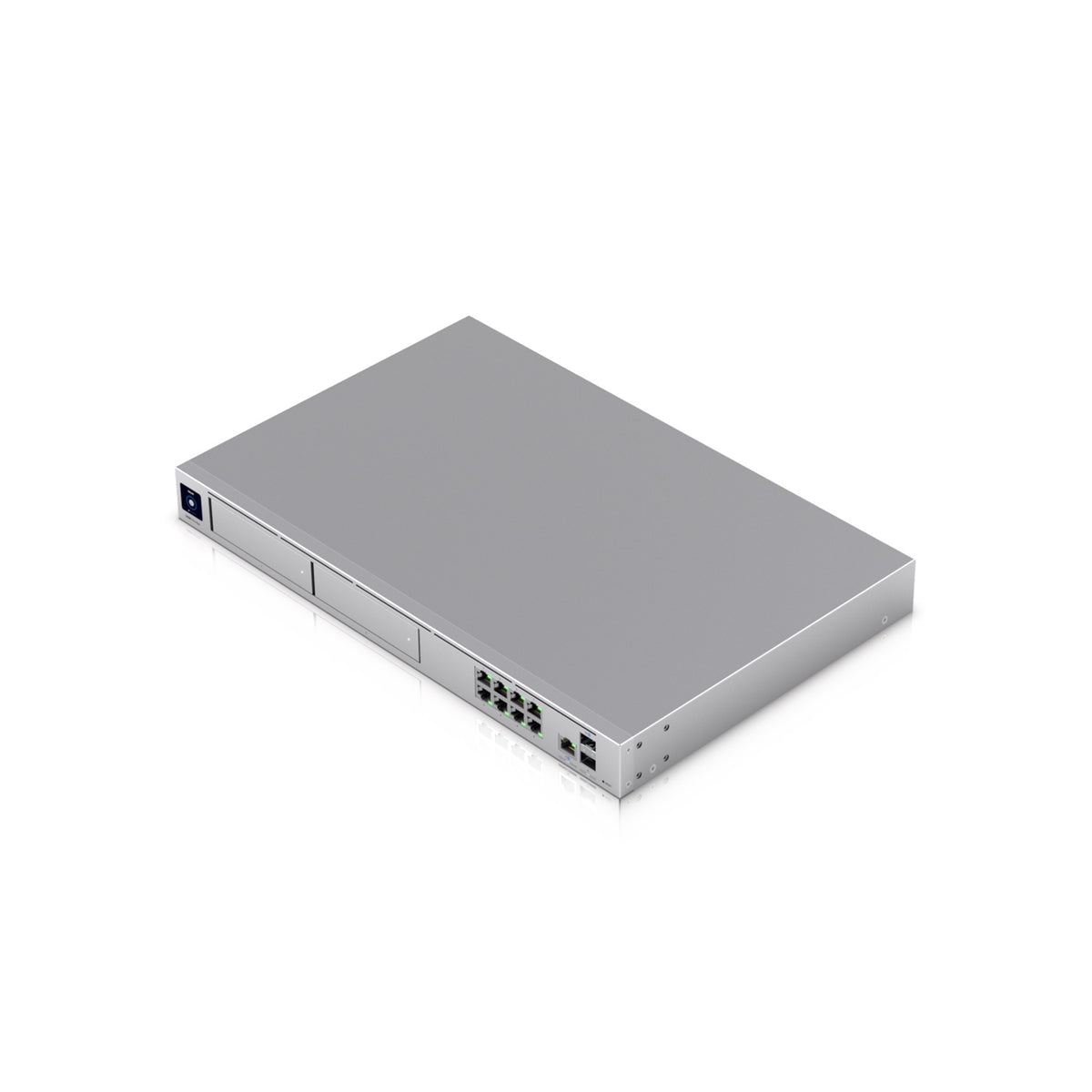

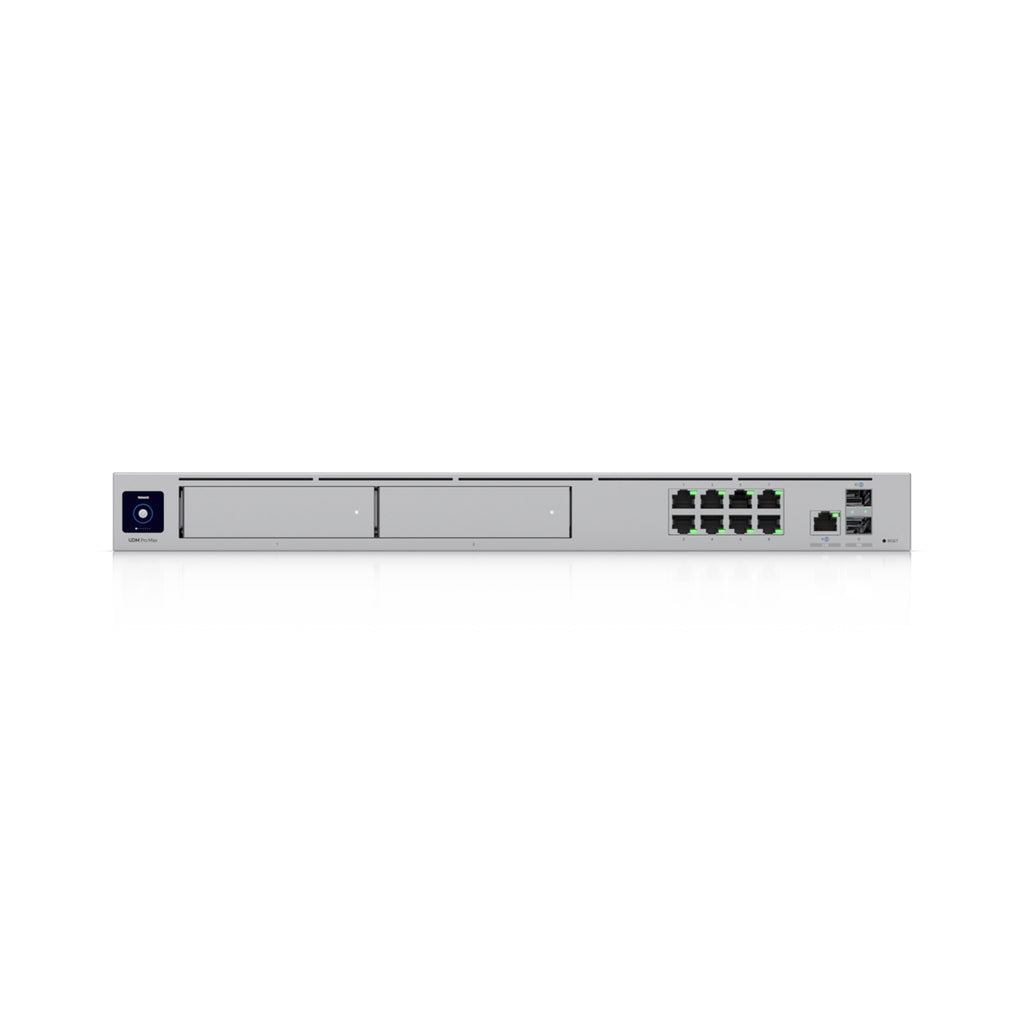

Ubiquiti UDM-Pro-Max UniFi Dream Machine Pro Max 10G
Ubiquiti
Ubiquiti UDM-Pro-Max UniFi Dream Machine Pro Max 10G
The Ubiquiti UDM-Pro-Max is a rack-mount 10G cloud gateway designed for large-scale UniFi deployments that need to manage 200+ devices, 2,000+ clients, and integrated video surveillance with network security. It combines centralized device management, 5 Gbps threat detection and prevention, and dual NVR storage bays in a single 1U appliance.
Why this product
10G connectivity with multi-WAN support
One 10G SFP+ and eight GbE LAN ports handle large deployments. Dual WAN ports (10G SFP+ and 2.5 GbE) with load balancing distribute traffic efficiently across links.
Integrated NVR with RAID protection
Two 3.5-inch HDD bays support dual-drive RAID storage for camera footage. 128 GB onboard SSD handles detection recordings without additional drives.
5 Gbps IDS/IPS threat detection
Stateful and application-aware Layer 7 firewall with DPI traffic identification. Zone-based filtering and policy routing protect network access.
Unified management of 200+ devices
Handles 50 HD, 25 2K, or 15 4K managed cameras plus 150 access hubs simultaneously. Full UniFi application suite for network, video, access control, VoIP, and connectivity.
Gateway redundancy and failover
Shadow Mode (VRRP) and DC power backup option ensure continuous operation. Multi-WAN load balancing avoids single points of failure.
- Form Factor1U Rack Mount
- LAN Ports8 × GbE RJ45 + 1 × 10G SFP+
- WAN Ports1 × 10G SFP+ + 1 × 2.5 GbE RJ45
- IDS/IPS Throughput5 Gbps
- Managed Devices200+ devices, 2,000+ clients
- NVR Storage2 × 3.5" HDD bays (RAID) + 128 GB SSD
- SKUUBI-1373
- EAN810084693254
- Compatible with all UniFi Network, Protect, Access, Talk, and Connect application suites via the integrated management interface.
- Supports UniFi cameras (HD, 2K, 4K models), access points, switches, and security gateways across 200+ managed devices.
- Requires standard 19-inch rack space (1U form factor). Rack mounting hardware included.

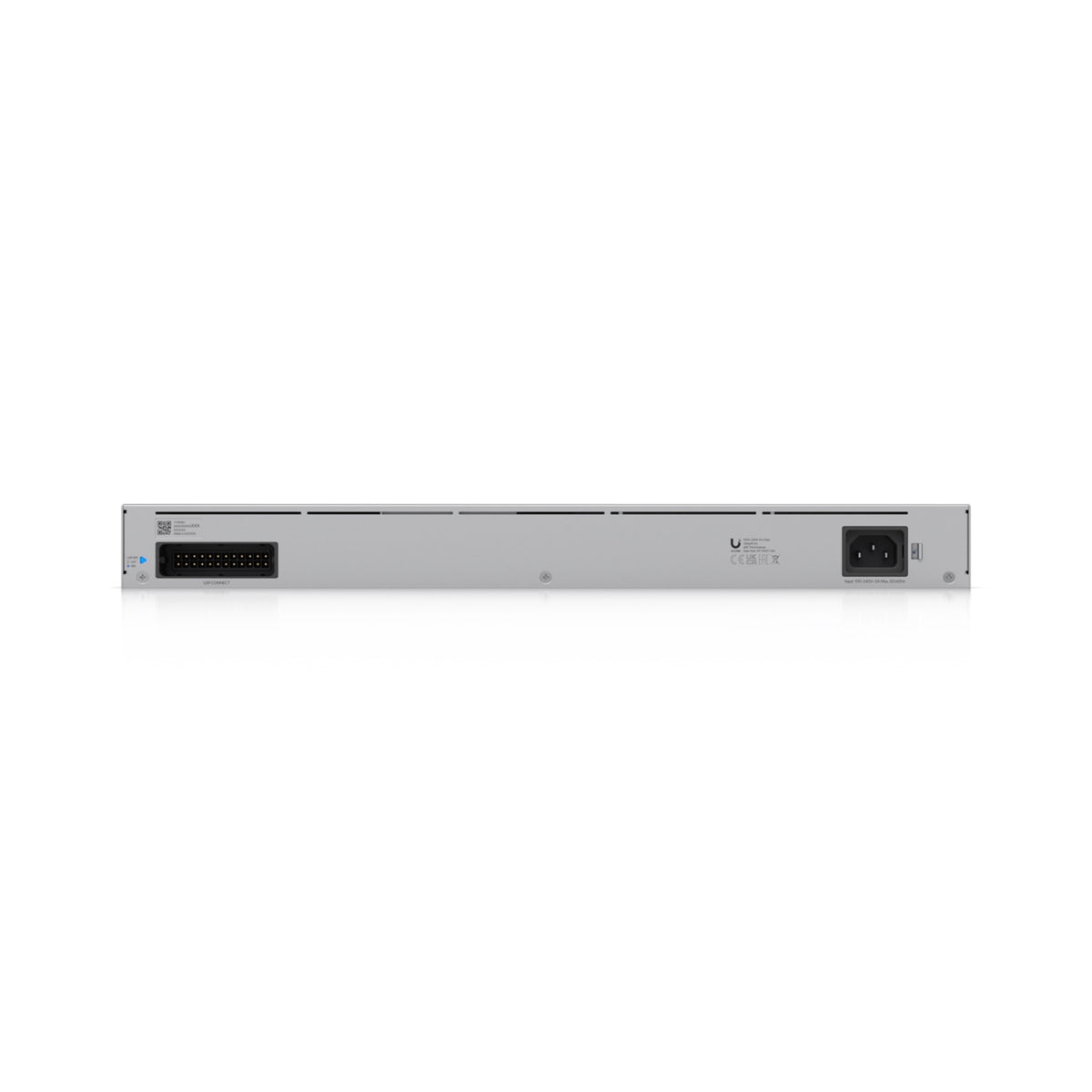

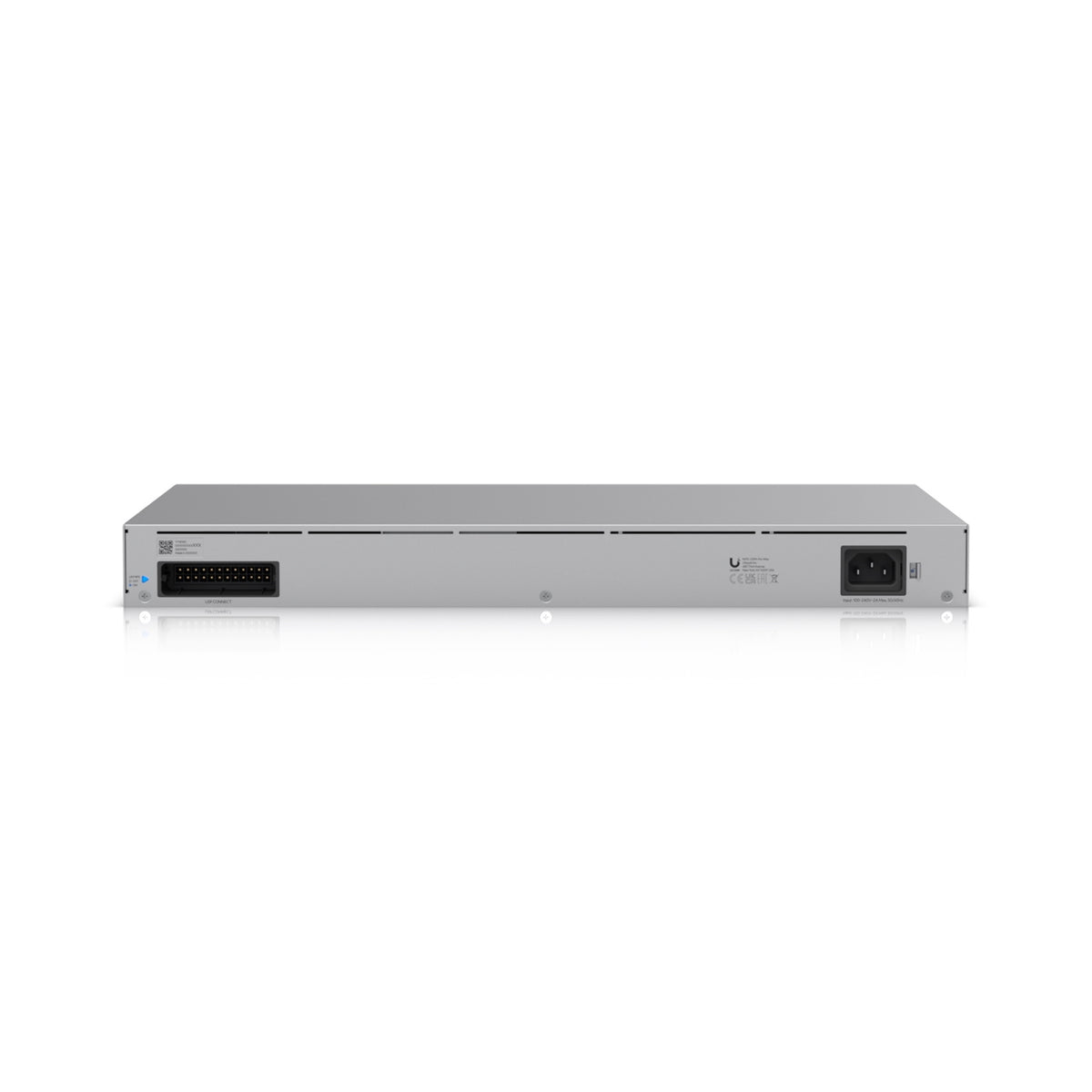

- Dual power input: standard AC (100–240V) or optional DC backup (11.5V DC) for continuity during mains failure.
- HDD bays ship empty; you must provide two 3.5-inch drives for video storage. Compatible with standard SATA enterprise drives.
Best for
- Large managed networks requiring centralized control
- Sites needing on-site video storage with redundancy
- Networks with multiple ISP links
- Security-first deployments
- Multi-site organizations
Trade-offs
- Small single-site networks with fewer than 50 devices or clients will find its capacity and cost excessive.
- Non-rack environments — this is a 1U rack appliance and cannot be deployed on a shelf or in a desktop cabinet.
- Users without existing UniFi infrastructure — this is a controller for UniFi devices only. It does not manage third-party network equipment.
- Organizations avoiding on-site storage — the HDD bays are unpopulated and require you to purchase and install compatible drives for video retention.
- Setups without camera surveillance — while the NVR bays add significant value, standalone gateway-only deployments will underuse this hardware.
10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.
Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

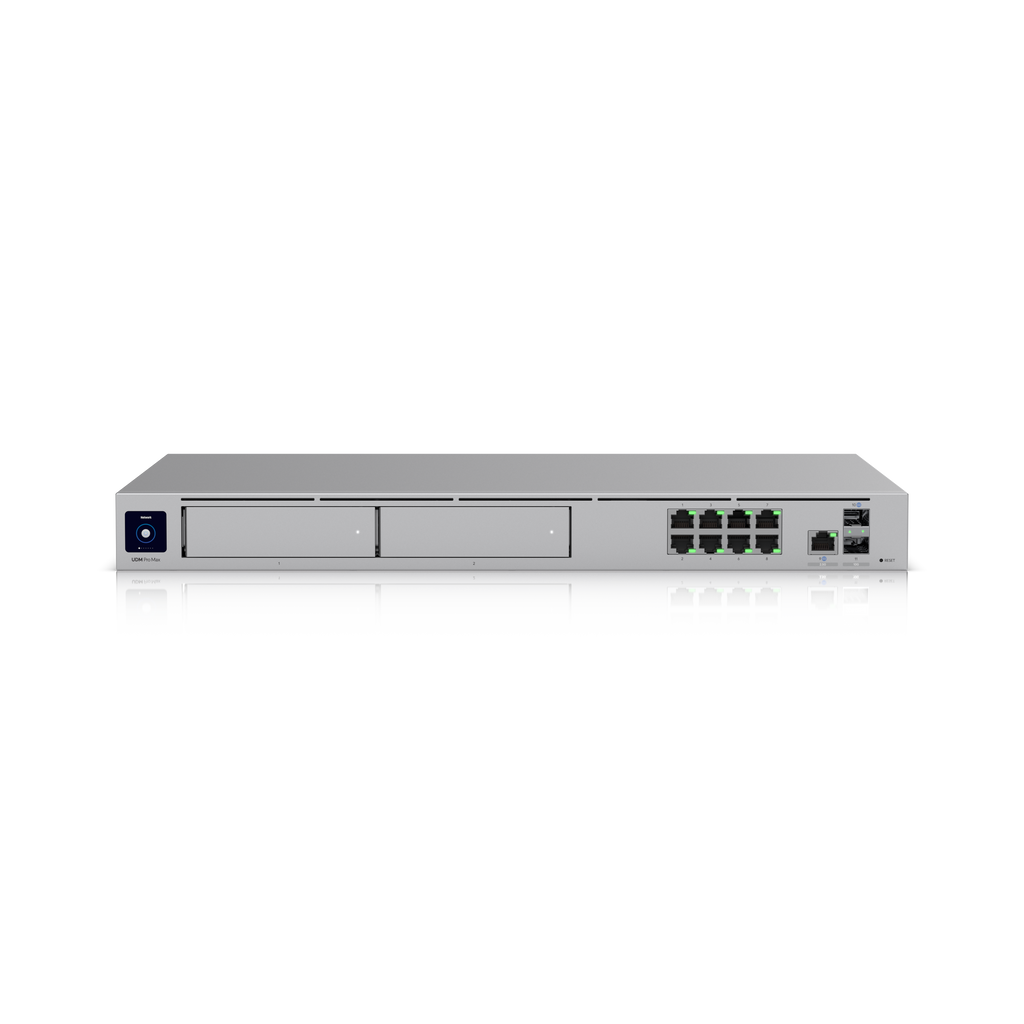

- Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
- Includes full UniFi application suite for device management
- One (1) 10G SFP+ and eight (8) GbE RJ45 LAN ports
- One (1) 10G SFP+ and one (1) 2.5 GbE RJ45 WAN ports
- Two (2) 3.5-inch NVR HDD bays (un-populated) with RAID data protection
- Built-in 128 GB SSD for NVR detection recordings
General
| Brand | Ubiquiti |
|---|---|
| Model | UDM-Pro-Max |
| Form Factor | Rack mount (1U) |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 4.7 kg (10.4 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
Networking
| LAN Ports | (8) GbE RJ45 ports, (1) 10G SFP+ port |
|---|---|
| WAN Ports | (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port |
| Management Interface | Ethernet, Bluetooth |
| IDS/IPS Throughput | 5 Gbps |
Computing & Storage
| Processor | Quad-core ARM Cortex-A57 at 2.0 GHz |
|---|---|
| System Memory | 8 GB DDR4 |
| On-board Storage | 32 GB eMMC |
| Integrated SSD | 128 GB SSD |
| NVR HDD Bays | (2) 3.5" (un-populated), RAID data protection |
Capacity & Redundancy
| Managed UniFi Devices | 200+ |
|---|---|
| Simultaneous Users Connected | 2,000+ |
| Managed Cameras | (50) HD, (25) 2K, (15) 4K |
| Managed Access Hubs | 150 |
| Redundancy | Shadow Mode (VRRP), Gateway Failover, DC Power Backup |
| UniFi Application Suite | Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓ |
Power
| Power Supply | AC/DC, internal, 100W |
|---|---|
| AC Input | 100–240V AC, 2A Max., 50/60 Hz |
| DC Backup Input | 11.5V DC, 8.7A (optional) |
