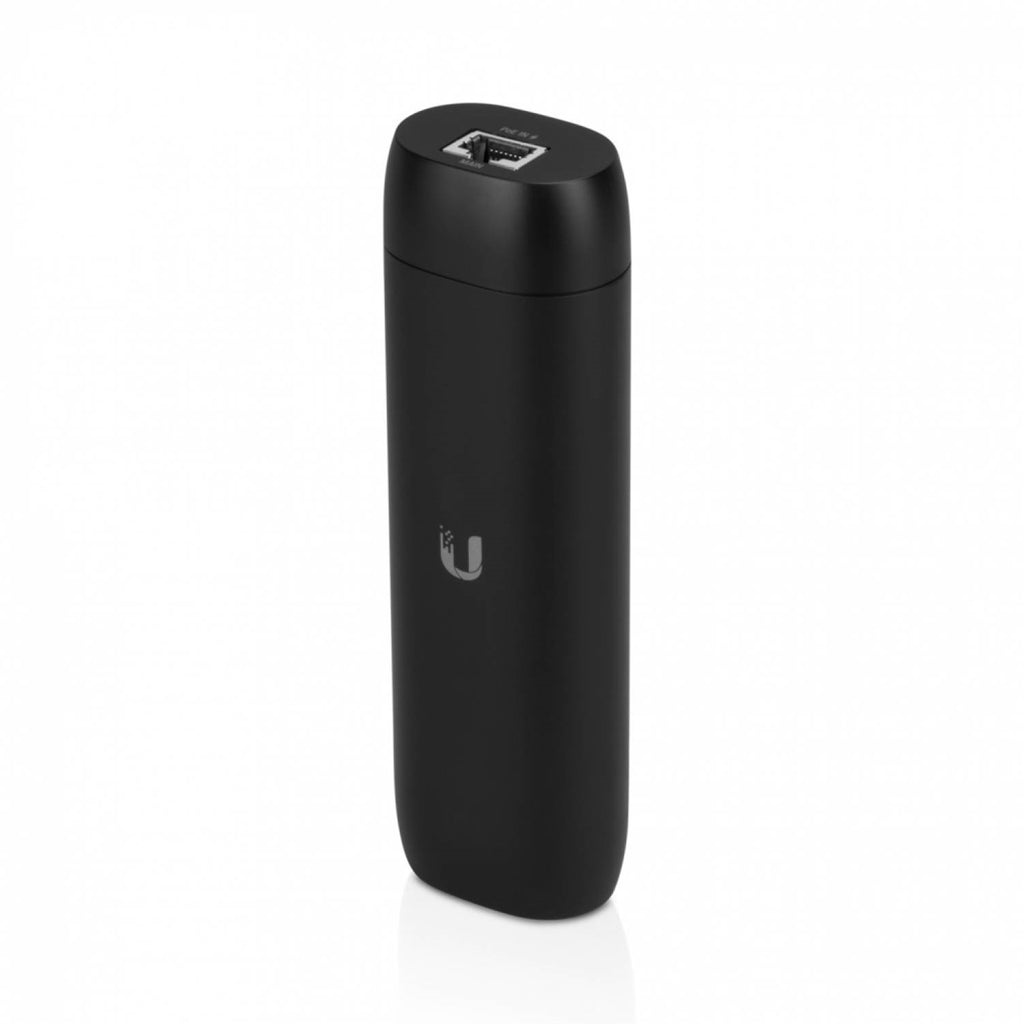

Ubiquiti UFP-VIEWPORT UniFi Protect ViewPort PoE HDMI
Ubiquiti
Ubiquiti UFP-VIEWPORT UniFi Protect ViewPort PoE HDMI
The Ubiquiti UFP-VIEWPORT UniFi Protect ViewPort PoE HDMI is a hub for displaying UniFi Protect camera feeds on any HDMI display. It connects via Ethernet to your Protect system and outputs video over HDMI, letting you monitor up to 16 cameras on a single screen without a separate computer.
Why this product
Display 16 cameras on one screen
View multiple UniFi Protect camera feeds in custom high-density matrix layouts on a single HDMI display.
4K output at 30 fps
Supports HDMI video output up to 4K resolution and 30 frames per second for clear, smooth camera monitoring.
Powered over Ethernet
Draws power from a single 802.3af PoE connection; no separate power supply needed.
Integrated mounting
Includes a polycarbonate TV mount bracket for direct attachment behind a display.
- HDMI Output4K @ 30 fps
- Simultaneous CamerasUp to 16
- Power Method802.3af PoE
- Ethernet Port10/100/1000 Mbps RJ45
- Weight230 g (without mount)
- SKUUBI-1348
- EAN817882029575
- Works with UniFi Protect camera systems connected to the same local network.
- Connects to any HDMI display or television with an available HDMI input.
- Requires 802.3af PoE power source (standard network switch port or PoE injector).
- Operates on Gigabit Ethernet (1 Gbps); works on standard networks but bandwidth-intensive multi-camera streams benefit from dedicated or low-congestion connections.
Best for
- Small business owners or site managers needing central camera monitoring without a dedicated PC.
- Integrators installing UniFi Protect systems who want a simple, fanless hub for customer locations.
- Facilities wanting to mount a live camera feed behind a reception or entrance display.
- Users seeking one-cable setup (PoE only) with no additional power outlets required.
Trade-offs
- Users needing a camera recorder or local storage; this is a display hub only.
- Installations requiring output above 4K or frame rates higher than 30 fps.
- Deployments in industrial or outdoor environments; operating temperature is limited to 0–40°C.
- Remote management over the internet; it connects only to local UniFi Protect systems on the same network.
Easy-to-use hub for viewing Protect camera feeds on an HDMI display.
The UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on an HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
General
| Brand | Ubiquiti |
|---|---|
| Processor | Qualcomm QCS605 SoC |
| Memory | 4 GB Low Power DDR4X |
| Management Interface | UniFi Protect |
Video & Connectivity
| HDMI Output | Up to 4K @ 30 fps |
|---|---|
| Maximum Cameras | 16 simultaneous |
| Network Interface | 10/100/1000 Mbps Ethernet |
| Bluetooth | 5.0 (2 dB gain) |
Power & Environmental
| Power Method | 802.3af PoE |
|---|---|
| Maximum Power Consumption | 9.5 W |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 20 to 80% Noncondensing |
| ESD/EMP Protection | Air ±8 kV / Contact ±4 kV |
Physical
| Dimensions | 157 x 52 x 37 mm (6.18 x 2.05 x 1.46") |
|---|---|
| Weight (Without Mount) | 230 g (8.11 oz) |
| Weight (With Mount) | 252 g (8.89 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Certifications | FCC, IC, CE |
