Ubiquiti UniFi Switch Pro XG 48 - 32x10GbE, 16x2.5GbE, 4x25G SFP28
Ubiquiti
Ubiquiti UniFi Switch Pro XG 48 - 32x10GbE, 16x2.5GbE, 4x25G SFP28
The Ubiquiti UniFi Switch Pro XG 48 is a professional-grade Layer 3 switch built for high-capacity networks that need advanced routing and multi-gigabit connectivity across dozens of ports. It combines 32 × 10GbE RJ45, 16 × 2.5GbE RJ45, and 4 × 25G SFP28 uplinks in a single 1U rack form factor, with built-in DC power backup to maintain uptime during mains failure.
Why this product
48 ports, three speed tiers
32 × 10GbE RJ45, 16 × 2.5GbE RJ45, and 4 × 25G SFP28 ports let you build a network where switches, servers and workstations connect at the speed they need, without forcing everything onto one tier.
Layer 3 routing built in
Inter-VLAN routing, static IPv4 routes, and DHCP server run on the switch itself, so traffic between VLANs does not have to leave the hardware.

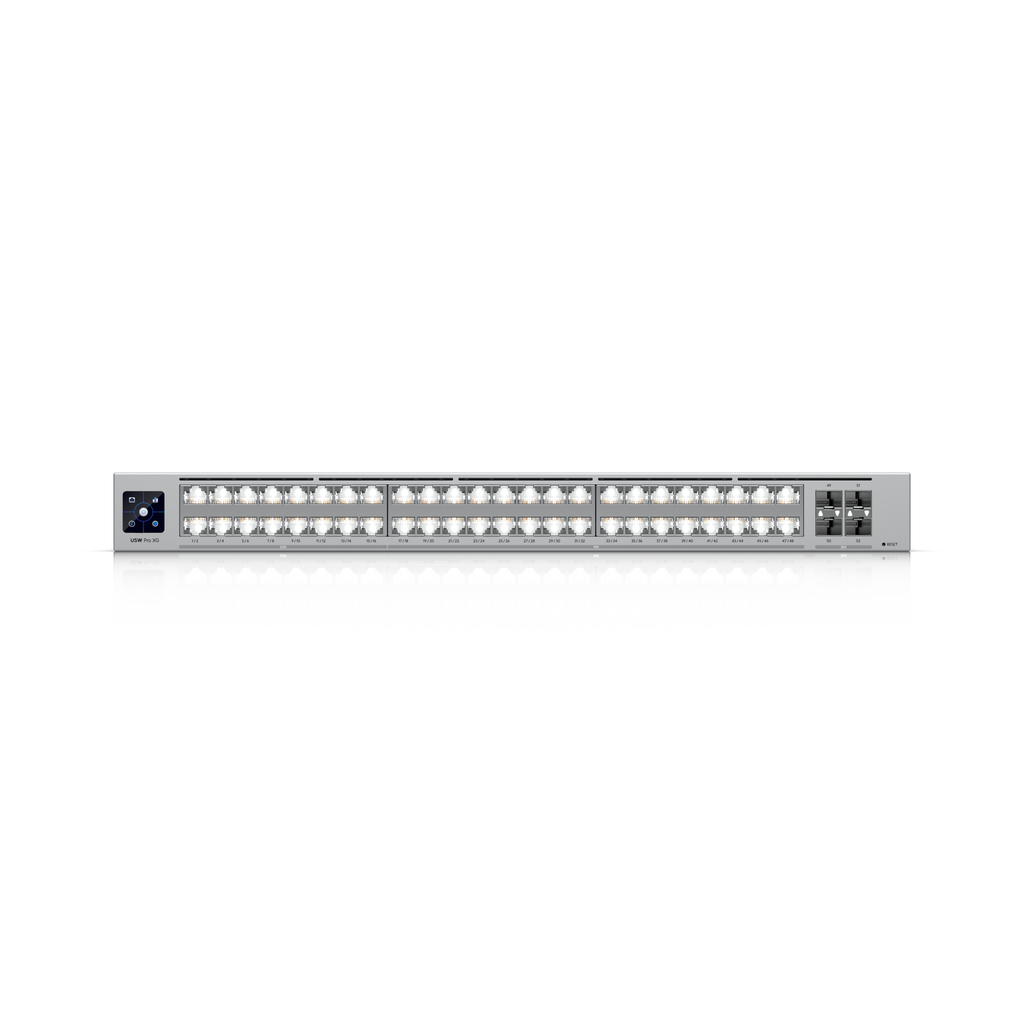

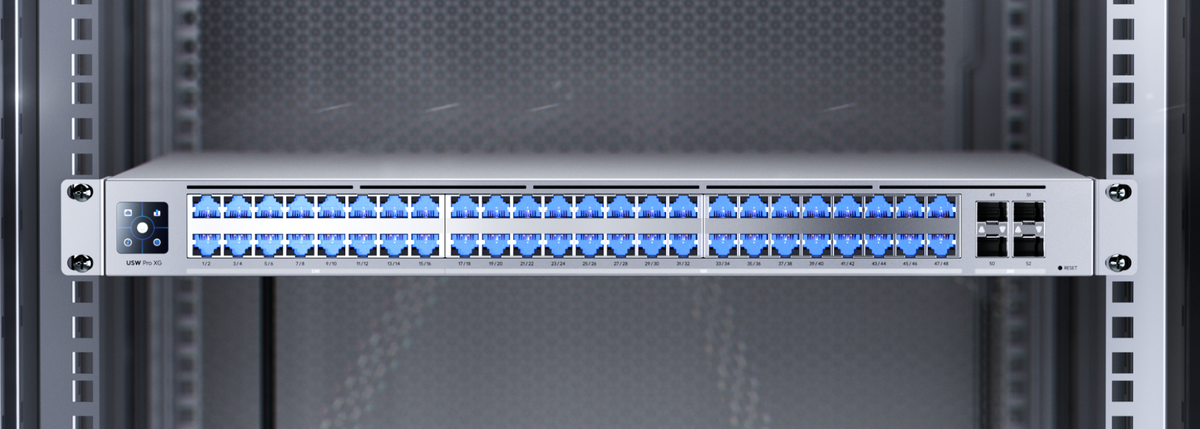

Etherlighting visual port status
LED rings around ports show VLAN membership or link speed at a glance, cutting troubleshooting and administration time in crowded installations.
DC power backup keeps it online
An optional universal DC supply ensures the switch stays live during power loss, triggering automatic failover to a redundant power rail.
920 Gbps switching capacity
460 Gbps non-blocking throughput and 684 Mpps forwarding rate support high-density deployments without oversubscription.

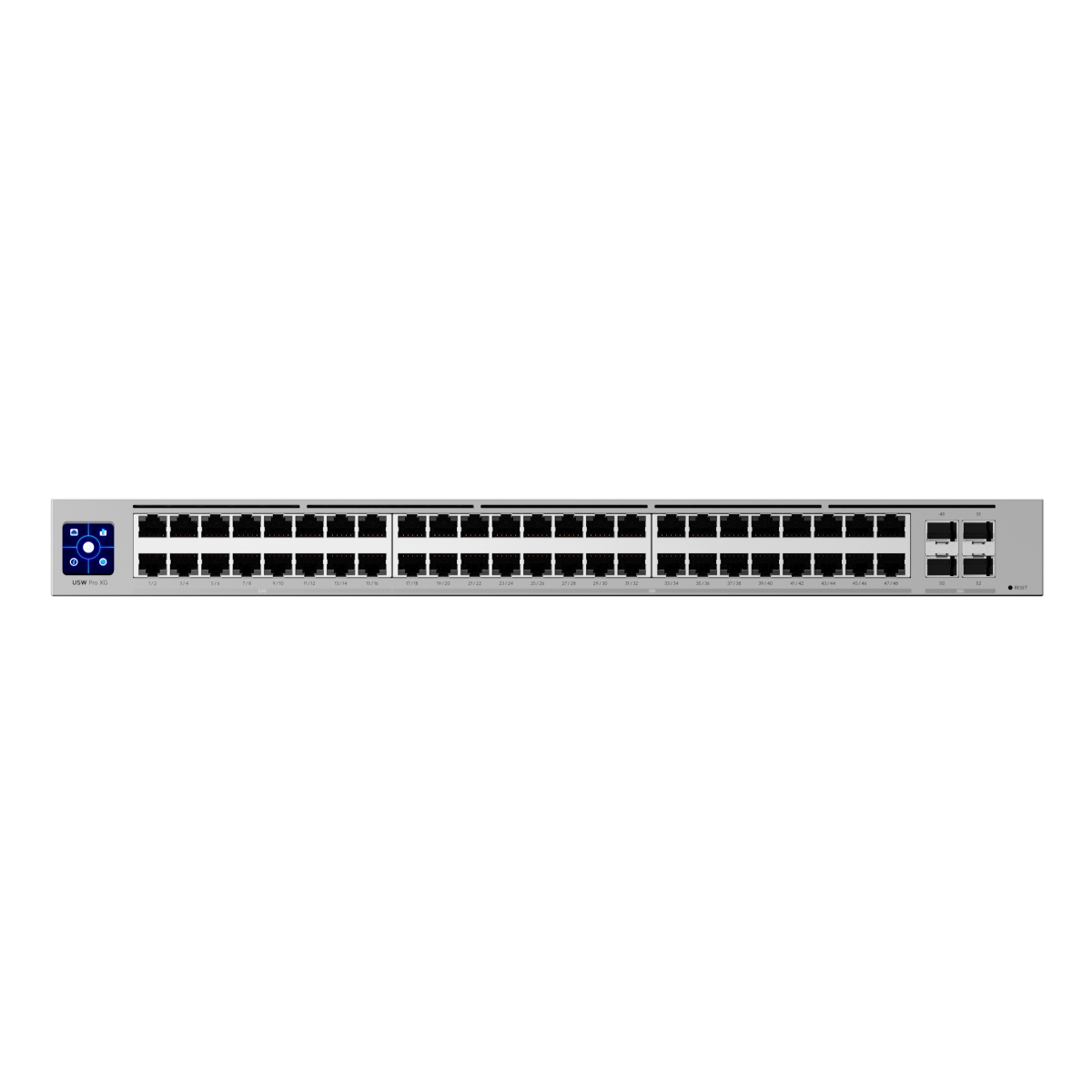

- Ports32 × 10GbE RJ45, 16 × 2.5GbE RJ45, 4 × 25G SFP28
- Switching capacity920 Gbps
- Non-blocking throughput460 Gbps
- Form factor1U rack mount
- Power backupDC UPS input
- Maximum power draw250W
- SKUUBI-1306
- EAN810177160748

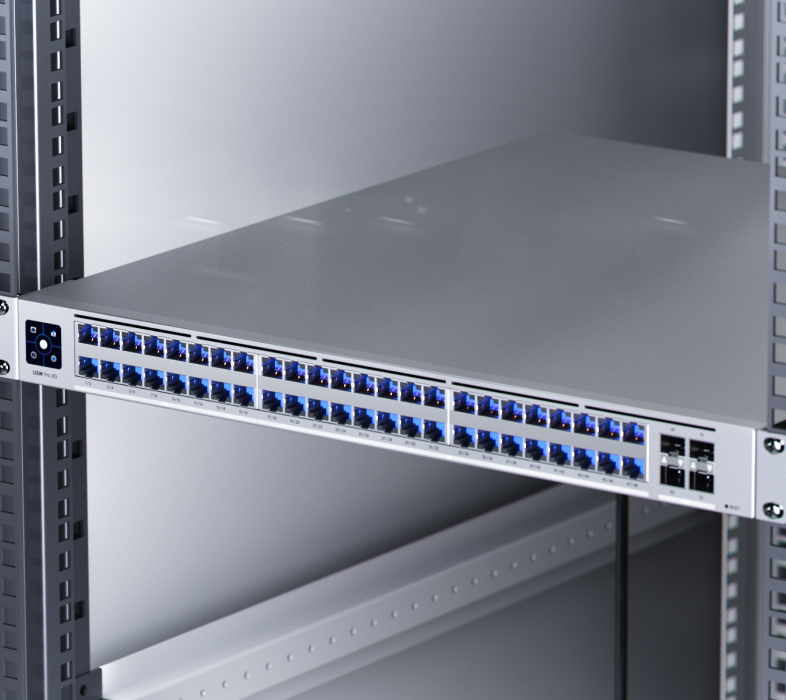

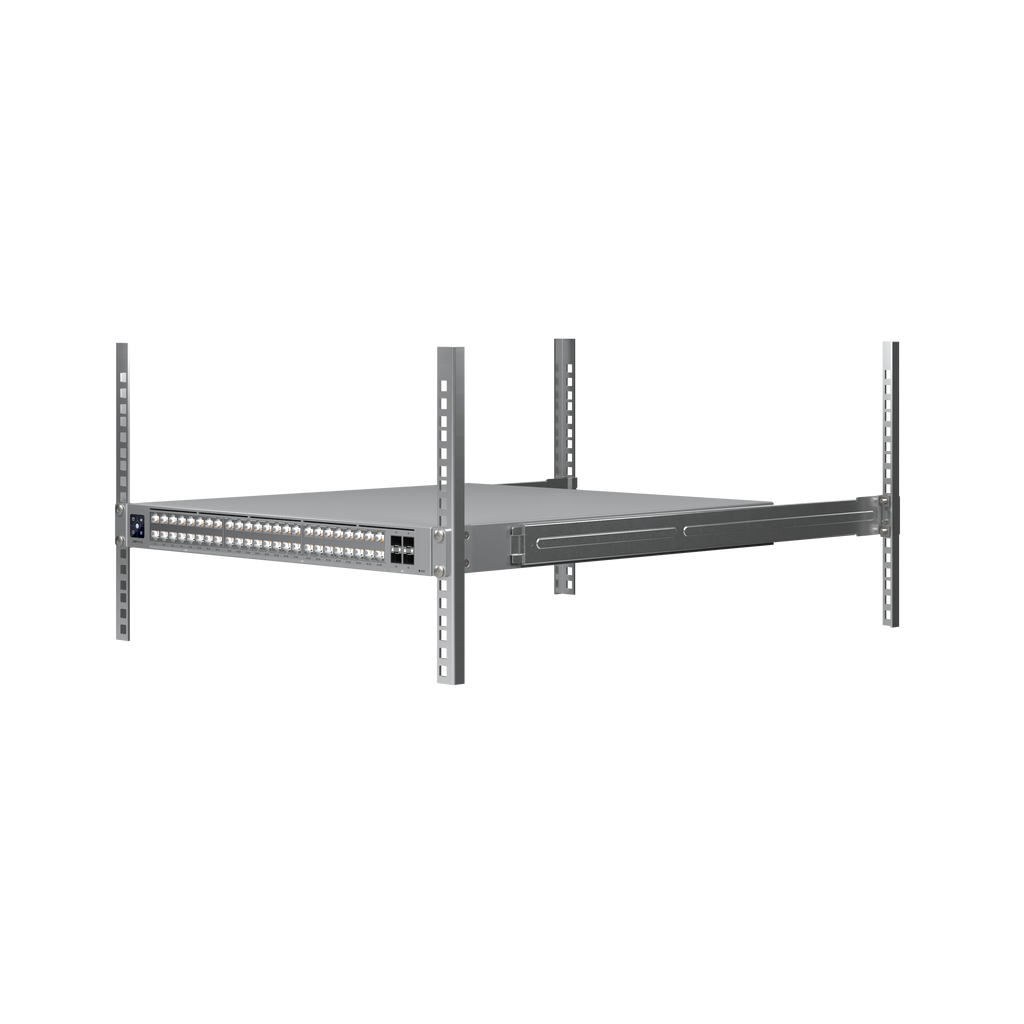

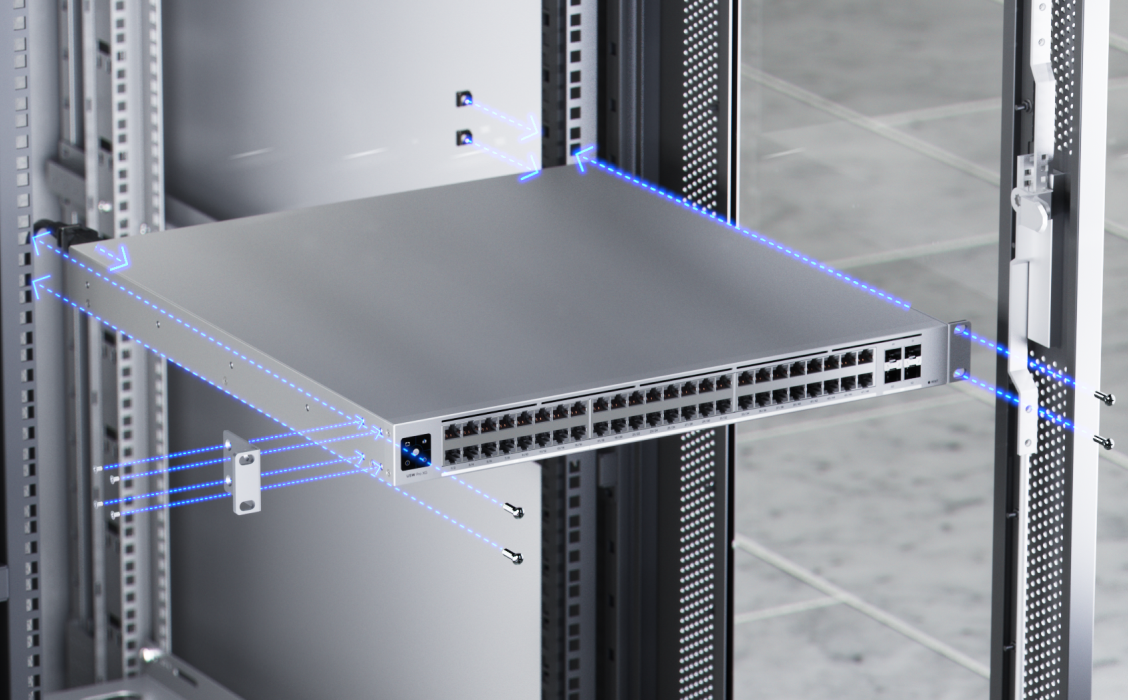

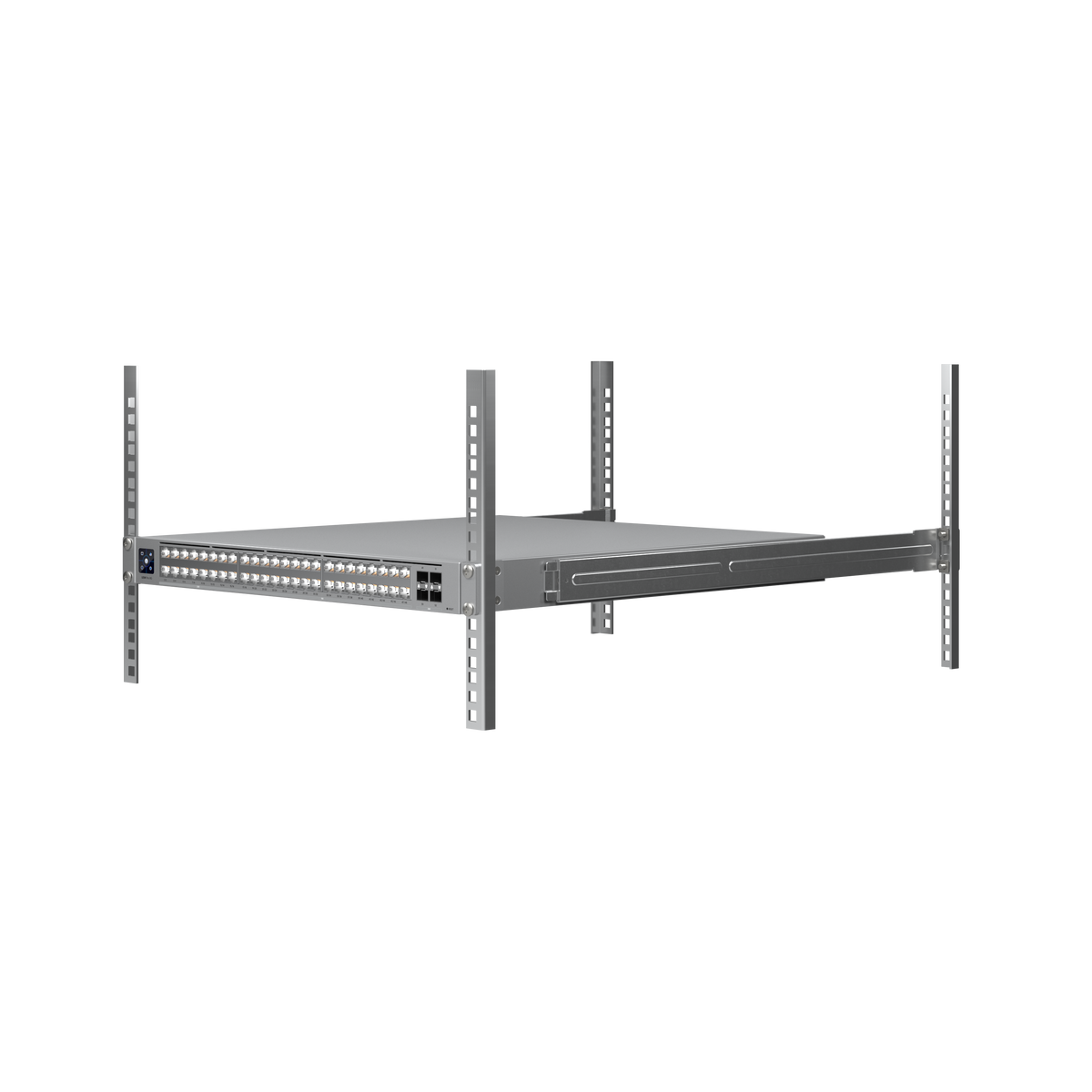

- Fits 19-inch four-post racks with post depths from 600 to 1,066 mm (23.6–42"), consuming 44 mm (1.7") of vertical space as a 1U appliance.
- Runs on UniFi Network version 9.0.114 or later, integrating with existing UniFi deployments.

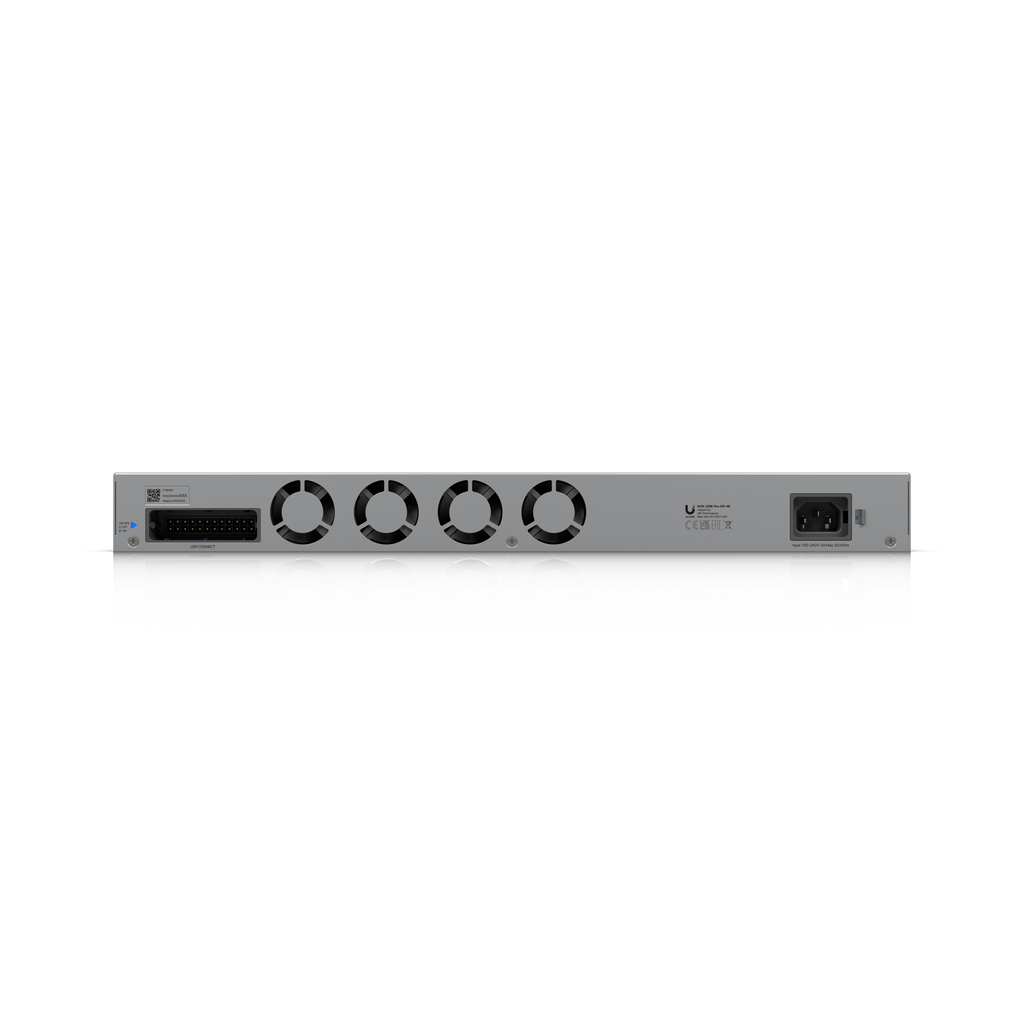

- Accepts mains power (100–240V AC, 50/60 Hz) or a separate DC UPS input for redundancy.
- NDAA-compliant for federal and defence procurement; carries CE, FCC and IC certifications.
Best for
- Large networks needing dense multi-speed connectivity without compromising throughput or requiring external aggregation.
- Deployments where VLAN segmentation and inter-VLAN routing happen on the switch itself, reducing latency and licensing costs.
- Data centres and server rooms where 25G uplinks between aggregation layers keep latency low and failover automatic.
- Installations that cannot tolerate downtime during mains failure, thanks to DC power backup and failover capability.
Trade-offs
- Small or branch offices where 48 ports and Layer 3 routing complexity exceed deployment needs.
- Unmanaged or basic switching — this is a professional platform built for advanced configuration and monitoring.
- Environments outside -5 to +40 °C — the switch cannot operate safely beyond this ambient temperature range.
- Facilities without 19-inch rack infrastructure — the 1U form factor requires standard four-post mounting.

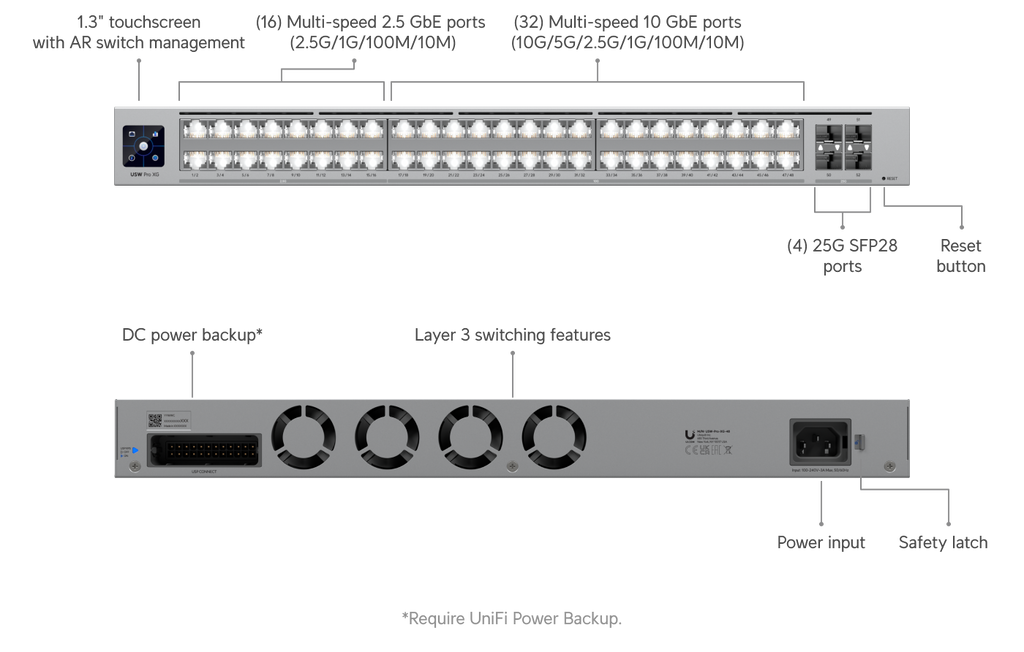

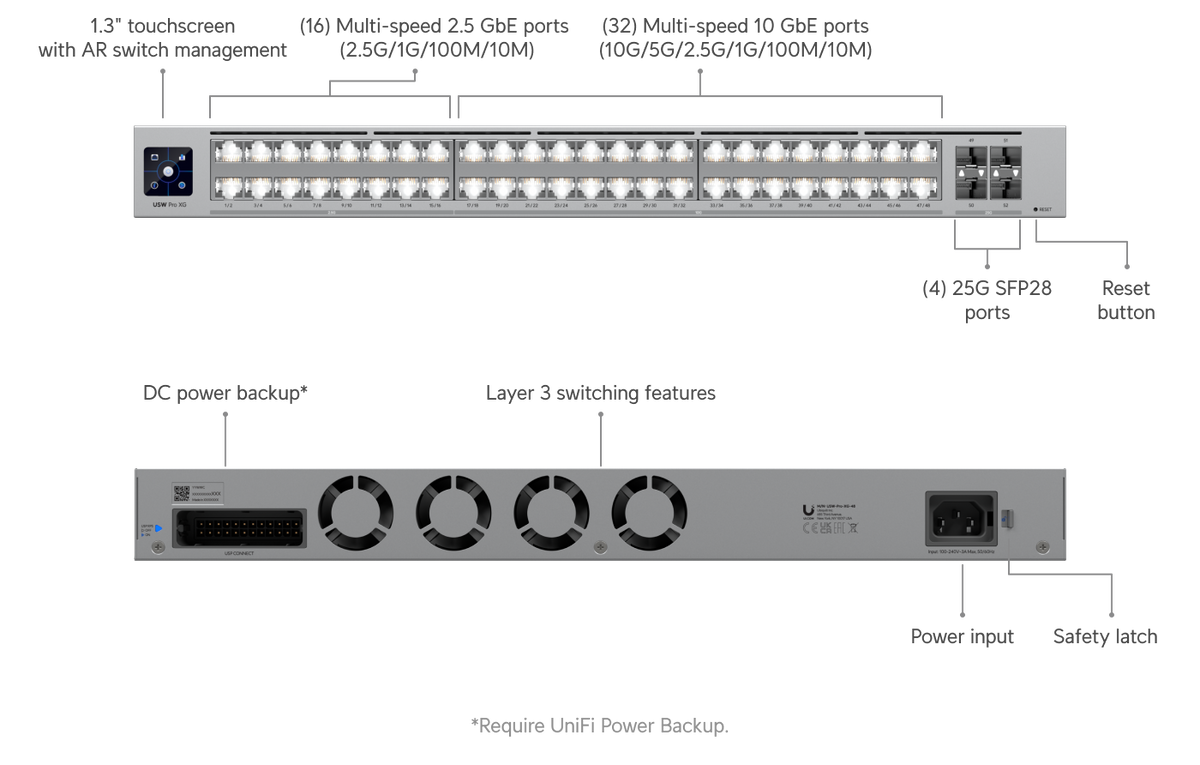

Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
The Pro XG 48, professional-grade Layer 3 switch, is designed for high-capacity networks requiring advanced Layer 3 features and multi-gigabit connectivity.

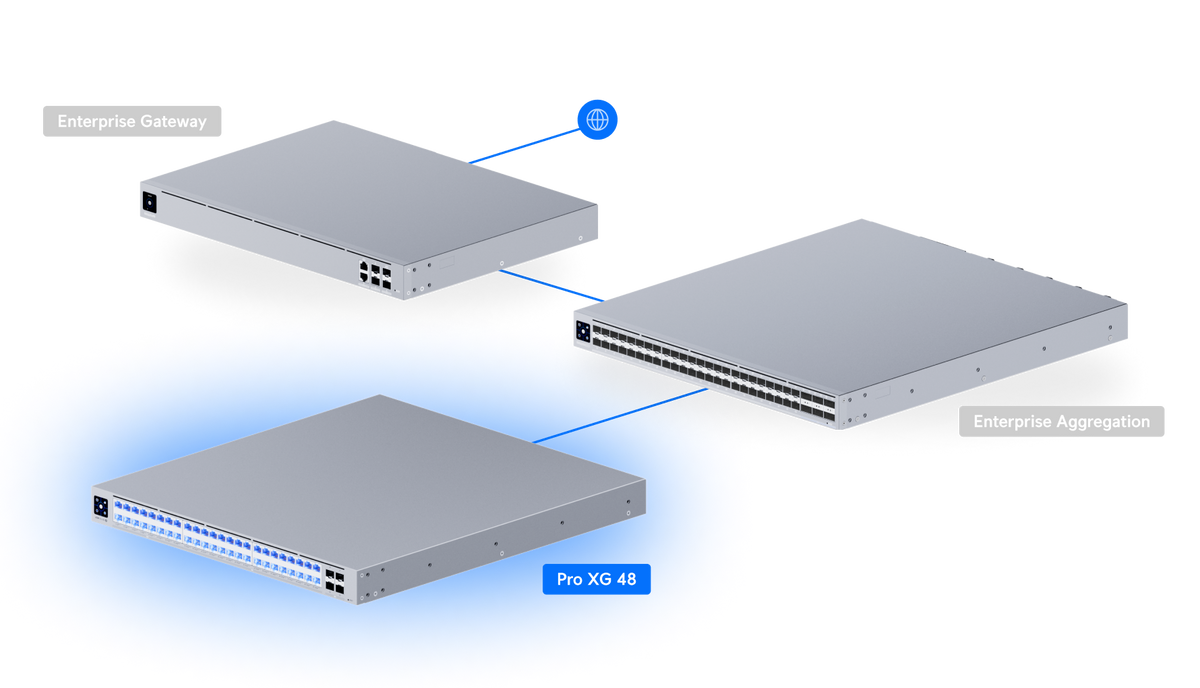

- 25 GbE Uplinks: Guarantees low latency and maximum throughput between aggregation switches, servers and workstations.
- Etherlighting: Identify VLANs or link speeds easily, making troubleshooting and network administration more efficient.
- Power Redundancy: The DC power backup maintains the switch online during power failures ensuring seamless backup and automatic failover.
Networking
| Brand | Ubiquiti |
|---|---|
| Standard | Layer 3 switching |
| Supported VLANs | 1,000 |
| MAC address table | 32,000 |
| IPv4 static routes | 512 |
| IPv4 access lists | 256 |
| MAC access lists | 256 |
| DHCP server | Yes |
| DHCP relay | Yes |
| Inter-VLAN routing | Yes |
Performance
| Switching capacity | 920 Gbps |
|---|---|
| Non-blocking throughput | 460 Gbps |
| Forwarding rate | 684 Mpps |
| Packet buffer | 8 MB |
Ports & power
| 10 GbE RJ45 ports (10G/5G/2.5G/1G/100M/10M) | 32 |
|---|---|
| 2.5 GbE RJ45 ports (2.5G/1G/100M/10M) | 16 |
| 25G SFP28 ports (25G/10G/1G) | 4 |
| Power method | Universal AC input (100–240V, 50/60 Hz); USP RPS DC input |
| Power supply | AC/DC, internal, 300W |
| Maximum power consumption | 250W |
| Redundancy | DC power backup |
Physical
| Form factor | Rack mount (1U) |
|---|---|
| Supported rack depth | 19-inch four-post, 600–1,066 mm (23.6–42") post depth |
| Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
| Weight (without brackets) | 7.5 kg (16.5 lb) |
| Weight (with brackets) | 7.6 kg (16.8 lb) |
| Enclosure material | SGCC steel |
| Display | 1.3" touchscreen |
| ESD/EMP protection | Air ±30 kV, contact ±14 kV |
| Operating temperature | -5 to 40 °C (23 to 104 °F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA compliant | Yes |
