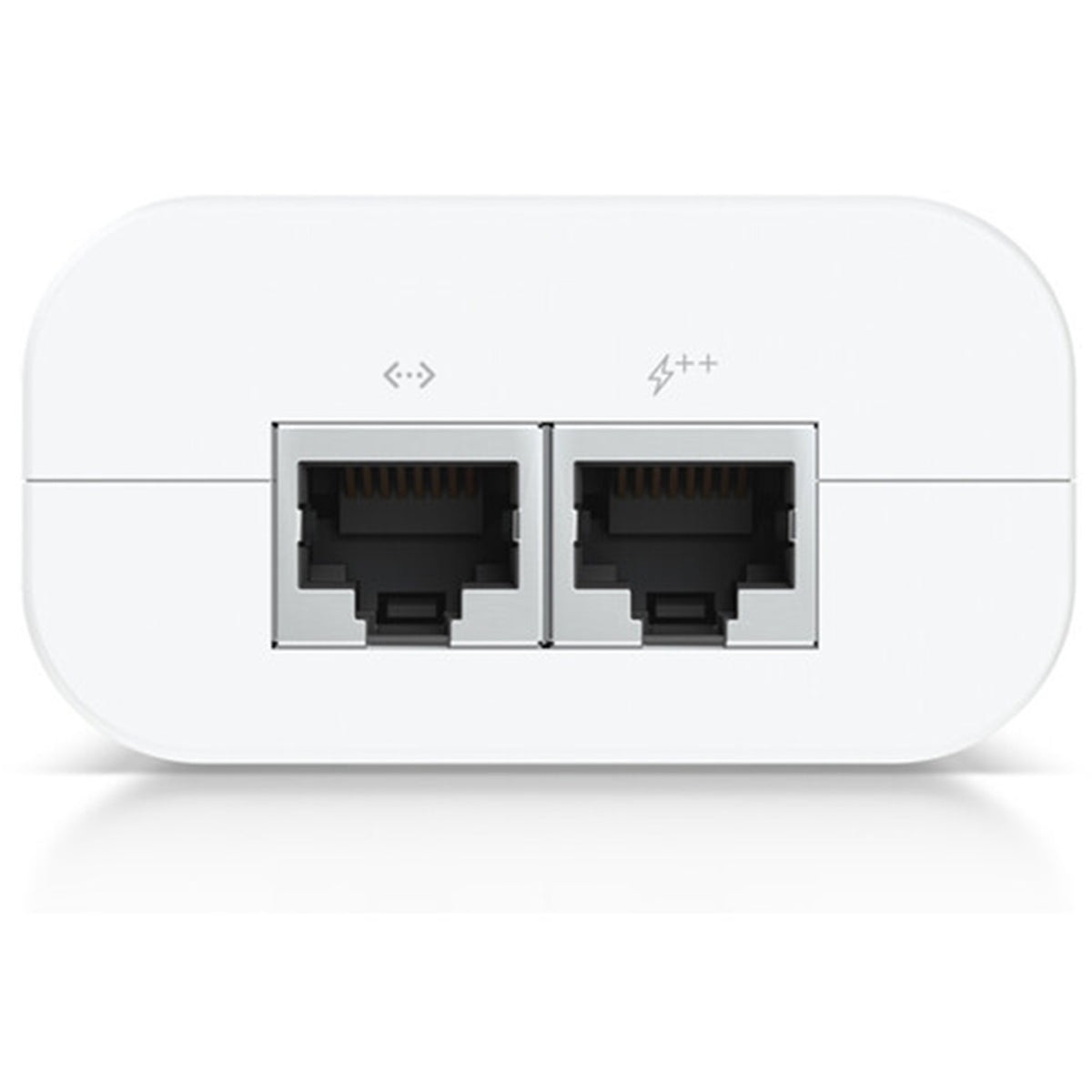

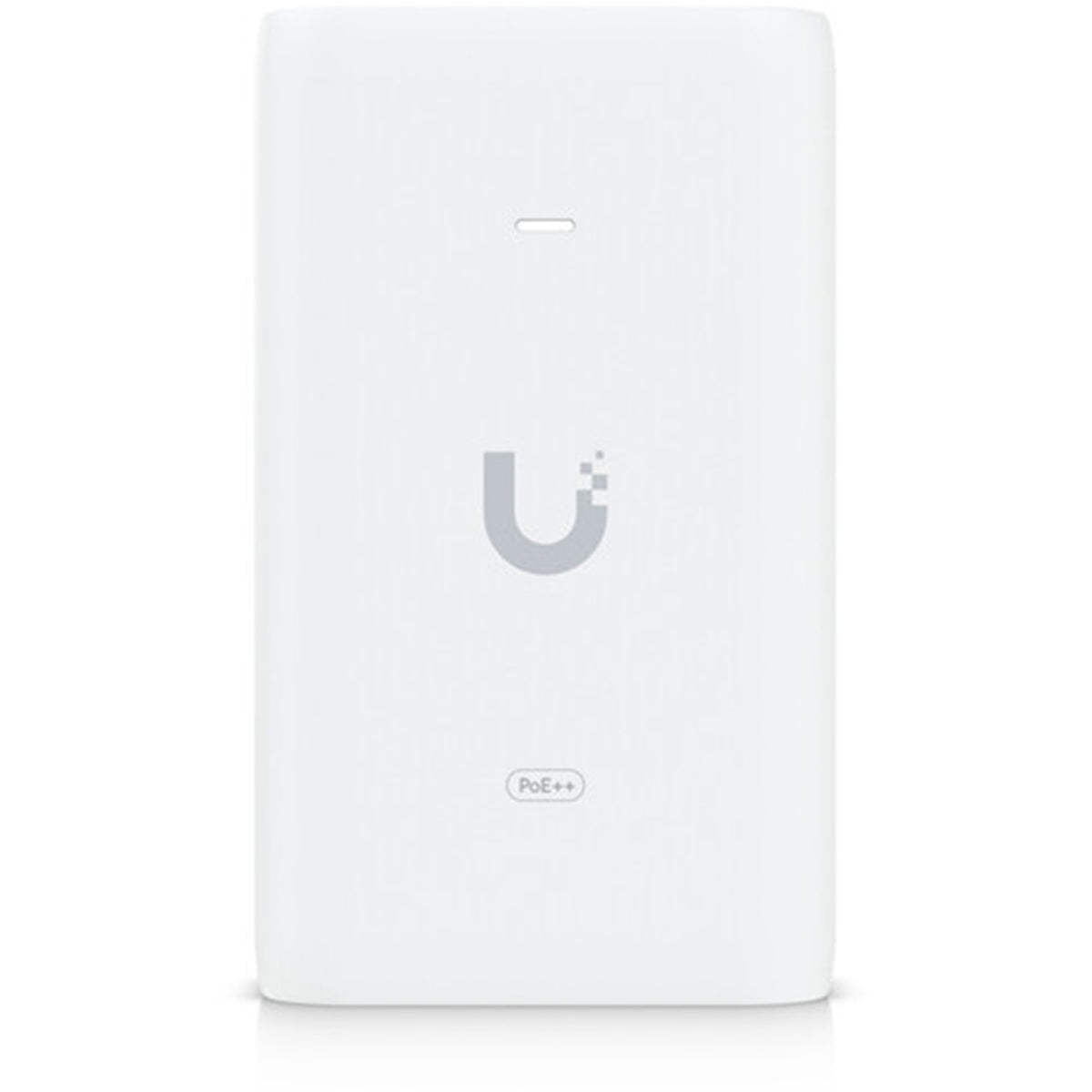

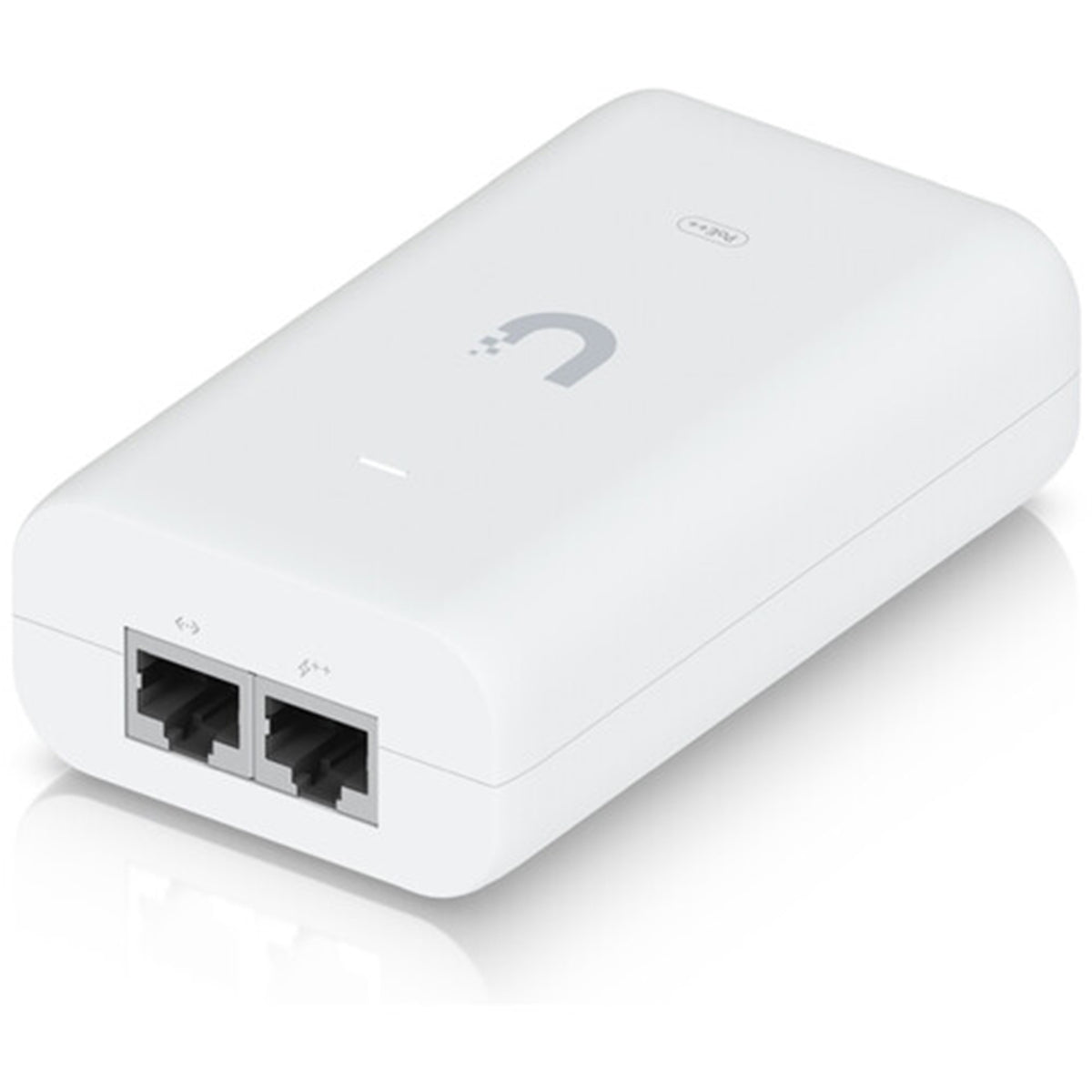

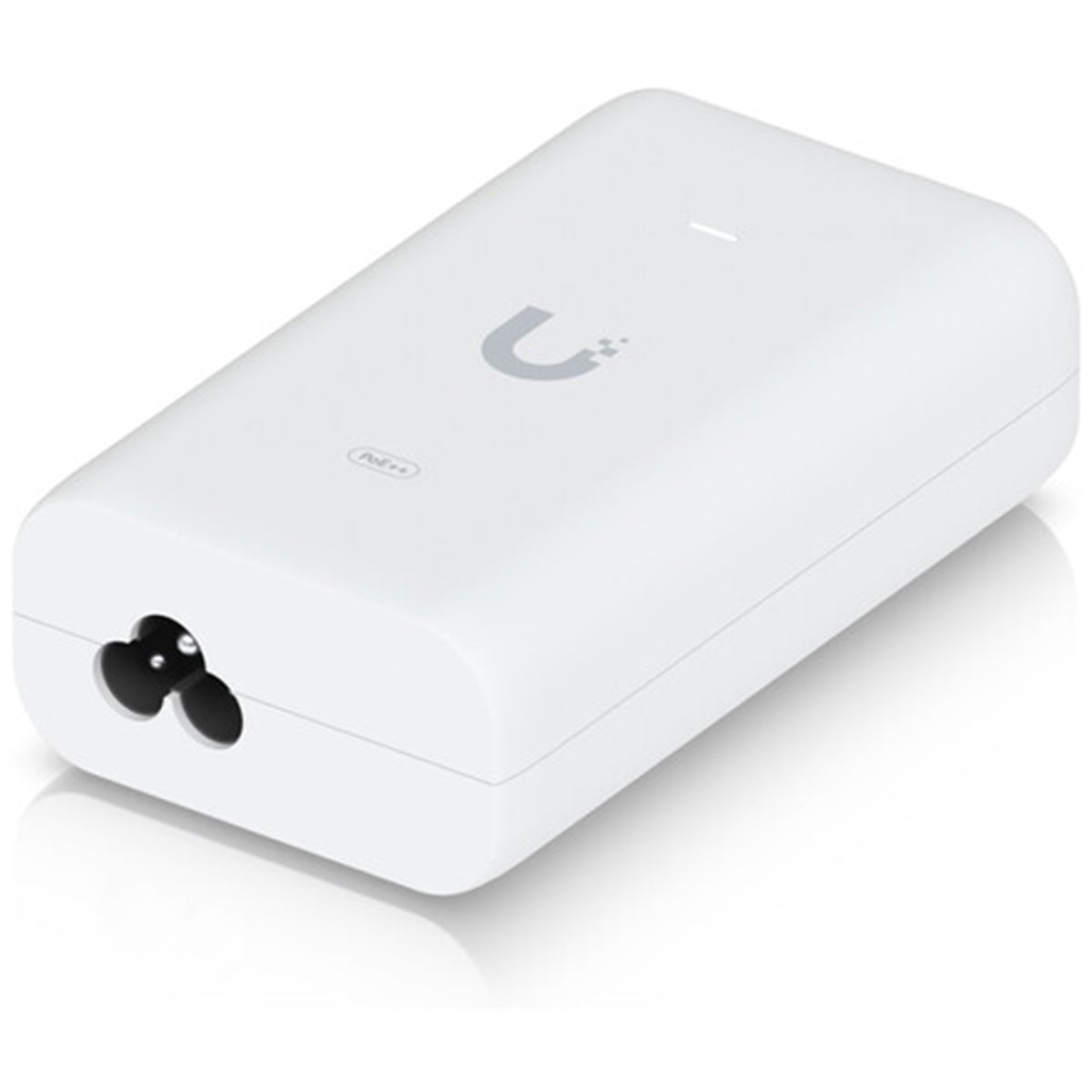

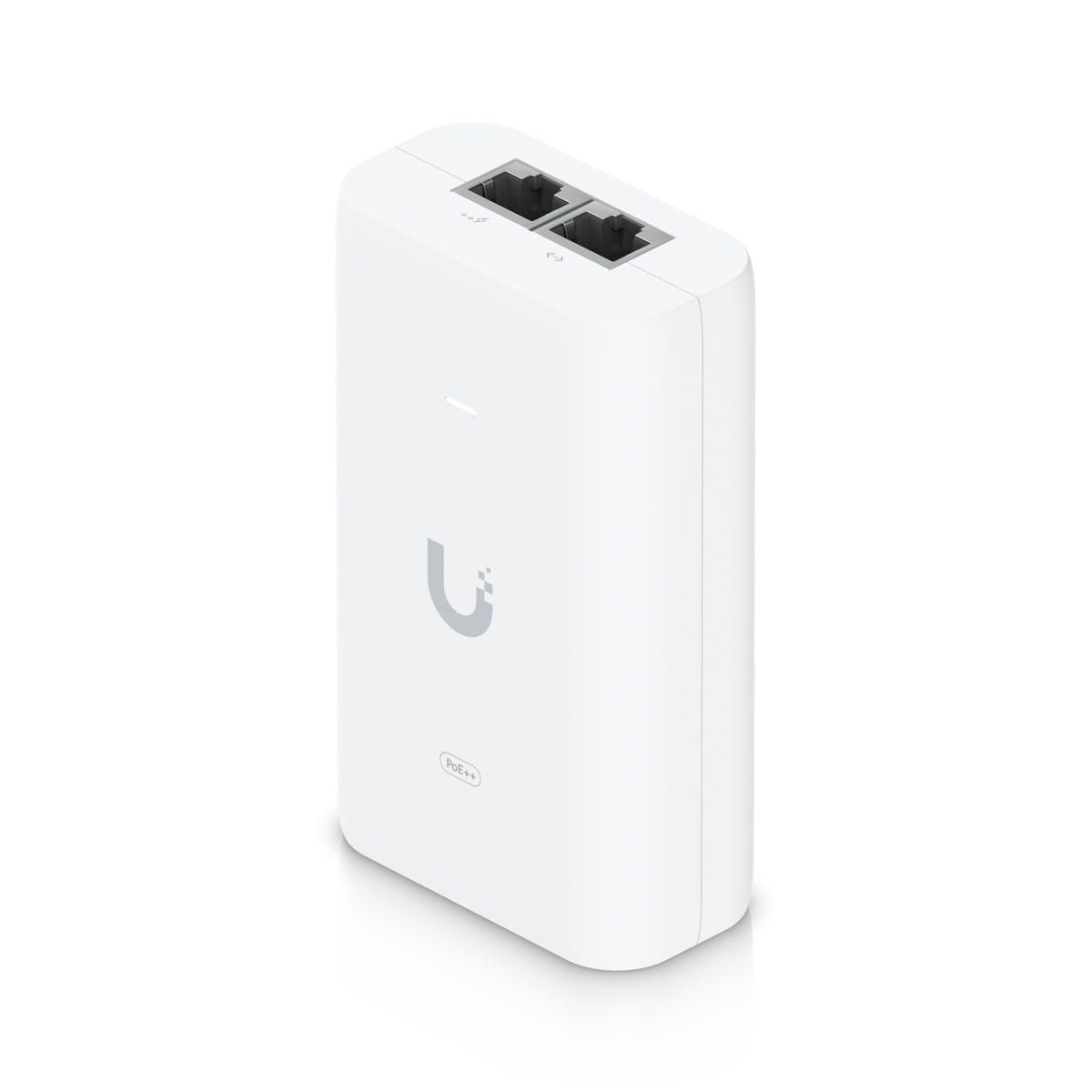

Ubiquiti UniFi U-PoE++ 802.3bt 60W PoE Injector Adapter
Ubiquiti
Ubiquiti UniFi U-PoE++ 802.3bt 60W PoE Injector Adapter
The Ubiquiti UniFi U-PoE++ PoE++ Adapter (60W) is a wall-plug injector designed for network installers and IT administrators who need to power UniFi PoE++ devices — such as wireless mesh access points — without relying on a PoE-capable switch. It injects up to 60W of 802.3bt-class power inline between an existing data run and the powered device, letting it offload power delivery from the switch entirely.
Why this product
Up to 60W PoE++ output
Delivers 48V DC at 1.25A over all four pairs, providing the full 60W budget required by high-demand UniFi PoE++ devices.
Built-in surge and overcurrent protection
Clamping protection, a 1500A max surge discharge rating, and peak pulse current handling guard connected equipment against power transients.
Universal AC input
Accepts 100–240V AC at 50/60 Hz, making it compatible with mains supplies worldwide without an additional adapter.
Gigabit LAN passthrough
A shielded RJ45 data input passes Gigabit Ethernet through to the PoE++ output port, so no data bandwidth is sacrificed.
Broad regulatory certifications
Carries CE, FCC, IC, UL, UKCA, KC, CCC and RoHS marks, covering deployment across most major markets.
- Max. PoE++ Output60W
- Output Voltage48V DC at 1.25A
- AC Input100–240V AC, 50/60 Hz
- Gigabit LANYes
- Efficiency85+%
- Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
- Weight210 g (7.4 oz)
- CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS
- SKUUBI-483
- EAN810084691762
- Compatible with UniFi PoE++ devices that require up to 60W over 802.3bt 4-pair powering.
- Works with any Gigabit Ethernet data source via its shielded RJ45 input socket.
- Connects to mains via an IEC-320 C6 AC connector with included power cable; universal 100–240V AC input suits most regions.
- Intended for indoor use only; operating temperature is rated 0 to 40°C and humidity up to 95% noncondensing.
- Not a substitute for a managed PoE switch — it provides no switching, VLAN, or PoE management functions.
Best for
- Wireless mesh deployments where a PoE++ access point must be placed away from a switch and only a data run and mains outlet are available.
- Offloading switch power budgets — adding this injector frees up wattage on an existing PoE switch for other ports.
- Multi-region installers who need a single injector model that works on both 120V and 230V mains circuits.
- Environments with transient risk, such as installations near industrial equipment, where surge and peak pulse protection is a priority.
Trade-offs
- Devices requiring more than 60W — the output is capped at 60W and cannot power equipment with a higher draw.
- Outdoor or high-temperature locations — the adapter is rated only up to 40°C ambient and is not weatherproof.
- Non-Gigabit legacy networks where the Gigabit LAN passthrough would be underutilised and a simpler injector suffices.
- Installations requiring PoE management or monitoring — this is a passive injector with no software integration or port management.
An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
General
| Brand | Ubiquiti |
|---|---|
| Model | U-PoE++ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
Connectors
| Data In / PoE Out | RJ45 Shielded Socket |
|---|---|

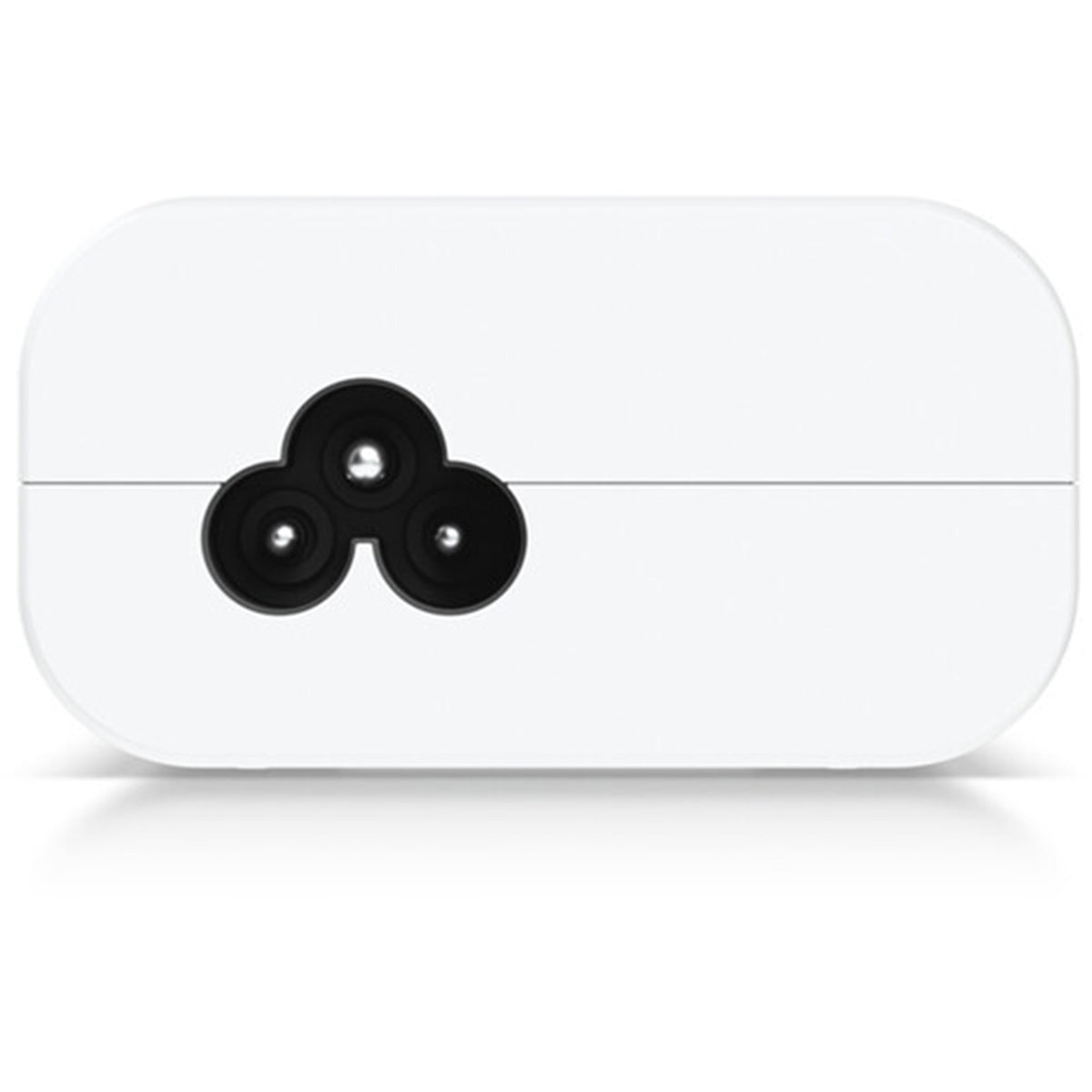

| AC Connector | IEC-320 C6 |
| Power Cable | Included |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
Performance
| Max. PoE++ Output | 60W |
|---|---|
| Output Voltage | 48V DC at 1.25A |
| Rated Input Voltage | 100–240V AC at 50/60 Hz |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC; <200A peak @ 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Clamping Protection | 11V Data, 60V power |
Physical & Environmental
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
|---|---|
| Weight | 210 g (7.4 oz) |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
