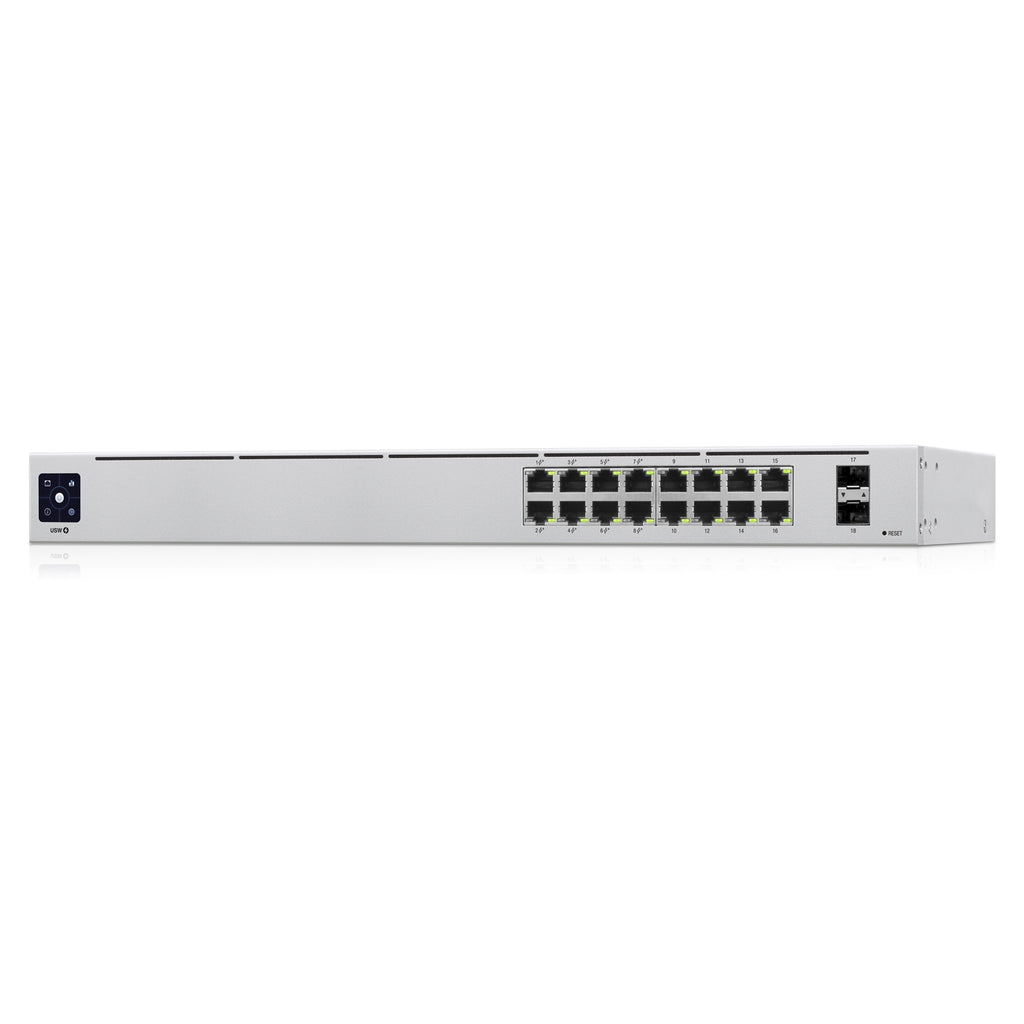

Ubiquiti USW-16-POE UniFi 16-Port PoE+ Gigabit Switch
Ubiquiti
Ubiquiti USW-16-POE UniFi 16-Port PoE+ Gigabit Switch
The Ubiquiti USW-16-POE is a 16-port managed Gigabit switch designed for small office and rack environments that need to power networked devices over Ethernet. Eight of its ports supply PoE+ power at up to 30W per port; the other eight are standard data ports, plus two SFP fiber uplinks. Its fanless design runs silently and fits in a single rack unit.
Why this product
Eight PoE+ ports with 42W budget
Each of the eight PoE+ ports delivers up to 30W to power cameras, access points, and other devices. The 42W total budget distributes across multiple devices simultaneously.
Fanless, silent operation
No moving parts means no noise and no filter maintenance—suitable for occupied spaces and server closets.
Compact 1U rack form factor
At 7.87 inches deep and 1U height, it fits standard network cabinets without extending beyond the depth needed for most installations.
Fiber uplink option with SFP ports
Two 1G SFP ports allow fiber connections to core infrastructure or longer-distance links where copper would exceed distance limits.
UniFi Network Controller management
Centrally configure, monitor, and manage the switch alongside other UniFi equipment via a web controller or mobile app.
- Ports8× 1GbE, 8× 1GbE PoE+, 2× 1G SFP
- PoE+ budget42W total
- Throughput18 Gbps non-blocking
- CoolingFanless (silent)
- Form factor1U rack-mountable
- Warranty2 years
- SKUUBI-1160
- EAN817882028547
- Powers and connects any 802.3at PoE+ device rated up to 30W—cameras, wireless access points, IP phones, and sensors.
- Connects to standard Gigabit Ethernet devices via the eight unpowered 1GbE ports and eight PoE+ ports.
- Uplinks via 1G SFP fiber ports to core switches or ISP equipment with SFP cage support.
- Requires a UniFi Network Controller (cloud or on-premises) to enable advanced Layer 2 features such as LACP, STP, and 802.1X; basic switching works without it.
- Not suitable for PoE devices requiring more than 30W per port or for 10Gbps and faster equipment.
Best for
- Small offices and branch sites needing to power multiple wireless access points and cameras from a single compact unit.
- Rack cabinets in server closets or network rooms where silent operation is valued and fan noise must be avoided.
- Deployments already built on UniFi infrastructure seeking to add a managed Gigabit PoE switch under unified control.
- Edge and remote sites where total power consumption and cooling overhead must be minimized.
Trade-offs
- High-density PoE demand. With 42W total PoE budget, it cannot simultaneously power eight 30W devices; prioritize devices by power class.
- Fiber-first networks. Only two SFP uplinks are available; a switch with more fiber ports suits large fiber deployments.
- 10Gbps or faster equipment. All ports are Gigabit (1Gbps); upgrading to 10G requires a different switch.
- Standalone operation without a controller. Advanced features require UniFi Network Controller; basic switching only works without it.
- Devices exceeding 30W PoE ratings. The maximum PoE output is 30W per port; high-power devices must use separate power.
The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port.
Networking
| Brand | Ubiquiti |
|---|---|
| Layer | Layer 2 managed switch |
| Management | UniFi Network Controller with mobile app support |
| Standards | 802.3at PoE+, LACP, STP/RSTP, IGMP Snooping, 802.1X Control |
Performance
| Total throughput | 18 Gbps non-blocking |
|---|---|
| Power consumption (switch only) | 18W |
| Power consumption (with PoE output) | 60W maximum |
Ports & power
| Data ports | 8× 1GbE RJ45 |
|---|---|
| PoE+ ports | 8× 1GbE RJ45 PoE+ (802.3at) |
| PoE per port (max) | 30W |
| Total PoE budget | 42W |
| Uplink ports | 2× 1G SFP |
| Power input | Universal AC 100–240V |
| Power supply | Internal 60W AC/DC |
Physical
| Mounting | 1U rack-mountable |
|---|---|
| Dimensions | 442.4 × 200 × 43.7 mm (17.42 × 7.87 × 1.72 in.) |
| Weight | 2.80 kg (6.17 lb.) without brackets; 2.89 kg (6.37 lb.) with brackets |
| Enclosure | SGCC steel |
| Cooling | Fanless (silent) |
| Display | 1.3" touchscreen LCM |
| Warranty | 2 years |
| Certifications | CE, FCC, IC, Anatel; NDAA compliant |
