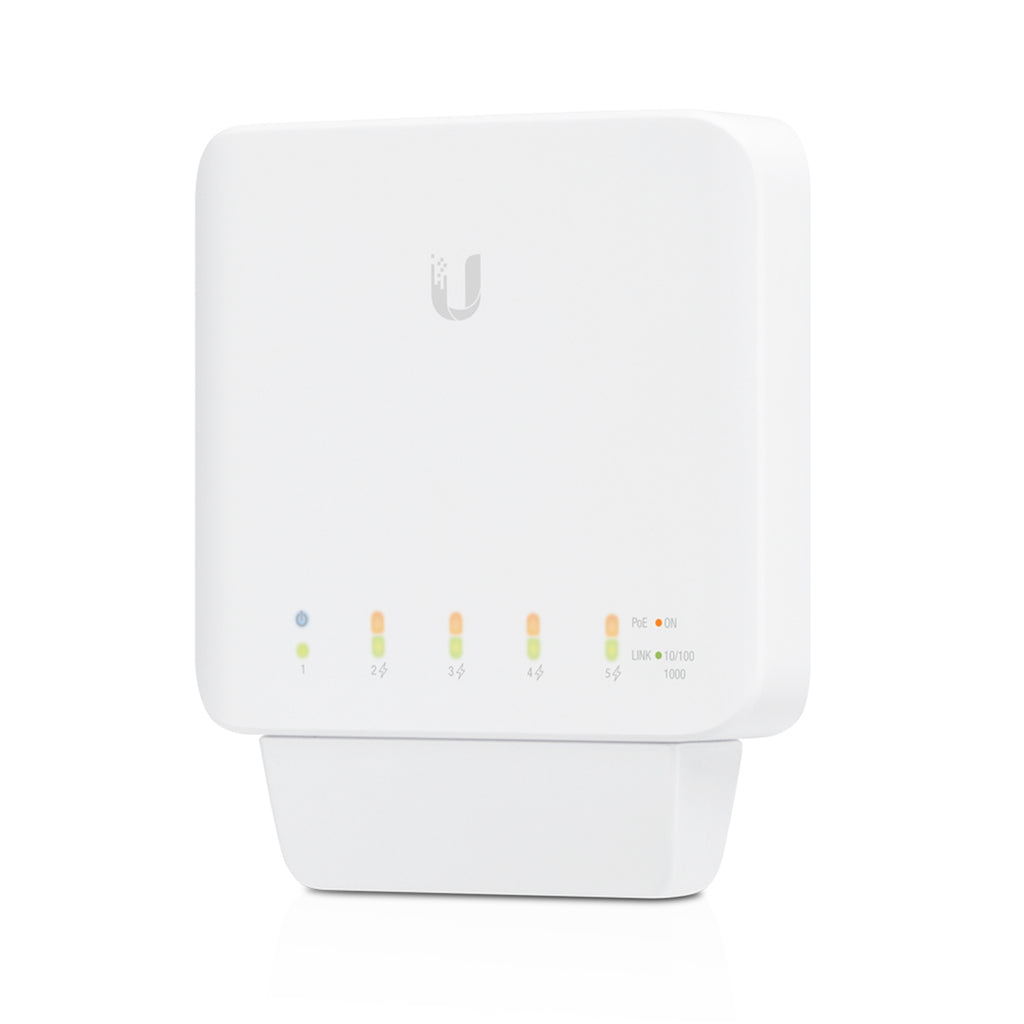

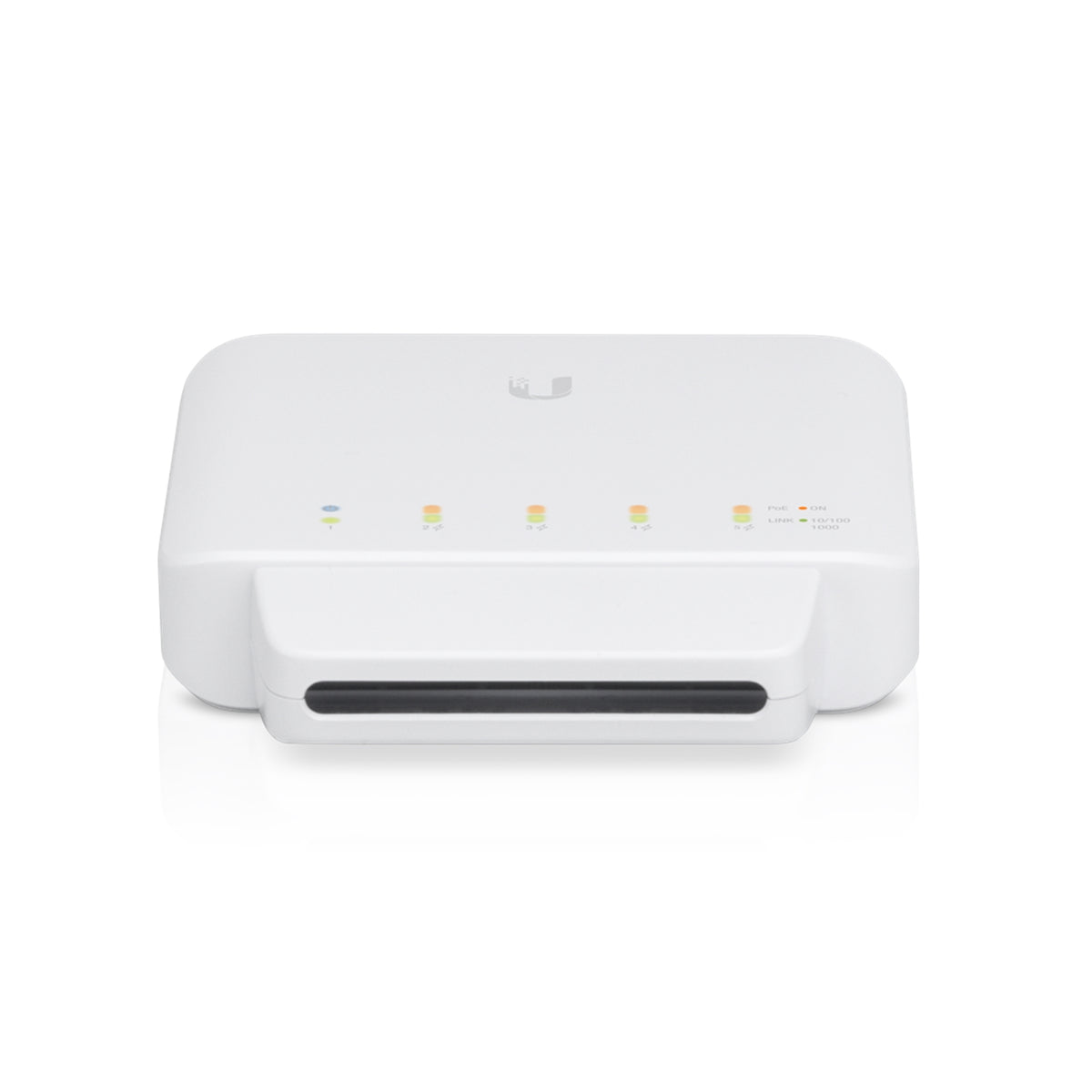

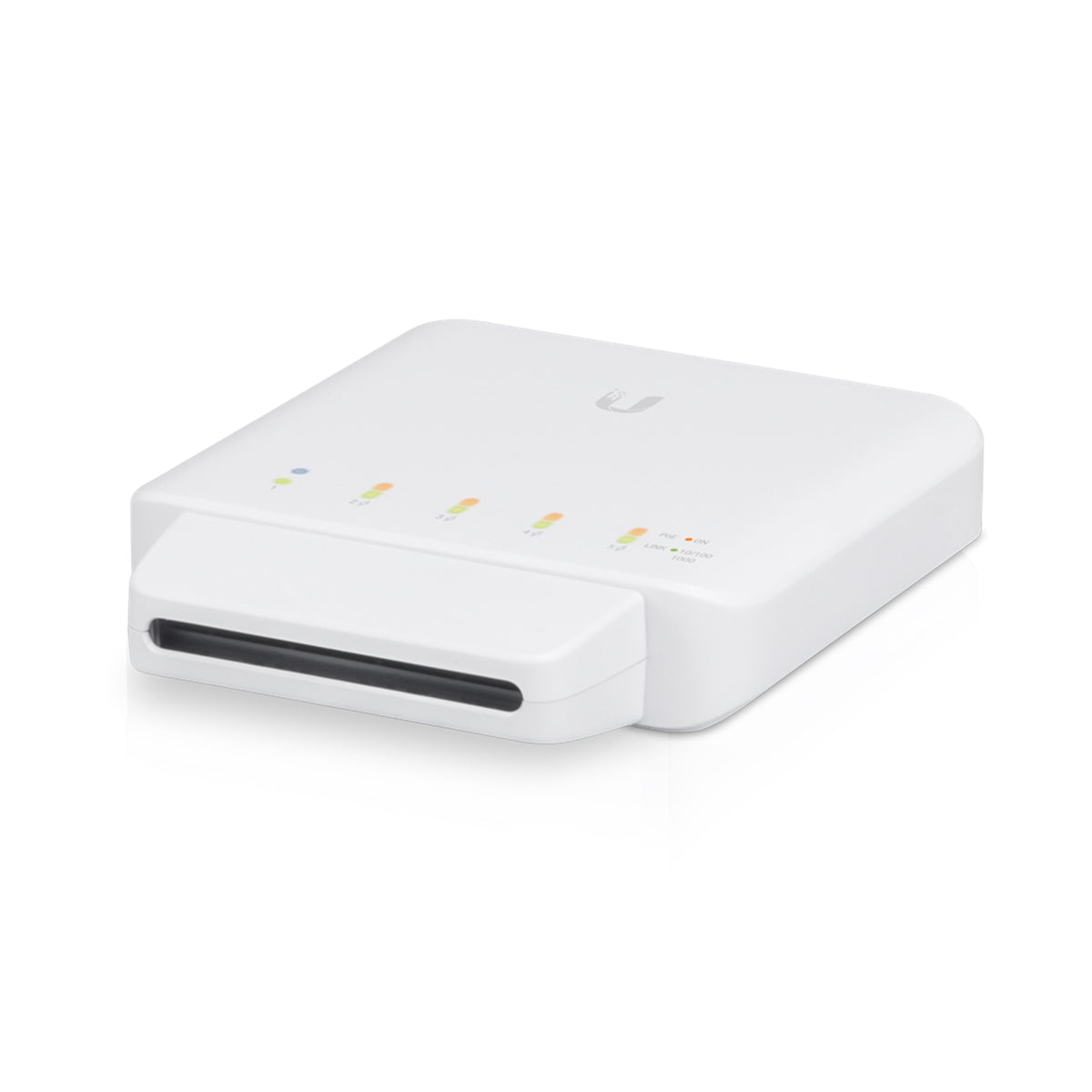

Ubiquiti USW-Flex UniFi Switch Flex 5-Port Gigabit PoE
Ubiquiti
Ubiquiti USW-Flex UniFi Switch Flex 5-Port Gigabit PoE

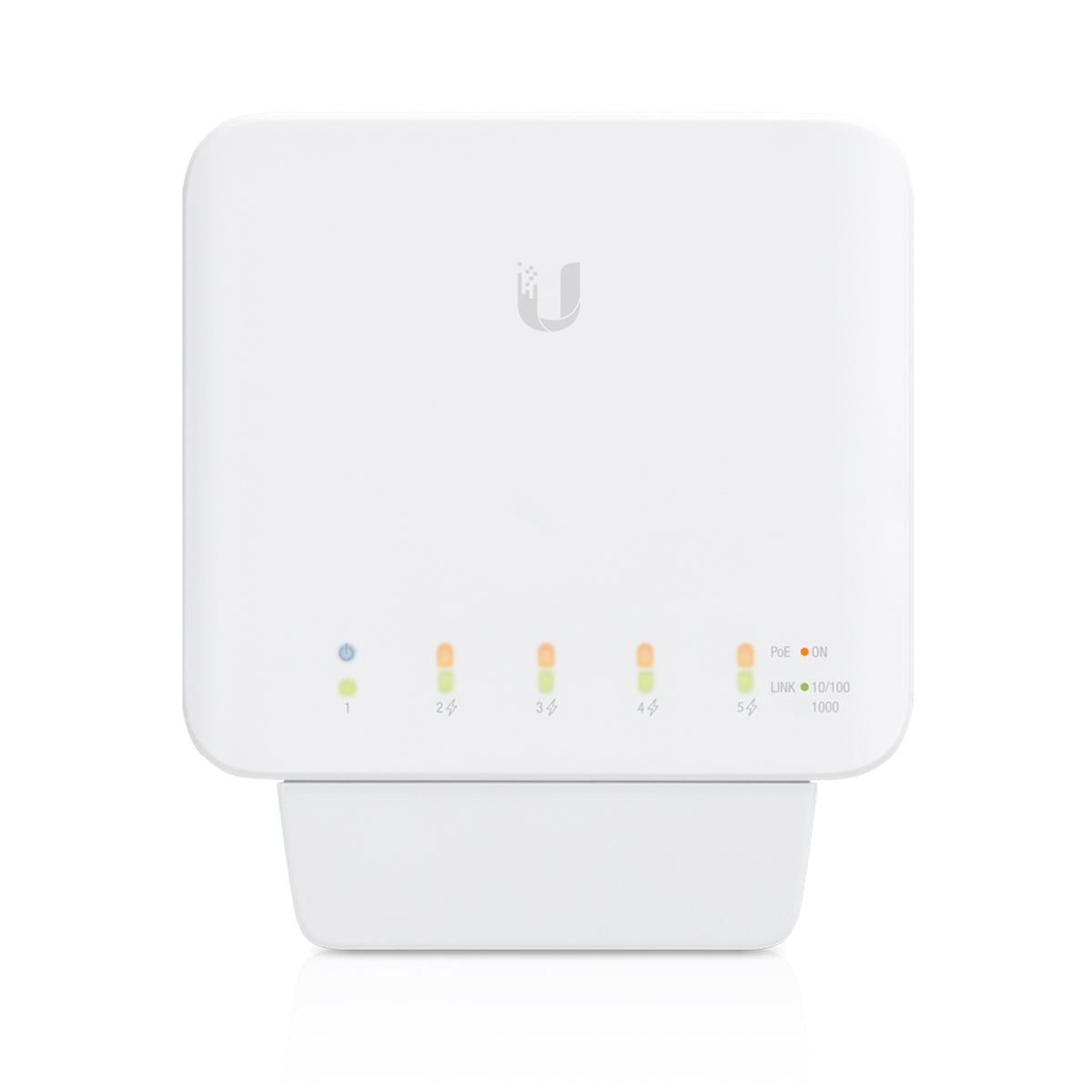

The Ubiquiti USW-Flex is a compact 5-port Gigabit PoE switch designed for small networks and remote deployments that need flexible power delivery. It accepts a single PoE++ input and distributes power across four downstream ports, eliminating the need for separate power supplies in tight spaces or outdoor installations.
Why this product
PoE passthrough from one input
A single PoE++ connection powers the unit and supplies up to 46W across four PoE+ output ports, reducing cable clutter in deployment.
Indoor and outdoor rated
Weatherproof design and compact form factor support mounting on walls, poles, or desktops in exposed locations.
Managed via UniFi Network app
Centralized monitoring and configuration through the same interface as other UniFi infrastructure, with support for VLANs, port mirroring, and rate limiting.
Multiple mounting options
Compact 122.5 × 107.1 × 28 mm frame fits desktop, wall, or pole installations without taking much space.

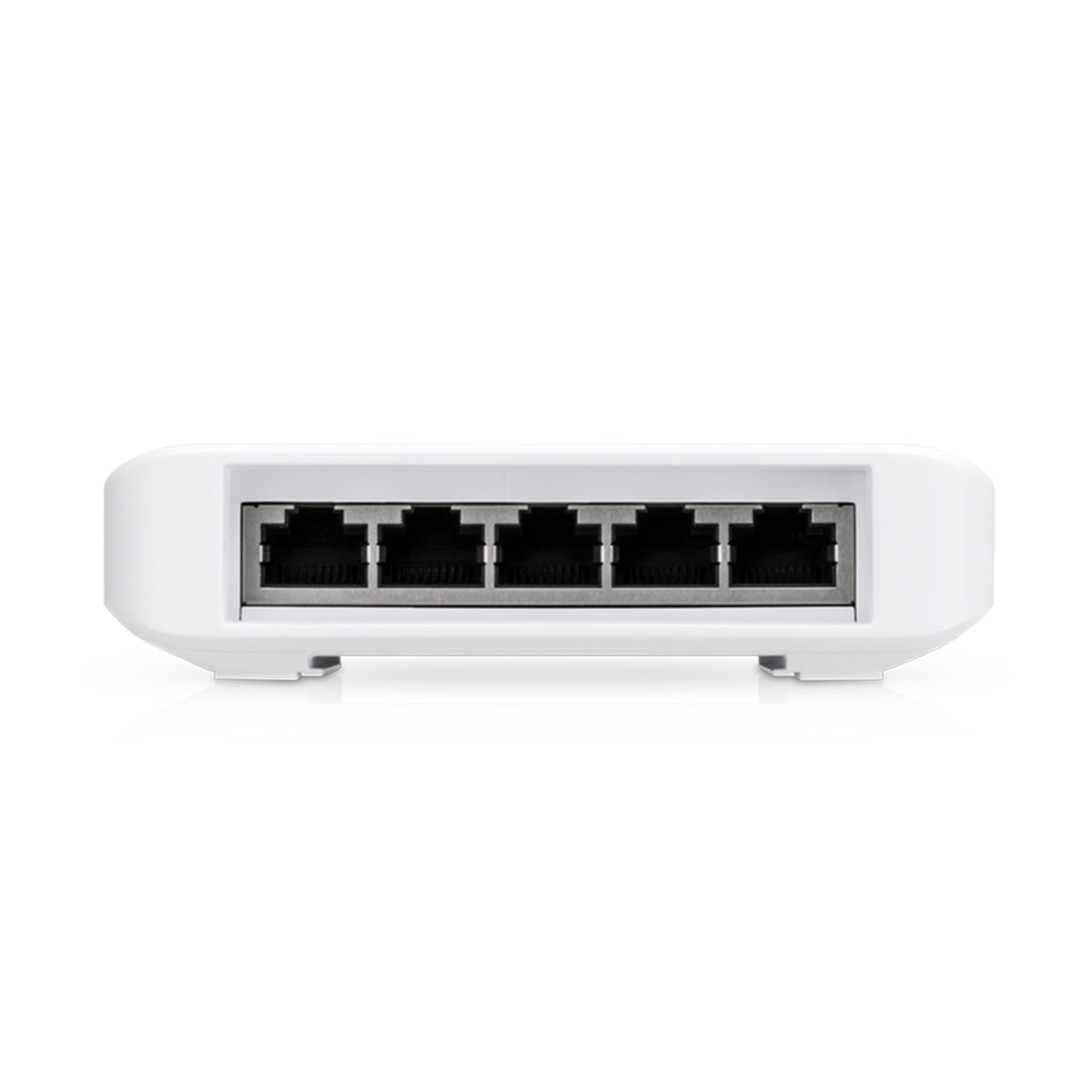

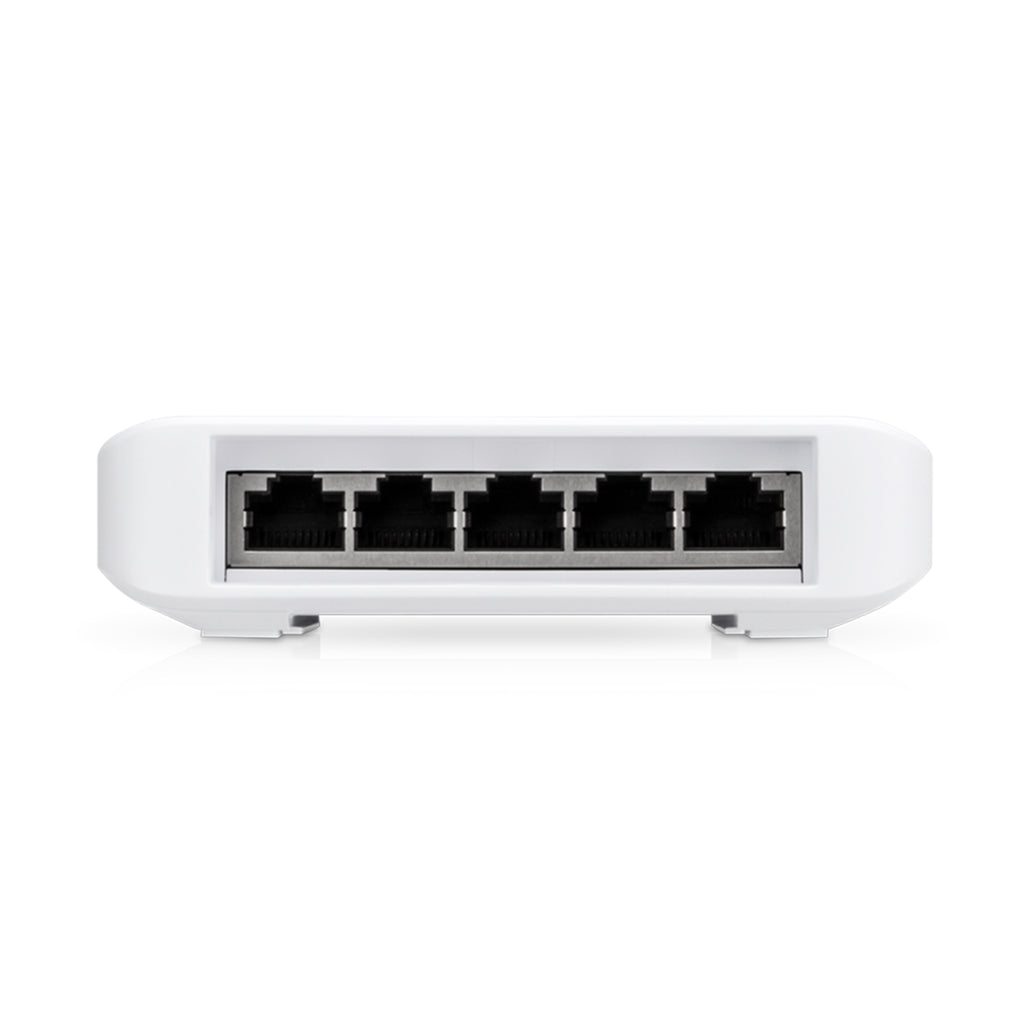

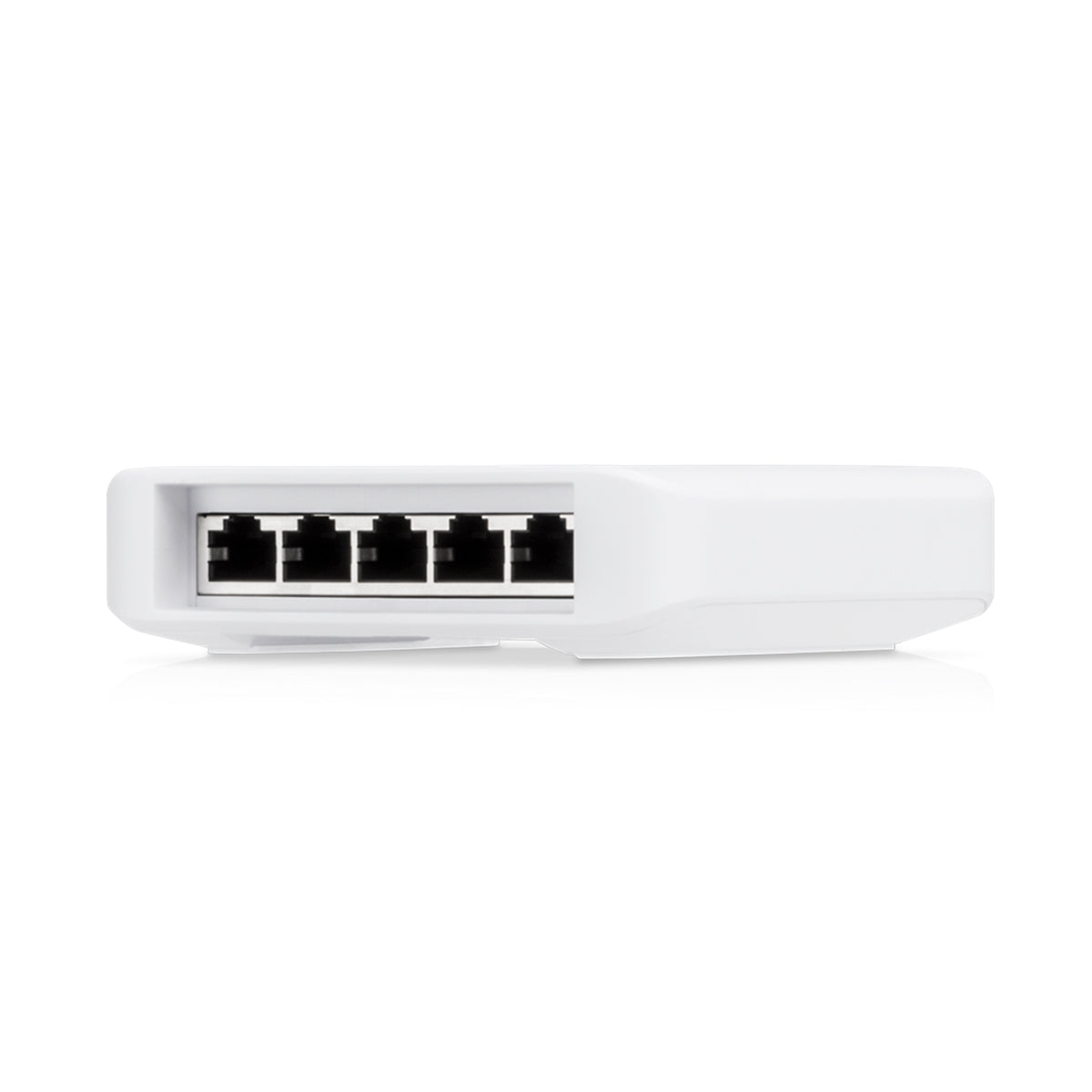

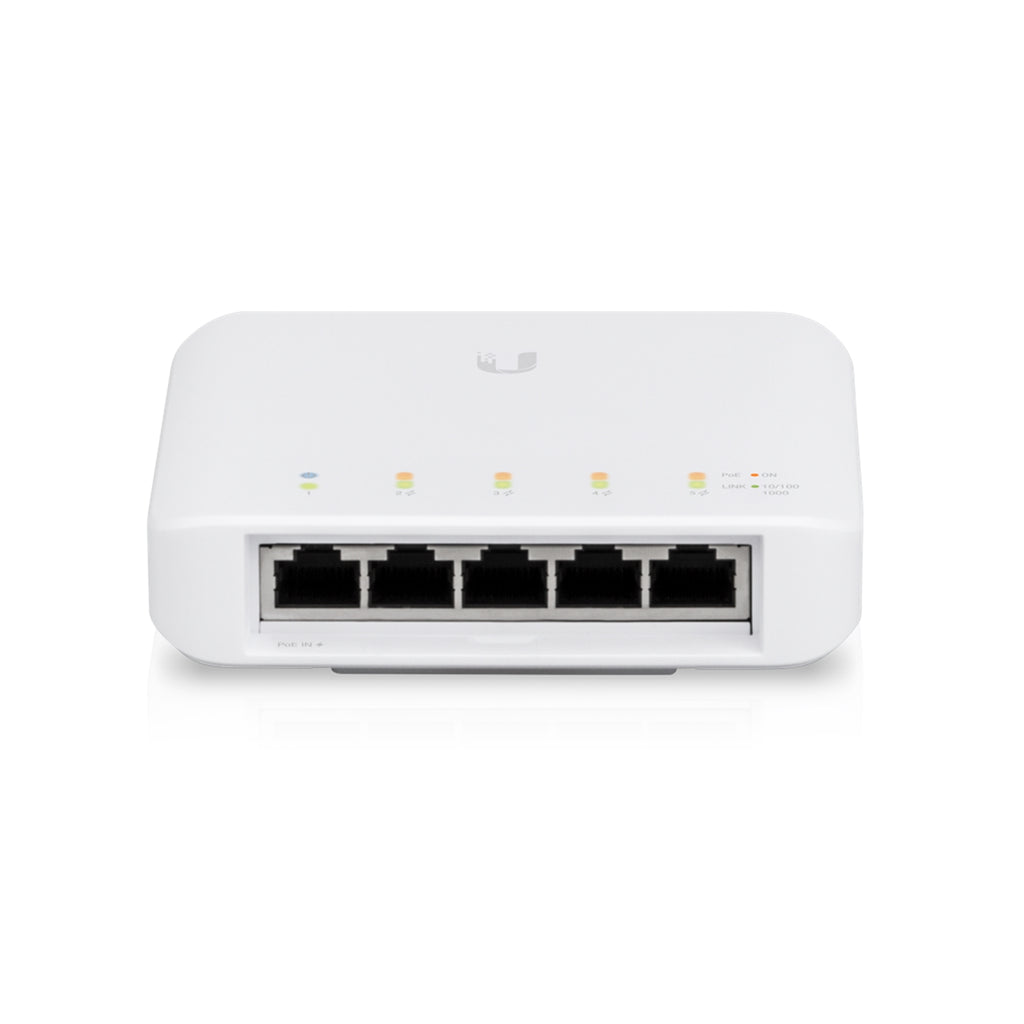

- Ports5 × Gigabit Ethernet (1 PoE++ input, 4 PoE+ output)
- Max PoE output46W with PoE++ input, 20W with PoE+ input, 8W with PoE input
- Switching capacity10 Gbps
- Non-blocking throughput5 Gbps
- Power consumption5W (switch only), 51W (with maximum PoE output)
- Warranty2 years
- SKUUBI-1201
- EAN817882027595
- Works with any PoE++ PSU or 60W PoE injector to reach its full 46W output capacity.
- Compatible with standard Gigabit Ethernet devices on all five ports.
- Managed through UniFi Network application version 5.10.3 or later.
- Maximum PoE output is limited to PoE+ per port; individual devices drawing more than PoE+ will not receive full power from this unit.
Best for

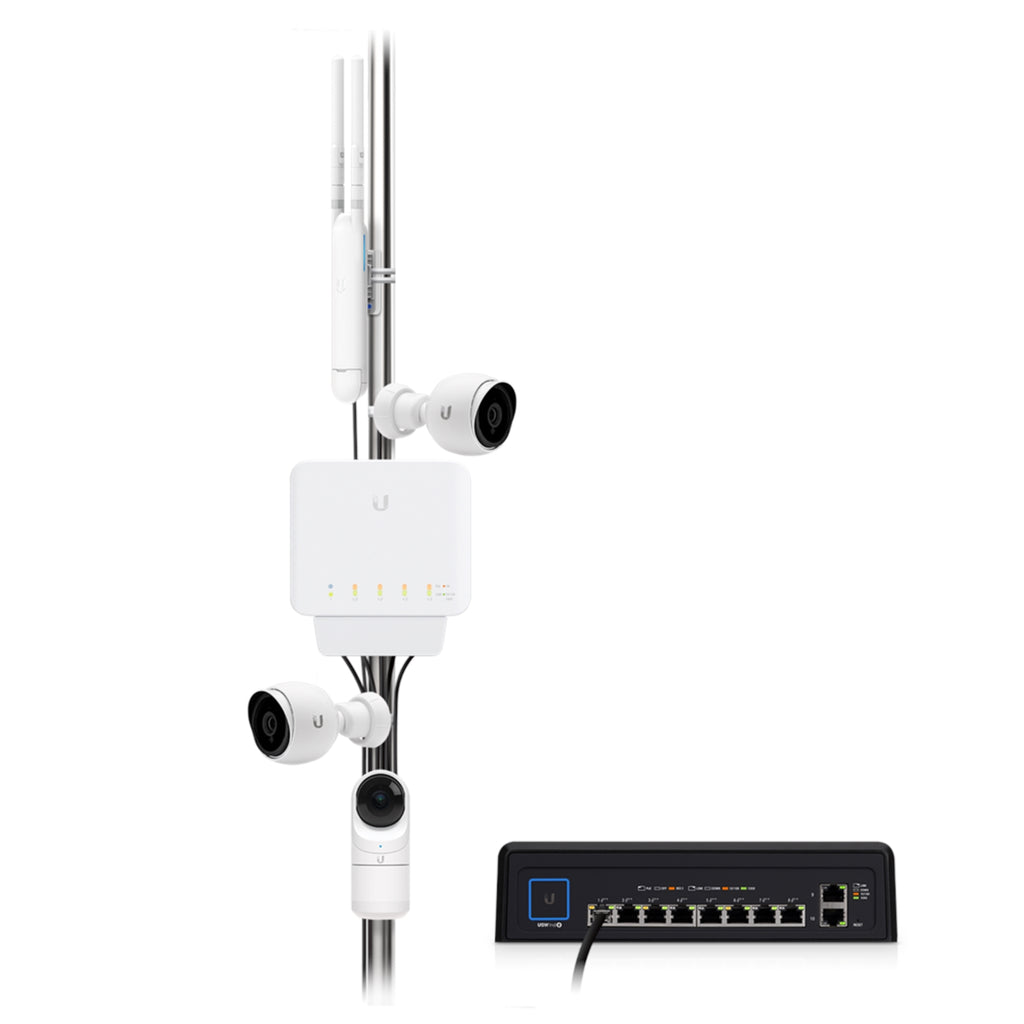

- Small branch offices or remote sites where one PoE source must power the switch and multiple access points or cameras.
- Outdoor deployments requiring a weatherproof, low-profile switch with integrated power distribution.
- Network managers already invested in UniFi infrastructure who need a compact, manageable addition.
Trade-offs
- Networks with high aggregate bandwidth. Total non-blocking throughput is 5 Gbps across five ports, suitable for light to moderate traffic only.
- Deployments needing more than four powered ports. This model has exactly one PoE++ input and four PoE+ outputs; it cannot support more connected PoE devices.
- Multi-gigabit or 10G environments. All five ports are Gigabit only; this switch will bottleneck faster uplinks.
- Installations requiring Layer 3 routing. This is a Layer 2 switch with no routing capability.
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Powered by a single PoE++ input to provide PoE output across up to (4) downstream ports.
- (4) GbE PoE+ ports
- (1) GbE PoE++ input port for power
- 46W PoE availability* PoE++ input
- 20W PoE availability PoE+ input
- 8W PoE availability PoE input
- Indoor/Outdoor
*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).
Networking
| Brand | Ubiquiti |
|---|---|
| Standard | Layer 2 Gigabit Ethernet |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7 Mpps |
| VLANs supported | 1,000 |
| MAC address table | 2,000 |
Ports & power
| Ports | 1 GbE PoE++ input · 4 GbE PoE+ output |
|---|---|
| Total PoE availability | 46W (PoE++/60W adapter) · 20W (PoE+) · 8W (PoE) |
| Max PoE per port | PoE+ |
Performance
| Non-blocking throughput | 5 Gbps |
|---|---|
| Layer 2 features | Egress rate limit, flow control, port isolation, port mirroring, jumbo frames |
Physical
| Dimensions | 122.5 × 107.1 × 28 mm |
|---|---|
| Mounting | Desktop, wall, pole |
| Rating | Indoor and outdoor weatherproof |
| Power consumption | 5W (excluding PoE output) · 51W (including PoE output) |
| Warranty | 2 years |
