Ubiquiti UXG-Lite UniFi Security Gateway Lite - UK PSU
Ubiquiti
Ubiquiti UXG-Lite UniFi Security Gateway Lite - UK PSU
The Ubiquiti UXG-Lite UniFi Security Gateway Lite is a compact routing and security appliance for small to medium networks that need firewall, VPN, and threat detection without the complexity of larger enterprise gateways. It delivers up to 10 times the routing performance of its predecessor while managing traffic with application-aware rules, QoS, and IPS/IDS protection. The package includes a UK USB-C power supply.
Why this product
10x routing performance over the USG
Dual-core ARM processor and 1 GB memory drive significantly faster throughput, especially with IPS/IDS, QoS, and Smart Queues enabled.
Application-aware firewall and IPS/IDS
Signature-based threat detection, content filtering, and policy-based traffic rules protect your network from malicious traffic and unwanted applications.
VPN and SD-WAN built in
License-free SD-WAN, WireGuard, OpenVPN, L2TP, and IPsec site-to-site VPN support advanced networking without additional licensing.
Compact footprint
At 98 × 98 × 30 mm, it fits in tight spaces while handling dual Gigabit Ethernet ports and full security features.
Managed via UniFi platform
Integrate with Cloud Key, Official UniFi Hosting, or your own UniFi Network Server for centralized control alongside UniFi APs and switches.
- ProcessorDual-core ARM Cortex-A53 at 1 GHz
- Memory1 GB DDR3L
- WAN / LAN ports1 × GbE RJ45 WAN, 1 × GbE RJ45 LAN
- PowerUSB-C 5V/3A, UK PSU included
- Max. power consumption3.83 W
- Dimensions98 × 98 × 30 mm
- Weight320 g
- SKUUBI-1050
- EAN810084692042

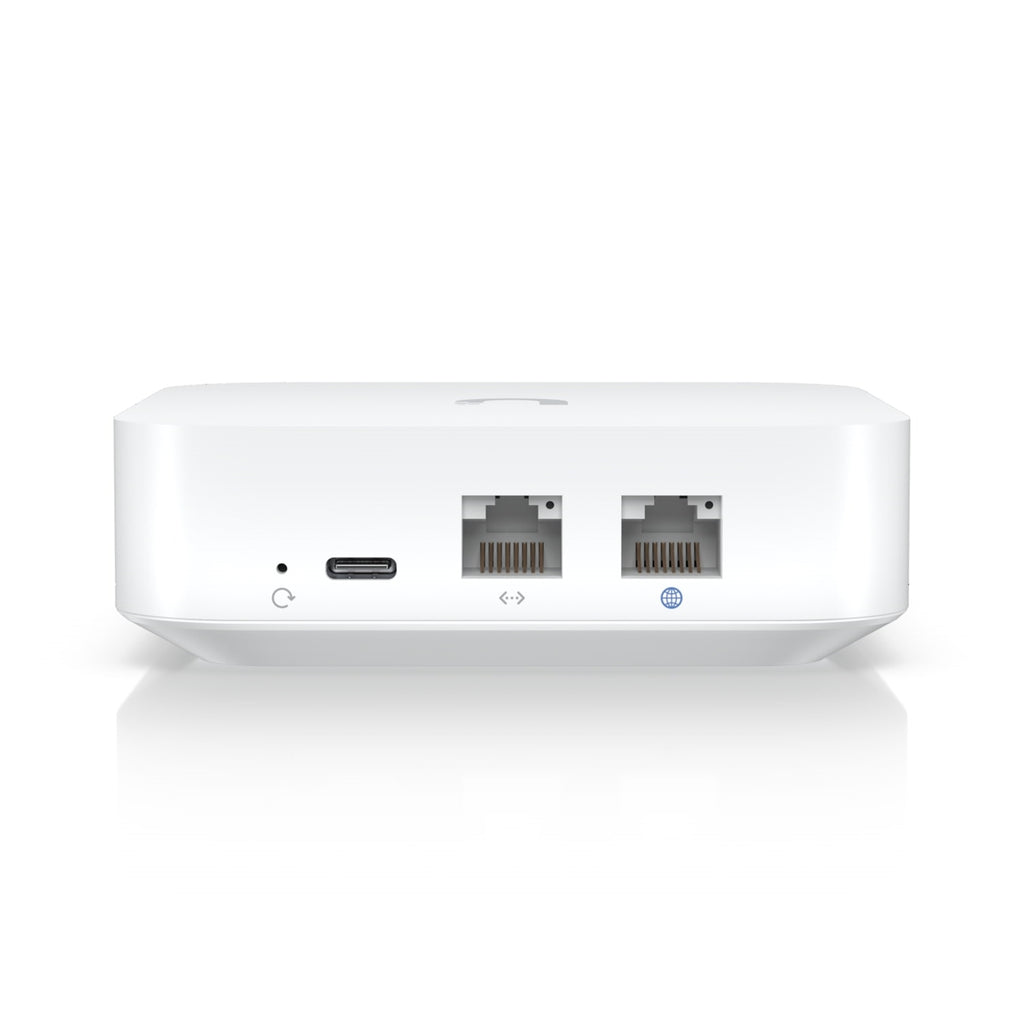

- One Gigabit Ethernet WAN port and one Gigabit Ethernet LAN port for upstream and local network connections.
- USB-C powered with included UK PSU; supports 100–240V input.
- Managed through UniFi ecosystem: Cloud Key, Official UniFi Hosting, or self-hosted UniFi Network Server.
- Bluetooth 5.1 for potential auxiliary connectivity and configuration.
- LTE backup internet support is available but requires external modem; the unit itself has no built-in cellular connection.
Best for
- Small offices and branch locations needing enterprise security without on-premise servers.
- Teams running UniFi wireless APs who want integrated gateway management in one console.
- Networks requiring VPN tunnels, SD-WAN, or multi-WAN failover at a modest footprint.
- Deployments where power is limited or space is constrained.
Trade-offs
- Large enterprise networks: single processor and 1 GB memory are designed for small to medium traffic, not data-centre scale.
- High-speed WAN links: dual Gigabit ports cap throughput at 2 Gbps total; gigabit-plus circuits will bottleneck.
- Standalone operation: requires a UniFi controller (Cloud Key, hosted, or self-managed); cannot run independently.
- Environments above 40°C: operating temperature maximum of 40°C excludes hot or outdoor deployments.
Includes UK USB C Power Supply
The Ubiquiti UniFi UXG-Lite is a compact yet powerful gateway, equipped with a comprehensive suite of advanced routing and security features. It significantly boosts routing performance, offering up to 10 times the capability of its predecessor, the UniFi USG, especially when tested with IPS/IDS, QoS, and Smart Queues. The device can be managed using a Cloud Key, Official UniFi Hosting, or a UniFi Network Server. The UXG-Lite's hardware consists of a dual-core ARM Cortex-A53 processor at 1 GHz and 1 GB DDR3L memory.
For connectivity, it includes one Gigabit Ethernet (GbE) WAN port and one GbE LAN port. It also supports Bluetooth 5.1, and is USB-C powered (with an adapter included), supporting a voltage range of 100–240V.
UXG-Lite offers performance WiFi QoS with UniFi APs, application, domain, and country-based QoS, and application and device type identification. It also provides additional internet quality and outage reporting, and next-generation security with application-aware firewall rules and signature-based IPS/IDS threat detection. The UXG-Lite also supports VLAN/subnet-based traffic segmentation, a full stateful firewall, and advanced networking options including license-free SD-WAN, WireGuard, L2TP and OpenVPN server, and more.
General
| Brand | Ubiquiti |
|---|---|
| Model | UXG-Lite |
| Enclosure material | Polycarbonate |
Hardware
| Processor | Dual-core ARM Cortex-A53 at 1 GHz |
|---|---|
| Memory | 1 GB DDR3L |
| Networking ports | 1 × GbE RJ45 WAN port, 1 × GbE RJ45 LAN port |
| Management interface | Ethernet, Bluetooth 5.1 |
| Power input | USB type C (5V/3A) |
| Supported voltage range | 100–240V |
| Max. power consumption | 3.83 W |
Environmental
| Operating temperature | -10 to 40°C (14 to 104°F) |
|---|---|
| Operating humidity | 5 to 95% noncondensing |
| Dimensions | 98 × 98 × 30 mm (3.9 × 3.9 × 1.2") |
| Weight | 320 g (11.3 oz) |
Security & Networking Features
| QoS | Performance WiFi QoS with UniFi APs; application, domain, and country-based QoS; application and device type identification; internet failover with LTE Backup; internet quality and outage reporting |
|---|---|
| Security | Application-aware firewall rules; signature-based IPS/IDS threat detection; content, country, domain, and ad filtering; VLAN/subnet-based traffic segmentation; full stateful firewall |
| Advanced networking | License-free SD-WAN; WireGuard, L2TP and OpenVPN server; OpenVPN client; OpenVPN and IPsec site-to-site VPN; one-click Teleport and Identity Enterprise VPN; policy-based WAN and VPN routing; DHCP relay; customizable DHCP server; IGMP proxy; IPv6 ISP support |
Compliance
| Certifications | CE, FCC, IC |
|---|
