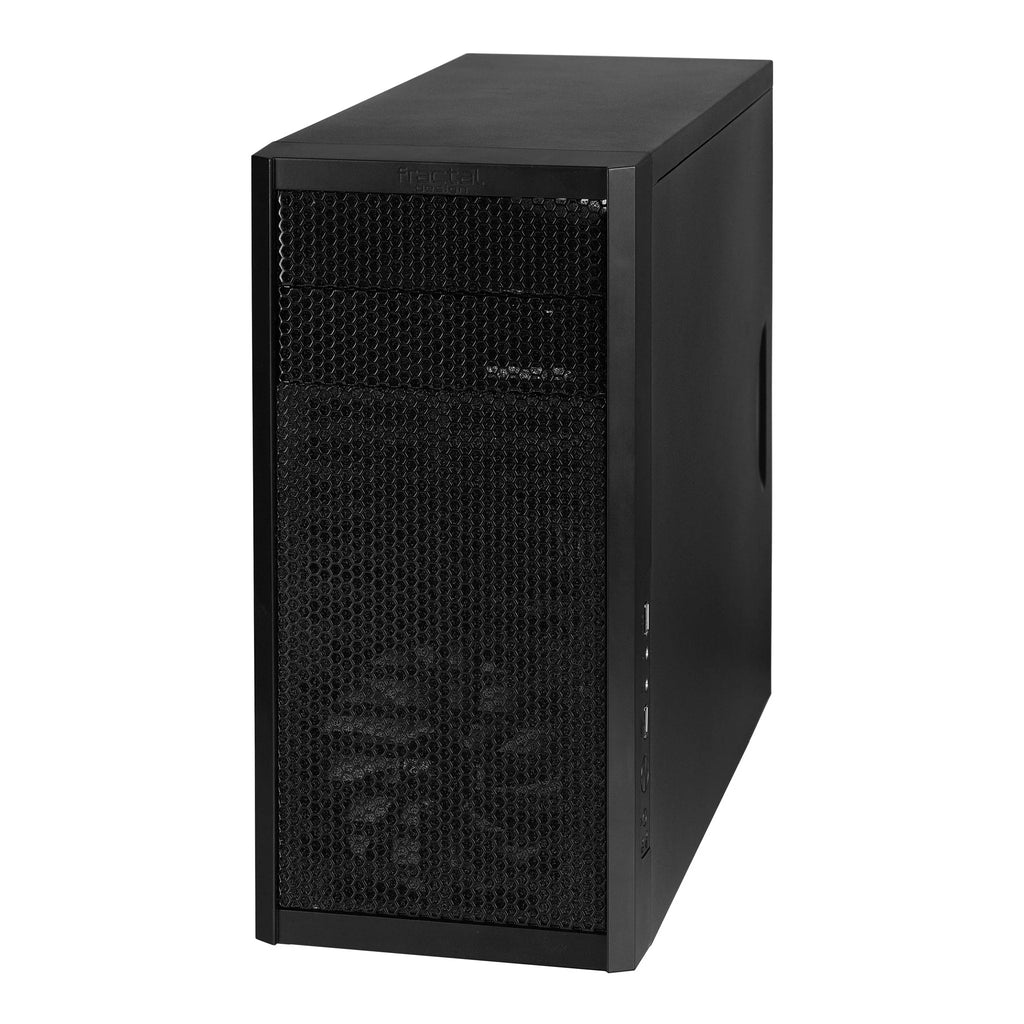

Fractal Design Core 1000 USB 3.0 Micro-ATX Mini Tower Case
Fractal Design
Fractal Design Core 1000 USB 3.0 Micro-ATX Mini Tower Case
The Fractal Design Core 1000 USB 3.0 is a compact micro-ATX case for builders who need a small footprint without sacrificing graphics card support or drive flexibility. It combines a streamlined design with practical cooling layout and USB 3.0 connectivity, eliminating the typical compromises of entry-level builds.
Why this product
Fits graphics cards up to 350 mm
The vertical HDD mounting bracket design clears space for longer GPUs, letting you use modern graphics cards in a small form factor.
Flexible drive configuration
Mount three 2.5" SSDs, two 3.5" HDDs, or mix them — the anti-vibration grommets keep the system quiet.
USB 3.0 front panel
One USB 3.0 and one USB 2.0 port on the front, plus audio in/out and power controls.
Mesh front with dust filter

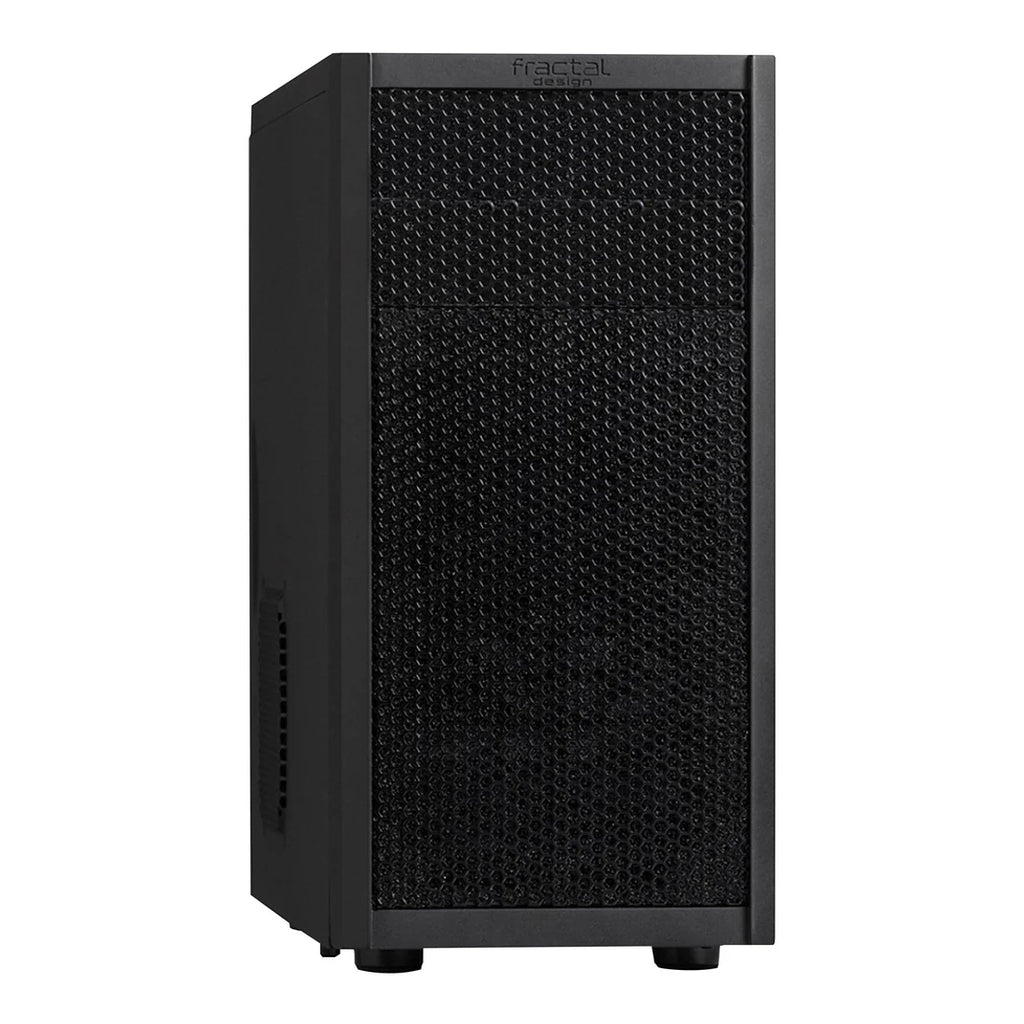

The removable front panel is pre-fitted with a fan filter to prevent dust buildup while maintaining airflow.
- Form factorMicro-ATX mini tower
- Motherboard supportMicro-ATX, Mini-ITX, DTX
- GPU length max350 mm
- Included fan1x 120 mm Silent Series R2
- Front I/O1x USB 3.0, 1x USB 2.0, audio in/out
- Drive bays2x 3.5" HDD or 3x 2.5" SSD or 1x 3.5" + 1x 2.5"
- Warranty2 years
- SKUFRA-1016
- EAN7350041081098
- Fits Micro-ATX, Mini-ITX and DTX motherboards.
- Supports ATX power supplies up to 185 mm in length.
- Accommodates CPU coolers up to 148 mm tall.
- Has room for graphics cards up to 350 mm long.
- Includes two ODD (optical drive) slots and one FDD slot with converter included.
Best for
- Budget-conscious builds that don't compromise on GPU support
- Small desk or shelf spaces where full-size towers don't fit
- Storage-heavy builds needing multiple drives in minimal space
- Quiet systems using fanless or low-noise cooling solutions
Trade-offs
- Builds with multiple large case fans — only three fan mounts total (one 120 mm front, one 92 mm rear, one 120 mm side)
- Water cooling loops — the compact dimensions and limited fan mounting options make radiator placement difficult
- Systems using very long power supplies or large air coolers above 148 mm

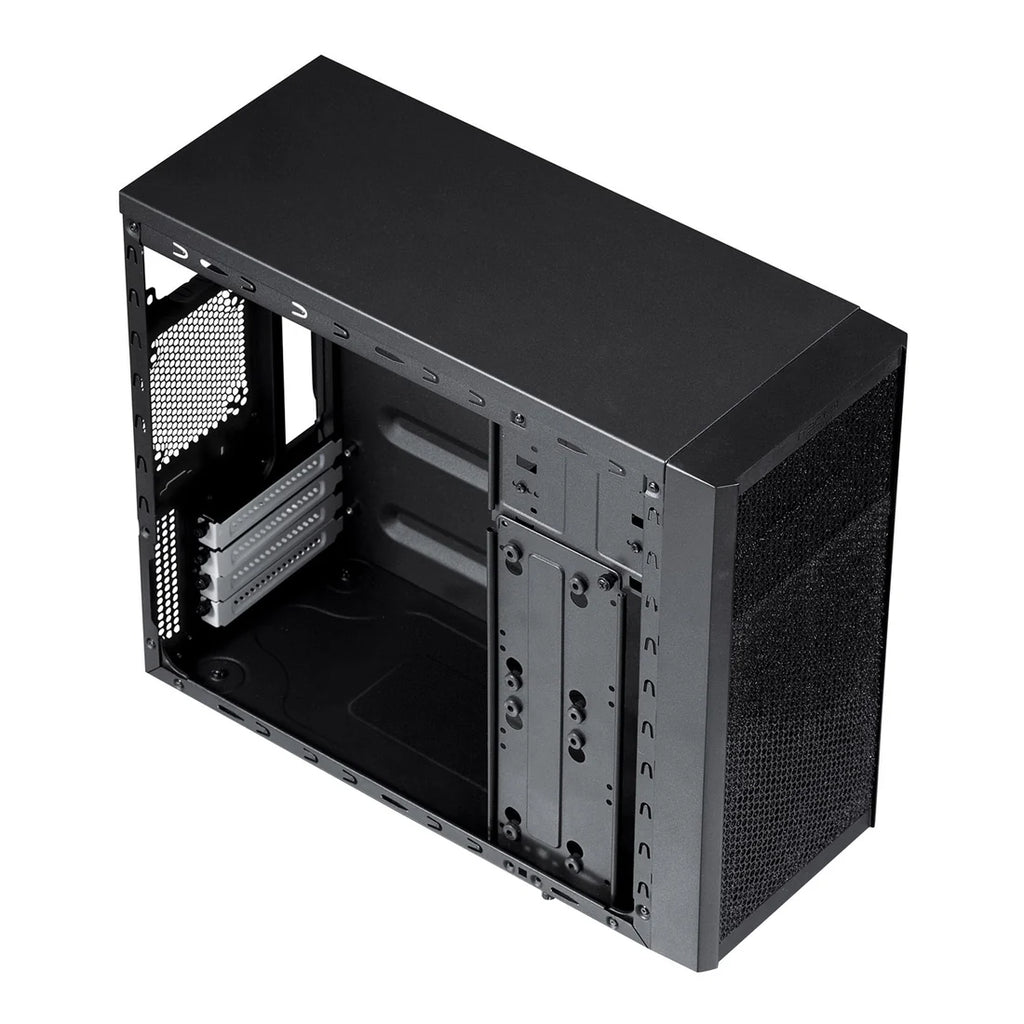

The Fractal Design Core Series offers a unique combination of design, cooling performance and value. The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior. The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.

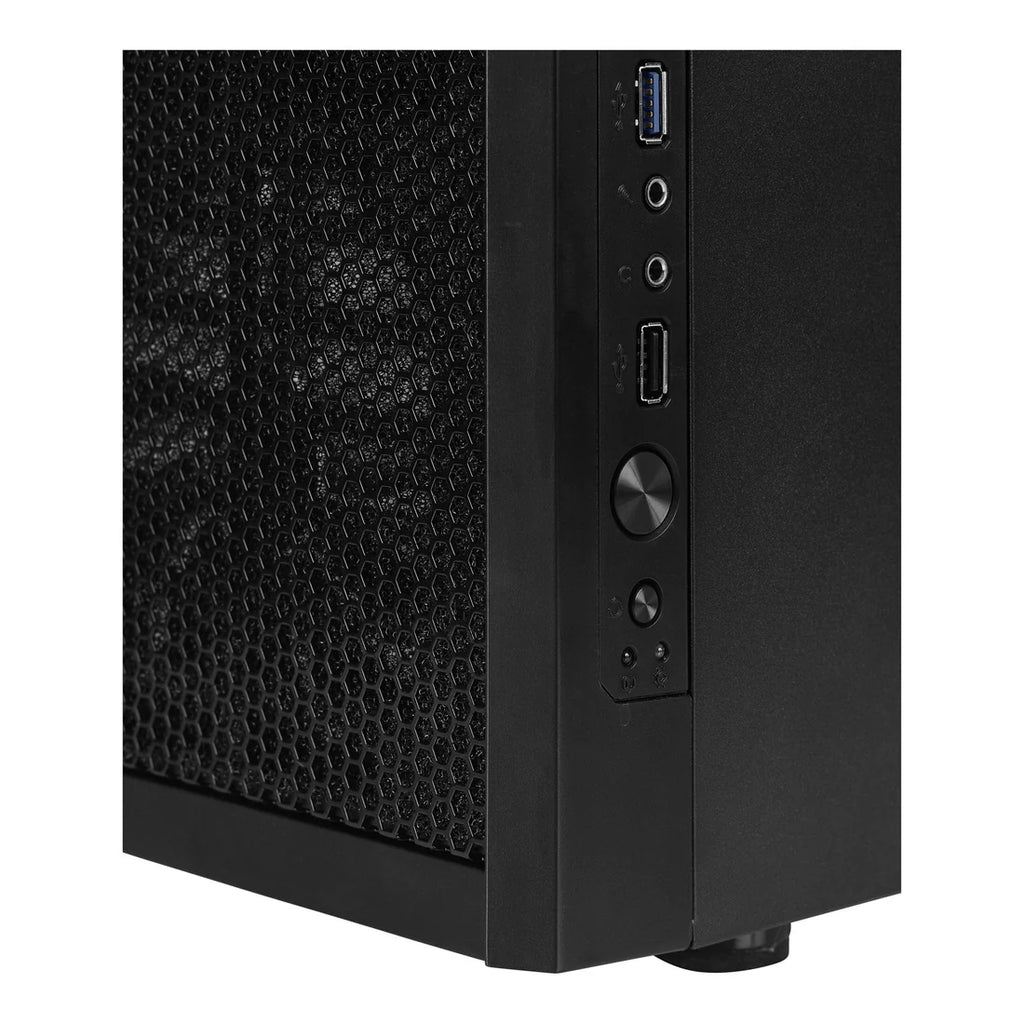

- USB 3.0 I/O Panel: 1x USB 3.0 with internal connector, 1x USB 2.0
- 1 x 120 mm Silent Fan: One Silent Series R2 fan included: 1x 120 mm in front

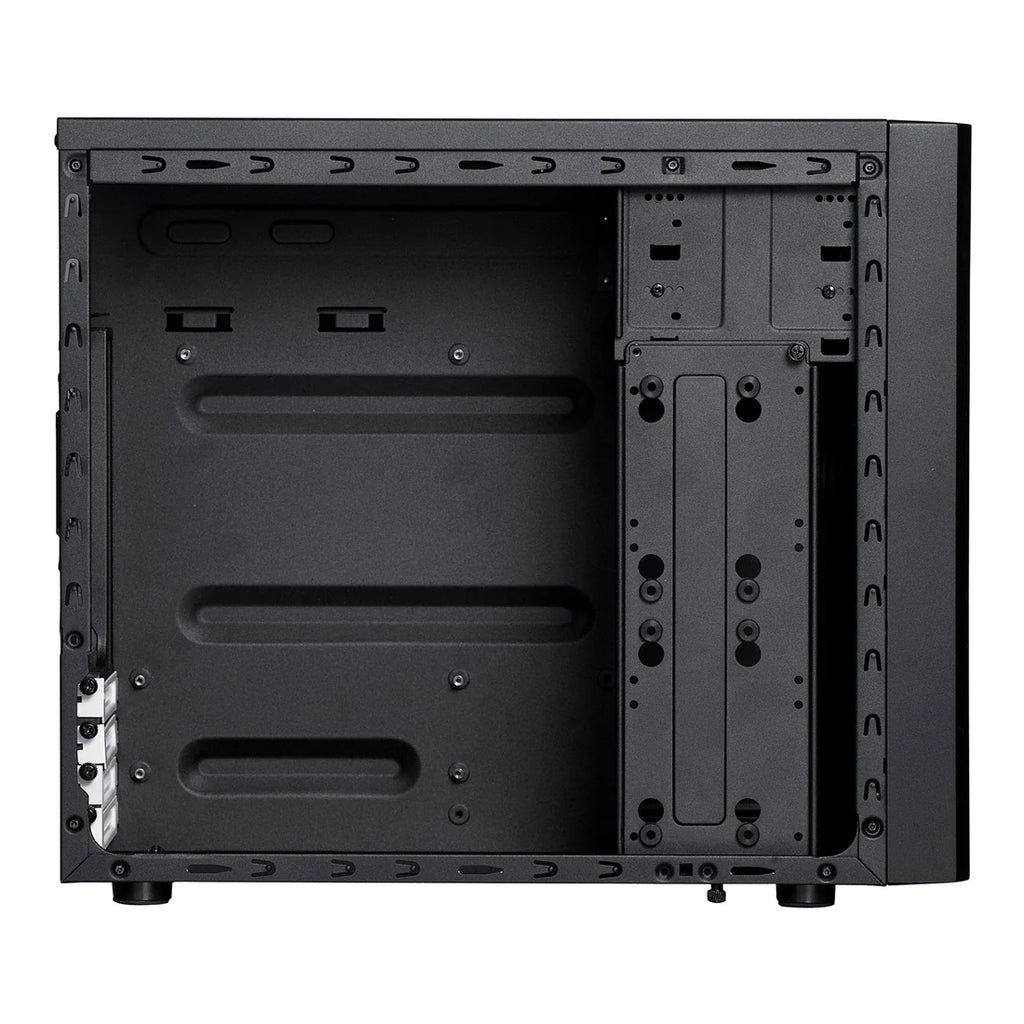

- Smart HDD/SSD positioning: Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets. Supports various combinations of drive set ups: 3x 2.5" SSD, 2x 3.5" HDD or 1x 2.5" SSD + 1x 3.5" HDD
General
| Brand | Fractal Design |
|---|---|
| Color | Black |
| Material | Steel |
Compatibility
| Motherboard types | Micro-ATX, Mini-ITX, DTX |
|---|---|
| PSU compatibility | ATX |
| PSU max length | 185 mm |
| GPU max length | 350 mm |
| CPU cooler max height | 148 mm |
Storage & Expansion
| Drive bay capacity | Two 3.5", or Three 2.5", or One 3.5" + One 2.5" |
|---|---|
| ODD slots | 2 |
| FDD slots | 1 (converter included) |
| Expansion slots | 4 |
Cooling & Connectivity
| Front fan mount | 1x 120 mm |
|---|---|

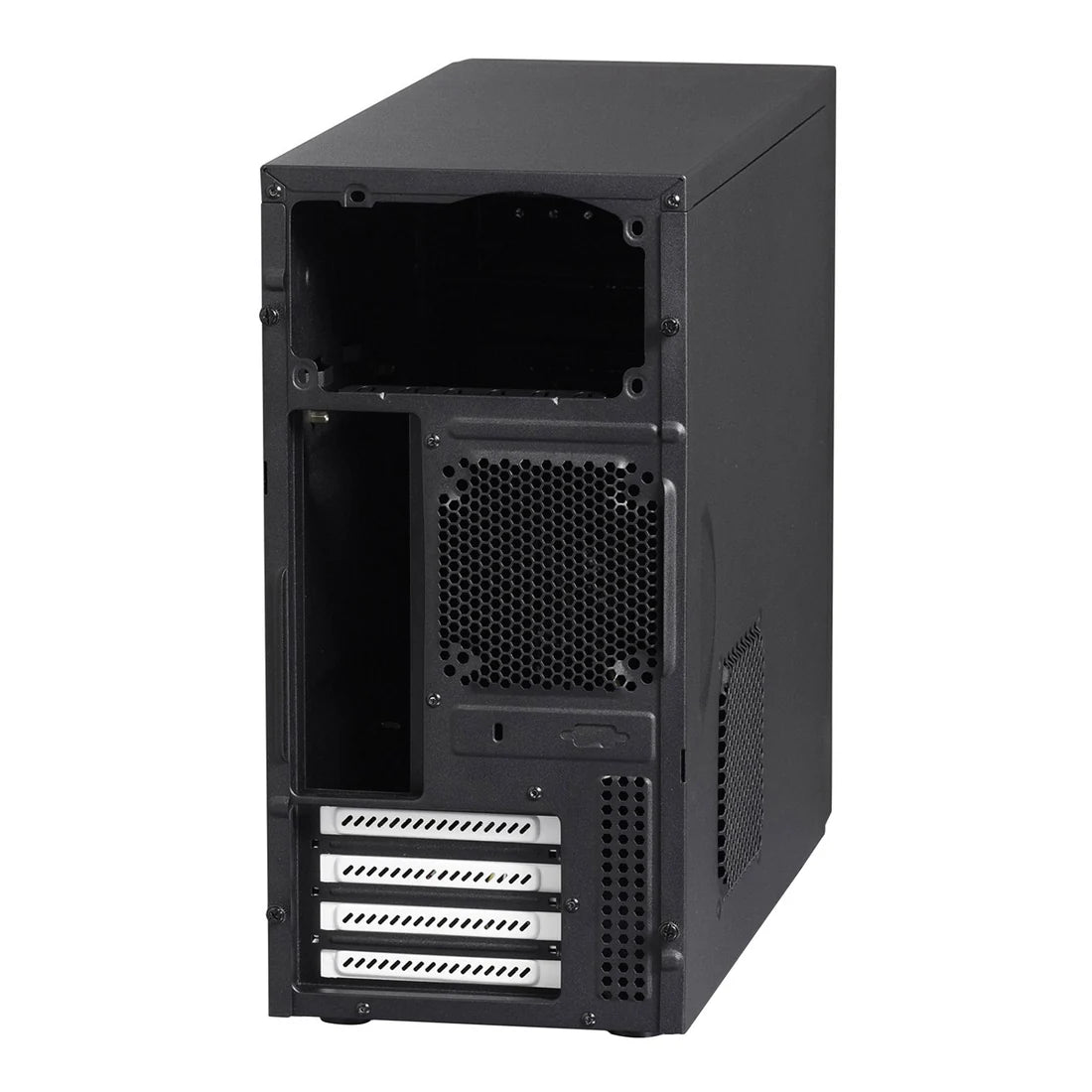

| Rear fan mount | 1x 92 mm |
| Side fan mount | 1x 120 mm |
| Included fan | 1x 120 mm Silent Series R2 (front) |
| USB ports | 1x USB 3.0, 1x USB 2.0 |
| Audio connectors | 3.5 mm microphone in, 3.5 mm headphone out |
Physical
| Dimensions (L × W × H) | 420 x 175 x 365 mm |
|---|---|
| Net weight | 4.1 kg |
