Kingston IronKey Keypad 200 FIPS 140-3 Encrypted USB Drive
Kingston
Kingston IronKey Keypad 200 FIPS 140-3 Encrypted USB Drive
The Kingston IronKey Keypad 200 FIPS 140-3 Encrypted USB Drive is a hardware-encrypted USB flash drive built for users who handle sensitive data and need certified military-grade security. It combines an on-device alphanumeric keypad for PIN access with XTS-AES 256-bit encryption, making it OS-independent and resistant to malware—useful for crossing untrusted networks or sharing access across multiple systems without software overhead.
Why this product
FIPS 140-3 Level 3 validated
Meets military-grade encryption standards with Certificate #5133. The keypad interface means encryption works without relying on the host operating system.
Alphanumeric keypad for PIN access
Hardware-based authentication means the drive stays locked even if plugged into a compromised computer. Admin and User PINs can be set separately.
Read-Only modes protect against malware
Admin can lock the drive globally, or users can enable session-only write protection on untrusted systems. Data remains accessible but cannot be altered.
IP68 waterproof and dustproof
Rated for immersion and solid particle ingress, making it rugged enough for field use or harsh environments.
- Capacity64GB
- Read speed (USB 3.2 Gen 1)145 MB/s
- Write speed (USB 3.2 Gen 1)115 MB/s
- EncryptionXTS-AES 256-bit hardware
- CertificationFIPS 140-3 Level 3
- Waterproof ratingIP68
- Warranty3 years limited
- SKUKIN-6865-64G
- EAN740617330076
- Capacity16GB
- Read speed (USB 3.2 Gen 1)145 MB/s
- Write speed (USB 3.2 Gen 1)115 MB/s
- EncryptionXTS-AES 256-bit hardware
- CertificationFIPS 140-3 Level 3
- Waterproof ratingIP68
- Warranty3 years limited
- SKUKIN-6866-16G
- EAN740617330090
- Capacity32GB
- Read speed (USB 3.2 Gen 1)145 MB/s
- Write speed (USB 3.2 Gen 1)115 MB/s
- EncryptionXTS-AES 256-bit hardware
- CertificationFIPS 140-3 Level 3
- Waterproof ratingIP68
- Warranty3 years limited
- SKUKIN-6867-32G
- EAN740617330083
- Works with any device that has a USB 3.0, 3.1 or 3.2 Gen 1 port, or backwards-compatible USB 2.0.
- OS-independent: no drivers or software required. Authentication happens on the drive itself.
- IP68 rating means it resists water and dust, though the sleeve provided should be used when not in use to protect the keypad.
- USB 2.0 backward compatibility exists but delivers 30 MB/s read and 20 MB/s write—use USB 3.2 Gen 1 ports for full speed.
Best for
- Teams handling classified or regulated data
- Portable data security across multiple devices and networks
- Environments where host security cannot be trusted
- Field work or harsh conditions requiring waterproof storage
Trade-offs
- High-speed data transfer workflows: 145 MB/s read is adequate for secure backup but slower than enterprise SSDs or newer NVMe drives.
- Users who prefer software-only encryption: This drive mandates hardware encryption and keypad authentication with no option to disable it.
- Large capacity needs above 64GB: Maximum capacity is 64GB; larger datasets require multiple drives or a different storage solution.
- Systems without USB 3.2 Gen 1 ports: While USB 2.0 backward compatibility exists, speeds drop significantly to 30 MB/s read.

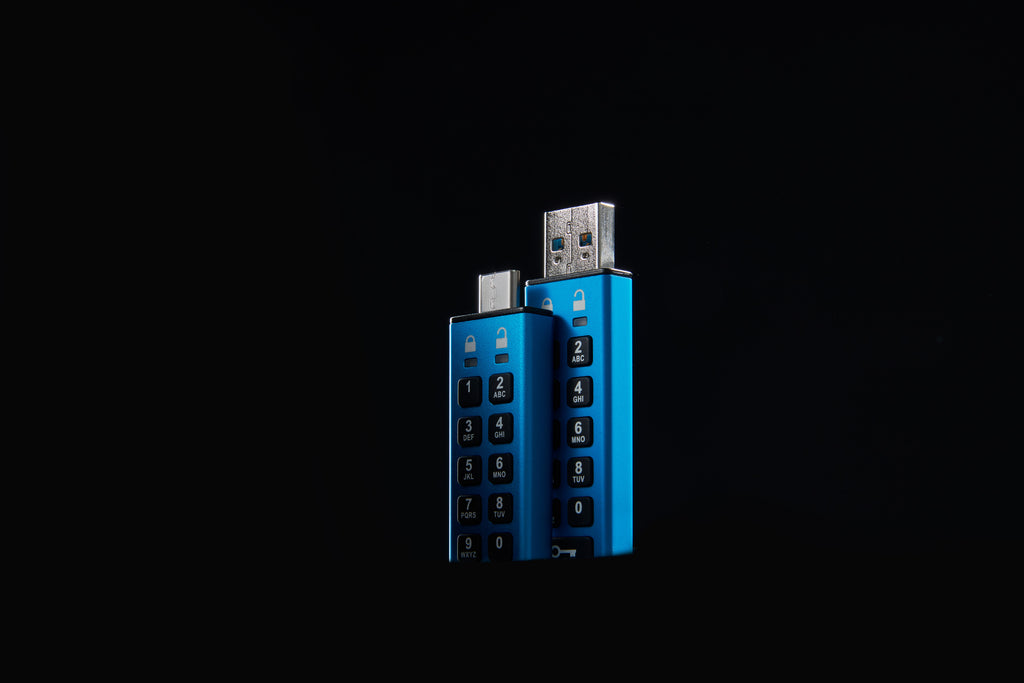

The Kingston® IronKey™ Keypad 200 series are OS-independent hardware-encrypted USB Type-A and USB Type-C®¹ drives with an alphanumeric keypad for easy-to-use PIN access.
The KP200 series is FIPS 140-3 Level 3 Validated for military-grade security with enhancements that elevate the bar for data protection and incorporates XTS-AES 256-bit hardware-based encryption.
The drive also provides two levels of Read-Only (or Write-Protect) modes – a Global mode that can be set by Admin, and a session-only mode that can be set by User. Read-Only modes can protect the drive from malware on untrusted systems. In addition, Admin can load content and set the Global Read-Only mode, so that User can access the data but not make any changes.
Card
| Brand | Kingston |
|---|---|
| Capacity | 64GB |
| Connector | USB Type-A |
| Interface | USB 3.2 Gen 1 |
Performance
| Read speed (USB 3.2 Gen 1) | 145 MB/s |
|---|---|
| Write speed (USB 3.2 Gen 1) | 115 MB/s |
| Read speed (USB 2.0) | 30 MB/s |
| Write speed (USB 2.0) | 20 MB/s |
Durability
| Encryption standard | XTS-AES 256-bit hardware-based |
|---|---|
| Security certification | FIPS 140-3 Level 3 (Certificate #5133) |
| Authentication | Alphanumeric keypad with Admin and User PIN |
| Protection modes | Global and session-only Read-Only / Write-Protect |
| Environmental rating | IP68 waterproof and dustproof |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Warranty | Limited 3-year warranty |
Physical
| Dimensions (with sleeve) | 80mm x 20mm x 11mm |
|---|---|
| Dimensions (without sleeve) | 78mm x 18mm x 8mm |
Card
| Brand | Kingston |
|---|---|
| Capacity | 16GB |
| Connector | USB Type-A |
| Interface | USB 3.2 Gen 1 |
Performance
| Read speed (USB 3.2 Gen 1) | 145 MB/s |
|---|---|
| Write speed (USB 3.2 Gen 1) | 115 MB/s |
| Read speed (USB 2.0) | 30 MB/s |
| Write speed (USB 2.0) | 20 MB/s |
Durability
| Encryption standard | XTS-AES 256-bit hardware-based |
|---|---|
| Security certification | FIPS 140-3 Level 3 (Certificate #5133) |
| Authentication | Alphanumeric keypad with Admin and User PIN |
| Protection modes | Global and session-only Read-Only / Write-Protect |
| Environmental rating | IP68 waterproof and dustproof |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Warranty | Limited 3-year warranty |
Physical
| Dimensions (with sleeve) | 80mm x 20mm x 11mm |
|---|---|
| Dimensions (without sleeve) | 78mm x 18mm x 8mm |
Card
| Brand | Kingston |
|---|---|
| Capacity | 32GB |
| Connector | USB Type-A |
| Interface | USB 3.2 Gen 1 |
Performance
| Read speed (USB 3.2 Gen 1) | 145 MB/s |
|---|---|
| Write speed (USB 3.2 Gen 1) | 115 MB/s |
| Read speed (USB 2.0) | 30 MB/s |
| Write speed (USB 2.0) | 20 MB/s |
Durability
| Encryption standard | XTS-AES 256-bit hardware-based |
|---|---|
| Security certification | FIPS 140-3 Level 3 (Certificate #5133) |
| Authentication | Alphanumeric keypad with Admin and User PIN |
| Protection modes | Global and session-only Read-Only / Write-Protect |
| Environmental rating | IP68 waterproof and dustproof |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Warranty | Limited 3-year warranty |
Physical
| Dimensions (with sleeve) | 80mm x 20mm x 11mm |
|---|---|
| Dimensions (without sleeve) | 78mm x 18mm x 8mm |
Every option side by side. Rows that differ between them are highlighted — those are the ones worth deciding on.
| 64GB | 16GB | 32GB | |
|---|---|---|---|
| Capacity | 64GB | 16GB | 32GB |
| Read speed (USB 3.2 Gen 1) | 145 MB/s | 145 MB/s | 145 MB/s |
| Write speed (USB 3.2 Gen 1) | 115 MB/s | 115 MB/s | 115 MB/s |
| Encryption | XTS-AES 256-bit hardware | XTS-AES 256-bit hardware | XTS-AES 256-bit hardware |
| Certification | FIPS 140-3 Level 3 | FIPS 140-3 Level 3 | FIPS 140-3 Level 3 |
| Waterproof rating | IP68 | IP68 | IP68 |
| Warranty | 3 years limited | 3 years limited | 3 years limited |
